1. Introduzzjoni
The TOPDON TOPBT600PLUS is a professional-grade 2-in-1 Battery and Resistance Tester designed for comprehensive battery diagnostics in various automotive and industrial settings. This device accurately tests 6V, 12V, and 24V battery systems, providing reliable data for flooded, AGM, GEL, and EFB lead-acid batteries. Additionally, it supports internal resistance measurements for lithium, alkaline, and carbon-zinc batteries. Featuring a bright 3.5-inch display and an onboard power supply, the BT600PLUS offers fast, versatile, and dependable performance.
2. Informazzjoni dwar is-Sigurtà
Read all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Protezzjoni tal-għajnejn: Always wear ANSI-approved eye protection when working near batteries.
- Ventilazzjoni: Ensure adequate ventilation when testing batteries, as they can emit explosive gases.
- Aċidu tal-batterija: Evita kuntatt mal-aċidu tal-batterija. Jekk iseħħ kuntatt, laħlaħ immedjatament bl-ilma u fittex attenzjoni medika.
- Xrar u Fjamma: Żomm xrar, fjammi, u materjali li jpejpu 'l bogħod mill-batteriji.
- Għodda iżolati: Uża għodda iżolata biex tevita short circuits aċċidentali.
- Konnessjoni xierqa: Connect the tester leads correctly to the battery terminals (red to positive, black to negative).
- Ambjent Operattiv: Tħaddimx l-apparat f'damp jew kundizzjonijiet imxarrba.
3. Prodott Aktarview
The TOPBT600PLUS features a robust design for professional use. Its main components include a 3.5-inch color display, control buttons, and two sets of test leads for versatile connection options.

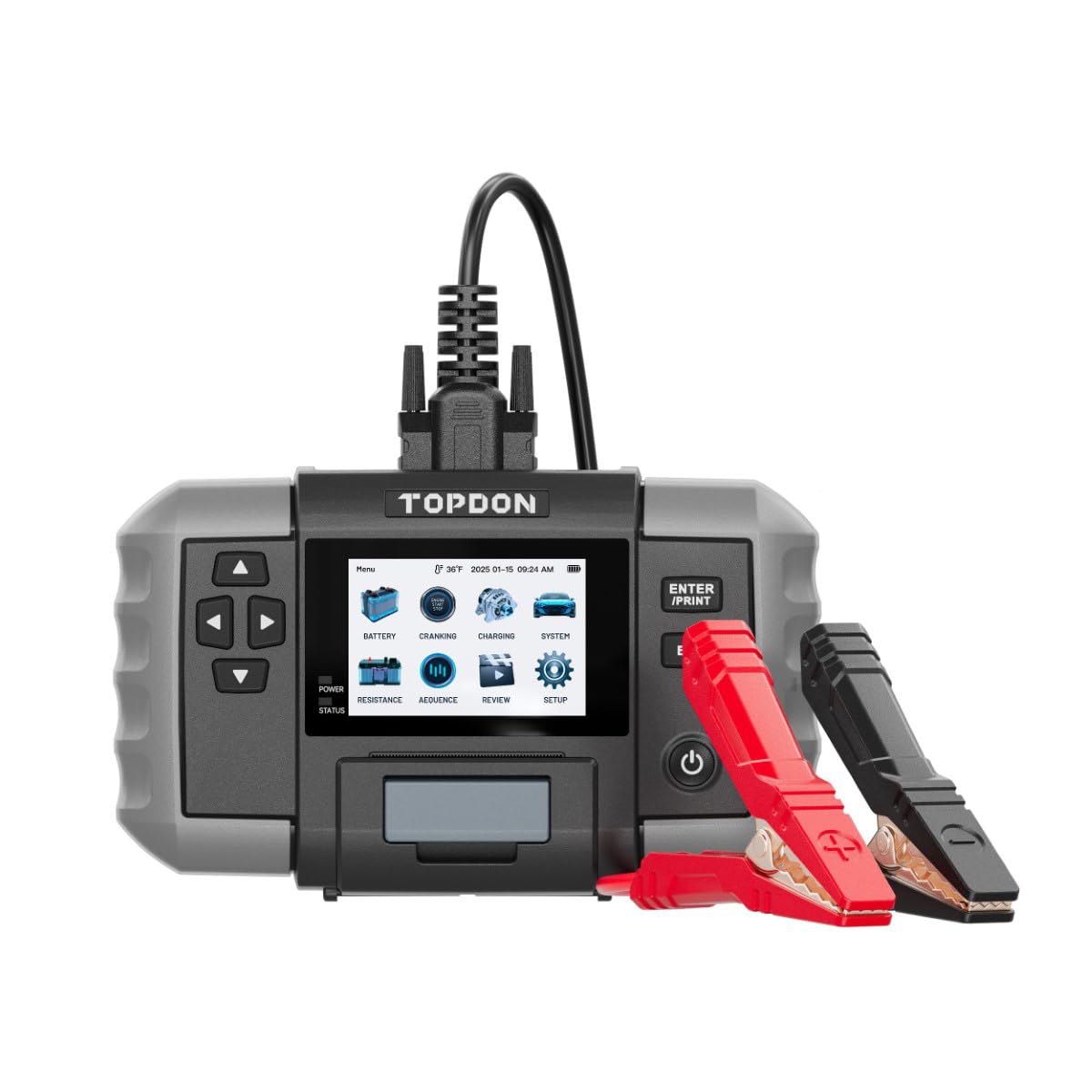

Figura 1: Quddiem view of the TOPDON TOPBT600PLUS device. This image displays the main unit with its 3.5-inch screen and control buttons, along with the attached test leads.
The device's onboard power source allows for testing batteries down to 2V, enhancing its flexibility for various diagnostic scenarios.
4. Setup
Follow these steps to prepare your TOPBT600PLUS for operation:
- Spakkjar: Carefully remove the TOPBT600PLUS from its packaging and inspect for any damage.
- Qawwa Inizjali: The device is equipped with an internal power source. Press the power button to turn it on.
- Konnessjoni tal-wajers tat-test: Ensure the test leads are securely connected to the device. The red clamp is for the positive (+) terminal, and the black clamp is for the negative (-) terminal.
- Tħejjija tal-Batterija: Ensure the battery terminals are clean and free of corrosion for accurate readings.
5. Istruzzjonijiet Operattivi
The TOPBT600PLUS offers various testing modes for comprehensive battery analysis.
5.1. Test tal-Batterija
This mode performs cranking, charging, and system tests for 6V, 12V, and 24V batteries.
- Qabbad mal-Batterija: Waħħal il-cl aħmaramp għat-terminal pożittiv (+) tal-batterija u l-iswed clamp għat-terminal negattiv (-) tal-batterija.
- Agħżel it-Tip tal-Batterija: On the device screen, select the appropriate battery type (e.g., Flooded, AGM, GEL, EFB).
- Input Battery Specifications: Enter the battery's Cold Cranking Amps (CCA) or other relevant ratings as prompted.
- Ibda t-Test: Follow the on-screen instructions to initiate the test. The device will guide you through cranking and charging system checks.
- View Riżultati: The 3.5-inch display will show detailed results, including battery voltage, CCA value, internal resistance, and overall battery health status.
5.2. Test tar-Reżistenza
This mode measures the internal resistance of various battery chemistries.
- Qabbad mal-Batterija: Waħħal il-cl aħmaramp għat-terminal pożittiv (+) tal-batterija u l-iswed clamp għat-terminal negattiv (-) tal-batterija.
- Select Resistance Test: Navigate to the Resistance Test option on the device menu.
- Select Battery Chemistry: Choose the correct battery chemistry (e.g., Lithium, Alkaline, Carbon-Zinc) if prompted.
- Ibda t-Test: Initiate the test. The device will measure and display the internal resistance.
- Interpreta r-Riżultati: Compare the measured resistance with the manufacturer's specifications for the battery to assess its condition.
5.3. Sequence Testing
The TOPBT600PLUS supports sequence testing for up to 500 batteries across 10 groups, ideal for batch testing.
- Setup Thresholds: Ikkonfigura voltage or resistance thresholds within the device settings to automatically identify underperforming units.
- Agħmel it-Testijiet: Connect and test batteries sequentially. The device will alert you if a battery falls outside the set parameters.
6. Manutenzjoni
Proper maintenance ensures the longevity and accuracy of your TOPBT600PLUS.
- Tindif: Imsaħ l-apparat b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
- Ħażna: Store the tester in a dry, cool environment, away from direct sunlight and extreme temperatures.
- Lead Care: Inspect test leads regularly for damage. Replace if insulation is cracked or wires are exposed.
- Aġġornamenti tas-Software: Check the official TOPDON webŻur is-sit perjodikament għal aġġornamenti tal-firmware biex tiżgura prestazzjoni u kompatibilità ottimali.
7 Issolvi l-problemi
If you encounter issues with your TOPBT600PLUS, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-apparat ma jixgħelx | Low internal battery; device malfunction | Ensure the internal battery is charged. If issue persists, contact support. |
| Qari mhux eżatt | Poor connection; dirty battery terminals; incorrect battery type selected | Clean battery terminals. Ensure clamps are securely attached. Verify correct battery type and specifications are entered. |
| L-ebda output tal-wiri | Screen damage; software error | Restart the device. If the screen remains blank, contact customer support. |
| Clamps get hot during testing | Loose connection; excessive current draw | Tiżgura clamps are tightly secured. Discontinue test if excessive heat is observed and check battery condition. |
8. Speċifikazzjonijiet
Key technical specifications for the TOPDON TOPBT600PLUS:
- Ditta: TOPDON
- Mudell: TOPBT600PLUS
- Sors tal-Enerġija: Battery Powered (Internal)
- Vol Operattiv Minimutage: 2 Volts
- Piż: 4.41 lbs
- Wiri: Skrin tal-Kulur ta '3.5 pulzieri
- Supported Battery Types (Lead-Acid): Mgħarrqa, AGM, GEL, EFB
- Supported Battery Chemistries (Resistance Test): Lithium, Alkaline, Carbon-Zinc
- Sistema Voltage: 6V, 12V, 24V
9. Garanzija u Appoġġ
For detailed warranty information, please refer to the warranty card included with your product or visit the official TOPDON websit. It-termini tal-garanzija tipikament ikopru difetti fil-manifattura għal perjodu speċifikat mid-data tax-xiri.
For technical support, troubleshooting assistance, or service inquiries, please contact TOPDON customer support through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fid-dokumentazzjoni tal-prodott tiegħek.
