Gevi ECMG1-SS0A1 Espresso Machine Instruction Manual

1. Prodott Aktarview

The Gevi ECMG1-SS0A1 Espresso Machine is a versatile appliance designed for brewing espresso-based beverages. It features a 20-bar pump for optimal flavor extraction, NTC temperature control for consistent brewing, and a pre-infusion function. This machine supports both Nespresso Original capsules and ground coffee, offering flexibility for your brewing preferences. A built-in pressure gauge assists in achieving the optimal extraction zone.

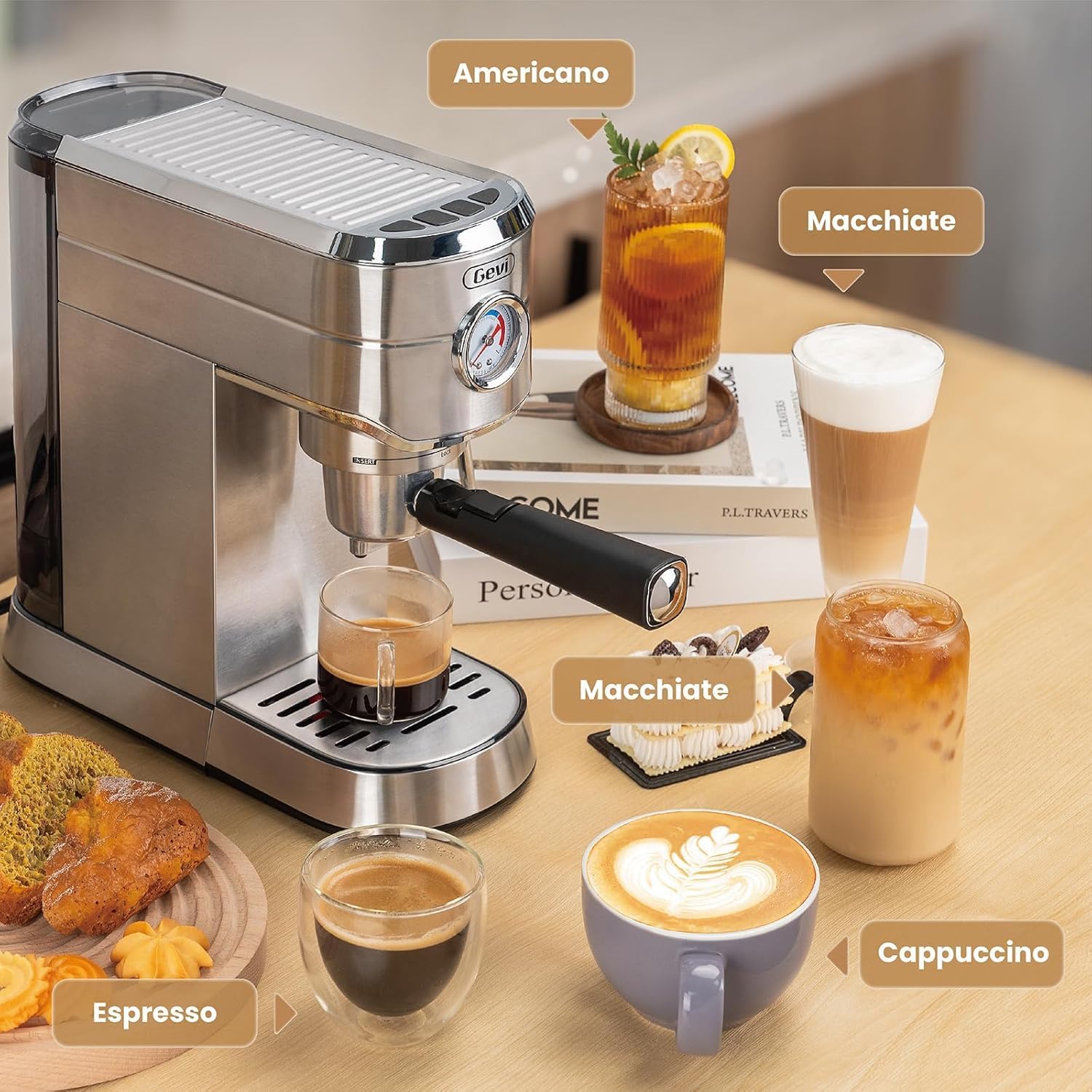

Image: Gevi Espresso Machine showcasing different coffee beverages it can prepare.

2. X'hemm fil-Kaxxa

Your Gevi ECMG1-SS0A1 Espresso Machine package includes the following components:

• 20Bar Espresso Machine x 1
• Capsules Portafilter x 1
• Powder Portafilter x 1
• 51mm Double Cup Filter x 1
• 51mm Single Cup Filter x 1
• Mgħarfa & Tamper x 1
• Cleaning Pin x 1
• Manwal għall-Utent x 1

(Note: Milk pitcher is not included.)

Image: Labeled diagram of the Gevi Espresso Machine and its included accessories.

3. Setup

1. Iftaħ il-pakkett u Naddaf: Carefully remove all components from the packaging. Wash the water tank, portafilters, and drip tray with warm soapy water. Rinse thoroughly and dry.
2. Poġġi l-Magni: Place the espresso machine on a stable, flat, and dry surface. Ensure there is adequate space around the machine for ventilation and operation.
3. Imla t-Tank tal-Ilma: Remove the 1-liter water tank from the back of the machine. Fill it with fresh, cold water up to the 'MAX' line. Reinsert the water tank securely into its position.
4. Ċiklu Inizjali tat-Tlaħliħ: Before first use, perform a rinse cycle. Fill the water tank, place a cup under the portafilter, and run a single shot without coffee. This primes the system and cleans internal components.

Image: Removable water tank for easy filling.

4. Istruzzjonijiet Operattivi

4.1 Brewing Espresso with Coffee Powder

1. Ipprepara l-Portafilter: Insert the 51mm single or double cup filter into the powder portafilter.
2. Żid il-Kafè: Use the included spoon to add desired amount of ground coffee into the filter. Level and tamp the grounds firmly using the tamper end of the spoon.
3. Waħħal il-Portafilter: Align the portafilter with the group head on the machine and twist it firmly to the 'LOCK' position.
4. Poġġi t-Tazza: Poġġi t-tazza/i tal-espresso tiegħek fuq it-trej tat-taqtir direttament taħt il-bekkijiet tal-portafilter.
5. Brew: Press the single shot or double shot button on the control panel. The machine will automatically brew the espresso.

Image: Simple steps to get perfect espresso with the powder portafilter.

4.2 Brewing Espresso with Nespresso Original Capsules

1. Prepare Capsule Portafilter: Open the capsules portafilter.
2. Daħħal il-Kapsula: Correctly place a Nespresso Original capsule into the capsule portafilter and close it.
3. Waħħal il-Portafilter: Align the capsule portafilter with the group head and twist it firmly to the 'LOCK' position.
4. Poġġi t-Tazza: Poġġi t-tazza/i tal-espresso tiegħek fuq it-trej tat-taqtir direttament taħt il-bekkijiet tal-portafilter.
5. Brew: Press the single shot or double shot button on the control panel. The machine will automatically brew the espresso.

Image: Simple steps to get perfect coffee with the capsule portafilter.

4.3 Ir-Ragħwa tal-Ħalib

1. Ipprepara Ħalib: Imla buqar tal-ħalib b'ħalib kiesaħ.
2. Attiva l-istim: Press the steam button on the control panel. Wait until the heating for steam is finished (indicator light will change).
3. Pożizzjoni tal-Bastun tal-Fwar: Għaddas il-ponta tal-bastun tal-fwar eżatt taħt il-wiċċ tal-ħalib.
4. Ħalib bir-Ragħwa: Turn the steam knob to release steady steam. Move the pitcher up and down to create desired microfoam.
5. Bastun Nadif: After frothing, turn off the steam, wipe the steam wand with a damp cloth, and purge a small amount of steam to clear any milk residue.

Image: Simple steps to make milk froth.

4.4 Operation Video

Video: An official operation video demonstrating the use of the Gevi Espresso Machine.

5. Manutenzjoni

Regular cleaning and maintenance ensure the longevity and optimal performance of your Gevi Espresso Machine.

• Trej tat-taqtir: The removable drip tray should be emptied and cleaned regularly. A red float indicator will rise when the tray is full.
• Bastun tal-Fwar: Always wipe the steam wand immediately after use with a damp cloth to prevent milk residue buildup. Purge steam briefly to clear the internal passage.
• Portafilters & Filters: Clean portafilters and filters after each use.
• Tneħħija tal-Ġebla: Descale the machine periodically according to the instructions in the full user manual to prevent mineral buildup.

Image: The stainless steel housing of the Gevi Espresso Machine is easy to maintain and clean.

6 Issolvi l-problemi

If you encounter any issues with your Gevi Espresso Machine, please refer to the detailed troubleshooting section in the full user manual. Common issues and their solutions are typically covered there. For persistent problems, contact customer support.

7. Speċifikazzjonijiet

Image: Gevi Espresso Machine with key dimensions highlighted.

8. Garanzija u Appoġġ

Gevi values your satisfaction. Every Gevi product (purchased via an official or authorized channel) is entitled to a 12-month warranty and lifetime technical support. If you encounter any issue with your Gevi latte machine, please feel free to contact us.
