Garvee Heavy Duty 40-Inch Snow Pusher with Adjustable Handle and Angled Blade - Instruction Manual

1. Prodott Aktarview

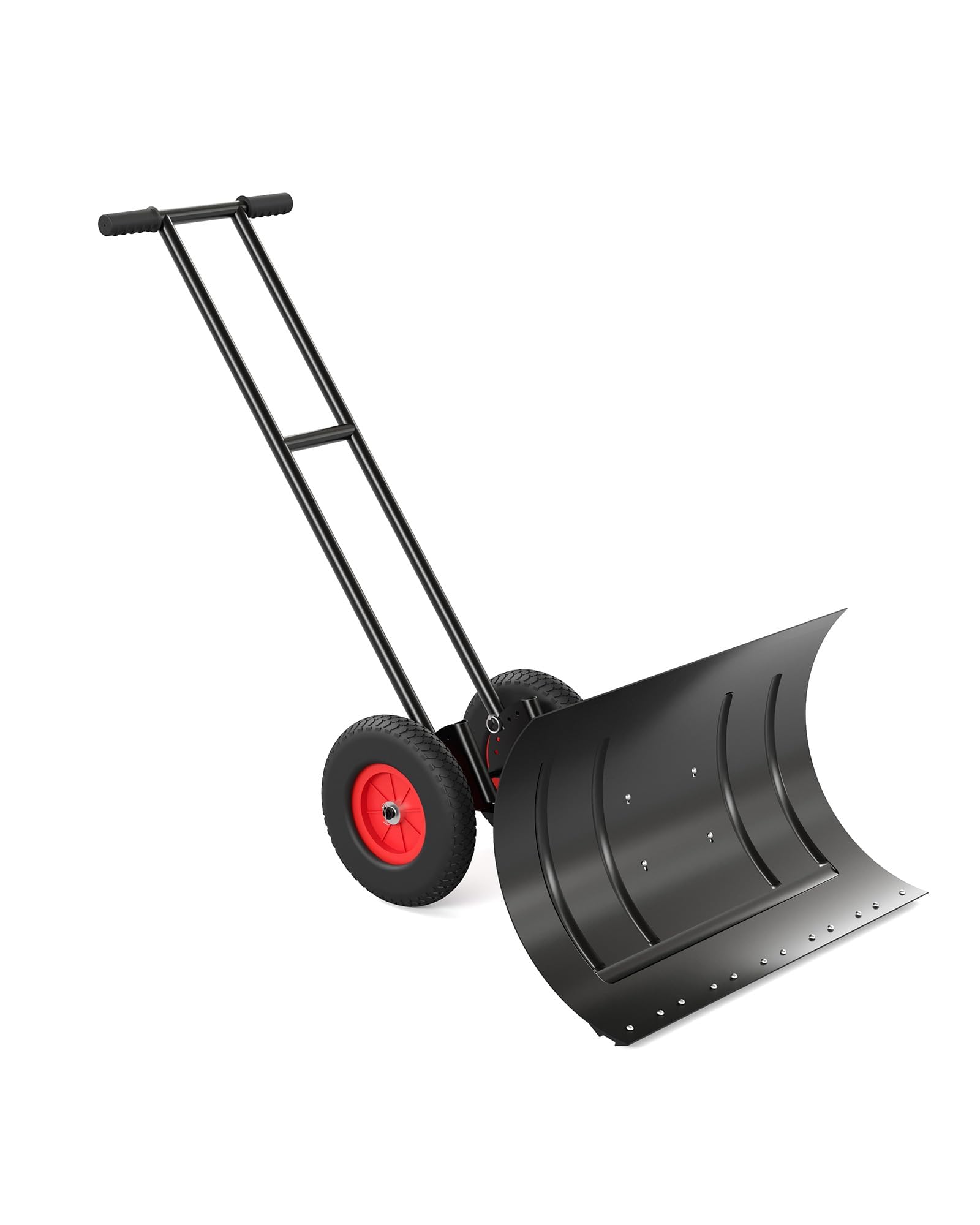

The Garvee Heavy Duty Snow Pusher is engineered for efficient and effortless snow removal from driveways, sidewalks, and decks. Featuring a robust design with a 40-inch wide blade, adjustable handle, and large rubber wheels, this snow pusher significantly reduces the physical effort and time required for clearing snow.

Karatteristiċi ewlenin:

• Wheeled Design: Equipped with 9.8-inch rubber wheels for smooth gliding and reduced effort.
• Manku aġġustabbli: 5 height settings (15 to 44 inches) with non-slip rubber grips for ergonomic use and easy storage.
• Angolu tax-Xafra Aġġustabbli: Blade adjusts 45 degrees left or right for multi-directional snow removal.
• Kostruzzjoni heavy-duty: Durable steel blade with a plastic base to protect surfaces and a solid steel frame for long-lasting strength.
• Easy Assembly & Storage: Designed for quick assembly and disassembly, allowing for convenient storage.

2. Informazzjoni dwar is-Sigurtà

Please read and understand all safety warnings and instructions before operating the Garvee Snow Pusher. Failure to follow these instructions may result in injury or property damage.

• Always wear appropriate eye protection when using the shovel.
• Be aware of your surroundings and avoid contact with underground utilities.
• Keep hands and feet away from the blade and wheels while in use.
• Store the shovel in a dry place and keep it out of reach of children when not in use.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti qabel tibda l-assemblaġġ:

• Main Frame Assembly with Wheels
• Adjustable Handle Sections
• 40-Inch Angled Blade
• Hardware (bolts, pins, wrenches)
• Manwal ta' Istruzzjoni

4. Istruzzjonijiet tal-Assemblea

Follow these steps to assemble your Garvee Snow Pusher. Refer to the included video for a visual guide.

1. Iftaħ il-komponenti kollha mill-pakkett u poġġihom fuq wiċċ nadif u ċatt.
2. Attach the main handle sections to the wheeled frame using the provided bolts and knobs. Ensure they are securely tightened.
3. Connect the angled blade to the main frame using the designated bolts and the pivot mechanism.
4. Secure the wheels to the axle using the provided pins.
5. Verify all connections are tight and secure before use.

5. Gwida tal-Operazzjoni

The Garvee Snow Pusher is designed for ease of use. Follow these guidelines for optimal performance.

Aġġusta l-Għoli tal-Manku:

The handle can be adjusted to 5 different heights (15 to 44 inches) to suit your comfort and reduce strain. Loosen the double-ended bolts on the handle, slide the handle to your desired height, and re-tighten the bolts securely.

Adjusting Blade Angle:

The blade can be adjusted 45 degrees to either the left or right. To change the angle, remove the pin securing the blade, pivot the blade to the desired angle, and re-insert the pin to lock it in place. This allows for multi-directional snow clearing.

Tneħħija tas-Silġ:

Push the snow pusher forward, allowing the angled blade to direct snow to the side. For deeper snow, take smaller passes. The large rubber wheels facilitate smooth movement over various surfaces.

6. Manutenzjoni u Kura

Proper maintenance ensures the longevity and performance of your Garvee Snow Pusher.

• Tindif: After each use, clear any remaining snow, ice, or debris from the blade and wheels. Wipe down metal parts to prevent rust.
• Ħażna: When not in use, lock the handle in an upright position for compact storage. Store the snow pusher in a dry, covered area such as a garage or shed to protect it from the elements.
• Spezzjoni: Periodically check all bolts, pins, and connections to ensure they are tight and secure. Replace any worn or damaged parts immediately.

7 Issolvi l-problemi

If you encounter issues with your Garvee Snow Pusher, consider the following:

• Wobbly Handle: Ensure all bolts securing the handle sections are fully tightened. If the handle still feels wobbly, disassemble and reassemble, ensuring proper alignment of all parts.
• Ir-Roti Mhux Jirrumblaw Bla Xkiel: Check for debris or ice buildup around the wheel axles. Ensure the pins securing the wheels are correctly inserted and not bent.
• Difficulty Pushing Heavy Snow: Adjust the handle height to a position that provides better leverage. For very deep or heavy snow, clear smaller sections at a time.
• Blade Not Holding Angle: Verify the pin for blade angle adjustment is fully inserted and secured.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Garvee websit. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
