Manwal tal-Istruzzjonijiet tal-Curtis Stone Dura-Pan Air Fryer u Steamer Combo ta' 6.9 Quart

1. Introduzzjoni

This manual provides instructions for the safe and efficient use of your Curtis Stone 6.9-Quart Dura-Pan Air Fryer and Steamer Combo. This appliance offers multi-functional cooking capabilities including air frying, steaming, and steam frying. It features a 6.9-quart non-stick food basket and a Dura-Pan non-stick coated air fry drawer and steam tray for easy cooking and cleaning. The unit is equipped with an LED display and touch screen for adjustable settings.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

Meta tuża apparat elettriku, għandhom dejjem jiġu segwiti prekawzjonijiet bażiċi ta 'sikurezza biex jitnaqqas ir-riskju ta' nar, xokk elettriku u korriment lill-persuni.

• Aqra l-istruzzjonijiet kollha qabel ma tħaddem l-apparat.
• Tmissx uċuħ sħan. Uża manki jew pumi.
• Biex tipproteġi kontra xokk elettriku, tgħaddasx il-korda, il-plakek, jew l-unità prinċipali fl-ilma jew f'likwidu ieħor.
• Superviżjoni mill-qrib hija meħtieġa meta xi apparat jintuża minn jew ħdejn it-tfal.
• Spluggja mill-iżbokk meta ma tkunx qed tuża u qabel tnaddaf. Ħallih jiksaħ qabel ma tpoġġi jew tneħħi l-partijiet.
• Tħaddim l-ebda apparat b'korda jew plagg bil-ħsara, jew wara li l-apparat ma jaħdimx jew ikun ġie bil-ħsara b'xi mod.
• L-użu ta' aċċessorji aċċessorji mhux rakkomandati mill-manifattur tal-apparat jista' jikkawża korrimenti.
• Tużax barra.
• Tħallix il-korda tistrieħ fuq it-tarf tal-mejda jew tal-bank, jew tmiss uċuħ sħan.
• Tpoġġix fuq jew ħdejn burner tal-gass sħun jew elettriku, jew f'forn imsaħħan.
• Għandha tintuża kawtela kbira meta tiċċaqlaq apparat li jkun fih żejt jaħraq jew likwidi oħra jaħarqu.
• Dejjem waħħal il-plagg mal-apparat l-ewwel, imbagħad daħħal il-korda fis-sokit tal-ħajt. Biex tiskonnettja, itfi kwalunkwe kontroll, imbagħad neħħi l-plagg mis-sokit tal-ħajt.
• Tużax l-apparat għal użu ieħor minbarra dak maħsub.

3. Komponenti tal-Prodott

Familiarize yourself with the parts of your Curtis Stone Air Fryer and Steamer Combo.

Stampa 1: The main unit of the Curtis Stone Air Fryer and Steamer Combo, showing its overall dimensions of 13"D x 15"W x 15"H. This view highlights the compact design and the handle for the cooking drawer.

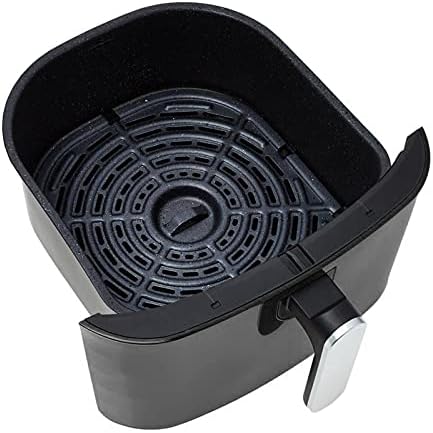

Stampa 2: A close-up view of the 6.9-quart Dura-Pan non-stick food basket and the removable steam tray. This component is designed for easy food placement and cleaning.

• Unità Prinċipali: Fiha l-element tat-tisħin, il-fann, u l-pannell tal-kontroll.
• Panel tal-Kontroll: LED display with touch screen for selecting modes, temperature, and time.
• Cooking Drawer: Pull-out drawer containing the food basket and steam tray.
• 6.9-Quart Food Basket: Non-stick basket for air frying.
• Dura-Pan Non-Stick Steam Tray: Insert for steaming, designed with 4 layers of non-stick coating.
• Kontenitur tal-Ilma: 1-liter capacity container for steam function.

4. Istruzzjonijiet ta' Setup

1. Ippakkja: Neħħi bir-reqqa l-materjali tal-ippakkjar kollha u kwalunkwe tikketti promozzjonali mill-apparat.
2. Naddaf: Wash the food basket and steam tray with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp drapp.
3. Pjazzament: Poġġi l-apparat fuq wiċċ stabbli, reżistenti għas-sħana, u livellat, 'il bogħod mill-ħitan jew apparati oħra biex tippermetti ċirkolazzjoni xierqa tal-arja.
4. Water Container (for Steaming): For steaming functions, fill the 1-liter water container with distilled or filtered water. Insert the container into its designated slot on the appliance.
5. Konnessjoni tal-Enerġija: Ipplaggja l-korda tal-enerġija f'bokk elettriku ertjat. L-apparat jidħol fil-modalità standby.

5. Istruzzjonijiet Operattivi

The Curtis Stone Air Fryer and Steamer Combo features an LED display with touch screen controls. You can choose from three primary cooking modes: Air Fry, Steam, and Steam Fry.

5.1 Operazzjoni Ġenerali

1. Qawwa Mixgħul: Touch the Power button on the LED display to turn on the appliance.
2. Agħżel il-Modalità: Choose your desired cooking mode (Air Fry, Steam, or Steam Fry) by touching the corresponding icon.
3. Aġġusta Settings: Use the temperature and time adjustment buttons to set your desired cooking parameters. The LED display will show the current settings.
4. Preheat (Optional for Air Fry): For best air frying results, preheat the appliance for 3-5 minutes at the desired temperature before adding food.
5. Ibda sajjar: Agħfas il-buttuna Start/Pause biex tibda l-proċess tat-tisjir.
6. Pause / Resume: You can pause cooking at any time by pressing the Start/Pause button. Press again to resume.
7. Tmiem it-Tisjir: The appliance will beep when the cooking cycle is complete. Carefully remove the cooking drawer.

5.2 Modalità Air Fry

This mode uses hot air circulation to cook food, resulting in a crispy texture with little to no oil.

• Ensure the food basket is properly seated in the cooking drawer.
• Place food in the food basket, ensuring not to overfill.
• Select "Air Fry" mode. Adjust temperature and time as needed for your recipe.
• Shake the basket halfway through cooking for even browning, if necessary.

5.3 Steam Mode

Ideal for gently cooking vegetables, fish, and other delicate foods, preserving nutrients and moisture.

• Ensure the water container is filled.
• Place food on the Dura-Pan non-stick steam tray within the cooking drawer.
• Select "Steam" mode. Adjust time as needed. Temperature is typically preset for steaming.

5.4 Steam Fry Mode

This mode combines steaming and air frying, first steaming to keep food juicy, then air frying for a crispy exterior.

• Ensure the water container is filled.
• Place food in the food basket or on the steam tray, depending on the recipe.
• Select "Steam Fry" mode. The appliance will automatically manage the steaming and air frying phases. Adjust overall time and temperature if allowed by the specific program.

6. Tindif u Manutenzjoni

Tindif regolari jiżgura prestazzjoni ottimali u jtawwal il-ħajja tal-apparat tiegħek.

1. Skonnettja u Kessaħ: Dejjem aqla’ l-apparat mill-plakka tal-elettriku u ħallih jiksaħ kompletament qabel ma tnaddfu.
2. Cooking Drawer, Basket, and Tray: Remove the food basket and steam tray from the cooking drawer. Wash these parts with warm, soapy water and a non-abrasive sponge. The Dura-Pan non-stick coating allows for easy cleaning. Rinse thoroughly and dry completely before reassembling.
3. Kontenitur tal-Ilma: Empty any remaining water from the container after each use. Rinse and dry. For mineral buildup, use a descaling solution or a mixture of water and white vinegar.
4. Barra: Imsaħ il-barra tal-apparat b'adamp cloth. Do not use abrasive cleaners or scourers, as they may damage the finish.
5. Intern: Imsaħ l-intern tal-apparat b'adamp cloth. If necessary, use a mild detergent. Ensure no water enters the electrical components.
6. Ħażna: Aħżen l-apparat f'post niexef meta ma jkunx qed jintuża.

7 Issolvi l-problemi

8. Speċifikazzjonijiet tal-Prodott

• Isem tal-Mudell: CS Air Fryer Steamer 713-875
• Numru tal-Mudell tal-Oġġett: 713-875
• Ditta: Ġebla ta’ Curtis
• Kapaċità: 6.9 Quarts
• Kulur: Iswed
• Materjal: Plastik
• Dimensjonijiet tal-Prodott: 13"D x 15"W x 15"H
• Output Wattage: 1200 Watts
• Karatteristiċi Speċjali: LED Display, Non-Stick (Dura-Pan), Temperature Control, Timer
• Użi Rakkomandati: Air Fry, Steam, Steam Fry
• UPC: 601570663536
• ASIN: B0FTHYNP8

9. Appoġġ għall-Klijent

For further assistance, product information, or warranty inquiries, please contact Curtis Stone customer support. Refer to your purchase documentation for specific contact details or visit the official Curtis Stone websit.
