1. Prodott Aktarview
The EUHOMY Commercial Ice Maker is designed for high-efficiency ice production, suitable for both home and commercial environments. This machine produces up to 105 lbs of clear ice per day and features a 33 lbs storage capacity. It includes a smart LCD control panel for easy operation, adjustable ice cube thickness, and an automatic cleaning function.
Figure 1: EUHOMY Commercial Ice Maker and included accessories (water filter, hoses, ice scoop).
2. Istruzzjonijiet tas-Sigurtà
- Kun żgur li l-magna tas-silġ titqiegħed fuq wiċċ stabbli u livellat.
- Twaqqafx il-fetħiet tal-ventilazzjoni.
- Connect to a grounded power outlet.
- Żomm l-apparat 'il bogħod minn sorsi ta' sħana u dawl tax-xemx dirett.
- Tgħaddix l-apparat fl-ilma jew likwidi oħra.
- Aqla 'l-apparat qabel it-tindif jew il-manutenzjoni.
- Żomm lit-tfal 'il bogħod mill-apparat waqt it-tħaddim.
- Ensure the drain pipe is positioned below the machine's drain for proper gravity drainage.
- Allow the machine to stand upright for at least 24 hours before first use.
3. Setup u Installazzjoni
Proper installation is crucial for the optimal performance and longevity of your ice maker.
3.1 Disimballaġġ
- Neħħi l-magna tas-silġ mill-ippakkjar tagħha bir-reqqa.
- Inspect the unit for any shipping damage. Contact your retailer immediately if damage is found.
- Remove all packing materials, including tape and protective films.
- Ensure all accessories are present: water filter, water inlet hose, drain hose, ice scoop.
3.2 Tqegħid
- Place the ice maker on a firm, level surface capable of supporting its weight when full of ice and water.
- Ensure adequate ventilation around the unit. Maintain at least 5 inches of space from walls and other objects.
- Evita li tpoġġi l-unità ħdejn sorsi ta’ sħana jew fid-dawl tax-xemx dirett.
- The ambient temperature should be between 50°F (10°C) and 90°F (32°C) for optimal performance.
3.3 Konnessjoni tal-Ilma
- Connect the Water Filter: Attach the provided water filter to the water inlet hose.
- Qabbad mal-Faucet: Connect one end of the water inlet hose to a cold water supply faucet.
- Connect to Ice Maker: Connect the other end of the water inlet hose (with filter) to the water inlet port on the back of the ice maker.
- Qabbad il-Manka tad-Drain: Attach the drain hose to the drain outlet on the back of the ice maker. Ensure the drain hose is positioned lower than the machine's drain for proper gravity drainage into a suitable drain.
Figure 2: Illustration of water filter, faucet, power, and drain hose connections.
Figure 3: Step-by-step guide for ice maker installation.
3.4 Konnessjoni tal-Enerġija
- Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.
- Importanti: After installation, allow the ice maker to stand upright for at least 24 hours before plugging it in and operating it. This allows refrigerants to settle.
4. Istruzzjonijiet Operattivi
The EUHOMY ice maker features an intuitive control panel for easy operation.
Figure 4: Intelligent touch control panel with various functions.
4.1 Funzjonijiet tal-Panew tal-Kontroll
- QAWWA: Jixgħel/jitfi l-magna.
- GĦAMLA SILĠ: Indicates the machine is currently making ice.
- RESERVATION/CLEAN: Used for setting the timer or initiating the cleaning cycle.
- STOPPAGE: Indicates a temporary halt in operation.
- SILĠ MILLI: Illuminates when the ice storage bin is full.
- ICE SHEDDING: Indicates ice is being released from the evaporator.
- NADIF: Indicates the machine is in cleaning mode.
- TIME UP/TIME DOWN: Adjusts timer settings or ice thickness.
- HOT: Indicates a high-temperature condition.
- DAWL: Controls the interior blue light. Press and hold for 5 seconds to unlock the child lock.
4.2 Operazzjoni Inizjali
- Wara li tqabbad l-ilma u l-elettriku, agħfas il-buttuna QAWWA buttuna biex tixgħel il-magna.
- Perform an initial cleaning cycle before making the first batch of ice (refer to Section 5.1).
- The machine will automatically start the ice-making process once the cleaning is complete and water supply is confirmed.
4.3 Aġġustament tal-Ħxuna tal-Kubu tas-Silġ
You can adjust the thickness of the ice cubes by modifying the ice-making time.
- Use the "TIME UP" (^) and "TIME DOWN" (v) buttons to adjust the desired ice-making duration.
- A longer duration results in thicker ice cubes.
- Typical ice-making times for different thicknesses:
- Irqiq: Madwar 10 minuta
- Medju: Madwar 15 minuta
- Ħoxnin: Madwar 20 minuta
Figure 5: Ice thickness adjustment based on ice-making time.
Figure 6: Visual guide to adjusting ice cube thickness for various uses.
4.4 Funzjoni tat-Tajmer ta' 24 Siegħa
The timer function allows you to set a delayed start or stop time for the ice maker.
- Agħfas il- RESERVATION/CLEAN buttuna.
- Use the "TIME UP" (^) and "TIME DOWN" (v) buttons to adjust the desired delay time in hours (up to 24 hours).
- The machine will start or stop operation after the set time.
Figure 7: Setting the 24-hour timer on the control panel.
4.5 Interior Blue Light
The ice maker is equipped with an interior blue light for visibility. Press the DAWL button to turn it on or off.
4.6 Funzjoni tat-Tifkir tat-Tfal
To prevent accidental operation, the control panel has a child lock feature.
- Jekk il- DAWL button is blinking, the control panel is locked.
- Biex tiftaħ, agħfas u żomm il- DAWL buttuna għal 5 sekondi.
Video 1: Demonstration of the EUHOMY ice maker's features, including interior light, fast ice making, adjustable ice cube size, 24-hour timer, and automatic cleaning.
5. Manutenzjoni u Tindif
Regular cleaning and maintenance ensure hygienic ice production and extend the lifespan of your machine.
5.1 Funzjoni ta' Tindif Awtomatiku
- Ensure the machine is connected to a water supply and the drain hose is properly positioned.
- Agħfas u żomm il- NADIF Agħfas il-buttuna għal 5 sekondi biex tattiva l-funzjoni tat-tindif awtomatiku.
- The cleaning cycle typically takes 5 minutes. The machine will automatically rinse its internal components.
- It is recommended to perform this cleaning cycle twice before making the first batch of ice and regularly thereafter based on usage.
Figura 8: L-attivazzjoni tal-funzjoni tat-tindif awtomatiku.
Figure 9: Initiating the automatic cleaning cycle.
5.2 Manual Cleaning and Descaling
- Daily Drainage: Pull out the small hose on the right side of the water tank to drain water once a day.
- Tindif ta' barra: Imsaħ il-barra tal-magna b'artab, damp drapp. Tużax tindif jew solventi li joborxu.
- Tindif ta 'ġewwa: For thorough cleaning, especially to remove mineral buildup (descaling), use an ice machine cleaner solution as per the cleaner's instructions. Follow with multiple rinse cycles.
- Sostituzzjoni tal-filtru tal-ilma: Replace the water filter periodically to ensure clean water supply and optimal ice quality.
6 Issolvi l-problemi
Irreferi għall-kwistjonijiet u s-soluzzjonijiet komuni li ġejjin qabel ma tikkuntattja l-appoġġ għall-klijenti.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-pannell tal-kontroll ma jirrispondix. | Child lock is active. The "Light" button may be blinking. | Agħfas u żomm il- DAWL button for 5 seconds to unlock the child lock. |
| "Light" button blinking. | Indicates the control panel is locked. | Agħfas u żomm il- DAWL button for 5 seconds to unlock the child lock and resume operations. |
| L-ebda produzzjoni tas-silġ. | No water supply, power issue, or machine not upright for 24 hours. | Check water connections and supply. Ensure power is connected. If newly installed, wait 24 hours before operation. |
| Ice is too thin/thick. | L-issettjar tal-ħin tat-teħid tas-silġ mhux korrett. | Adjust ice-making time using the "TIME UP" (^) and "TIME DOWN" (v) buttons. |
| "ICE FULL" indicator on, but bin not full. | Ice sensor may be obstructed or faulty. | Clear any ice blocking the sensor. Clean the sensor if necessary. |

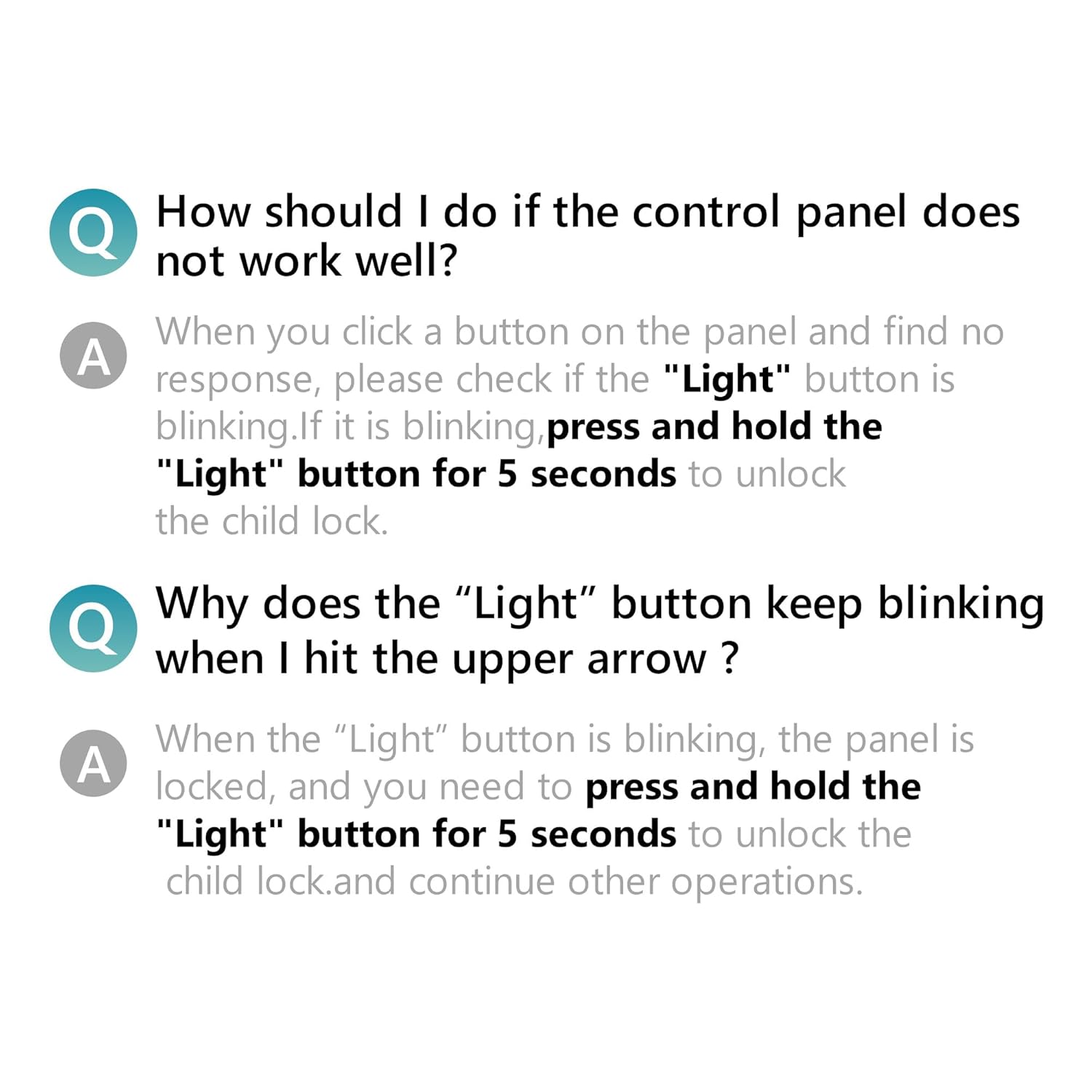

Figure 10: Common questions and answers regarding control panel functionality.
Figure 11: Detailed explanation for resolving a blinking "Light" button on the control panel.
7. Speċifikazzjonijiet
Detailed technical specifications for the EUHOMY Commercial Ice Maker.
| Karatteristika | Speċifikazzjoni |
|---|---|
| Isem tal-Mudell | CIM012-100BS-03 |
| Brand | Ewħomija |
| Kapaċità tal-Produzzjoni tas-Silġ | 105 lbs / 24 siegħa |
| Kapaċità tal-Ħżin tas-Silġ | 33 lbs |
| Ħin tal-Produzzjoni tal-Kubi tas-Silġ | 8-12 minutes (45 cubes per batch) |
| Dimensjonijiet tal-Prodott (P x W x H) | 16.14"D x 16.93"W x 30.9"H |
| Piż | 73.28 Liri |
| Wattage | 255 watt |
| Materjal | Stainless Steel body, Pure Copper Compressor |
| Ċertifikazzjonijiet | ETL certified for commercial use |
Figure 12: Summary of product specifications and dimensions.
8. Garanzija u Appoġġ
For warranty information and customer support, please refer to the documentation included with your product or contact EUHOMY customer service directly.
- Appoġġ għall-Klijent: For assistance, please contact EUHOMY customer service.
- Ritorni: This product is returnable until January 31, 2026. Please check your purchase details for specific return policies.
