Manwal tal-Istruzzjonijiet tat-Trimmer u l-Edger tal-Gass SENIX 4QL 26.5 cc (GTC4QL-L)

1. Introduzzjoni

This manual provides essential instructions for the safe operation, assembly, maintenance, and troubleshooting of your SENIX 4QL 26.5 cc Gas String Trimmer and Edger, model GTC4QL-L. Please read this manual thoroughly before operating the equipment to ensure proper use and to prevent injury or damage.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA: Jekk ma ssegwix dawn l-istruzzjonijiet ta’ sigurtà, dan jista’ jirriżulta fi korriment serju jew mewt.

• Always wear protective gear, including eye protection (safety glasses or goggles), ear protection, heavy-duty gloves, long pants, and sturdy footwear.
• Avoid contact with skin and eyes. Fuel and oil can cause irritation.
• Be cautious of flying debris. Keep bystanders, children, and pets at least 50 feet (15 meters) away from the operating area.
• Inspect the work area for objects that could be thrown or entangled in the cutting line. Remove all debris before starting.
• Tħaddimx it-trimmer f'kundizzjonijiet imxarrbin jew bix-xita.
• Ensure proper ventilation when refueling or operating the engine.
• Never modify the trimmer. Use only manufacturer-approved replacement parts and attachments.
• Itfi l-magna u skonnettja l-wajer tal-ispark plug qabel ma tagħmel xi manutenzjoni jew tneħħi imblukkar.

3. Komponenti tal-Prodott

Familiarize yourself with the main parts of your SENIX GTC4QL-L string trimmer:

Deskrizzjoni tal-Immaġni: An exploded diagram of the SENIX GTC4QL-L string trimmer, highlighting key components such as the 26.5cc engine, adjustable handle, curved shaft, cutting head with bump feed, and the 17.7-inch cut swath. Labels point to the engine, patented 4QL technology, attachment compatibility, adjustable handle, 17.7" cut swath, and dual line bump feed.

• Magna: 26.5 cc 4QL 4-cycle engine.
• Tank tal-Fjuwil: For unleaded gasoline (no oil mixing required).
• Manku tal-Istarter: Użat biex tistartja l-magna manwalment.
• Trigger tat-throttle: Jikkontrolla l-veloċità tal-magna.
• Waqfien Swiċċ: Turns off the engine.
• Front D-Handle: Adjustable for user comfort and control.
• Curved Shaft: Provides ergonomic handling.
• Ras tat-Tqattigħ: Houses the trimmer line. Features a dual .095-inch line bump feed system.
• Gwardja: Protects the user from flying debris.
• Coupler: Allows for attachment compatibility.

4. Setup u Assemblea

Your SENIX GTC4QL-L trimmer requires minimal assembly. Follow these steps carefully:

1. Spakkjar: Carefully remove all components from the packaging. Verify that all parts listed in the "What's Included" section are present.
2. Assemblaġġ tal-manku:
   • Attach the front D-handle to the shaft using the provided hardware. Ensure it is securely fastened and positioned for comfortable operation.
3. Installazzjoni tal-Gwardja:
   • Mount the weed trimming head shield to the shaft near the cutting head using the provided screw. This guard is crucial for safety.
4. Fueling the Engine:
   • The 4-cycle engine uses unleaded gasoline directly. Tħallatx iż-żejt mal-gażolina.
   • Fill the fuel tank with fresh, clean unleaded gasoline. Do not overfill.
   • Ensure the fuel cap is securely tightened after fueling.
5. Adding Engine Oil:
   • Locate the oil fill cap on the engine.
   • Using the provided 2 oz bottle of engine oil, carefully add the oil to the engine. Refer to the engine's specific oil capacity if not using the provided bottle.
   • Check the oil level using the dipstick (if present) or by observing the fill level. Do not overfill.
   • Erġa' poġġi l-għatu tal-mili taż-żejt sew.

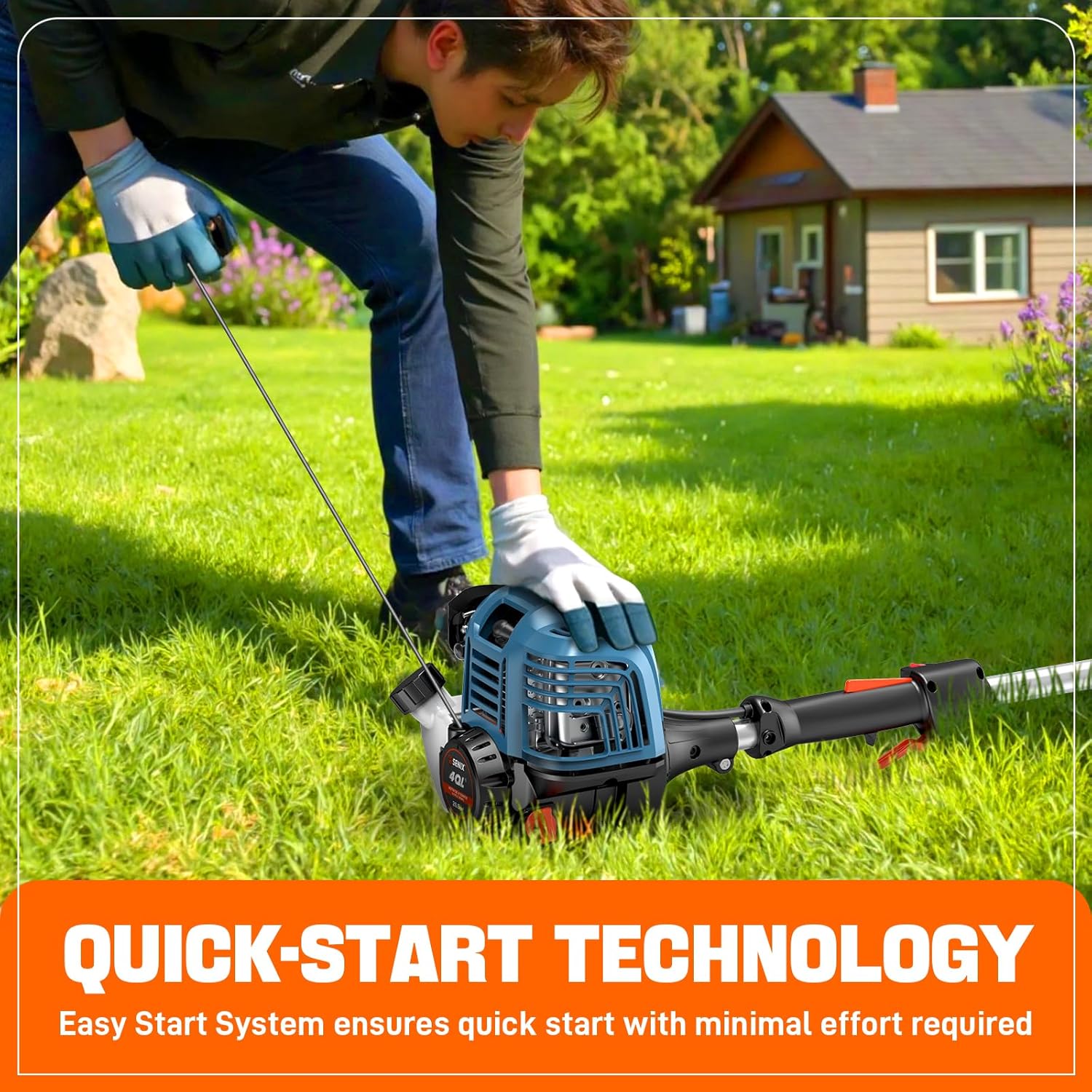

Deskrizzjoni tal-Immaġni: A person in gloves is shown pulling the starter cord of the SENIX GTC4QL-L string trimmer, demonstrating the quick-start technology. The engine is visible on the ground.

5. Istruzzjonijiet Operattivi

5.1 Tibda tal-Magna

1. Poġġi t-trimmer fuq wiċċ ċatt u stabbli.
2. Kun żgur li s-swiċċ tal-waqfien ikun fil-pożizzjoni "ON".
3. Press the primer bulb 3-5 times until fuel is visible in the return line. (Note: Some models may have an automatic choke or no choke, refer to specific engine markings if different).
4. Pull the starter handle firmly and smoothly until the engine starts. Do not pull the cord to its full extension or let it snap back.
5. Ħalli l-magna tisħon għal 30-60 sekonda qabel ma tapplika l-aċċeleratur sħiħ.

5.2 Trimming and Edging

• Żomm it-trimmer sew b’żewġ idejn, waqt li żżomm qagħda bbilanċjata.
• Keep the cutting head parallel to the ground for trimming grass.
• For edging, tilt the cutting head to a vertical position.
• Move the trimmer in a sweeping motion, cutting small amounts of material at a time.
• Evita li tolqot oġġetti iebsin bħal blat, ċnut, jew konkrit, għax dan jista' jagħmel ħsara lill-ħajta u lit-trimmer.

Deskrizzjoni tal-Immaġni: The SENIX GTC4QL-L string trimmer in action, cutting grass. The image highlights the 17.7-inch cutting width, showing the trimmer head efficiently clearing a wide path.

5.3 Advancing Trimmer Line (Bump Feed)

• While the engine is running at full throttle, lightly tap the bump knob on the cutting head against the ground.
• This action will release a small amount of new trimmer line. The line will automatically be cut to the correct length by the blade on the guard.
• Do not repeatedly or forcefully bump the head, as this can waste line.

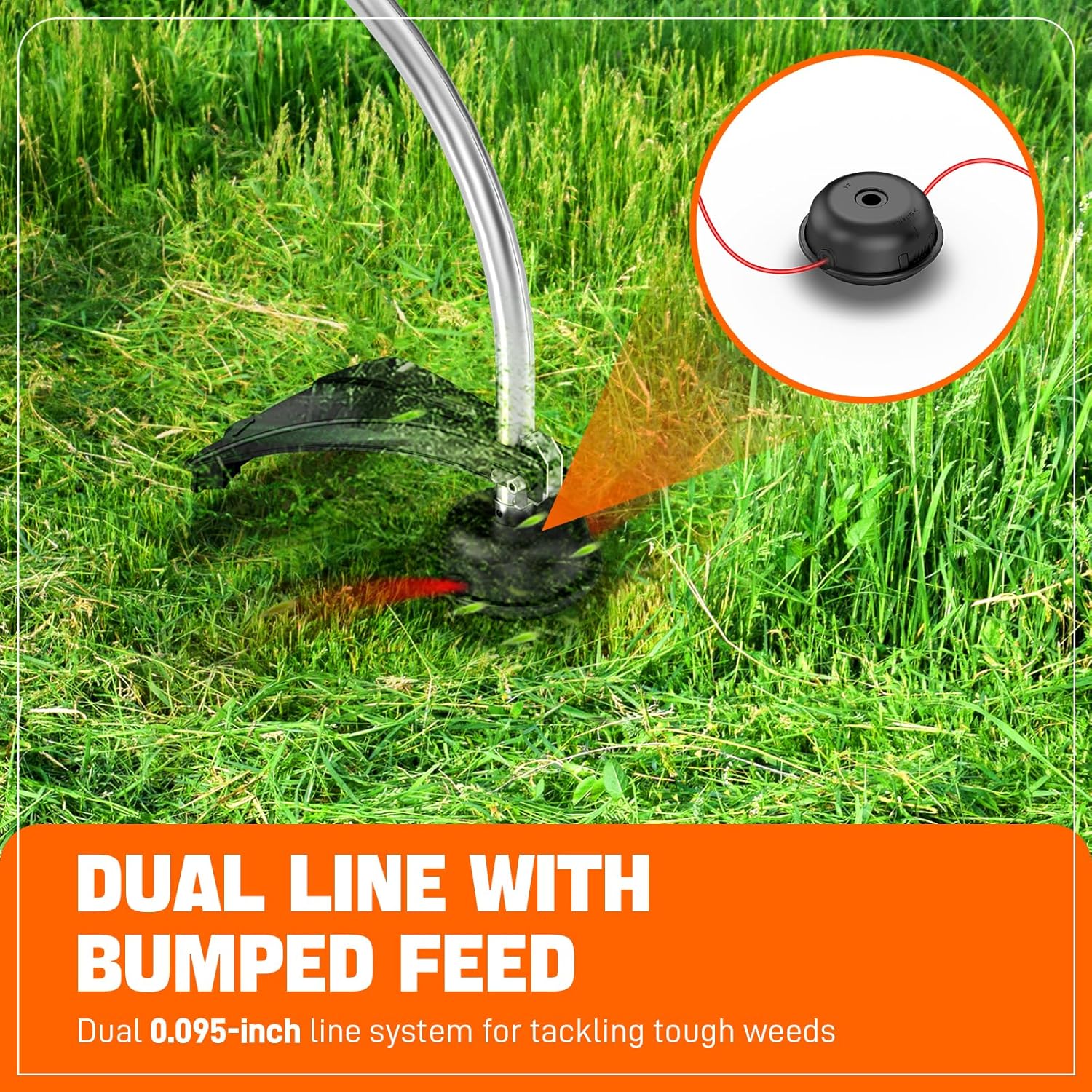

Deskrizzjoni tal-Immaġni: A close-up view of the SENIX GTC4QL-L string trimmer's cutting head, showing the dual 0.095-inch line and the bump feed mechanism. The trimmer is actively cutting grass.

5.4 Waqfien tal-Magna

• Ħoll il-grillu tat-throttle.
• Mexxi s-swiċċ tal-waqfien għall-pożizzjoni "MITFI".
• Ħalli l-magna tiksaħ qabel taħżen.

6. Manutenzjoni

Regular maintenance ensures optimal performance and extends the life of your trimmer. Always turn off the engine and disconnect the spark plug wire before performing any maintenance.

• Filtru tal-Arja:
  • Inspect the air filter regularly (e.g., after every 5-10 hours of operation).
  • Clean the air filter by tapping it gently or washing it with warm, soapy water if it's a foam type. Allow it to dry completely before reinstalling. Replace if damaged or excessively dirty (e.g., part number 491588S mentioned in a review).
• Spark Plug:
  • Check the spark plug annually or if the engine runs poorly.
  • Clean or replace the spark plug as needed. Ensure the gap is set correctly according to engine specifications.
• Sostituzzjoni tal-Linja tat-Trimmer:
  • When the trimmer line runs out, refer to the cutting head instructions for reloading. Use dual .095-inch diameter trimmer line.
• Tindif Ġenerali:
  • Keep the engine cooling fins clean to prevent overheating.
  • Wipe down the exterior of the trimmer with a damp drapp. Evita li tuża kimiċi ħarxa.
• Ħażna:
  • For long-term storage, drain the fuel tank or use a fuel stabilizer.
  • Store the trimmer in a clean, dry place, away from direct sunlight and extreme temperatures.
  • The detachable shaft allows for easier transportation and storage.

7 Issolvi l-problemi

This section addresses common issues you might encounter with your SENIX GTC4QL-L trimmer.

8. Speċifikazzjonijiet Tekniċi

9. Garanzija u Appoġġ

9.1 Informazzjoni dwar Garanzija

The SENIX GTC4QL-L Gas String Trimmer is backed by a Garanzija limitata ta 'senaDin il-garanzija tkopri difetti fil-materjali u fix-xogħol taħt użu normali. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

For full details regarding warranty terms, conditions, and exclusions, please refer to the official SENIX warranty documentation included with your product or visit the manufacturer's websit.

9.2 Appoġġ għall-Klijent

If you have questions, require technical assistance, or need to order replacement parts, please contact SENIX customer support. Contact information can typically be found on the SENIX official webis-sit jew fuq l-imballaġġ tal-prodott.

When contacting support, please have your product model number (GTC4QL-L) and serial number (if applicable) ready to expedite assistance.
