1. Introduzzjoni

This user manual provides comprehensive instructions for the installation, operation, and maintenance of your NIVIAN NVS-MINICURTAIN-WR-KIT WiFi Roller Shutter Controller. This device is designed to integrate motorized blinds and awnings into your smart home system, offering control via the Tuya Smart app, an included RF remote, and voice assistants like Amazon Alexa and Google Assistant. Please read this manual thoroughly before use to ensure proper functionality and safety.

2. Informazzjoni dwar is-Sigurtà

• Installazzjoni Elettrika: Installation should only be performed by a qualified electrician or a person with sufficient knowledge of electrical systems. Ensure the main power supply is disconnected before installation.
• Voltage Kompatibilità: Ivverifika li l-provvista tal-enerġija voltage matches the device's specifications (100-240V AC, 50/60Hz).
• Protezzjoni ta' tagħbija żejda: Do not exceed the maximum current rating of 3A. The device includes overvoltagprotezzjoni.
• Sigurtà tal-Materjal: The device is constructed with flame-retardant materials for enhanced safety.
• Ambjent: Tesponix l-apparat għal umdità, temperaturi estremi, jew ambjenti korrużivi.
• Tfal u Pets: Keep the device and its components out of reach of children and pets.

3. Kontenut tal-Pakkett

Il-pakkett għandu jkun fih l-oġġetti li ġejjin:

• NIVIAN NVS-MINICURTAIN-WR-KIT WiFi Roller Shutter Controller
• Kontroll mill-bogħod RF
• Manwal għall-Utent (dan id-dokument)

Image 3.1: Contents of the NIVIAN NVS-MINICURTAIN-WR-KIT package, showing the smart controller, RF remote, and a smartphone interface.

4. Prodott Aktarview

The NIVIAN NVS-MINICURTAIN-WR-KIT is a compact smart switch designed to control motorized roller shutters and awnings. It integrates WiFi connectivity for app control and RF for the included remote. Key features include:

• Konnettività WiFi: Control via Tuya Smart app from anywhere.
• Kontroll mill-Bogħod RF: Convenient local control with the included RF remote.
• Kontroll tal-Vuċi: Kompatibbli ma 'Amazon Alexa u Google Assistant.
• Skedar u Tajmers: Automate opening and closing times.
• Xenarji Intelliġenti: Create custom automation rules based on conditions.
• Monitoraġġ tal-Enerġija: Track power consumption of connected motors.
• Disinn kompatt: Easily integrates behind existing wall switches.

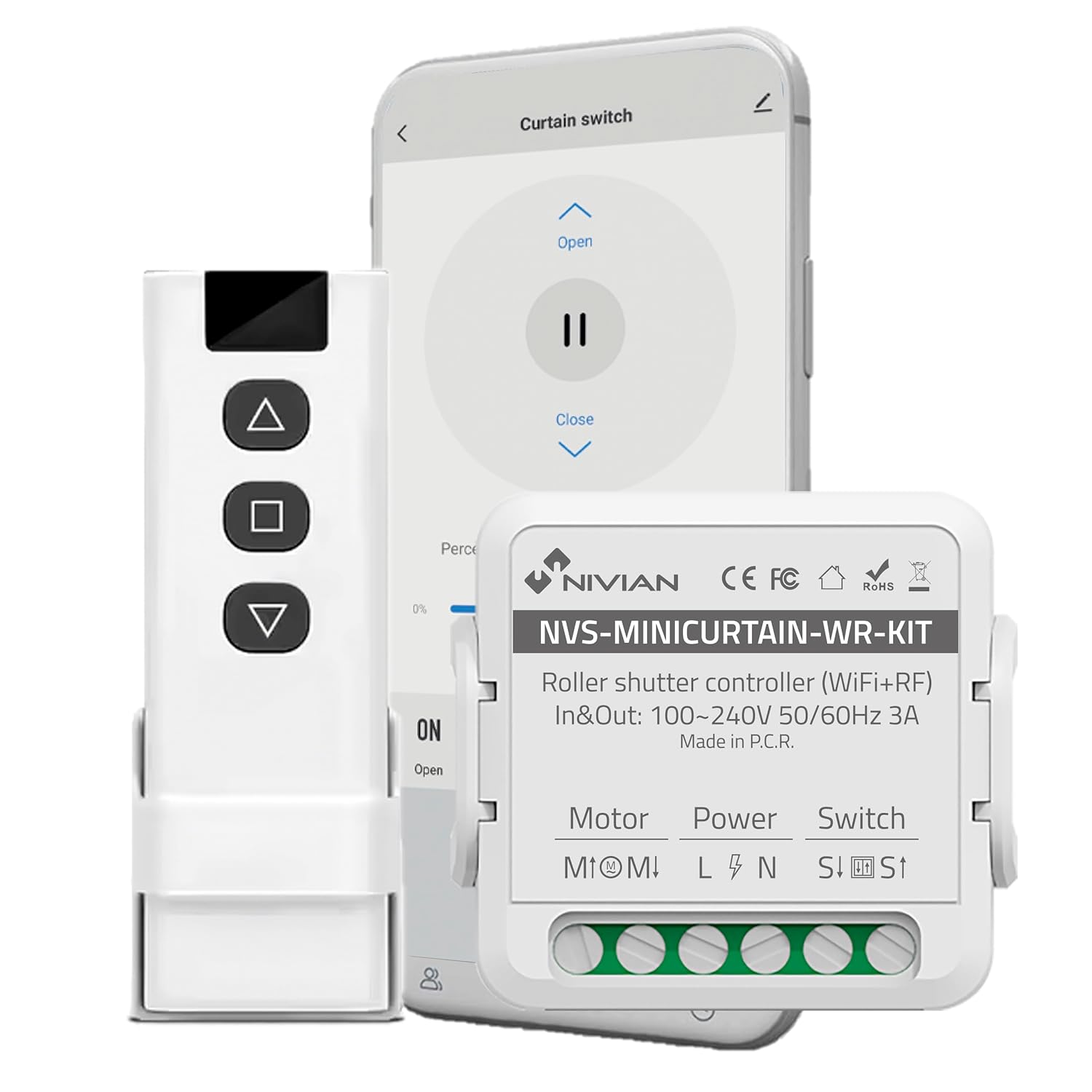

Immaġni 4.1: Fuqview of the controller's features and compatibility.

5. Setup u Installazzjoni

5.1 Dijagramma tal-Wiring

Before proceeding with installation, ensure the main power supply to the circuit is turned OFF at the breaker. This device is designed to be installed behind an existing manual wall switch for motorized blinds/awnings. The controller has terminals for Motor (M1, M2), Power (L, N), and Switch (S1, S2).

Immaġni 5.1: Eż.ample of the controller installed with an existing wall switch.

1. Skonnettja l-Enerġija: Turn off the main power supply to the circuit at your home's electrical panel.
2. Wajers tal-Aċċess: Remove the existing wall switch plate and switch to access the wiring.
3. Connect Motor Wires: Connect the motor's UP and DOWN wires to the M1 and M2 terminals on the controller.
4. Qabbad il-Wajers tal-Enerġija: Connect the Live (L) and Neutral (N) wires from your power supply to the L and N terminals on the controller.
5. Connect Switch Wires: Connect the wires from your existing manual wall switch to the S1 and S2 terminals on the controller.
6. Apparat Sikur: Carefully place the controller inside the wall box, ensuring no wires are pinched. Reinstall the wall switch and plate.
7. Irrestawra l-Enerġija: Erġa’ ixgħel il-provvista tal-enerġija prinċipali.

5.2 App Pairing (Tuya Smart)

1. Niżżel l-App: Niżżel l-app "Tuya Smart" jew "Smart Life" mill-ħanut tal-apps tal-ismartphone tiegħek (iOS/Android).
2. Reġistrazzjoni/Idħol: Iftaħ l-app u rreġistra għal kont ġdid jew idħol jekk diġà għandek wieħed.
3. Daħħal il-Mod tat-Tqabbil: Power on the controller. The indicator light on the controller should blink rapidly (usually 2 times per second) to indicate it's in pairing mode. If not, press and hold the reset button (or the manual switch for 5-10 seconds) until it blinks rapidly.
4. Żid Apparat: In the Tuya Smart app, tap the "+" icon in the top right corner to add a device. Select "Curtain Switch" or "Curtain Module" from the device list.
5. Qabbad mal-WiFi: Follow the on-screen instructions to connect the device to your 2.4GHz WiFi network. Enter your WiFi password.
6. Tlestija: Once connected, the device will appear in your app. You can rename it for easier identification.

5.3 RF Remote Pairing

The included RF remote control is pre-paired with the controller. If you need to re-pair or pair additional RF remotes:

1. Daħħal il-Mod tat-Tqabbil: Briefly press the pairing button on the controller (or press the manual switch 4 times quickly). The indicator light will blink slowly.
2. Press Remote Button: Within 5 seconds, press any button on the RF remote you wish to pair.
3. Konferma: The controller's indicator light will stop blinking, confirming successful pairing.

6. Istruzzjonijiet Operattivi

The NIVIAN controller offers multiple ways to operate your motorized blinds or awnings:

Image 6.1: Multiple control modes for the roller shutter controller.

6.1 Tuya Smart App Control

• Open the Tuya Smart app and select your roller shutter device.
• You will see options to "Open," "Close," or "Pause" the blinds.
• A perċentwalitage slider allows you to set the opening/closing position precisely.

Image 6.2: Controlling roller shutters via the Tuya Smart app.

Kontroll mill-Bogħod 6.2 RF

• Use the "Up" button to open the blinds.
• Use the "Down" button to close the blinds.
• Use the "Stop/Pause" button to halt the blinds at any desired position.

6.3 Kontroll tal-Vuċi (Alexa/Google Assistant)

To enable voice control, link your Tuya Smart account to Amazon Alexa or Google Assistant through their respective apps. Once linked, you can use commands such as:

• "Alexa, open [Device Name] blinds."
• "Hey Google, close [Device Name] blinds."
• "Alexa, set [Device Name] blinds to 50%."

6.4 Manual Wall Switch Control

The existing manual wall switch connected to the controller will continue to function normally, allowing for traditional physical control of your blinds.

7. Smart Features and Automation

7.1 Skedar u Tajmers

Within the Tuya Smart app, you can set schedules for your blinds to open or close at specific times on chosen days. This is ideal for daily routines or simulating presence when away.

7.2 Smart Scenarios

Create custom automation rules (scenarios) in the Tuya Smart app. These can be triggered by various conditions:

• Weather Changes: Automatically close blinds if the weather forecast predicts strong sun or rain.
• Location Changes: Open blinds when you arrive home.
• Ħin tal-Jum: Adjust blinds based on sunrise/sunset.
• Status tal-Apparat: Integrate with other smart devices (e.g., close blinds when a smart light turns on).

Image 7.1: Creating smart home automation scenarios.

Image 7.2: Simulating presence by raising and lowering blinds remotely.

7.3 Monitoraġġ tal-Enerġija

The controller provides energy consumption reports and graphs within the Tuya Smart app, allowing you to monitor and manage the power usage of your connected motors.

8. Manutenzjoni

• Tindif: Use a dry, soft cloth to clean the device. Do not use harsh chemicals or abrasive cleaners.
• Aġġornamenti tal-Firmware: Periodically check the Tuya Smart app for available firmware updates to ensure optimal performance and security.
• Battery Replacement (RF Remote): If the RF remote's range or responsiveness decreases, replace its battery (type usually CR2032, check remote for specifics).

9 Issolvi l-problemi

10. Speċifikazzjonijiet

11. Garanzija u Appoġġ

NIVIAN products are designed for reliability and performance. For warranty information, technical support, or to access additional resources, please visit the official NIVIAN websit jew ikkuntattja lis-servizz tal-konsumatur.

For tutorials and tips, visit NIVIAN on Instagmuntun or YouTube.
