1. Introduzzjoni
Thank you for choosing the Candy Smart Pro Inverter CRO EH9N4TBE-S dryer. This appliance is designed to provide efficient and convenient drying for your laundry. Featuring an inverter motor, it offers high energy efficiency and low noise levels. With Wi-Fi + BLE connectivity and the hOn app, you can access over 40 additional programs and monitor drying cycles and energy consumption.
Jekk jogħġbok aqra dan il-manwal bir-reqqa qabel ma tuża l-apparat biex tiżgura tħaddim sikur u ottimali. Żomm dan il-manwal għal referenza futura.
2. Informazzjoni dwar is-Sigurtà
Dejjem segwi l-prekawzjonijiet bażiċi ta' sigurtà meta tuża apparati elettriċi biex tnaqqas ir-riskju ta' nar, xokk elettriku, jew korriment.
- Kun żgur li l-apparat ikun ertjat kif suppost.
- Tħallix lit-tfal jilagħbu bi jew jużaw id-dryer.
- Qatt m'għandek tnixxef oġġetti li jkunu ġew imtebbgħin b'sustanzi fjammabbli (eż., żejt tat-tisjir, gażolina).
- Clean the lint filter after every load to prevent fire hazards and maintain drying efficiency.
- Timblokkax il-fetħiet tal-ventilazzjoni tat-tnixxif.
- Skonnettja l-apparat qabel ma tnaddaf jew tagħmel xi manutenzjoni.
- Tinstallax it-dryer f'żona fejn jista' jkun espost għall-ilma jew temperaturi estremi.
3. Setup u Installazzjoni
Installazzjoni xierqa hija kruċjali għat-tħaddim sikur u effiċjenti tat-dryer tiegħek.
3.1 Disimballaġġ
- Remove all packaging materials and transport bolts.
- Inspect the dryer for any damage incurred during transit.
3.2 Tqegħid
Place the dryer on a firm, level floor. Ensure there is adequate space around the appliance for ventilation. The dimensions of the dryer are approximately 85 cm (Height) x 59.6 cm (Width) x 58.5 cm (Depth).
Image: The dryer positioned in a laundry area, demonstrating typical installation space requirements.
3.3 Invellar
Adjust the feet at the bottom of the dryer to ensure it is perfectly level. A level appliance reduces vibration and noise during operation.
3.4 Konnessjoni Elettrika
Connect the dryer to a properly grounded electrical outlet. Refer to the rating label on the appliance for specific power requirements.
3.5 Drain Hose (if applicable)
If your model includes a direct drain option, connect the drain hose to a suitable drain point to avoid manually emptying the water container.
4. Istruzzjonijiet Operattivi
This section guides you through the daily use of your Candy Smart Pro Inverter dryer.
4.1 Control Panel Overview
The control panel features a program selector dial, a display, and various function buttons.

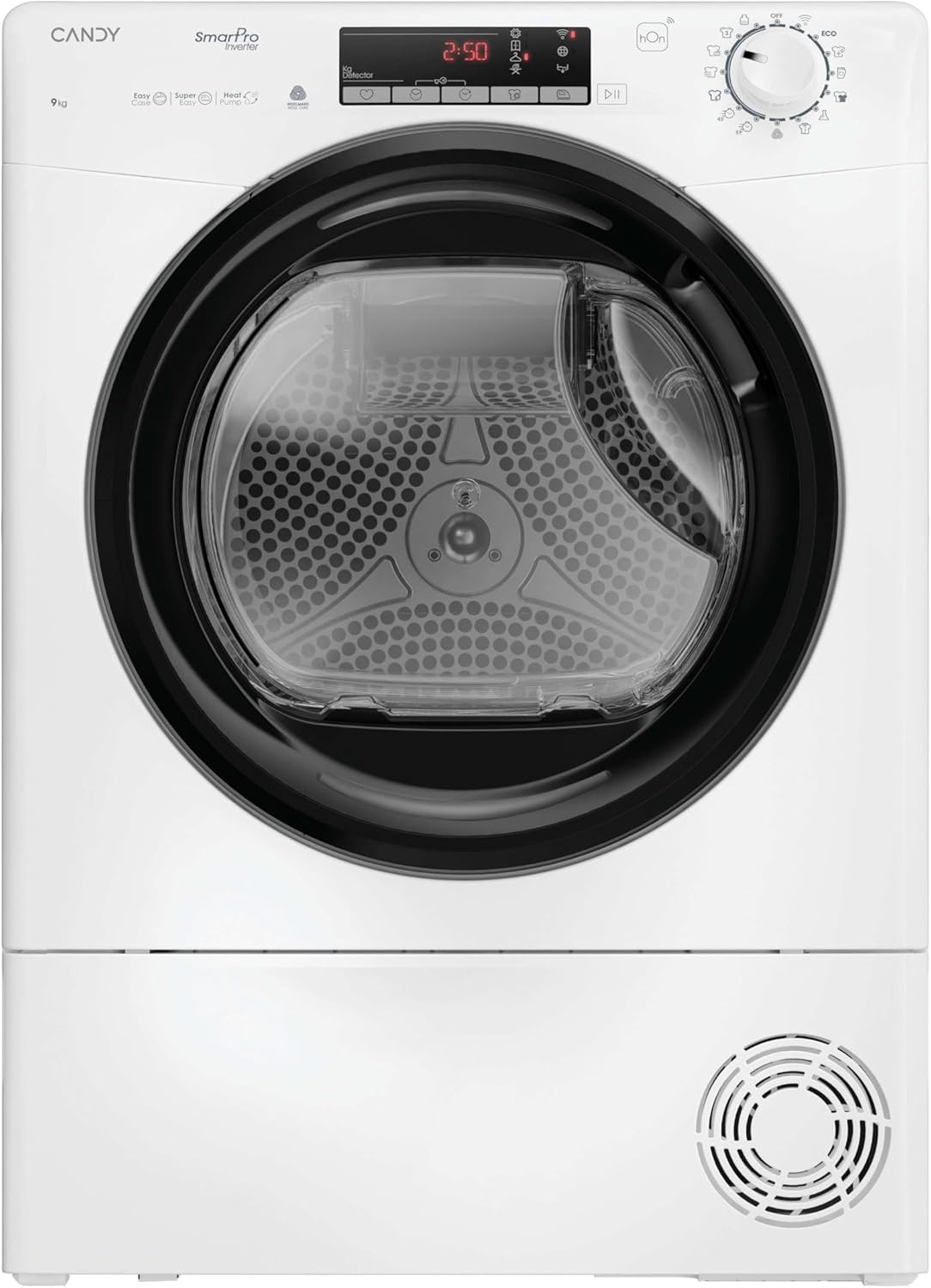

Immaġni: Quddiem view of the dryer, highlighting the control panel with its display and buttons.
4.2 Tagħbija tal-Ħwejjeġ tal-Ħasil
- Iftaħ il-bieb tat-tnixxif.
- Load laundry into the drum, ensuring not to overload the appliance. The maximum capacity is 9 KG.
- Agħlaq il-bieb sew.

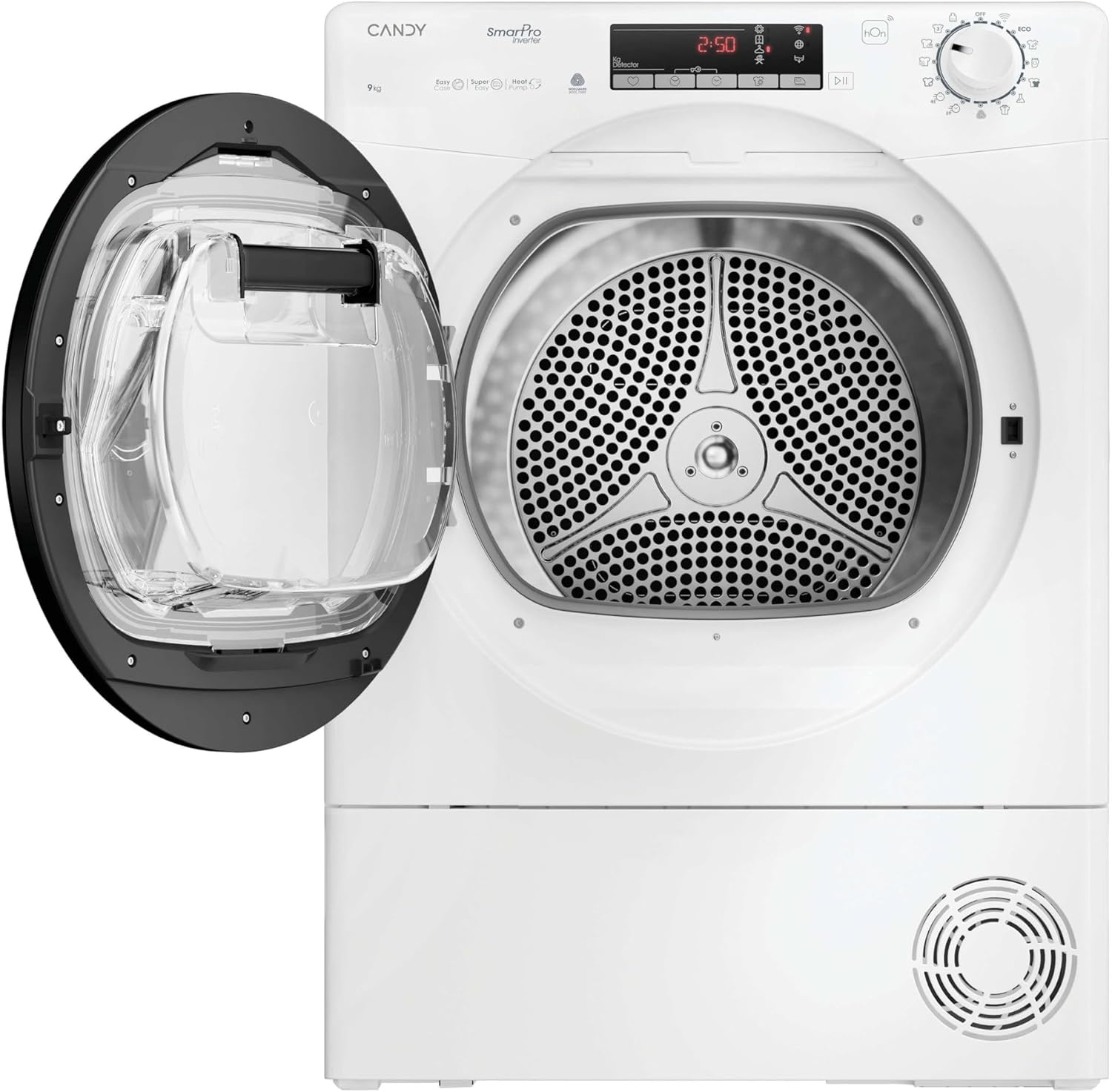

Image: The dryer door open, revealing the empty drum ready for loading.
4.3 Għażla tal-Programm
Turn the program selector dial to choose the desired drying program. The dryer offers 14 standard programs, with over 40 additional programs accessible via the hOn app.
- Certified Wool Program: A dedicated cycle for wool garments. It preserves fabrics and respects fibers, leaving clothes ready to wear. This program is Woolmark certified.
- Relax Cycle: A warm cycle that reduces crease formation in just 12 minutes, ideal for refreshing clothes.
- 4 Drying Levels: Select the desired dryness level:
- Ħadid Nixxef: Iħalli l-ħwejjeġ ftit damp għal mogħdija aktar faċli.
- Hanger Nixxef: Suitable for items that will be hung to finish drying.
- Armarju Nixxef: Clothes are dry enough to be put away.
- Nixxef Extra: For very dry items, such as towels or thick fabrics.
4.4 Karatteristiċi Speċjali
- Easy Iron Function: A sensor detects the correct humidity level, and a special drum movement reduces creases and tangles, potentially cutting ironing time by half.
- hOn App Connectivity: Connect your dryer to the hOn app via Wi-Fi + BLE to access additional programs, monitor drying cycles, and track energy consumption from your smartphone.
4.5 Bidu ta' Ċiklu
After selecting the program and any desired options, press the Start/Pause button to begin the drying cycle.
5. Manutenzjoni
Regular maintenance ensures the longevity and optimal performance of your dryer.
5.1 Tindif tal-Filtru tal-Lint
The lint filter should be cleaned after every drying cycle. Pull out the filter, remove any accumulated lint, and rinse it under running water if necessary. Ensure it is completely dry before reinserting.
5.2 Tbattil tal-Kontenitur tal-Ilma
As a heat pump dryer, water extracted from the laundry is collected in a container. This container must be emptied after each cycle. Pull out the container, empty the water, and reinsert it securely.
Image: The dryer with the door open, showing laundry inside and the water collection tank, which needs to be emptied.
5.3 Tindif tal-Kondensatur
The condenser should be cleaned periodically (e.g., every few months) to maintain drying efficiency. Refer to the full instruction manual for detailed steps on how to access and clean the condenser unit.
5.4 Tindif ta' barra
Imsaħ il-barra tal-dryer b'artab, damp drapp. Tużax tindif jew solventi li joborxu.
6 Issolvi l-problemi
Qabel ma tikkuntattja lis-servizz tal-konsumatur, jekk jogħġbok iċċekkja l-kwistjonijiet u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Dryer ma jibda | Power cord unplugged, door not closed, program not selected. | Iċċekkja l-konnessjoni tal-enerġija, kun żgur li l-bieba tkun imsakkra, agħżel programm u agħfas Ibda. |
| Il-ħwejjeġ mhux qed jinxfu sew | Lint filter clogged, water container full, wrong program selected, overloaded. | Clean lint filter, empty water container, select appropriate program, reduce load size. |
| Storbju eċċessiv | Dryer not level, foreign objects in drum. | Aġġusta s-saqajn tal-livellar, iċċekkja t-tanbur għal oġġetti maħlula. |
| Ilma inixxi | Water container not properly inserted, drain hose loose. | Ensure water container is fully pushed in, check drain hose connection. |
7. Speċifikazzjonijiet
Key technical specifications for the Candy Smart Pro Inverter CRO EH9N4TBE-S dryer:
- Ditta: Candy
- Mudell: CRO EH9N4TBE-S
- Fattur tal-Formola: Tagħbija ta 'quddiem
- Pożizzjoni tat-Tagħbija: Tagħbija ta 'quddiem
- Kapaċità: 9 Kilogrammi
- Kulur: Abjad
- Dimensjonijiet (HxWxD): 85 x 59.6 x 58.5 ċm
- Klassi tal-Effiċjenza tal-Enerġija: B
- Livell ta' Storbju: 63 dB
- Konsum tal-Enerġija (għal kull 100 ċiklu): 92 kWh
Image: The EU Energy Label for the CRO EH9N4TBE-S model, detailing its energy efficiency and consumption.
Għal informazzjoni dettaljata dwar il-prodott u d-dħul uffiċjali fid-database tal-EPREL, jekk jogħġbok żur: https://eprel.ec.europa.eu/qr/2397550
8. Garanzija u Appoġġ
Your Candy Smart Pro Inverter dryer comes with a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions, including the duration of coverage.
For technical assistance, spare parts, or to schedule a service appointment, please contact Candy customer support. You can find more information and support resources on the official Candy service websit:
https://go.he.services/service-hcs-candy
When contacting support, please have your appliance model number (CRO EH9N4TBE-S) and serial number ready.
