Manwal tal-Utent tal-Phanteks Premium Gen5 Vertical GPU Bracket (PH-PGPUKT5.0_xxx)

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of the Phanteks Premium Gen5 Vertical GPU Bracket. This product is designed to vertically mount your graphics card, offering both aesthetic enhancement and robust support, while ensuring full PCI Express 5.0 performance and integrated D-RGB lighting.

Please read these instructions carefully before installation to ensure proper setup and to prevent damage to your components.

2. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti fil-pakkett:

• Premium Vertical GPU Bracket
• PCIe 5.0 Riser Cable (integrated)
• Mounting Hardware (screws, standoffs)
• Manwal għall-Utent (dan id-dokument)

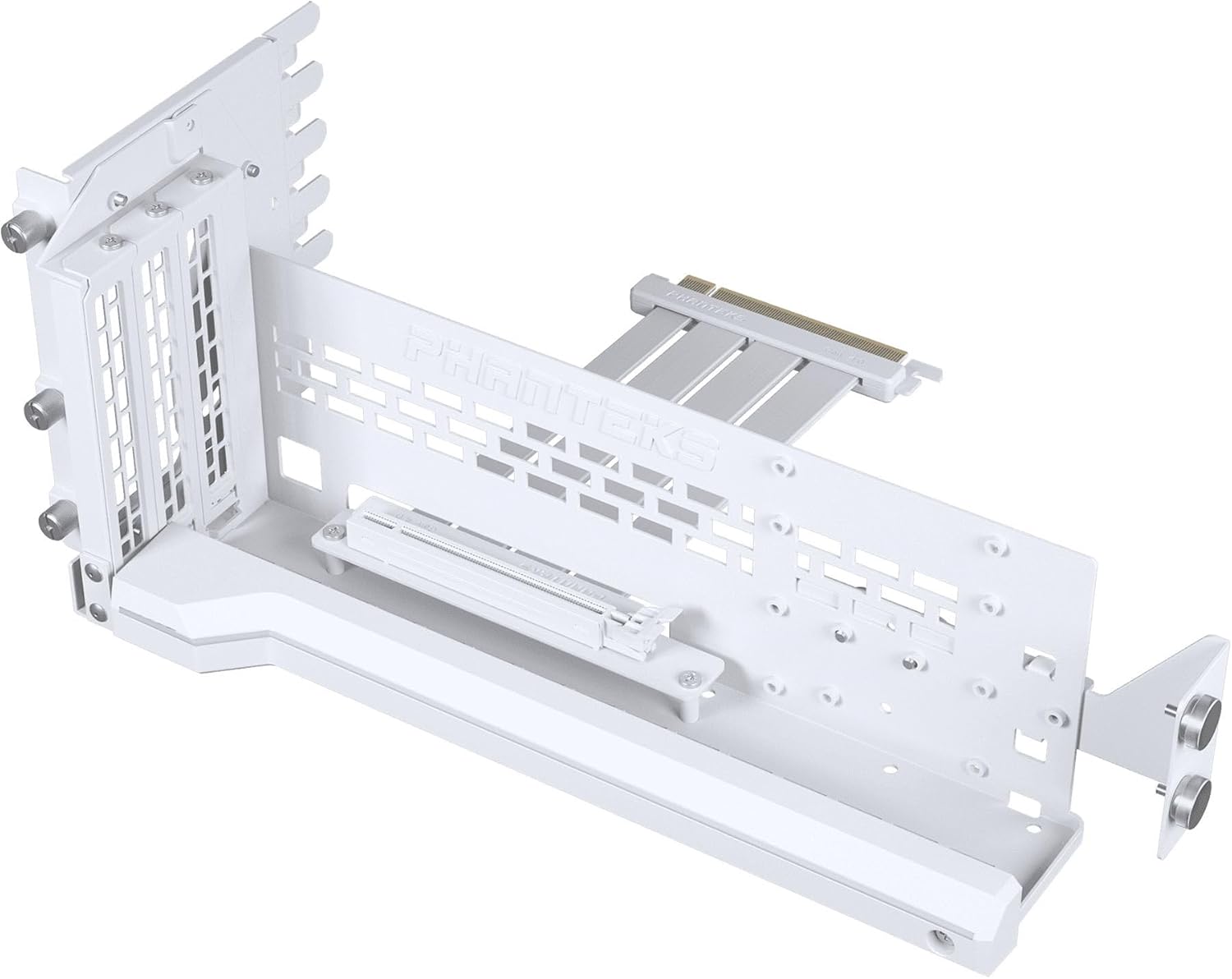

Figura 2.1: Aktarview of the Phanteks Premium Gen5 Vertical GPU Bracket, showing the main bracket and integrated PCIe 5.0 riser cable.

3. Setup u Installazzjoni

Before beginning installation, ensure your computer is powered off and disconnected from the main power supply. It is recommended to wear an anti-static wrist strap to prevent electrostatic discharge (ESD) damage to components.

3.1 Verifika tal-Kompatibbiltà

• Requires a chassis with at least 7 open PCI slot areas.
• Compatible with most standard ATX cases.
• Ensure sufficient clearance for your GPU and cooling solution.

3.2 Passi ta' Installazzjoni

1. Ipprepara x-Chassis: Remove the rear PCI slot covers from your computer case. You will need access to at least 7 open slots.
2. Installa l-Bracket: Position the vertical GPU bracket inside your chassis. Align the mounting holes of the bracket with the screw holes in your case's PCI slot area. Secure the bracket using the provided screws.


Figure 3.1: The vertical GPU bracket secured within a PC chassis, ready for graphics card installation.

3. Adjust GPU Position (Optional): The bracket supports tilted positions up to 30 degrees. Adjust the bracket's angle as desired before securing the GPU.

Figure 3.2: Illustration of the adjustable tilt feature, allowing the GPU to be angled for optimal display or airflow.
4. Installa l-Karta tal-Grafika: Carefully insert your graphics card into the PCIe 5.0 slot on the vertical GPU bracket. Ensure it is fully seated.
5. Sikura l-Karta Grafika: Use the secure GPU mounting system to physically hold the GPU to the bracket. This typically involves screws or a latch mechanism.


Figure 3.3: A graphics card securely installed on the vertical GPU bracket, showcasing its vertical orientation.

6. Connect the Riser Cable: Connect the integrated PCIe 5.0 riser cable from the vertical bracket to the corresponding PCIe x16 slot on your motherboard. Ensure a firm connection.
7. Connect D-RGB Cable: Connect the D-RGB cable from the bracket to an available 3-pin D-RGB header on your motherboard or a compatible D-RGB controller.

4. Operating Instructions (D-RGB Lighting)

The Phanteks Premium Gen5 Vertical GPU Bracket features integrated D-RGB lighting. To control the lighting effects:

• If connected to a motherboard D-RGB header, use your motherboard's lighting control software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome Sync) to customize colors and effects.
• If connected to a Phanteks D-RGB controller (sold separately), use the controller's physical buttons or associated software for customization.

Figure 4.1: The vertical GPU bracket with its D-RGB lighting active, enhancing the visual appeal of the system.

5. Manutenzjoni

Regular maintenance helps ensure the longevity and optimal performance of your vertical GPU bracket:

• Tindif: Periodically clean the bracket and riser cable with a soft, dry cloth to remove dust. Avoid using liquid cleaners directly on the components.
• Spezzjoni tal-Cable: Occasionally check the PCIe riser cable and D-RGB cable connections to ensure they are secure and free from damage.
• Sigurtà tal-Immuntar: Verify that the GPU and bracket remain securely mounted within the chassis.

6 Issolvi l-problemi

If you encounter issues with your Phanteks Premium Gen5 Vertical GPU Bracket, refer to the following common solutions:

• GPU Not Detected:
  • Ensure the PCIe 5.0 riser cable is fully seated in both the GPU and the motherboard's PCIe x16 slot.
  • Verify that your motherboard's BIOS/UEFI settings are configured correctly for PCIe Gen5 operation, or try setting the PCIe slot speed to Gen4 or Gen3 as a test.
  • Test the GPU directly in the motherboard's PCIe slot to rule out a GPU issue.
• D-RGB Lighting Not Working:
  • Check that the D-RGB cable is securely connected to a compatible 3-pin D-RGB header on your motherboard or controller.
  • Ensure your motherboard's lighting software is installed and updated, and that the D-RGB header is enabled.
  • Confirm that the D-RGB header is receiving power.
• Physical Instability:
  • Re-check all mounting screws for the bracket and the GPU to ensure they are tightened appropriately.
  • Ensure the chassis itself is stable and on a flat surface.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

Phanteks products are designed and manufactured to the highest quality standards. For detailed warranty information, please refer to the official Phanteks webis-sit jew il-karta tal-garanzija inkluża mal-prodott tiegħek.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please visit the official Phanteks support page:

Appoġġ ta' Phanteks Websit

When contacting support, please have your product model number (PH-PGPUKT5.0_xxx) and proof of purchase ready.
