1. Introduzzjoni
Welcome to the user manual for your NIMO N152S 15.6-inch Laptop. This guide provides essential information on setting up, operating, maintaining, and troubleshooting your new device. Please read this manual thoroughly to ensure optimal performance and longevity of your laptop.
2. Prodott Aktarview
2.1 Karatteristiċi ewlenin
- Prestazzjoni qawwija: Equipped with an AMD Ryzen 5 3500U processor and integrated Radeon graphics for smooth multitasking and efficient performance.
- Wiri Immersiv Full HD: A 15.6-inch Full HD (1920x1080) IPS display with a 180° wide hinge for vibrant visuals and wide viewangoli.
- Disinn Slim u Ħfief: Crafted with a sleek metal top cover, weighing under 3.7 lbs and measuring just 19.2 mm thin.
- Konnettività Mtejba: Features 2 USB-A, 2 USB-C (full function PD/DP/Data), HDMI, MicroSD, and a 3.5mm audio jack.
- Expandable Memory & Storage: Supports up to 32GB DDR4 RAM and M.2 PCIe 3.0 x4 SSD for future-proof upgrades.
- Smart Security & Comfort: Includes a fingerprint reader on the touchpad, a backlit keyboard for low-light use, and dual microphones.
2.2 Identifikazzjoni tal-Komponent
Familiarize yourself with the various components of your NIMO N152S laptop as illustrated below.
Figura 2.1: Quddiem view of the NIMO N152S laptop, showcasing its sleek design and key features like Windows 11, 32GB RAM, 1TB SSD, Full HD display, AMD Ryzen 5, Type-C PD Charger, Backlit Keyboard, and Fingerprint Reader.
Figure 2.2: Illustration of the AMD Ryzen 5 processor, detailing its specifications including 4 Cores, 8 Threads, 15W Power Consumption, and 3.7 GHz Turbo Boost, indicating its capability for daily tasks and light gaming.
Figure 2.3: The NIMO laptop screen showcasing a vivid Full HD (1920x1080) IPS display, highlighting features like bright view and eye protection, with an 85% screen-to-body ratio.
Figura 2.4: Dettaljat view of the NIMO laptop's expanded connectivity options, labeling ports such as Type-C (Charge Only), USB 3.0, HDMI, Type-C (Full Function), Charge LED, Micro SD Reader, USB 2.0, USB 3.0, Headphone Combo, and Kensington Lock.
3. Setup Inizjali
3.1 Charging the Laptop
Before first use, fully charge your NIMO laptop. Connect the provided 65W Type-C PD charger to the USB-C charging port on the laptop and then to a power outlet. The charge LED indicator will illuminate to confirm charging.
Figure 3.1: The 65W Type-C PD Charger, designed for universal compatibility with laptops, tablets, and smartphones, simplifying your charging needs compared to multiple chargers.
3.2 L-Ewwel Tixgħel
- Iftaħ l-għatu tal-laptop.
- Agħfas il-buttuna tal-qawwa li tinsab fuq it-tastiera.
- Segwi l-istruzzjonijiet fuq l-iskrin biex tlesti s-setup inizjali tal-Windows 11, inkluż l-għażla tal-lingwa, il-konnessjoni tan-netwerk, u l-ħolqien tal-kont tal-utent.
4. Kif Tħaddem il-Laptop NIMO Tiegħek
4.1 Modalità Mixgħul/Mitfi u Modalità Sleep
- Qawwa Mixgħul: Agħfas il-buttuna tal-qawwa.
- Itfi: Ikklikkja l-buttuna Start, imbagħad Power > Shut down.
- Modalità Sleep: Agħlaq l-għatu jew ikklikkja l-buttuna Start, imbagħad Power > Sleep.
4.2 L-Użu tat-Tastiera u t-Touchpad
Your NIMO laptop features a full-sized keyboard with a numeric keypad and a responsive touchpad.
- Tastiera backlit: Agħfas Fn + F10 (or the key with the backlight icon) to toggle the keyboard backlight on/off or adjust brightness levels.
- Touchpad: Jappoġġja ġesti multi-touch għan-navigazzjoni. Irreferi għas-settings tal-Windows għall-adattament.
- Tastiera numerika: Use the dedicated numeric keypad for efficient data entry.
Figure 4.1: The NIMO laptop keyboard, emphasizing its backlit keys, integrated touchpad, fingerprint reader, and numeric keypad, designed for comfortable typing in various lighting conditions.
4.3 Qarrej tal-Marki tas-Swaba'
The integrated fingerprint reader on the touchpad provides quick and secure access to your laptop.
- Go to Windows Settings > Accounts > Sign-in options.
- Issettja l-Impronta tas-Swaba' tal-Windows Hello.
- Segwi l-istruzzjonijiet fuq l-iskrin biex tirreġistra l-marki tas-swaba' tiegħek.

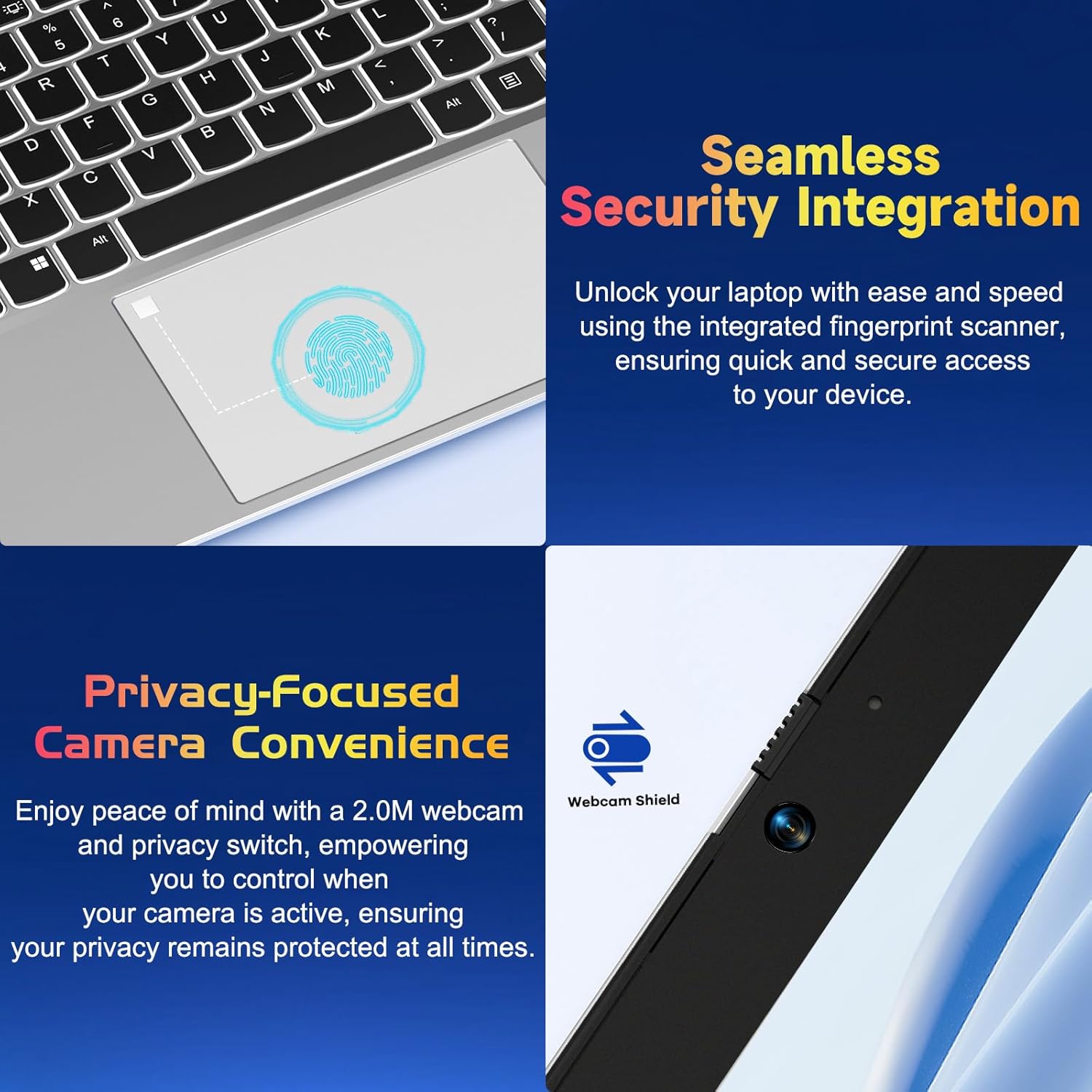

Figura 4.2: Close-up view of the NIMO laptop's touchpad, highlighting the integrated fingerprint scanner for seamless security integration, alongside the privacy-focused webcam with a physical shield.
4.4 Konnessjoni tal-Periferali
Your laptop offers various ports for connecting external devices:
- Portijiet USB-A: Għall-konnessjoni ta' apparati USB standard bħal ġurdien, tastieri, jew drives esterni.
- Portijiet USB-C: Two full-function USB-C ports support Power Delivery (PD), DisplayPort (DP), and data transfer. One is dedicated for charging.
- Port HDMI: Qabbad ma' monitors jew projetturi esterni.
- Qarrej tal-Kards MicroSD: Insert a MicroSD card for additional storage or data transfer.
- Jack Awdjo 3.5mm: Għal headphones jew kelliema esterni.
4.5 Webcam Privacy
The laptop includes a 2.0MP webcam with a physical privacy shield. Slide the shield to cover the camera lens when not in use to ensure your privacy.
5. Manutenzjoni u Kura
- Tindif: Uża drapp ratba u mingħajr ħelu ftit dampened with water or a screen cleaner to clean the display and exterior. Avoid harsh chemicals.
- Aġġornamenti tas-Software: Aġġorna s-sistema operattiva u d-drivers tal-Windows tiegħek regolarment biex tiżgura prestazzjoni u sigurtà ottimali.
- Kura tal-batterija: Biex ittawwal il-ħajja tal-batterija, evita temperaturi estremi u pprova żomm il-ċarġ tal-batterija bejn 20% u 80% meta jkun possibbli.
- Ħażna: Aħżen il-laptop f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
6 Issolvi l-problemi
Din it-taqsima tindirizza kwistjonijiet komuni li tista' tiltaqa' magħhom bil-laptop NIMO tiegħek.
| Ħruġ | Soluzzjoni Possibbli |
|---|---|
| Il-laptop ma jixgħelx. | Ensure the laptop is charged. Connect the charger and wait a few minutes before attempting to power on again. If unresponsive, perform a hard reset by holding the power button for 15 seconds. |
| L-iskrin huwa vojt jew iteptep. | Try adjusting the screen brightness (Fn + F5/F6). If connected to an external monitor, ensure the cable is secure. Restart the laptop. |
| Keyboard backlight is not working. | Press Fn + F10 (or the key with the backlight icon) to cycle through backlight settings. Ensure the function keys are enabled. |
| Fingerprint reader not recognized. | Kun żgur li subgħajk ikun nadif u niexef. Erġa' rreġistra l-marka tas-swaba' tiegħek fis-settings tal-Windows Hello jekk il-problema tippersisti. |
| Problemi bil-konnessjoni tal-Wi-Fi. | Check if Wi-Fi is enabled (Fn + F12 or Windows settings). Restart your router and laptop. Update Wi-Fi drivers if necessary. |
| Il-laptop qed jaħdem bil-mod. | Close unnecessary applications. Check Task Manager for resource-intensive processes. Ensure Windows and drivers are up to date. Consider running a disk cleanup. |
7. Speċifikazzjonijiet Tekniċi
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | NIMO |
| Isem tal-Mudell | NIMO N152S |
| Numru tal-Mudell tal-Oġġett | NIMO N152 |
| Daqs tal-Iskrin | 15.6 Pulzier |
| Riżoluzzjoni Massima tal-Iskrin | 1920 x 1080 Pixels (Full HD) |
| Proċessur | AMD Ryzen 5 3500U (3.7 GHz) |
| RAM | 32 GB DDR4 (3200 MHz) |
| Hard Drive | SSD ta' 1024 GB (Stat Solidu) |
| Koproċessur tal-Grafika | Grafika integrata tal-AMD |
| Sistema Operattiva | Windows 11 |
| Tip bla fili | 802.11abg |
| Numru ta 'USB 2.0 Ports | 1 |
| Ħajja Medja tal-Batterija | 5 Sigħat |
| Piż tal-oġġett | 3.8 liri |
| Dimensjonijiet tal-Prodott | 14.07 x 8.98 x 0.76 pulzieri |
| Kulur | Fidda Klassika |
| Wara WebCam Riżoluzzjoni | 2 MP |
| Sors tal-Enerġija | Mħaddma bil-batterija |
| Batteriji | 1 Batteriji tal-Lithium Polymer meħtieġa (inklużi) |
8. Garanzija u Appoġġ għall-Klijent
8.1 Informazzjoni dwar Garanzija
Your NIMO N152S laptop comes with a comprehensive warranty:
- Politika ta' Ritorn bla Ħlas ta' 90 Jum: You may return your NIMO laptop for any reason within 90 days of purchase.
- Garanzija ta' sena: All NIMO products are covered by a 2-year warranty for after-sales support.
Figure 8.1: NIMO's commitment to customer satisfaction, featuring a 90-day free return policy and a 2-year warranty for reliable support.
8.2 Appoġġ għall-Klijent
For any product-related questions, technical assistance, or warranty claims, please contact our U.S.-based support team:
- Żur in-NIMO uffiċjali websit għal riżorsi ta' appoġġ u għażliet ta' kuntatt.
- Refer to your purchase documentation for specific contact details.
Our team is dedicated to providing professional and high-quality customer service to resolve any issues you may encounter.
