CYCPLUS Smart Indoor Cycling Fan F1 User Manual

Introduzzjoni

Welcome to the CYCPLUS Smart Indoor Cycling Fan F1 user manual. This guide provides detailed instructions for the safe and efficient use of your new smart fan. Designed with a BLDC motor, 5 speed modes, and advanced connectivity options, the F1 fan enhances your indoor cycling and training experience by providing intelligent, adaptive cooling.

Informazzjoni dwar is-Sigurtà

Please read all safety instructions before using the fan. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Kun żgur li l-fann jitqiegħed fuq wiċċ stabbli u livellat biex tevita li jinqaleb.
• Do not insert fingers or any objects into the fan grille.
• Keep the fan away from water or other liquids. Do not operate in wet conditions.
• Skonnettja l-fann mis-sokit tal-enerġija qabel ma tnaddaf jew tagħmel xi manutenzjoni.
• Do not use the fan if the power cord or plug is damaged. Contact customer support for assistance.
• Żomm fejn ma jintlaħaqx mit-tfal u l-annimali domestiċi.
• Uża biss l-adapter tal-enerġija pprovdut.

Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• CYCPLUS Smart Fitness Fan (F1)
• Ground Base
• Kontroll mill-bogħod
• Lanyard għal Remote
• Silicone Straps (x2) for Remote
• Adapter tad-DC DC
• Kejbil tal-Enerġija AC
• Manwal għall-Utent
• Tornavit
• Viti M5 (x2)

Image: All components included in the CYCPLUS Smart Indoor Cycling Fan F1 package.

Setup

1. Base Installation

Place the fan securely into the provided ground base. Ensure it is stable before connecting power.

2. Konnessjoni tal-Enerġija

Connect the DC power adapter to the fan and then plug the AC power cable into a standard wall outlet. The fan is now ready for operation.

Istruzzjonijiet Operattivi

Qawwa mixgħul/mitfi

Agħfas u żomm il-buttuna tal-qawwa (⏻) on the fan's control panel for 2 seconds to turn the fan on or off.

Kontroll tal-Veloċità Manwali

Once powered on, press the "+"jew"-" buttons to manually adjust the fan speed. There are 5 speed levels available.

Għażla tal-Modalità

Agħfas il-buttuna tal-mod (⏻) once to cycle through the available operating modes:

• Modalità Veloċità: The fan automatically adjusts airflow based on your cycling speed (requires ANT+ speed sensor).
• Modalità Rata tal-Qalb: The fan automatically adjusts airflow based on your heart rate (requires ANT+ heart rate monitor).
• Modalità tal-Enerġija: The fan automatically adjusts airflow based on your power output (requires ANT+ power meter or smart bike trainer).
• Modalità Smart: Connects multiple devices/sensors such as speed, heart rate, and power. The fan automatically adjusts airflow in real time based on multiple data inputs, ensuring the most optimal airflow.
• Modalità Manwali: Allows direct control of fan speed using the "+" u "-" buttons or the remote control.

Image: The fan's control panel displaying icons for different smart speed modes.

Remote Control Pairing and Usage

To pair the remote control with the fan:

1. Ensure the fan is in Manual Mode.
2. Press any button on the remote control to wake it up and enter pairing mode (indicator light will flash).
3. On the fan, press and hold the "+" u "-" buttons simultaneously for 2 seconds.
4. Once paired, the remote's indicator light will stay solid for 3 seconds, then turn off. The remote will auto-connect for future use.

Use the remote to power on/off, adjust speed, and change modes.

Image: The compact remote control for the CYCPLUS F1 fan, shown with its included silicone straps and lanyard for easy attachment.

App Control

Download the CYCPLUS APP from your device's app store. Pair the fan via Bluetooth within the app to fine-tune workout parameters and control the fan from your smartphone.

Image: A smartphone displaying the CYCPLUS app interface for controlling the F1 fan, positioned next to the fan itself.

Aġġustament tal-fluss tal-arja

The fan can be manually tilted from 0 to 60 degrees to direct airflow precisely where needed. The optimal placement distance is 1 meter from the user.

Image: The CYCPLUS F1 fan demonstrating its adjustable tilt mechanism, allowing airflow to be directed between 0 and 60 degrees.

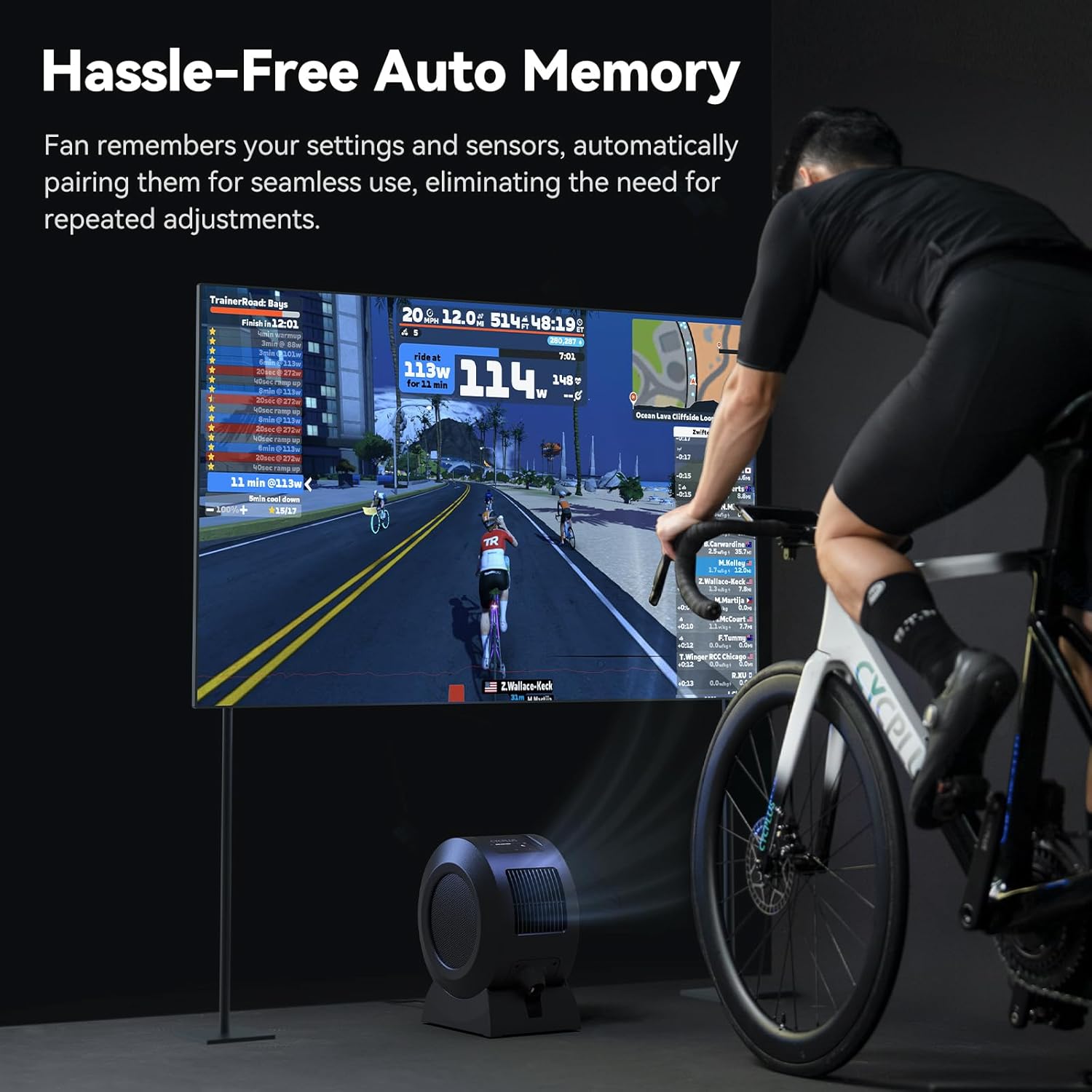

Memorja Awtomatika

The fan remembers your last settings and connected sensors, automatically pairing them for seamless use without repeated adjustments.

Image: The CYCPLUS F1 fan providing cooling during an indoor cycling session, with a large monitor showing real-time workout metrics.

Manutenzjoni

Tindif

To clean the fan, first unplug it from the power source. The front grille is removable for easy access to the fan blades. Use a soft, dry cloth to wipe down the exterior and blades. Do not use abrasive cleaners or immerse the fan in water.

Immaġni: Dettaljata view of the CYCPLUS F1 fan with its front grille removed, illustrating the ease of access for cleaning.

Issolvi l-problemi

• Il-fann ma jixgħelx: Ensure the power adapter is securely connected to both the fan and a working power outlet.
• Fluss tal-arja dgħajjef: Check for any obstructions in the fan's intake or exhaust grilles. Clean the fan blades if dust buildup is present.
• Il-kontroll mill-bogħod ma jaħdimx: Ensure the remote control is paired correctly with the fan. Check the remote's battery.
• Sensor not connecting: Verify that your ANT+ sensor is powered on and within range. Ensure the fan is in the correct mode for the sensor type (Speed, Heart Rate, Power, or Smart Mode). Try re-pairing the sensor.
• Problemi ta' konnettività tal-app: Ensure Bluetooth is enabled on your smartphone and the fan is powered on. Restart the app and try pairing again.

Speċifikazzjonijiet

Image: A summary of the technical specifications for the CYCPLUS F1 fan.

Garanzija u Appoġġ

For warranty information, technical support, or any inquiries regarding your CYCPLUS Smart Indoor Cycling Fan F1, please visit the official CYCPLUS webis-sit jew ikkuntattja lis-servizz tal-konsumatur tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek għal talbiet ta' garanzija.

Official CYCPLUS Store: CYCPLUS Amazon Store
