1. Prodott Aktarview
The Polibi Multi-Functional Murphy Bed is a versatile, space-saving furniture solution designed for small living areas. This unit integrates a full-size bed, a comfortable sofa, a functional desk, and a storage cabinet into a single compact design. It allows for easy conversion between a sleeping area and a living/working space, optimizing room utility.
Image 1.1: The Polibi Murphy Bed in its extended full-size bed configuration, showcasing the integrated desk and storage.
Image 1.2: The Polibi Murphy Bed in its compact sofa configuration, with the bed folded away.
2. Informazzjoni dwar is-Sigurtà
Jekk jogħġbok aqra u ifhem l-istruzzjonijiet kollha tas-sigurtà qabel l-assemblaġġ u l-użu. Jekk ma ssegwix dawn l-istruzzjonijiet, il-prodott jista' jikkawża korriment jew ħsara.
- Assemblea Adult Meħtieġa: This product requires assembly by at least two adults.
- Immuntar tal-ħajt: The Murphy bed unit irid ikun imwaħħal sew mal-ħajt to prevent tipping. Use appropriate hardware for your wall type (wood studs, concrete, drywall anchors). Consult a professional if unsure.
- Kapaċità tal-piż: The bed is designed to support a maximum weight of 600 lbs (272 kg)Teċċedix dan il-limitu.
- Clearance: Ensure adequate clearance around the unit for safe operation of the bed and desk mechanisms.
- Tfal u Pets: Keep children and pets away from the unit during operation to prevent pinching or injury.
- Spezzjoni regolari: Periodically check all bolts, screws, and connections to ensure they remain tight and secure.
- Kompatibilità tas-Saqqijiet: Use a mattress that fits the full-size bed frame and is compatible with a Murphy bed mechanism.
3. Lista tal-Komponenti
Before beginning assembly, verify that all parts are present and undamaged. Refer to the packing list included with your product for a detailed inventory. Typical components include:
- Main Cabinet Panels (sides, back, top, bottom)
- Bed Frame Assembly
- Sofa Frame and Cushions
- Desk Panel and Supports
- Storage Cabinet Doors and Shelves
- Hardware Pack (screws, bolts, cam locks, wall anchors, etc.)
- Assembly Tools (Allen wrench, screwdriver - usually not included)
4. Setup u Assemblea
Assembly typically requires two adults and common household tools such as a Phillips head screwdriver, flathead screwdriver, and a hammer. A stud finder and drill may be necessary for wall mounting.
4.1 Pre-Assembly Steps
- Ippakkja: Iftaħ il-komponenti kollha mill-pakkett bir-reqqa u poġġihom fuq wiċċ nadif u artab biex tevita l-grif.
- Identifika l-Partijiet: Compare all parts against the packing list and hardware diagram.
- Preparazzjoni tal-Għodda: Gather all necessary tools.
4.2 Assembly Instructions (General Steps)
- Assemble Main Cabinet: Follow the step-by-step instructions in your product-specific manual to construct the main cabinet frame. Ensure all connections are secure.
- Install Bed Mechanism: Integrate the bed frame and its folding mechanism into the main cabinet. Pay close attention to spring tension or hydraulic piston installation as per your manual.
- Attach Sofa and Desk Components: Secure the sofa frame, desk panel, and any associated supports to the main unit.
- Install Storage Cabinetry: Attach doors, shelves, and any other storage elements.
- Immuntar tal-ħajt: This is a critical step. Position the assembled unit against the desired wall. Locate wall studs using a stud finder. Mark and drill pilot holes. Securely fasten the unit to the wall using the provided anti-tip hardware or appropriate anchors for your wall type. Do not skip this step.
- Kontrolli Finali: Ensure all components are tightly secured and the unit is stable. Test the bed folding mechanism for smooth operation.

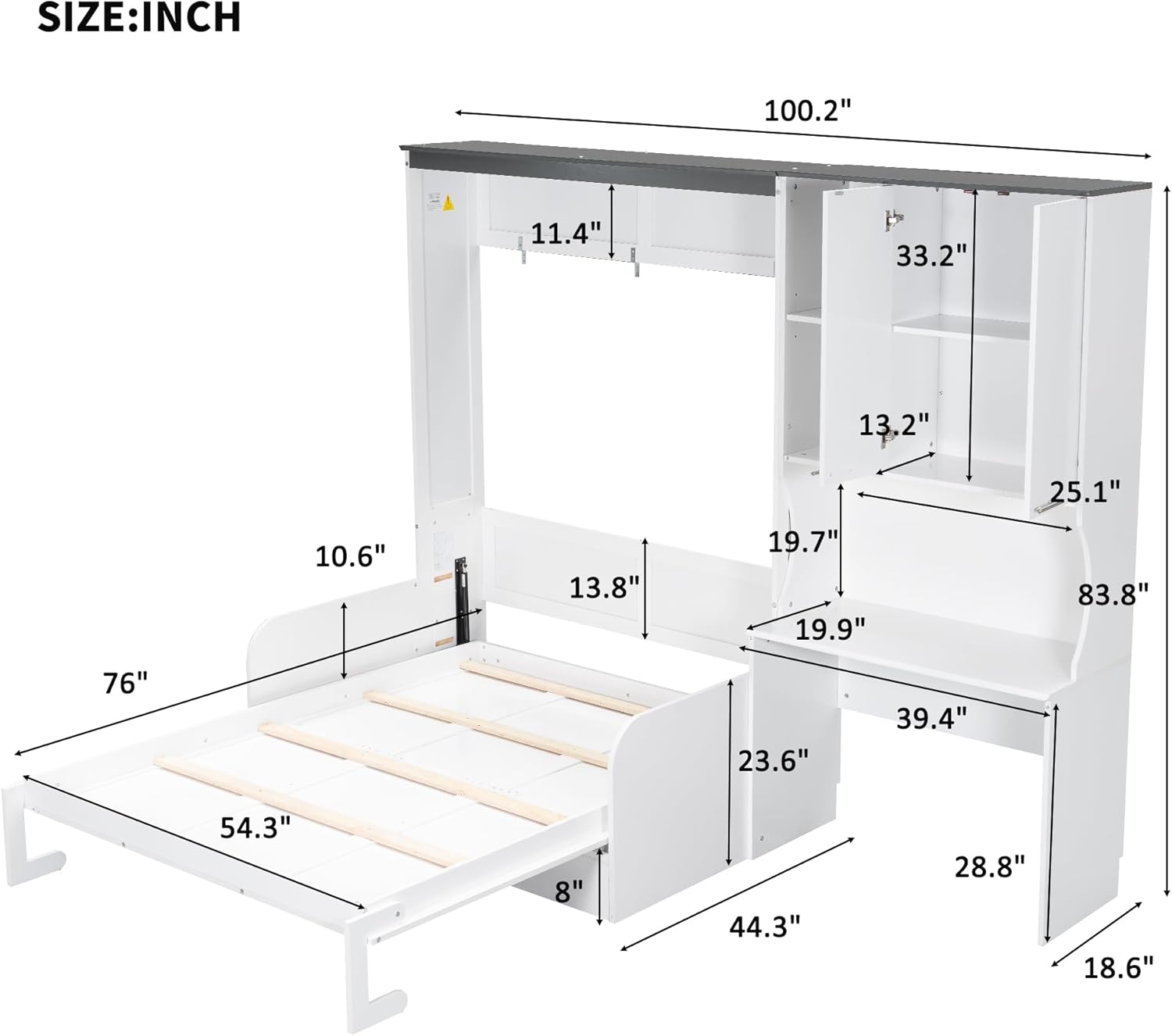

Image 4.1: Dimensional diagram of the Polibi Murphy Bed system, useful for planning placement and assembly.
5. Istruzzjonijiet Operattivi
5.1 Converting from Sofa to Bed
- Neħħi ż-Żona: Ensure the space in front of the sofa is clear of obstructions.
- Remove Sofa Cushions: Lift and remove the sofa cushions.
- Unlock Bed Mechanism: If your unit has a locking mechanism, disengage it.
- Lower the Bed: Gently pull the bed frame downwards from the top handle. The mechanism will assist in lowering the bed smoothly to the floor.
- Estendi r-Riġlejn: Ensure the bed support legs are fully extended and locked into place for stability.
5.2 Converting from Bed to Sofa
- Remove Bedding: Remove pillows and heavy bedding that might obstruct the folding mechanism.
- Retract Legs: Fold the bed support legs back into their stored position.
- Lift the Bed: Grasp the bed frame and gently lift it upwards. The mechanism will assist in raising the bed back into the cabinet.
- Lock Bed Mechanism: Engage any locking mechanism to secure the bed in the upright position.
- Replace Sofa Cushions: Place the sofa cushions back onto the sofa frame.
Image 5.1: Visual representation of the bed's fold-out design and safety chain.
5.3 Using the Desk and Storage
- Desk: The integrated desk is fixed and accessible when the bed is in either the sofa or bed configuration. Use it for work, study, or as a display surface.
- Kabinett tal-Ħażna: The cabinet features shelves and compartments for organizing books, linens, or other personal items. Open the doors to access.
Image 5.2: Close-up of the integrated storage cabinet and desk area.
6. Manutenzjoni
- Tindif: Imsaħ l-uċuħ b'artab, damp cloth. Avoid harsh chemicals or abrasive cleaners. For sofa cushions, spot clean with a mild fabric cleaner as needed.
- Iċċekkja tal-Hardware: Periodically inspect all screws, bolts, and connections. Tighten any loose hardware to ensure stability and safe operation.
- Lubrikazzjoni tal-Mekkaniżmu: If the bed mechanism becomes stiff, apply a small amount of silicone-based lubricant to moving parts as recommended by the manufacturer (refer to your specific product manual if provided).
- Ankri tal-ħajt: Regularly check the wall anchors for any signs of loosening or damage. Re-secure if necessary.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Bed does not fold or unfold smoothly. | Misalignment, loose hardware, obstruction, mechanism issue. | Check for obstructions. Ensure all assembly hardware is tight. Verify the bed frame is correctly aligned within the cabinet. If equipped, check spring tension or hydraulic pistons. |
| L-unità tħossha instabbli jew titħarrek. | Loose wall anchors, loose assembly hardware. | Immediately re-secure the unit to the wall. Tighten all assembly bolts and screws. Ensure wall anchors are properly installed and holding securely. |
| Sofa cushions slide off. | No-slip backing needed, excessive movement. | Consider adding non-slip pads or strips under the cushions. |
| Il-bibien tal-kabinetti ma jingħalqux sew. | Misaligned hinges, obstruction. | Adjust hinges as per assembly instructions. Check for items blocking the door closure. |
8. Speċifikazzjonijiet
- Ditta: polybi
- Mudell: Multi-Functional Murphy Bed with Sofa, Desk & Storage Cabinet
- Daqs: Sħiħ
- Kulur: Abjad
- Dimensjonijiet tal-Prodott (Ġenerali): 100.2"L x 76"W x 83.8"H (Length includes sofa/bed extension, Width is bed width, Height is cabinet height)
- Karatteristika Speċjali: Space-Saving Wall Bed
- Komponenti Inklużi: Desk, Sofa, Storage Cabinet
- Weight Capacity (Bed): Sa 600 lbs
9. Garanzija u Appoġġ
For specific warranty information, please refer to the documentation provided with your purchase or contact Polibi customer support directly. If you encounter any issues not covered in this manual or require replacement parts, please reach out to the seller or manufacturer for assistance.
Informazzjoni ta' Kuntatt: Refer to your purchase receipt or the Polibi brand webis-sit għad-dettalji ta' kuntatt tas-servizz tal-konsumatur l-aktar aġġornati.
