Giantex Portable Twin Tub Washing Machine

1. Introduzzjoni

This manual provides essential information for the safe and efficient operation of your Giantex Portable Twin Tub Washing Machine. Designed for convenience in small living spaces, this appliance features a dual-tub system for both washing and spin-drying, offering a practical laundry solution for apartments, dorms, RVs, and similar environments.

Image: The portable washing machine shown in different compact settings like an apartment, home, RV, and dorm room, highlighting its space-saving design.

2. Istruzzjonijiet tas-Sigurtà

• Dejjem aqla’ l-magna mill-plagg tal-elettriku meta ma tkunx qed tintuża, qabel ma tnaddafha, jew qabel ma tagħmel xi manutenzjoni.
• Do not operate the machine with wet hands or in excessively wet environments to prevent electrical shock.
• Ensure the machine is placed on a stable, level surface to prevent tipping or excessive vibration during operation.
• Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-magna waqt it-tħaddim.
• The motor and drain pump are equipped with overheating protection. If they overheat, restart them after 30-60 minutes of cooling.
• The drain hose should not be submerged in water to prevent drain issues or siphoning.
• Do not wash items that are waterproof or water-resistant, as this may cause an unbalanced load and excessive vibration.

3. Prodott Aktarview

Your portable washing machine features a twin-tub design, separating washing and spin-drying functions for optimal performance. The control panel offers intuitive knobs for managing wash time, wash mode, and spin time.

Immaġni: Close-up view of the control panel, showing the Wash Timer, Wash Selector (Gentle/Normal/Drain), and Spin Timer knobs, along with water inlets.

Komponenti Ewlenin:

• Banju tal-Ħasil: For washing clothes (12 lbs capacity).
• Tub tal-ispin: For spin-drying clothes (8 lbs capacity).
• Panel tal-Kontroll: Features knobs for Wash Timer, Wash Selector, and Spin Timer.
• Water Inlets: Two inlets for adding water to the wash tub.
• Ixxotta Manka: For expelling dirty water.
• Detachable Lint Filter: Located inside the wash tub to collect lint.
• Qoxra tas-Sigurtà: Prevents items from spinning out during the spin cycle.

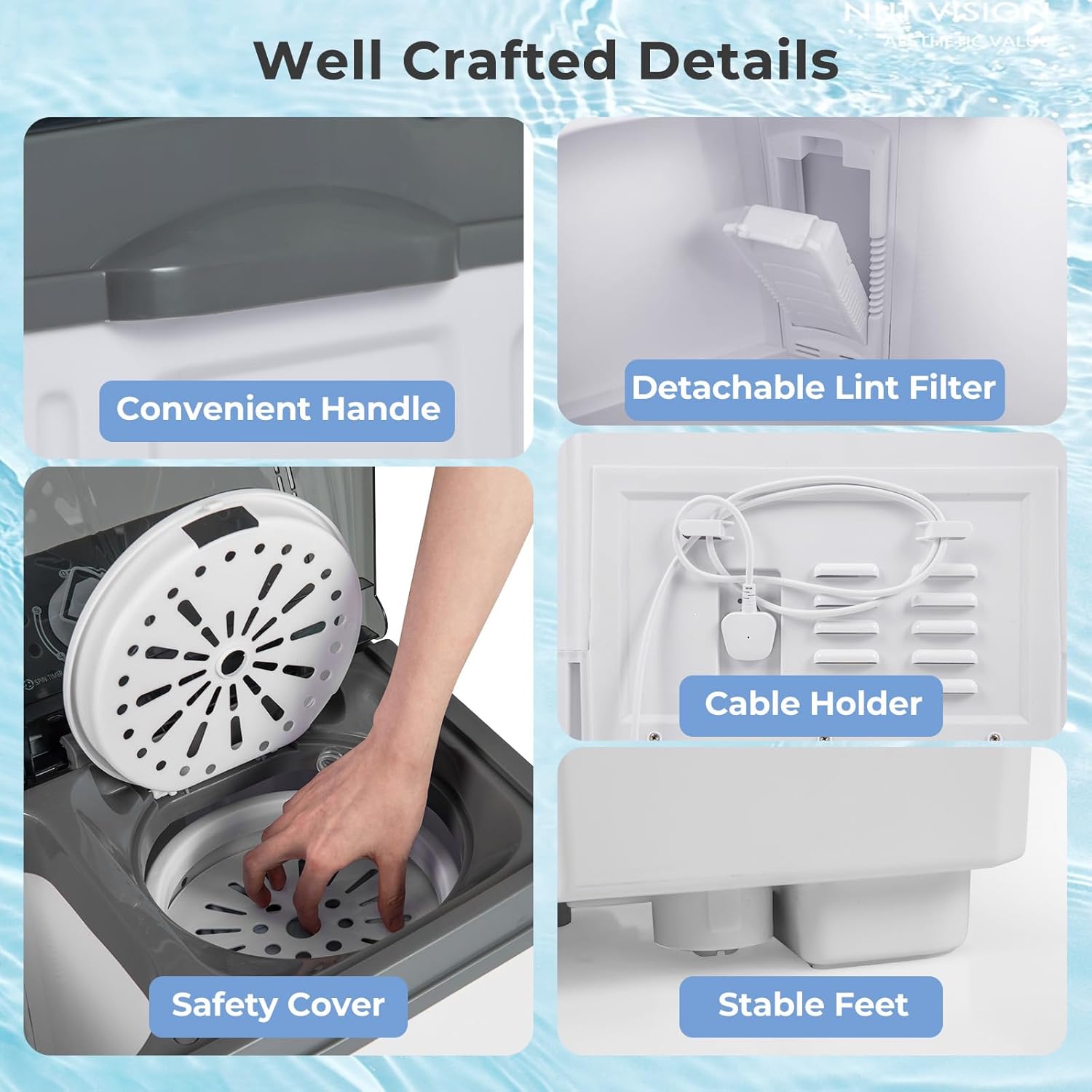

Immaġni: Dettaljata views of the machine's features, including a convenient handle, detachable lint filter, cable holder for neat management, and stable feet.

4. Setup

1. Pjazzament: Position the washing machine on a firm, level surface. Ensure it is in an area where water can be easily drained, such as a bathtub, shower, or near a floor drain.
2. Konnessjoni tal-Ilma: Connect the provided inlet hose to a faucet. Alternatively, you can manually fill the wash tub using a bucket.
3. Drain Hose Positioning: Ensure the drain hose is positioned lower than the machine's base for gravity drainage. It should lead directly into a drain or a large bucket.
4. Konnessjoni tal-Enerġija: Plug the power cord into a standard 110-120V, 60Hz electrical outlet.

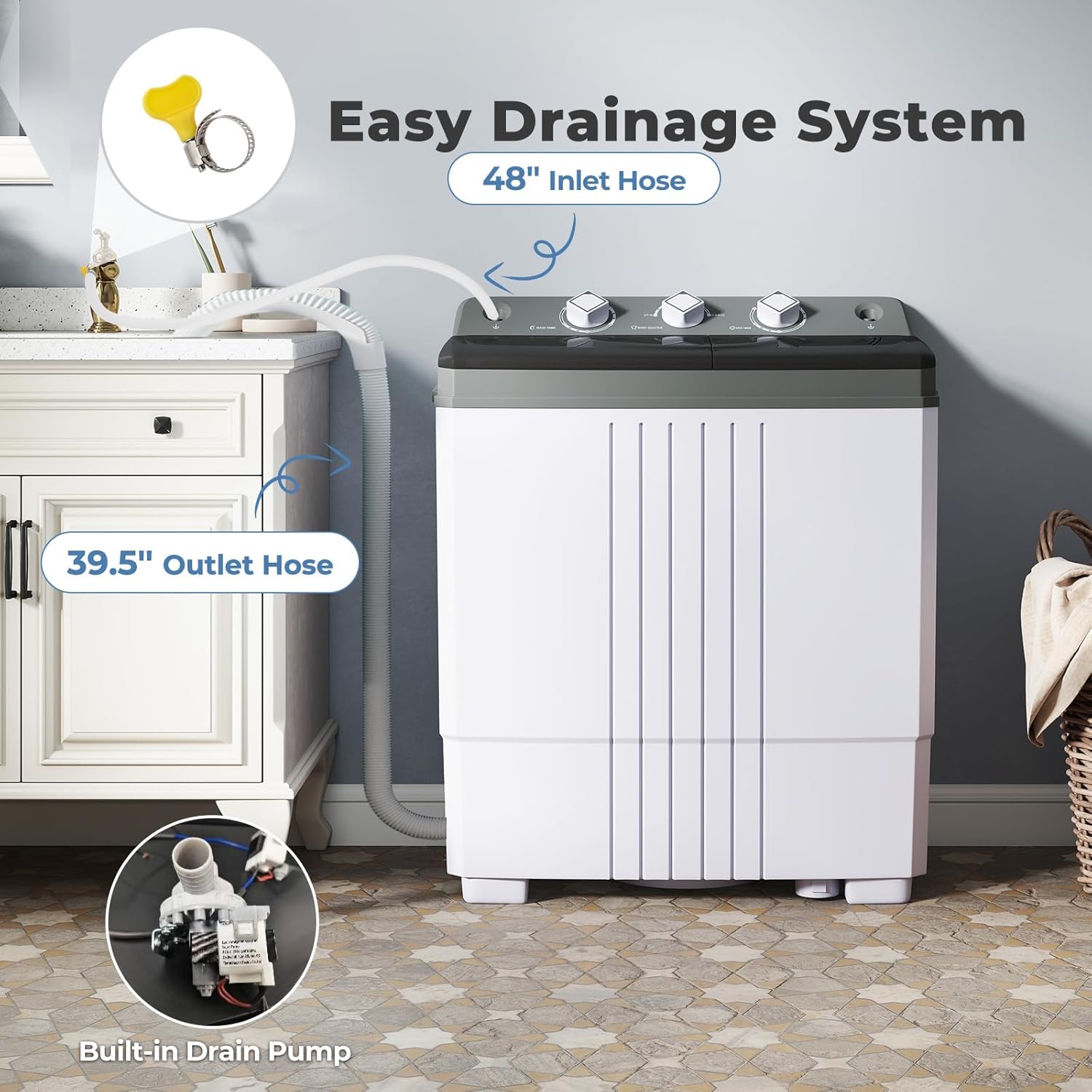

Image: The portable washing machine demonstrating its easy drainage system with a 48-inch inlet hose and a 39.5-inch outlet hose, along with a built-in drain pump.

5. Istruzzjonijiet Operattivi

5.1. Ċiklu tal-Ħasil

1. Add clothes to the wash tub. Do not exceed the 12 lbs capacity.
2. Add water to the wash tub via the water inlet or manually with a bucket. Fill to the desired level based on load size.
3. Add a small amount of laundry detergent.
4. Issettja l- Aħsel l-Għażla knob to 'NORMAL' for regular loads or 'GENTLE' for delicate items.
5. Dawwar il- Aħsel Timer knob to the desired wash time (up to 15 minutes). The machine will start washing.
6. Close the wash tub lid during operation.

Image: The twin tubs illustrating their respective capacities: 12 lbs for washing and 8 lbs for spin-drying, suitable for various clothing types.

5.2. Rinsing Cycle

1. Once the wash cycle is complete, turn the Aħsel l-Għażla knob to 'DRAIN' to empty the dirty water from the wash tub.
2. Refill the wash tub with clean water.
3. Issettja l- Aħsel Timer for 3-4 minutes to rinse the clothes.
4. After rinsing, turn the Aħsel l-Għażla knob to 'DRAIN' again to empty the rinse water.

5.3. Spin Drying Cycle

1. Transfer the wet clothes from the wash tub to the spin tub. Ensure the clothes are evenly distributed to prevent imbalance (max 8 lbs).
2. Place the white spin cap firmly on top of the clothes in the spin tub to prevent small items from spinning out.
3. Close the spin tub lid.
4. Dawwar il- Spin Timer knob to the desired time (up to 5 minutes). The spin dryer will start.
5. Tiżgura l- Aħsel l-Għażla is set to 'DRAIN' during the spin cycle to allow water to exit.
6. After the spin cycle, clothes will be approximately 70-80% dry and can be air-dried or hung to finish.

6. Manutenzjoni

6.1. Tindif tal-Filtru tal-Lint

• Regularly remove the detachable lint filter from the wash tub.
• Clean any accumulated lint or debris from the filter under running water.
• Reinsert the clean lint filter securely into its position in the wash tub.

6.2. Tindif tal-Estern

• Imsaħ il-barra tal-magna b'artab, damp drapp.
• Evita li tuża prodotti tat-tindif jew solventi li joborxu li jistgħu jagħmlu ħsara lill-wiċċ.

6.3. Ħażna

• After each use, ensure all water is drained from both tubs and hoses.
• Wipe down the interior and exterior to prevent mold or mildew.
• Store the machine in a dry, well-ventilated area, away from direct sunlight or extreme temperatures.

7 Issolvi l-problemi

• Il-magna ma tixgħelx: Check if the power cord is securely plugged in. Ensure the timer knobs are set correctly.
• L-ilma mhux qed joħroġ: Verify that the drain hose is positioned lower than the machine and is not kinked or blocked. Ensure the Wash Selector is set to 'DRAIN'.
• Excessive vibration during spin: This usually indicates an unbalanced load in the spin tub. Redistribute clothes evenly. Ensure the machine is on a stable, level surface.
• Riżultati ħżiena tal-ħasil: Avoid overloading the wash tub. Use the recommended amount of detergent. Ensure sufficient water is added for the load size.

8. Speċifikazzjonijiet

9. X'hemm fil-Kaxxa

• 1 x Twin Tub Washing Machine
• 1 x Inlet Hose Kit
• 1 x Ixxotta Manka
• 1 x Manwal ta 'Istruzzjoni

10. Garanzija u Appoġġ

For warranty information and customer support, please refer to the documentation included with your product packaging or visit the official Giantex websit. Żomm l-irċevuta tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
