1. Setup
1.1 Kontenut tal-Pakkett
Ivverifika li l-komponenti kollha huma preżenti fil-pakkett:
- Keychron M6 8K Wireless Gaming Mouse
- USB-C għal USB-C Cable
- Adapter USB-A għal USB-C
- 2.4 GHz USB-A Receiver
- Adapter ta' Estensjoni għar-Riċevitur
Image: Keychron M6 8K mouse with its cable, adapters, and 2.4 GHz receiver.
1.2 Modi ta' Konnettività
The Keychron M6 8K mouse supports three connectivity modes: 2.4 GHz wireless, Bluetooth 5.3, and wired USB-C.
- 2.4 GHz bla fili: For low-latency gaming. Insert the 2.4 GHz USB-A receiver into your computer's USB port. Use the extension adapter if needed for better signal.
- Bluetooth 5.3: For energy-efficient office use and multi-device flexibility. Pair with up to 3 devices.
- USB-C bil-wajer: For direct connection and charging. Connect the mouse to your computer using the provided USB-C cable.
Image: Diagram illustrating the dual wireless connectivity options (2.4GHz and Bluetooth) of the Keychron M6 8K mouse.
1.3 It-Tqabbil Inizjali (Bluetooth)
- Ensure the mouse is powered on and in Bluetooth mode (check the switch on the bottom).
- On your device (Mac/Windows/Linux), open Bluetooth settings.
- Select 'Keychron M6' from the list of available devices to pair.
- The mouse's indicator light will confirm successful pairing.
2. Istruzzjonijiet Operattivi
2.1 Funzjonijiet tal-Buttuni u Personalizzazzjoni
The Keychron M6 8K features over ten programmable buttons, including silent micro switches for noise-free clicking. Buttons can be customized using the Keychron Launcher web app.

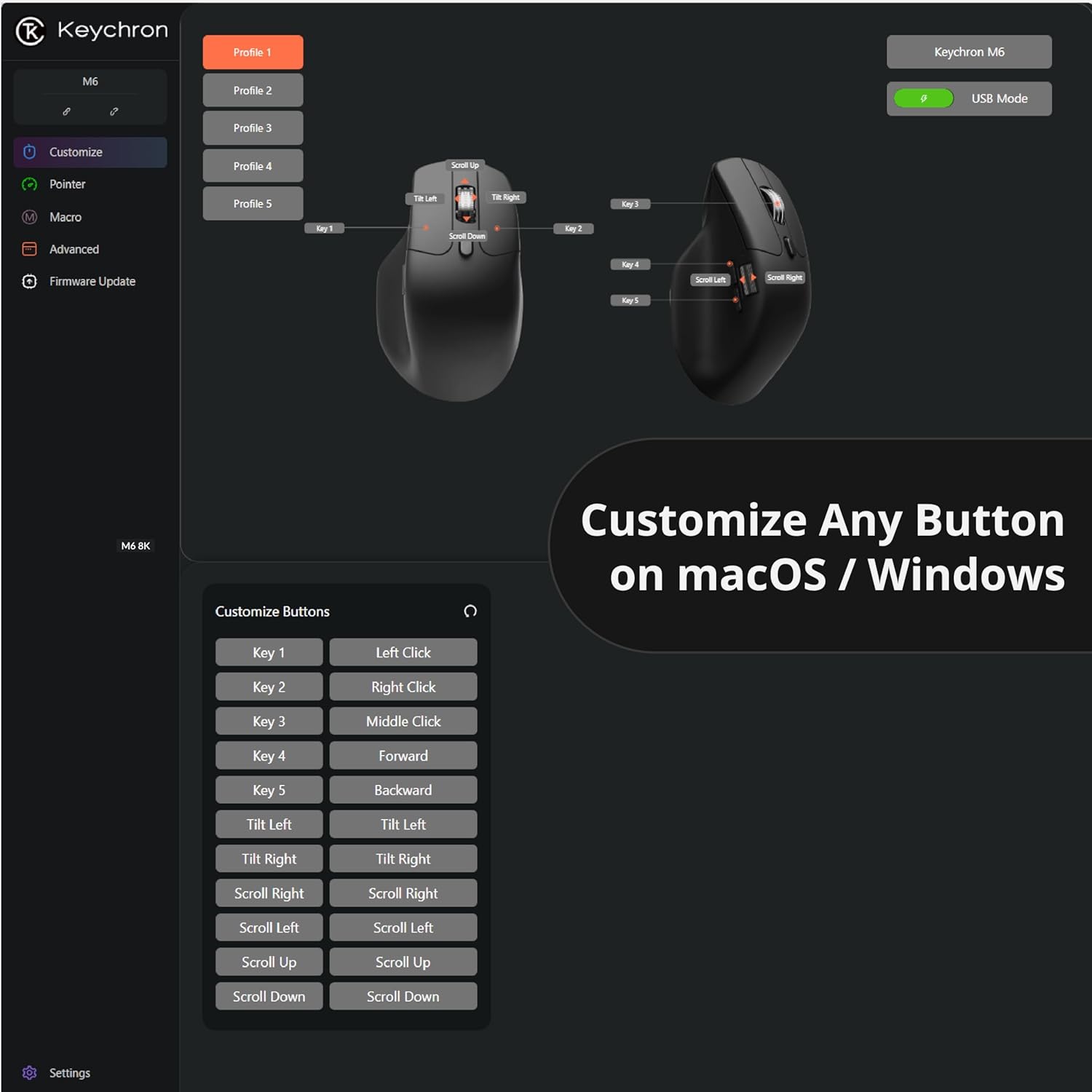

Image: Screenshot of the Keychron Launcher web app interface showing button customization options for the M6 mouse.
2.2 Dual-Mode Scroll Wheel
The mouse is equipped with a premium dual-mode scroll wheel:
- Hyper-fast Infinite Scroll: Ideal for quickly navigating long documents or code.
- Tactile Ratchet Mode: Provides precise control for detailed tasks.
Switch between modes using the dedicated button located near the scroll wheel.
Image: Close-up of the Keychron M6 8K mouse highlighting its dual scrolling mode feature.
2.3 Aġġustament tad-DPI u r-Rata tal-Polling
The PixArt 3950 sensor offers up to 30,000 DPI and 8000Hz polling rate. These settings can be adjusted directly on the mouse or through the Keychron Launcher web app. The mouse features 5 on-board memory profiles to store your custom DPI, polling rate, button mappings, and macros.
Image: Visual representation of the Keychron M6 8K's high-precision PixArt 3950 sensor, 750 IPS tracking, 8000Hz polling rate, 0.7mm LOD, and 30000 DPI.
Image: Diagram showing various polling rate options for the Keychron M6 8K mouse.
3. Manutenzjoni
3.1 Tindif
To maintain optimal performance, regularly clean your mouse. Use a soft, dry cloth to wipe the surface. For optical sensor, use a cotton swab lightly dampImxarrab bl-alkoħol isopropiliku biex tnaddaf bil-mod iż-żona tas-sensor.
3.2 Informazzjoni dwar il-batterija
The Keychron M6 8K mouse is equipped with a rechargeable battery, offering up to 120 hours of usage (at 1000Hz polling rate). Charge the mouse using the provided USB-C cable. The mouse can be used in wired mode while charging.

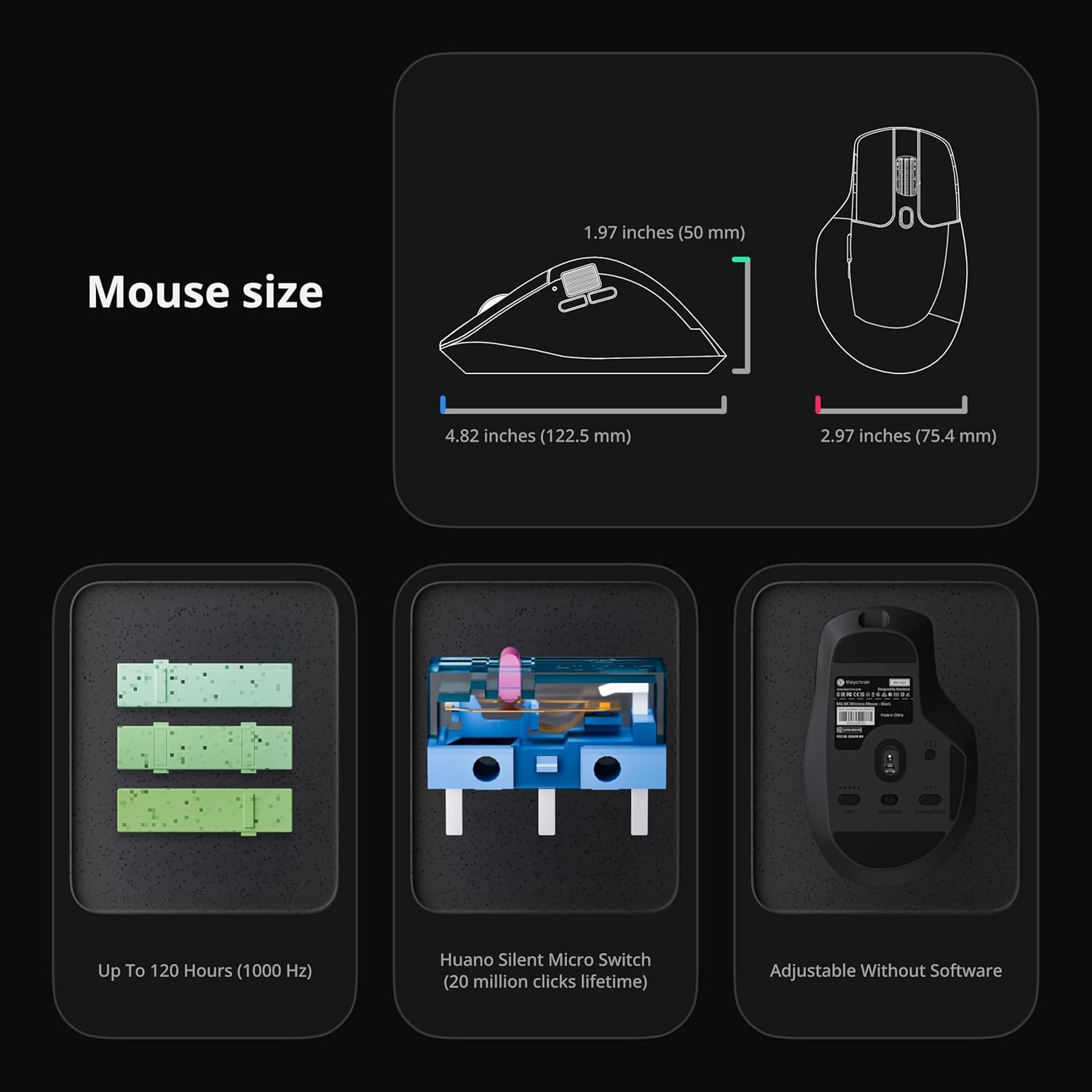

Image: Diagram showing the dimensions of the Keychron M6 8K mouse, its Huano Silent Micro Switches (20 million clicks lifetime), and battery life up to 120 hours (at 1000 Hz).
4 Issolvi l-problemi
4.1 Kwistjonijiet ta' Konnettività
- 2.4 GHz: Ensure the USB receiver is securely plugged in and the mouse is in 2.4 GHz mode. Try a different USB port or use the extension adapter.
- Bluetooth: Ensure Bluetooth is enabled on your device and the mouse is in Bluetooth mode. Re-pair the device if connection is lost.
- Wajer: Check the USB-C cable connection. Try a different cable or USB port.
4.2 Unresponsive Buttons or Scroll Wheel
- Kun żgur li l-maws huwa ċċarġjat kompletament.
- Clean any debris around the buttons or scroll wheel.
- Reset the mouse to factory settings via the Keychron Launcher if customization issues are suspected.
5. Speċifikazzjonijiet
| Brand | Keychron |
| Isem tal-Mudell | M6 |
| Numru tal-Mudell | M6S-A23 |
| Kulur | Iswed |
| Teknoloġija tal-Konnettività | Bluetooth, 2.4 GHz Wireless, USB-C Wired |
| Teknoloġija ta 'Sejbien tal-Moviment | Optical (PixArt 3950 Sensor) |
| Mouse Maximum Sensitivity | 30,000 DPI |
| Ir-Rata tal-Votazzjoni | Sa 8000Hz |
| Karatteristika Speċjali | Soundless Clicks, Ergonomic Design, Infinite Scroll Wheel, 5 On-Board Memory Profiles |
| Kwantità tal-Buttuni | Over 10 programmable buttons |
| Orjentazzjoni tal-Idejn | Dritt |
| Apparati Kompatibbli | Personal Computer (Windows, macOS, Linux) |
| Firxa Wireless | 33 pied |
| Ħajja tal-batterija | Up to 120 hours (at 1000Hz) |
| Materjal tal-għeluq | Plastik |
6. Garanzija
The Keychron M6 8K Wireless Gaming Mouse comes with a 1 Sena Garanzija tal-Manifattur. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Keychron websit jew ikkuntattja l-appoġġ tal-klijent.
7. Appoġġ
7.1 Keychron Launcher Web App
For advanced customization, including button remapping, macro creation, LOD adjustment, and RGB fine-tuning, use the Keychron Launcher web app. No software download is required, and your preferences are saved to the mouse's on-board memory.
Żur il-Keychron uffiċjali website for access to the Keychron Launcher and additional support resources.
7.2 Vidjows Uffiċjali tal-Prodott
Keychron M6 8K Wireless Bluetooth 2.4 GHz Connection Mouse
Vidjo: Uffiċjal lestview of the Keychron M6 8K Wireless Mouse, demonstrating its features and connectivity options.
Keychron M6 Silent Wireless Optical Gaming Mouse
Video: A demonstration of the silent clicking and optical tracking capabilities of the Keychron M6 mouse.
