VTOMAN V-Truck Pro 8000A Car Battery Jump Starter User Manual (Model JS-395A)

Introduzzjoni

Thank you for choosing the VTOMAN V-Truck Pro 8000A Car Battery Jump Starter. This powerful and versatile device is designed to provide reliable jump-starting for heavy-duty vehicles, along with portable power for your electronic devices. Please read this manual thoroughly before use to ensure safe and optimal performance.

Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

1 x VTOMAN V-Truck Pro Car Jump Starter
1 x Long Smart Jumper Cable
1 x USB-A għal USB-C Cable
1 x 65W AC Adaptor
1 x Guidance Card

VTOMAN V-Truck Pro package contents including jump starter, cables, and adapter — Image: All components included in the VTOMAN V-Truck Pro 8000A Car Battery Jump Starter package.

Karatteristiċi tal-Prodott

8000A Heavy-Duty Jump Starting: Delivers 8000A peak current to instantly jump-start heavy-duty vehicles, including trucks, RVs, tractors, and boats. Compatible with all 12V vehicles (all gas, all diesel engines).
65W Fast Charging & Large Capacity: Features a massive 41600mAh battery that fully charges in just 2.5 hours. Can charge a smartphone approximately 8-10 times, and powers tablets, cameras, and other USB devices.
Compact & Highly Portable: Weighs about 7 lbs and measures 10x6x7.5 inches, significantly lighter than traditional lead-acid starters. Includes a top handle for easy carrying and convenient storage.
Sikur u faċli għall-utent: Built with flame-retardant materials and 10-protection technologies (over-charge, over-current, spark-proof, reverse-polarity, etc.) for safe operation in extreme temperatures from -40°F to 140°F.
3-Mode Emergency LED Light: Built-in flashlight with steady, strobe, and SOS modes for repairs, signaling, and emergencies.

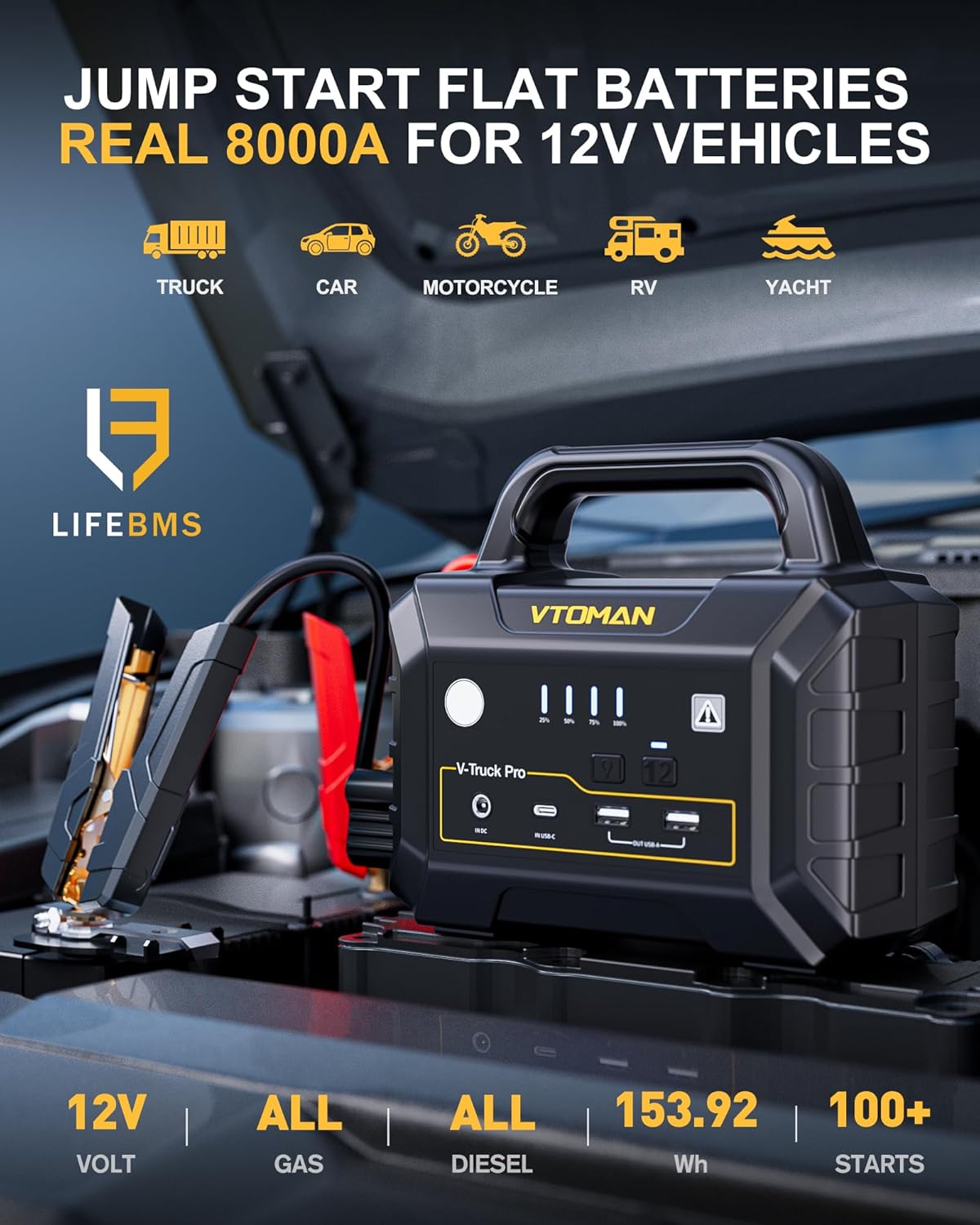

VTOMAN V-Truck Pro 8000A Jump Starter connected to a car battery, highlighting its heavy-duty capability for various vehicles. — Image: The VTOMAN V-Truck Pro 8000A Jump Starter connected to a car battery, illustrating its powerful 8000A output for 12V vehicles including trucks, cars, motorcycles, RVs, and yachts.

VTOMAN V-Truck Pro 41600mAh Portable Power Bank charging multiple devices on a wooden table outdoors. — Image: The VTOMAN V-Truck Pro functioning as a 41600mAh portable power bank, with USB-C, USB-A1, and USB-A2 outputs, charging a phone, iPad, earphone, smart watch, camera, drone, and game console.

VTOMAN V-Truck Pro with its LED flashlight active, showing steady, SOS, and strobe modes. — Image: The VTOMAN V-Truck Pro's 3-mode bright LED flashlight, illustrating its use as a flashlight, SOS signal, and strobe light for various emergency situations.

Setup

Iċċarġjar Inizjali

Before first use, fully charge your VTOMAN V-Truck Pro using the provided 65W AC Adaptor and USB-A to USB-C cable. The device supports 65W fast charging, reaching 100% capacity in approximately 2.5 hours. Ensure the device is fully charged for optimal performance.

VTOMAN V-Truck Pro being fast charged with a 65W AC adapter and a USB-C cable. — Image: The VTOMAN V-Truck Pro jump starter being charged via its 65W DC input and USB-C input, demonstrating its fast charging capabilities.

Istruzzjonijiet Operattivi

How to Jump-Start Your Vehicle

Kun żgur li l-jump starter ikun iċċarġjat kompletament.
Connect the smart jumper cable to the jump starter.
Waħħal il-cl aħmaramp mat-terminal pożittiv (+) tal-batterija tal-vettura.
Waħħal il-cl iswedamp għat-terminal negattiv (-) tal-batterija tal-vettura.
Once connected, the indicator on the smart jumper cable should show a green light, indicating a safe connection. If no light or a red light appears, check connections.
Ibda l-vettura tiegħek.
Ladarba l-vettura tibda, neħħi immedjatament il-klampiamps from the battery, starting with the black (negative) clamp, then the red (positive) clamp.

Four-step visual guide on how to jump-start a vehicle using the VTOMAN V-Truck Pro. — Image: A step-by-step diagram showing how to jump-start a vehicle: 1. Attach clamps correctly. 2. 12V light illuminates. 3. Start vehicle. 4. Remove clamps.

Uża bħala Bank tal-Enerġija Portable

The V-Truck Pro features multiple USB output ports (USB1 Output, USB2 Output, Type-C Input/Output) and a DC Output. Use appropriate cables to charge your smartphones, tablets, cameras, and other compatible electronic devices.

Using the Emergency LED Light

The built-in LED light has three modes: steady flashlight, strobe, and SOS. Press the light button to cycle through these modes for various emergency and utility lighting needs.

Speċifikazzjonijiet

Karatteristika	Speċifikazzjoni
Brand	VTOMAN
Mudell	JS-395A
L-ogħla Kurrent tal-Ħruġ	8000 Amps
Kapaċità tal-batterija	41600mAh (Polimeru tal-Litju)
Iċċarġjar Mgħaġġel	65W (Full charge in ~2.5 hours)
Voltage	12 Volts
Dimensjonijiet tal-Prodott	10"D x 6"W x 7.5"H
Piż tal-oġġett	7 Liri
Temperatura operattiva	-40°F sa 140°F
Protezzjonijiet tas-Sigurtà	10-Type Protection System (Over-Charge, Short-Circuit, Smart-AI, Spark-Proof, Reverse-Polarity, Over-Current, Over-Discharge, High-Temperature, Over-Voltage, Reverse-Charge)

Manutenzjoni

Iċċarġjar regolari: To maintain battery health, recharge the unit every 3-6 months, even if not in use.
Ħażna: Aħżen il-jump starter f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
Tindif: Uża drapp artab u niexef biex tnaddaf l-apparat. Tużax kimiċi ħarxa jew materjali li joborxu.

Issolvi l-problemi

Apparat mhux qed jixgħel: Ensure the device is charged. If fully charged and still not turning on, contact customer support.
Green light not appearing on smart cable: Iċċekkja li l-clamps are securely connected to the correct battery terminals (red to positive, black to negative). The vehicle battery might be too deeply discharged; try pressing and holding the boost button on the smart cable for 2-3 seconds to force a jump-start.
Vehicle not starting after jump-start: The vehicle battery may be severely damaged, or there might be another issue with the vehicle's starting system. Consult a professional mechanic.

Garanzija u Appoġġ

Your VTOMAN V-Truck Pro comes with an 18-month warranty and lifetime technical support. If you have any questions or require assistance, please refer to the Guidance Card included in your package for contact information or visit the official VTOMAN websit.

Video: An official VTOMAN video demonstrating the V-Truck Pro car jump starter in action, specifically highlighting its capability for heavy-duty vehicles. This video shows the product's performance and ease of use in a real-world scenario.
