1. Introduzzjoni
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new RCA R-REH304SS 30-inch Electric Range. Please read all instructions carefully before using the appliance to ensure proper function and to prevent potential hazards. Keep this manual for future reference.
Stampa 1.1: Quddiem view of the RCA R-REH304SS Electric Range.
2. Istruzzjonijiet Importanti dwar is-Sigurtà
To reduce the risk of fire, electric shock, injury to persons, or damage when using the appliance, follow basic precautions, including the following:
- Aqra l-istruzzjonijiet kollha qabel tuża l-apparat.
- Żgura installazzjoni u ertjar xierqa minn tekniku kwalifikat.
- Tmissx uċuħ sħan. Uża ingwanti tal-forn jew pot holders.
- Qatt tuża l-apparat biex issaħħan jew issaħħan il-kamra.
- Taħżinx materjali li jaqbdu ġewwa jew ħdejn il-forn.
- Dejjem issorvelja lit-tfal meta l-apparat ikun qed jintuża.
- Clean the range regularly to prevent grease buildup.
- Skonnettja l-enerġija qabel isservi l-apparat.
WARNING: To avoid tipping, the range must be secured by a properly installed anti-tip bracket. Refer to the installation instructions for details.
3. Setup u Installazzjoni
The RCA R-REH304SS is a slide-in electric range designed for integration into your kitchen cabinetry. Proper installation is crucial for safety and performance. An installation kit is included with your purchase.
3.1 Rekwiżiti Elettriku
This appliance requires a 240V/60Hz, 4-wire electrical supply. Consult a qualified electrician to ensure your home's electrical system meets these requirements and to perform the connection.
3.2 Installazzjoni Fiżika
Ensure the opening for the range meets the specified dimensions (29.9" W x 27.8" D x 36.2" H). Follow the detailed instructions provided in the separate installation guide for securing the anti-tip bracket and sliding the range into place.
Immaġni 3.1: Ġenb view of the range, illustrating its dimensions for installation.
4. Operating Your Range
Your RCA electric range features a ceramic glass cooktop with four surface burners and a 4.6 cu. ft. convection oven.
4.1 Tħaddim tal-Cooktop
The ceramic glass cooktop is equipped with four radiant surface burners. Two burners are rated at 2100W, and two are rated at 1200W, providing versatile cooking options.
- Tixgħel/Jitfi: Rotate the corresponding control knob to the desired heat setting. The 'Cooktop On' indicator light will illuminate when any surface burner is active.
- Issettjar tas-Sħana: Adjust the knobs to select heat levels from Low to High.
- Indikatur tal-wiċċ sħun: The 'Hot Surface' indicator will remain lit until the cooktop surface has cooled to a safe temperature.

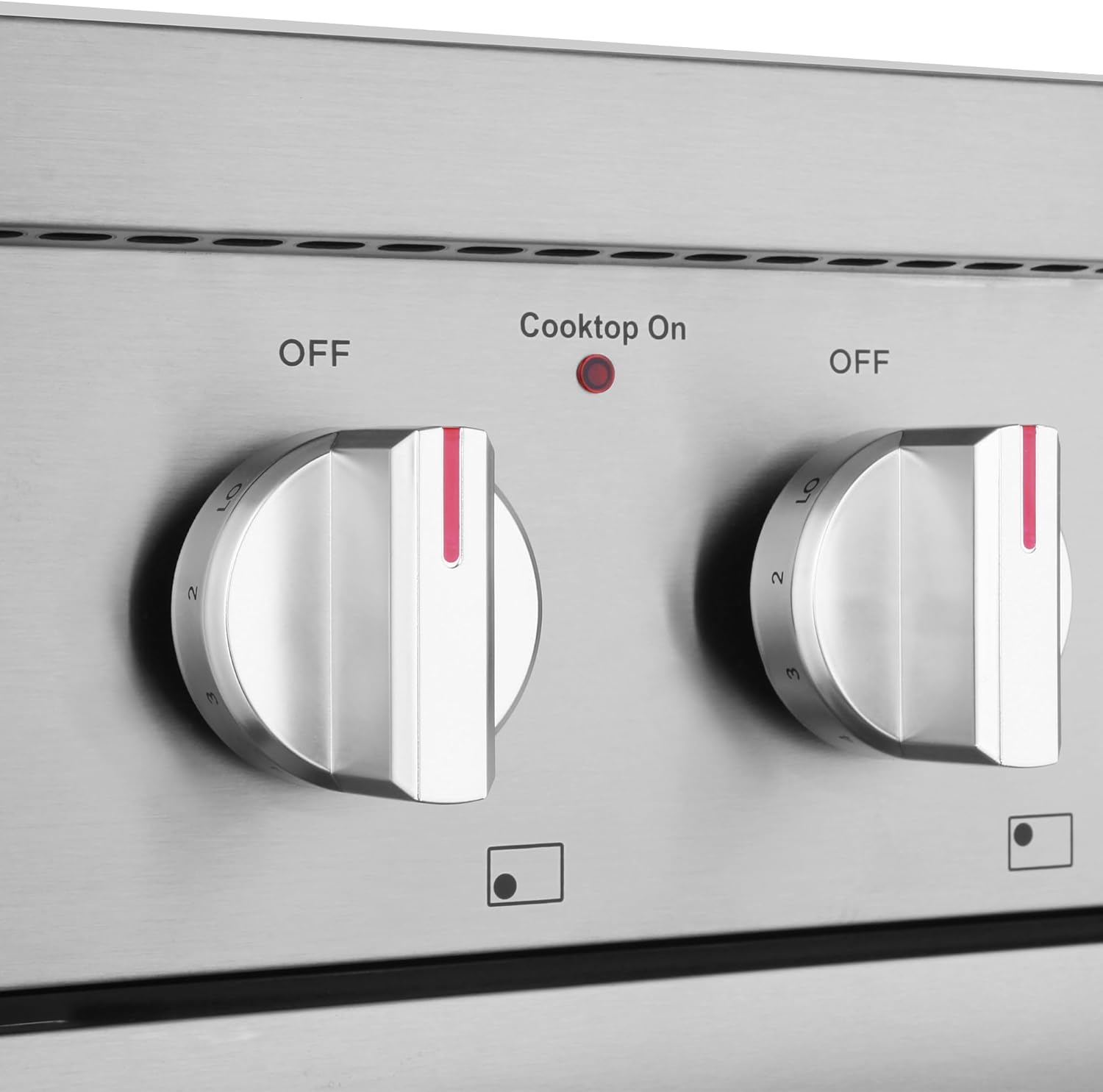

Image 4.1: Cooktop control knobs and 'Cooktop On' indicator light.
Image 4.2: Ceramic glass cooktop surface with four radiant burners.
4.2 Tħaddim tal-Forn
The 4.6 cu. ft. convection oven features a fan to circulate heat evenly, reducing cold spots and promoting faster, more consistent cooking. It includes a 3000W bake burner and a 3500W broil burner.
- Ħami: Select 'Bake' on the digital display, set the desired temperature using the '+' and '-' buttons, and press 'Start'. The oven will preheat to the set temperature.
- Ħami bil-konvezzjoni: For convection cooking, select the 'Convection Bake' option. The fan will activate to circulate hot air.
- Broiling: Select 'Broil', choose the broil level (e.g., High or Low), and press 'Start'.
- Dawl tal-forn: Press the 'Oven Light' button to illuminate the oven interior for monitoring dishes.
- Xtillieri tal-forn: The oven comes with two racks. Position them according to your cooking needs before preheating.
Image 4.3: Oven interior showing the convection fan and adjustable racks.
4.3 Digital Display and Controls
The sleek digital display provides intuitive control over oven functions and features a clock and timer. Use the touch controls to select cooking options and the '+' and '-' buttons to adjust settings.
Image 4.4: Digital control panel for oven functions and settings.
5. Kura u Manutenzjoni
Regular cleaning and maintenance will ensure the longevity and optimal performance of your RCA electric range.
- Tindif tal-Cooktop: Allow the ceramic glass cooktop to cool completely before cleaning. Use a ceramic cooktop cleaner and a non-abrasive pad to remove spills and stains.
- Tindif tal-forn: Għal tixrid ħafif, imsaħ b'adamp cloth and mild detergent once the oven has cooled. Refer to the self-cleaning cycle instructions (if applicable) for deeper cleaning.
- Uċuħ ta' barra: Clean stainless steel surfaces with a soft cloth and a stainless steel cleaner. Avoid abrasive cleaners that can scratch the finish.
- Kxaxen tal-Ħażna: The range includes a convenient storage drawer at the bottom for cookware. Keep it clean and free of debris.
Image 5.1: The storage drawer located at the bottom of the range.
6 Issolvi l-problemi
Qabel ma tikkuntattja l-appoġġ għall-klijenti, erġa'view il-kwistjonijiet komuni li ġejjin u s-soluzzjonijiet tagħhom:
- Range Not Turning On: Check if the range is properly plugged into the electrical outlet and if the circuit breaker has tripped.
- Il-Burner Mhux qed Jissaħħan: Ensure the control knob is set correctly. If the burner is still not heating, it may require service.
- Il-forn mhux qed jisħon: Verify the oven settings (temperature, mode) are correctly selected and the 'Start' button has been pressed. Check the circuit breaker.
- Tisjir irregolari: Ensure oven racks are positioned correctly and that cookware is not blocking air circulation. For convection ovens, ensure the fan is operating.
- Wiri Diġitali Mhux Jaħdem: Try resetting the appliance by turning off the power at the circuit breaker for a few minutes, then restoring it.
If the problem persists after attempting these solutions, please contact RCA customer support.
7. Speċifikazzjonijiet
Detailed technical specifications for the RCA R-REH304SS Electric Range:
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | RCA |
| Isem tal-Mudell | R-REH304SS |
| Tip ta' Installazzjoni | Slide-In |
| Kapaċità | 4.6 Cubic Feet (Oven) |
| Dimensjonijiet (W x D x H) | 29.9" x 27.8" x 36.2" |
| Piż tal-oġġett | 151 liri |
| Tip ta' Materjal | Stainless Steel |
| Tip ta' Burner | Radiant (Ceramic Glass Cooktop) |
| Elementi li jsaħħnu | 4 Surface Burners (Two 2100W, Two 1200W) |
| Burners tal-forn | 3000W Bake, 3500W Broil |
| Kontroll Console | Knob and Digital Touch |
| Voltage | 240 Volts |
| Xtillieri | 2 |
| Tip ta 'kexxun | Ħażna |
| Komponenti Inklużi | Kit ta 'Installazzjoni |
8. Garanzija u Appoġġ għall-Klijent
Your RCA R-REH304SS Electric Range comes with a 1-year limited warranty. For warranty claims, technical assistance, or any questions regarding your appliance, please contact our customer support team. Our support team is based in the USA and is ready to assist you.
Please have your model number (R-REH304SS) and proof of purchase available when contacting support.
