1. Introduzzjoni
Thank you for choosing the Reality Leuchten Macapa R23066101 LED Solar Outdoor Wall Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new outdoor lighting fixture. Please read these instructions carefully before use and retain them for future reference.
The Macapa wall light is designed to provide atmospheric and functional illumination for outdoor spaces. It features an integrated solar panel for energy efficiency, a twilight sensor for automatic activation in low light conditions, and a motion sensor for enhanced security and convenience. Its robust plastic construction ensures durability in outdoor environments.
2. Informazzjoni dwar is-Sigurtà
- This product is designed for outdoor use only. Do not install indoors.
- Kun żgur li l-wiċċ tal-immuntar huwa stabbli u jista' jsostni l-piż tal-apparat.
- Do not attempt to disassemble or modify the light fixture. This may void the warranty and pose a safety risk.
- Żomm il-pannell solari nadif u ħieles minn ostakli biex tiżgura prestazzjoni ottimali tal-iċċarġjar.
- Armi l-batteriji b'mod responsabbli skont ir-regolamenti lokali.
- Evita l-espożizzjoni diretta tal-għajnejn għas-sors tad-dawl LED.
3. Prodott Aktarview

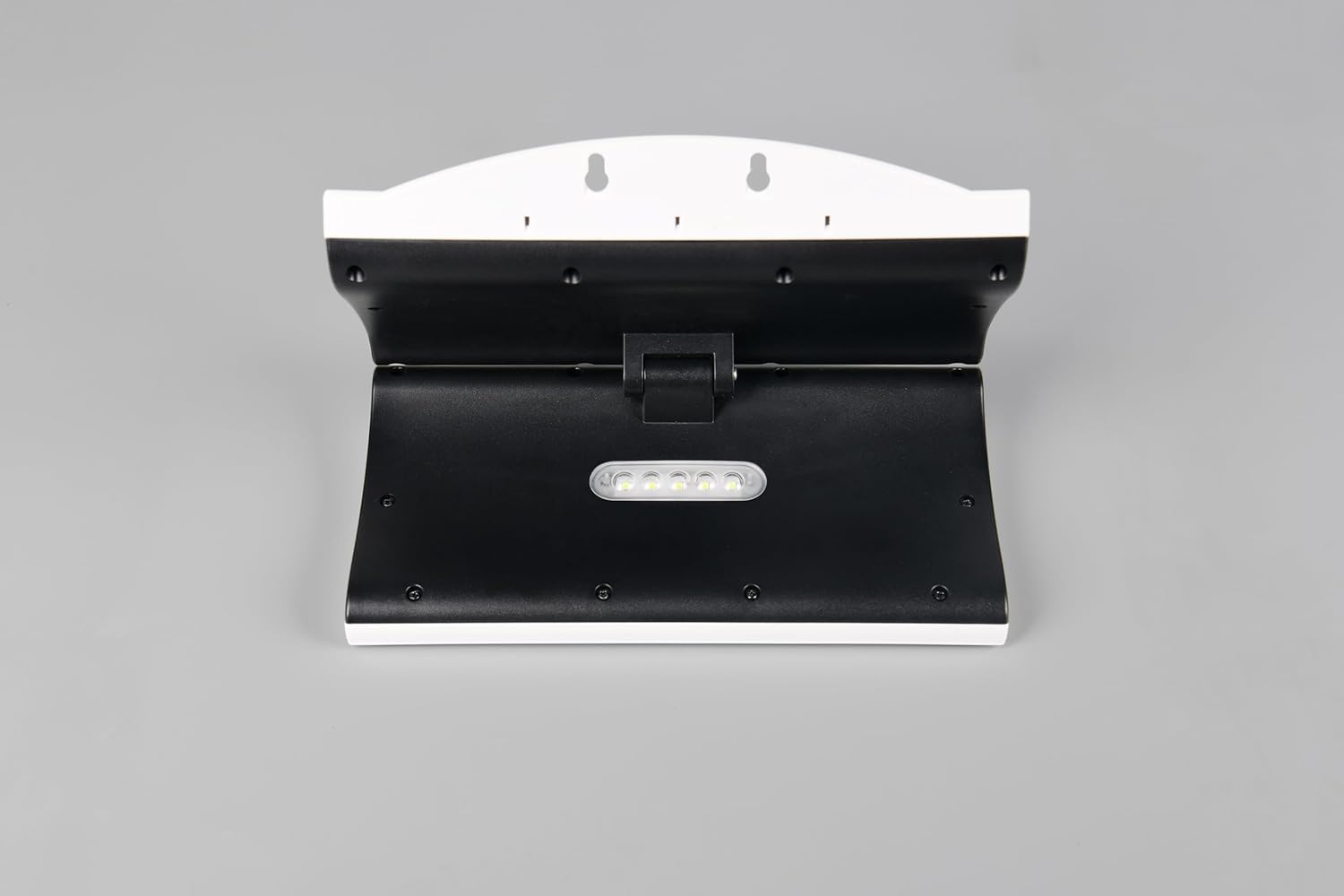

The Macapa solar LED outdoor wall light integrates several key components for its functionality:
- Panel Solari: Located on the top, it charges the internal battery during daylight hours.
- Firxa ta' LED: Jipprovdi dawl.
- Sensor tal-Moviment: Jidentifika moviment fil-firxa tiegħu.
- Twilight Sensor: Activates the light automatically when ambient light levels are low.
- Power Button/Mode Selector: Used to turn the light on/off and switch between operating modes.
4. Setup u Installazzjoni
The Macapa wall light is designed for quick and easy installation. A mounting instruction is included with the product for detailed steps.
- Agħżel Post: Select an outdoor location that receives direct sunlight for most of the day to ensure optimal charging of the solar panel. Avoid areas under eaves, trees, or other obstructions that might shade the panel.
- Immarka l-Punti tat-Tħaffir: Use the light fixture as a template to mark the positions for drilling holes on your chosen wall.
- Drill toqob: Drill holes at the marked positions. Insert wall plugs if necessary for your wall type.
- Immonta d-Dawl: Secure the light fixture to the wall using appropriate screws. Ensure it is firmly attached.
- Adjust Solar Panel (if applicable): The swiveling shade allows for optimal alignment of the solar module. Adjust it to face the sun for maximum charging efficiency.
5. Operazzjoni
The Macapa wall light operates automatically based on ambient light and motion detection. It charges during the day and activates at night.
Iċċarġjar
The integrated solar panel charges the internal battery during daylight hours. A full charge typically takes 4-6 hours of direct sunlight and provides approximately 6-8 hours of illumination.
Modi tad-Dawl
The light features two selectable operating modes, which can be switched using the button on the front of the fixture:
- Mode 1 (Motion Activated - Off): When motion is detected, the light illuminates at 100% brightness. After a period of no motion, the light turns off completely.
- Mode 2 (Motion Activated - Orientation Light): When motion is detected, the light illuminates at 100% brightness. After a period of no motion, the light dims to a permanent 5% orientation light.
If the battery charge drops below 30%, the light will automatically switch to Mode 1 to conserve power.
6. Karatteristiċi
The Macapa R23066101 LED Solar Outdoor Wall Light offers a range of features designed for convenience and efficiency:
- Disinn Robust ta' Barra: Constructed from durable plastic in matt white, ensuring longevity and resistance to outdoor elements. The swiveling shade allows for optimal positioning of the solar module and light direction.
- Teknoloġija Avvanzata tas-Sensor: Equipped with a motion sensor offering an 8-meter detection range at 180°, and a twilight sensor that ensures the light only activates in low light conditions.
- Illuminazzjoni Effiċjenti: Features a 5-watt LED with 390 lumens, providing neutral white light at 4000 Kelvin for clear and effective outdoor lighting.
- Protezzjoni IP44: Rated IP44, making it splash-proof and suitable for various outdoor applications such as gardens, house walls, and terraces.
- Ħin twil tax-xogħol: The solar-charged battery provides approximately 6-8 hours of light duration after a 4-6 hour charge.
- Effiċjenza tal-Enerġija: Contains an energy efficiency class F light source, contributing to reduced energy consumption.
7. Manutenzjoni
Regular maintenance ensures optimal performance and longevity of your Macapa solar wall light.
- Tindif tal-Panel Solari: Imsaħ il-pannell solari perjodikament b'ċarruta ratba u damp drapp biex tneħħi t-trab, il-ħmieġ, u l-fdalijiet. Pannell nadif jiżgura l-akbar assorbiment tad-dawl tax-xemx u effiċjenza tal-iċċarġjar.
- Tindif tal-Apparat tad-Dawl: Clean the plastic housing and LED cover with a soft, dry, or slightly damp drapp. Evita prodotti tat-tindif jew solventi li joborxu li jistgħu jagħmlu ħsara lill-wiċċ.
- Sostituzzjoni tal-batterija: The internal battery is designed for long-term use. If the light's performance significantly degrades over time, consult the manufacturer for information on battery replacement or service.
8 Issolvi l-problemi
If you encounter issues with your Macapa solar wall light, refer to the following troubleshooting guide:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Id-dawl ma jixgħelx bil-lejl. | Ċarġ solari insuffiċjenti. | Ensure the solar panel is exposed to direct sunlight for 4-6 hours daily. Clean the solar panel if dirty. |
| Id-dawl huwa baxx jew jibqa' mixgħul għal perjodu qasir biss. | Il-batterija mhix iċċarġjata għalkollox jew il-batterija qed tixjieħ. | Relocate the light to an area with more direct sunlight. If the problem persists after prolonged charging, the battery may need service. |
| Is-senser tal-moviment mhux qed jinduna bil-moviment. | Sensur imblukkat jew angolu mhux korrett. | Ensure the sensor lens is clean and unobstructed. Adjust the light's position or angle if necessary. |
| Light stays on continuously or does not turn off. | Twilight sensor malfunction or constant ambient light. | Check for nearby light sources (e.g., streetlights) that might be interfering with the twilight sensor. |
9. Speċifikazzjonijiet
Key technical specifications for the Reality Leuchten Macapa R23066101 LED Solar Outdoor Wall Light:
| Speċifikazzjoni | Valur |
|---|---|
| Brand | RL LIVE YOUR LIGHT |
| Mudell | Macapa R23066101 |
| Kulur | Abjad |
| Materjal | Plastik, Metall |
| Dimensjonijiet tal-Prodott (L x W x H) | 10.5L x 23W x 18.5H ċentimetri |
| Piż tal-oġġett | 0.58 Kilogrammi |
| Sors tal-Enerġija | Mħaddma Solari |
| Numru ta' Sorsi tad-Dawl | 1 |
| Karatteristiċi Speċjali | Energy Efficient, Motion Sensor, Twilight Sensor, Orientation Light |
| Użu fuq ġewwa/barra | Barra |
| Batteriji Meħtieġa | Yes (integrated) |
| Komponenti Inklużi | Istruzzjoni tal-immuntar |
| Klassi tal-Effiċjenza tal-Enerġija | F |
10. Garanzija u Appoġġ
Warranty information for the Reality Leuchten Macapa R23066101 LED Solar Outdoor Wall Light is typically provided with the product packaging or can be obtained from your point of purchase. Please retain your proof of purchase for warranty claims.
For technical support, service, or further inquiries, please contact the manufacturer or your retailer. Refer to the contact information provided in your product documentation.
