1. Prodott Aktarview

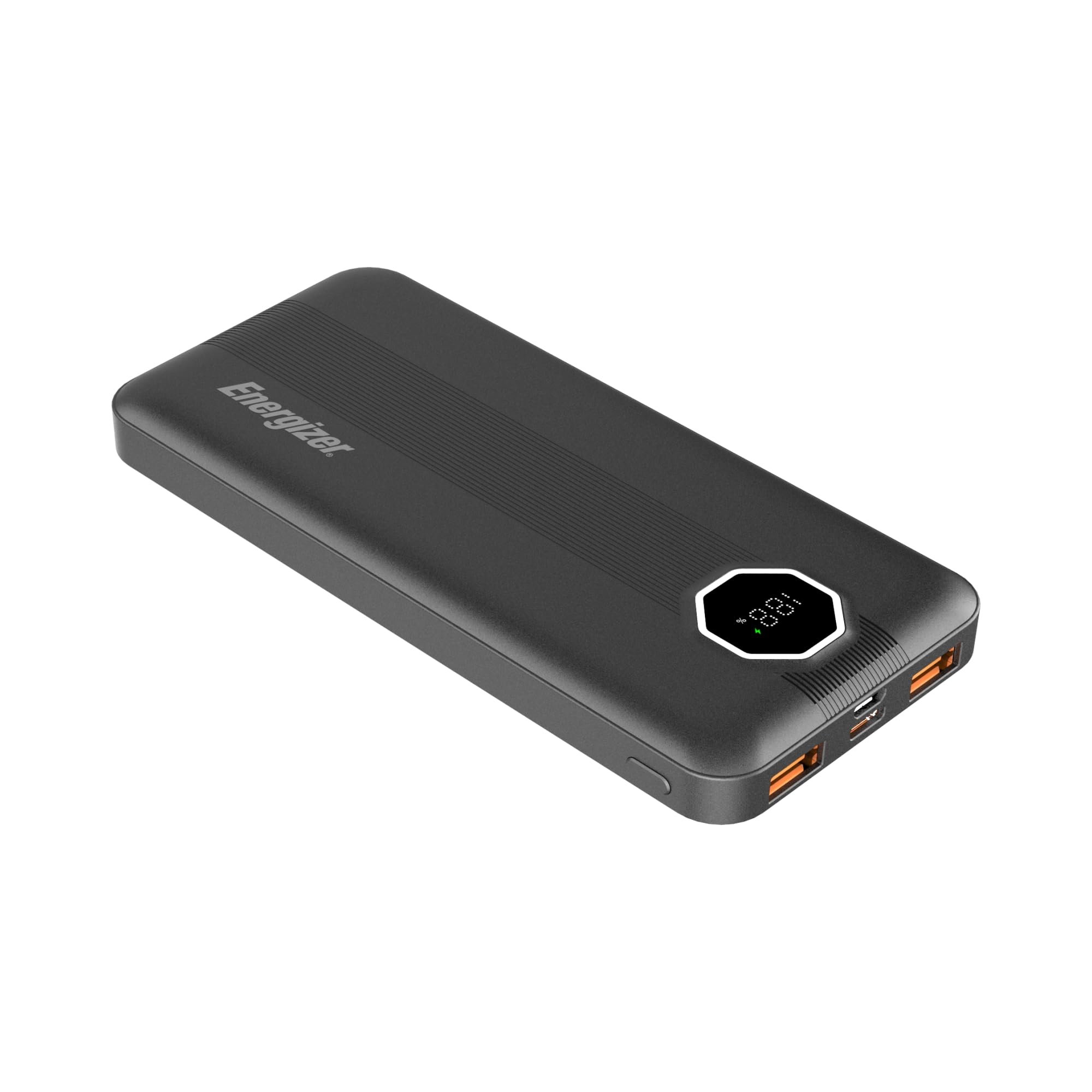

The Energizer 10000mAh Power Bank, model UE10029PQ, is a portable charging device designed to provide power to various electronic devices. It features a 10,000mAh battery capacity, multiple output ports for simultaneous charging, and an LCD display for battery status.
Karatteristiċi ewlenin:
- Kapaċità Għolja: 10,000mAh battery provides multiple charges for smartphones and extends tablet usage.
- Fast Charging Outputs: One USB-A port with 22.5W output and one USB-C port with 20W Power Delivery (PD 3.0) for rapid charging.
- Triple Outputs: Charge up to three devices simultaneously using the two USB-A ports and one USB-C port.
- Inputs Doppju: Recharge the power bank via either the USB-C port or the Micro-USB port.
- Display LCD: Digital screen shows the exact percentage of remaining battery life and fast charging indicators.
- Ġestjoni PowerSafe: Built-in protection against over-current, temperature fluctuations, overcharging, and short circuits.
- Disinn portabbli: Compact and lightweight (approximately 230g), suitable for travel and airline carry-on.
2. Setup
2.1 L-Iċċarġjar Inizjali tal-Power Bank
Before first use, fully charge your Energizer UE10029PQ Power Bank. This ensures optimal battery performance.
- Connect a USB-C cable to the power bank's USB-C input port or a Micro-USB cable to the Micro-USB input port.
- Qabbad it-tarf l-ieħor tal-kejbil ma' adapter tal-ħajt USB kompatibbli (mhux inkluż) jew mal-port USB tal-kompjuter.
- The LCD display will show the charging progress. A blinking percentage indicates charging, and a solid 100% indicates a full charge.
2.2 Konnessjoni ta' Apparati għall-Iċċarġjar
Use appropriate charging cables for your devices.
- For USB-A devices, use a standard USB-A to device-specific cable.
- For USB-C devices, use a USB-C to device-specific cable.
3. Istruzzjonijiet Operattivi
3.1 Iċċarġjar tat-Tagħmir Tiegħek
Il-power bank jista' jiċċarġja sa tliet apparati simultanjament.
- Qabbad il-kejbil tal-iċċarġjar tat-tagħmir tiegħek ma' wieħed mill-portijiet tal-output tal-power bank (USB-A jew USB-C).
- Qabbad it-tarf l-ieħor tal-kejbil mat-tagħmir tiegħek.
- The power bank will automatically begin charging. The LCD display will show the remaining battery percentage.
- If fast charging is active, a lightning bolt icon will appear on the LCD display.
3.2 Nifhmu d-Displej LCD
The integrated LCD screen provides real-time information about the power bank's status.
- Batterija Percentage: Displays the remaining charge level from 0-100%.
- Indikatur tal-Iċċarġjar Mgħaġġel: A lightning bolt icon appears when fast charging or fast recharging is active.
4. Manutenzjoni u Sigurtà
4.1 Kura Ġenerali
- Keep the power bank in a cool, dry place away from direct sunlight and extreme temperatures.
- Naddaf il-barra b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif likwidi jew aerosols.
- Evita li twaqqa’ jew tissuġġetta l-bank tal-enerġija għal impatti qawwija.
4.2 Prekawzjonijiet tas-Sigurtà
- Tiżżarmax, timmodifikax, jew issewwiex l-apparat int stess.
- Żomm 'il bogħod mill-ilma, l-umdità, u materjali fjammabbli.
- Tesponix għan-nar jew temperaturi għoljin.
- Armi l-power bank skont ir-regolamenti lokali għall-iskart elettroniku.
5 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-power bank mhux qed jiċċarġja l-apparati. | Low battery on power bank; faulty cable; device not compatible. | Recharge power bank; try a different cable; ensure device is compatible. |
| Il-power bank mhux qed jiċċarġja mill-ġdid. | Faulty input cable; power adapter not working; port damage. | Try a different USB-C or Micro-USB cable; use a different wall adapter; contact support if ports appear damaged. |
| Iċċarġjar bil-mod. | Kejbil/adapter tal-iċċarġjar mhux veloċi; apparat mhux jappoġġja l-iċċarġjar veloċi; apparati multipli qed jiċċarġjaw. | Use a fast charging compatible cable and adapter; check device specifications; try charging one device at a time. |
| Id-displej tal-LCD mhux qed jaħdem. | Ħsara fl-apparat. | Jekk tippersisti, ikkuntattja l-appoġġ għall-klijenti. |
6. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | UE10029PQ |
| Kapaċità tal-batterija | 10000 Milliamp Sigħat (mAh) |
| Dimensjonijiet tal-Prodott | 5.78 x 2.71 x 0.65 pulzieri |
| Piż tal-oġġett | 0.317 ounces (approximately 9 grams, note: this weight seems unusually low for a 10000mAh power bank, typically they are around 200-250g) |
| Tip ta' Konnettur | USB Tip A, USB Tip C |
| Voltage | 5 Volts |
| Karatteristiċi Speċjali | Digital Display, Fast Charging, Over Charging Protection, Short Circuit Protection |
| Manifattur | Tennrich International Corp. |
7. Informazzjoni dwar Garanzija
For detailed warranty information, please refer to the official Energizer website or the warranty card included with your product. Keep your purchase receipt as proof of purchase for any warranty claims.
8. Appoġġ għall-Klijent
If you encounter any issues or have questions regarding your Energizer 10000mAh Power Bank UE10029PQ that are not covered in this manual, please contact Energizer customer support through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fl-imballaġġ tal-prodott tiegħek.
