Manwal tal-Utent tal-Printer Termali Ninestar G&G GG-D220

The package for your Ninestar G&G Thermal Printer GG-D220 includes the following items:

• 1 x Thermal Printer (GG-D220)
• 3 x Thermal Paper Rolls
• 1 x Thermal Sticker Roll
• 1 x USB Type-C Cable
• 1 x Skin Sticker (Greg & Grace design)
• 1 x App Instruction Manual

Note: A USB AC adapter (DC5V 1A) is required and sold separately. Product design may vary slightly from images but quality remains consistent.

Locate and download the official "Print-Label" application from your smartphone's app store. The app is available on both the Apple App Store and Google Play Store. Fittex għal "Print-Label" by Ninestar Corporation.

• Niżżel fuq l-App Store
• Ġibha fuq Google Play

Note: If your Android device's app language is English, you may need to change it to Japanese within the app settings for full functionality.

Turn on your Ninestar G&G Thermal Printer. Open the "Print-Label" app on your smartphone. Navigate to the connection settings within the app and select your printer (e.g., "GG-D220-XXXX") from the list of available Bluetooth devices to establish a connection.

To load thermal paper or stickers:

1. Grip the protrusions (red parts) on both sides of the cover and open it.
2. Insert the thermal roll paper with the printing side facing outwards, towards the button.
3. Close the cover, ensuring about 1 cm of paper protrudes from the printer.

The "Print-Label" app allows you to print various types of content:

• Stampar tal-Immaġni: Print photos and images directly from your phone's gallery.
• Text Printing: Create custom text labels, notes, or lists.
• Icons & Graphics: Utilize a library of icons and simple graphics to enhance your prints.
• Kodiċijiet tal-bar u Kodiċijiet QR: Generate and print barcodes or QR codes for various purposes.
• Mudelli: Use pre-designed templates for common tasks like to-do lists, study notes, or kitchen labels.

The GG-D220 printer is versatile and can be used in various scenarios:

• Stampar tal-Immaġni: Print small photos or illustrations.
• Study Memos: Create quick notes or diagrams for studying.
• Kollezzjonijiet: Label items in your collections.
• Task Lists: Print to-do lists for daily organization.
• Stampar tad-Dokument: Print small documents or excerpts.

It's also highly useful in the kitchen and living room:

• Content Names: Label containers with their contents.
• Dati ta' Skadenza: Print expiration dates for food items.
• Riċetti: Print small recipe cards.
• Shopping Memos: Create quick shopping lists.
• Household Memos: Print notes for family members.

1. Iftaħ il-Qoxra: Grip the protrusions (indicated in red in the diagram) on both sides of the printer cover and gently open it. No holder is needed, making it easy.
2. Insert New Roll: Place the new thermal roll paper into the compartment. Ensure the printing surface of the paper is facing outwards, towards the button side of the printer.
3. Agħlaq il-Qoxra: Close the cover, making sure approximately 1 cm of paper protrudes from the printer's output slot.

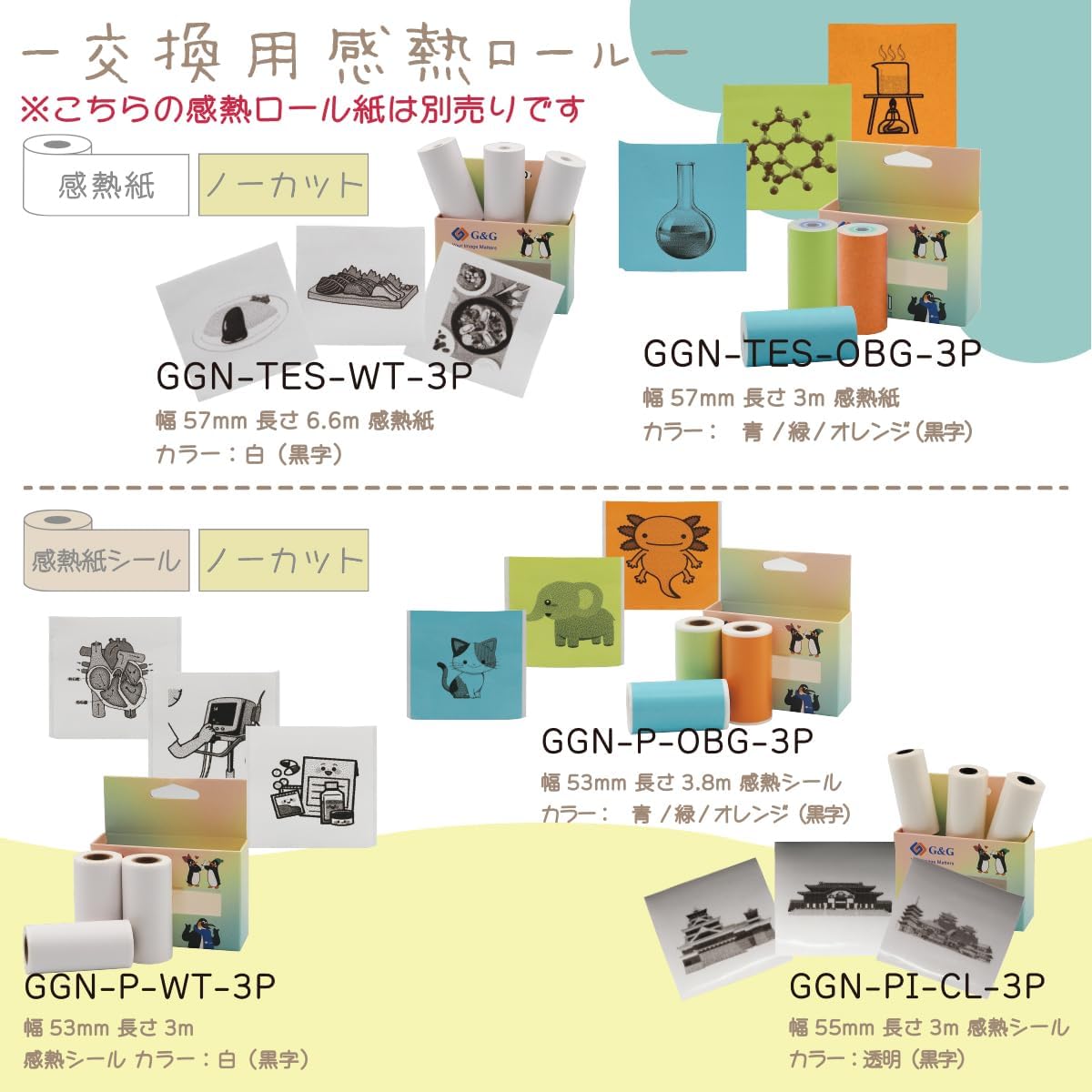

Different types of thermal paper and stickers are available for purchase:

• Thermal Paper (Non-cut): GGN-TES-WT-3P (57mm width, 6.6m length, white paper, black text), GGN-TES-OBG-3P (57mm width, 3m length, blue/green/orange paper, black text).
• Thermal Stickers (Non-cut): GGN-P-WT-3P (53mm width, 3m length, white sticker, black text), GGN-P-OBG-3P (53mm width, 3.8m length, blue/green/orange sticker, black text), GGN-PI-CL-3P (55mm width, 3m length, transparent sticker).

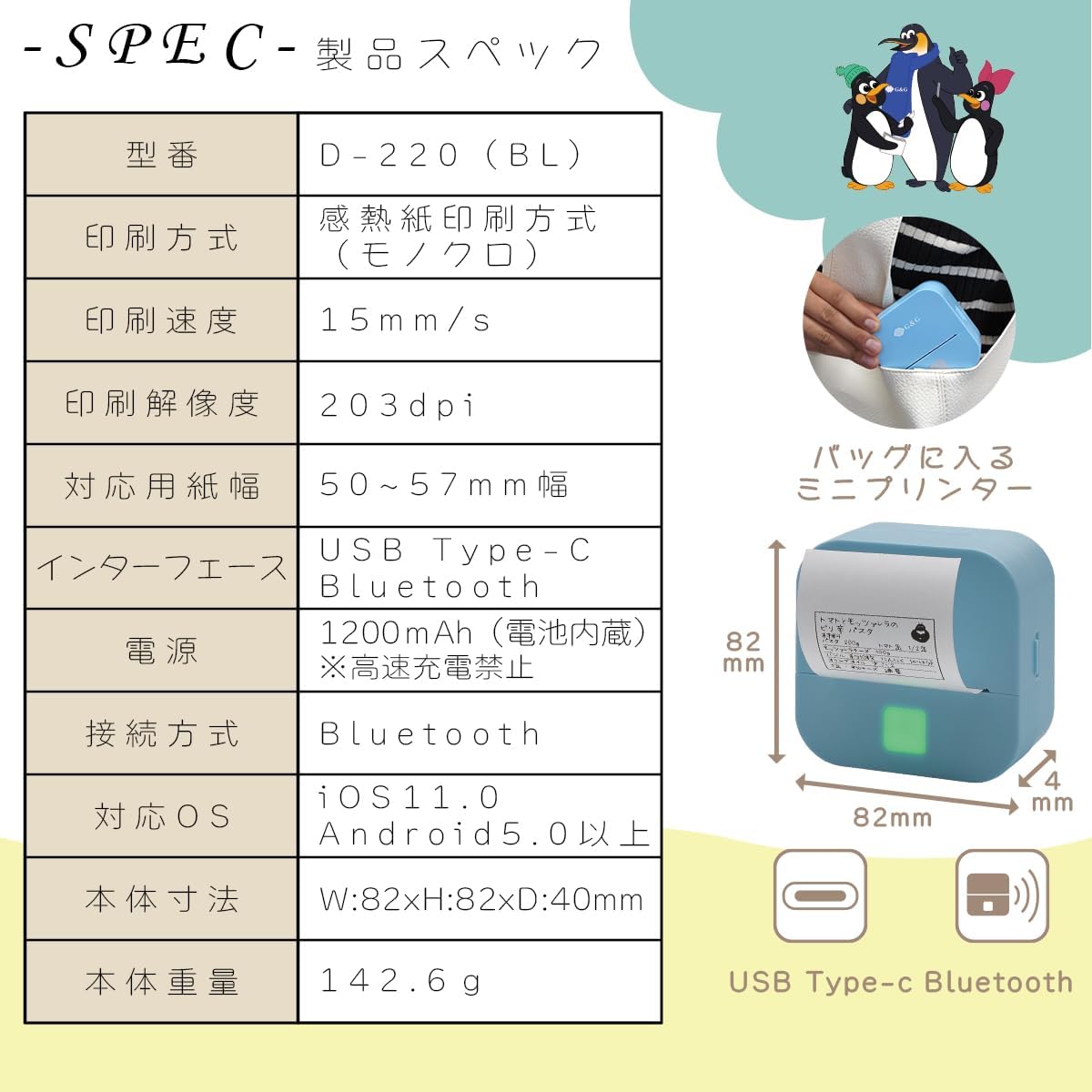

The Ninestar G&G Thermal Printer GG-D220 is designed to be compact and lightweight, making it highly portable. Its dimensions are 82mm in width, 82mm in depth, and 40mm in height, with a total weight of 142.6 grams. It features a built-in 1200mAh battery and connects via Bluetooth or USB Type-C.
