TOMLOV TM3K-AF Max Autofocus Digital Microscope User Manual

1. Introduzzjoni

This manual provides detailed instructions for the setup, operation, and maintenance of your TOMLOV TM3K-AF Max Autofocus Digital Microscope. This device features advanced autofocus capabilities, a 3K resolution camera, a 10.1-inch IPS screen, a flexible arm stand, and dual gooseneck LED lights, making it suitable for various applications including micro-soldering, coin inspection, and PCB component examination.

2. X'hemm fil-Kaxxa

• 1x TM3K-AF Max 3K Autofocus Digital Microscope
• 1x Flex Arm Stand
• 1x 4" Stand
• 1x Kontroll mill-bogħod
• 1x Soldering Mat
• 1x Cable HDMI
• 2x USB Cable
• 1x 64G Card
• 1x Manwal għall-Utent

3. Istruzzjonijiet ta' Setup

3.1 Assembling the Flex Arm Stand

Follow these steps to assemble the flexible arm stand and attach it to your workspace.

1. Attach the base clamp to your desk or workbench. Ensure it is securely tightened.
2. Insert the flexible arm into the base clamp.
3. Adjust the arm's tension as needed using the provided hex key.
4. Attach the microscope mounting bracket to the end of the flexible arm.

3.2 Attaching the Microscope

Secure the microscope unit to the mounting bracket on the flexible arm. Ensure all connections are firm.

Image: The TOMLOV TM3K-AF Max Digital Microscope mounted on its flexible arm stand, ready for use.

3.3 Konnessjoni tal-Enerġija u l-Aċċessorji

Connect the power adapter to the microscope and plug it into an electrical outlet. Insert the 64G SD card into the designated slot. Connect the gooseneck lights to the microscope's ports.

4. Istruzzjonijiet Operattivi

4.1 Power On/Off

Agħfas il- QAWWA button on the microscope's screen panel to turn the device on or off.

4.2 Awtofokus (AF) u Fokus Manwali (MF)

The TM3K-AF Max features an advanced autofocus system. Press the AF button on the microscope body to activate autofocus. For fine adjustments or specific focusing needs, you can switch to manual focus and use the focus knob.

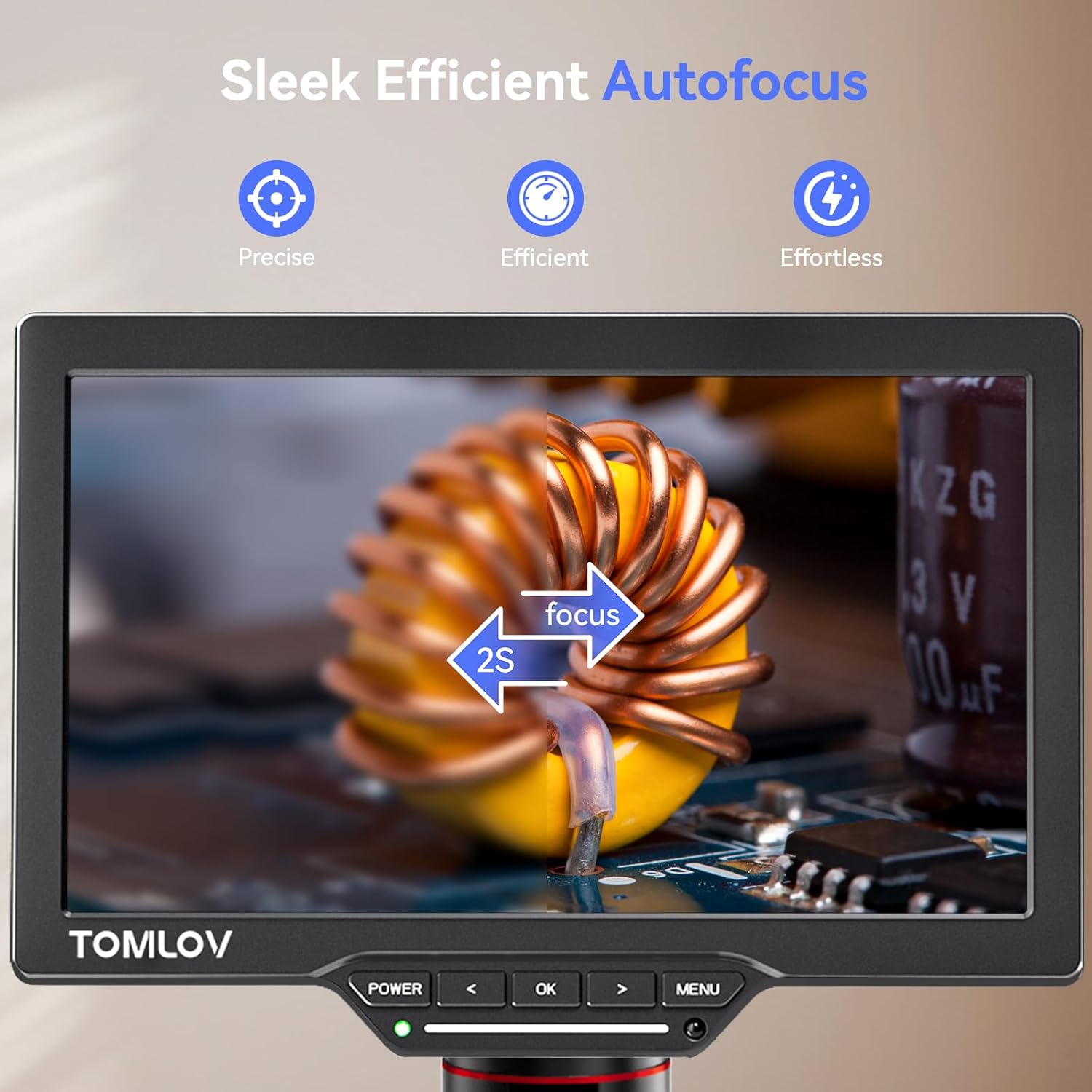

Image: The microscope screen displaying a circuit board, highlighting the autofocus feature for precise and efficient imaging.

4.3 Preset Memory Function (P1/P2)

The microscope allows you to save and recall two specific focus heights using the P1 u P2 buttons. This is useful for repetitive tasks where consistent viewing positions are required.

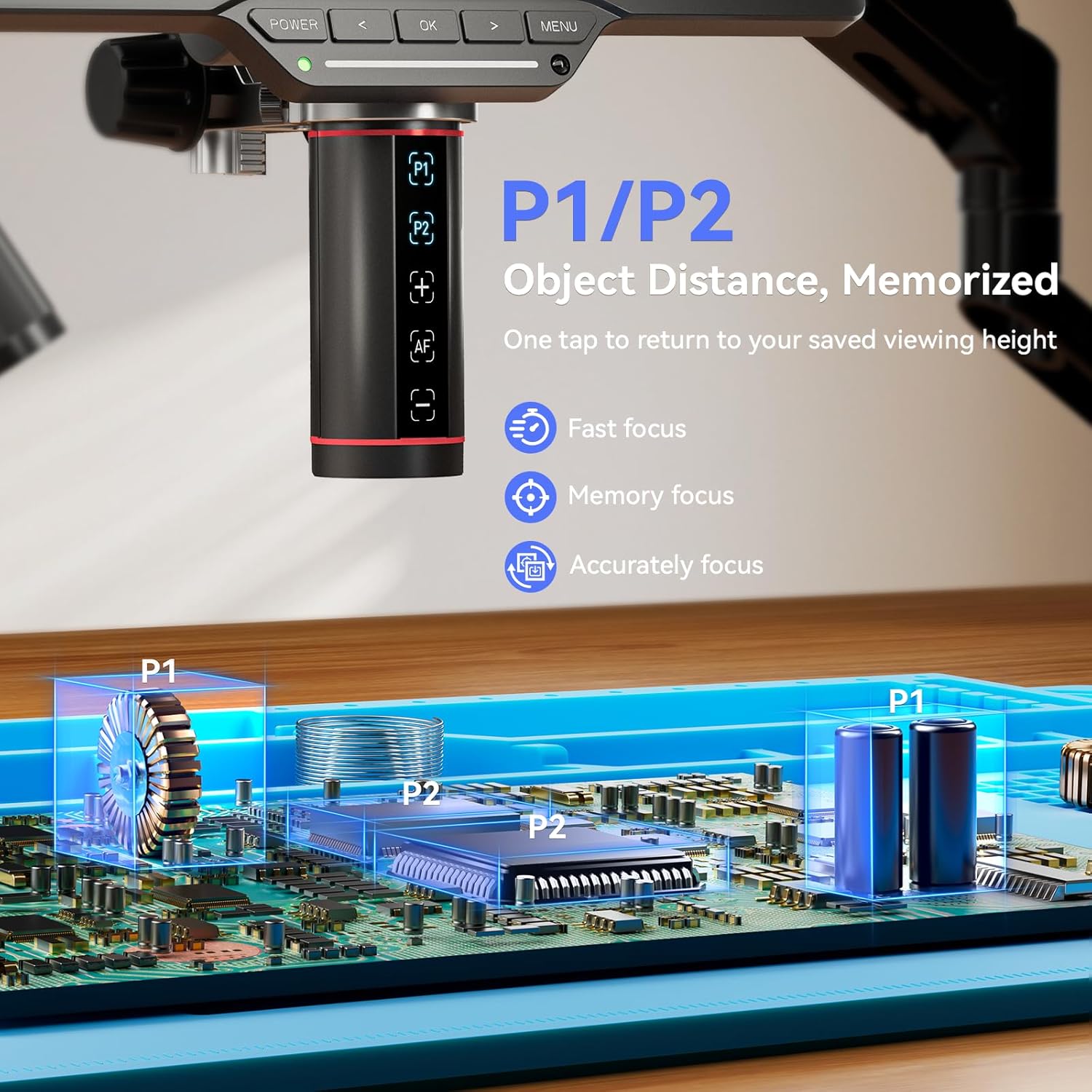

Image: A close-up of the microscope body indicating the P1 and P2 buttons for saving and recalling object distances.

4.4 Aġġustament tad-Dawl

The dual gooseneck LED lights provide flexible illumination. Adjust their position to eliminate shadows and achieve optimal lighting. The brightness can be controlled via the microscope's interface or the remote control.

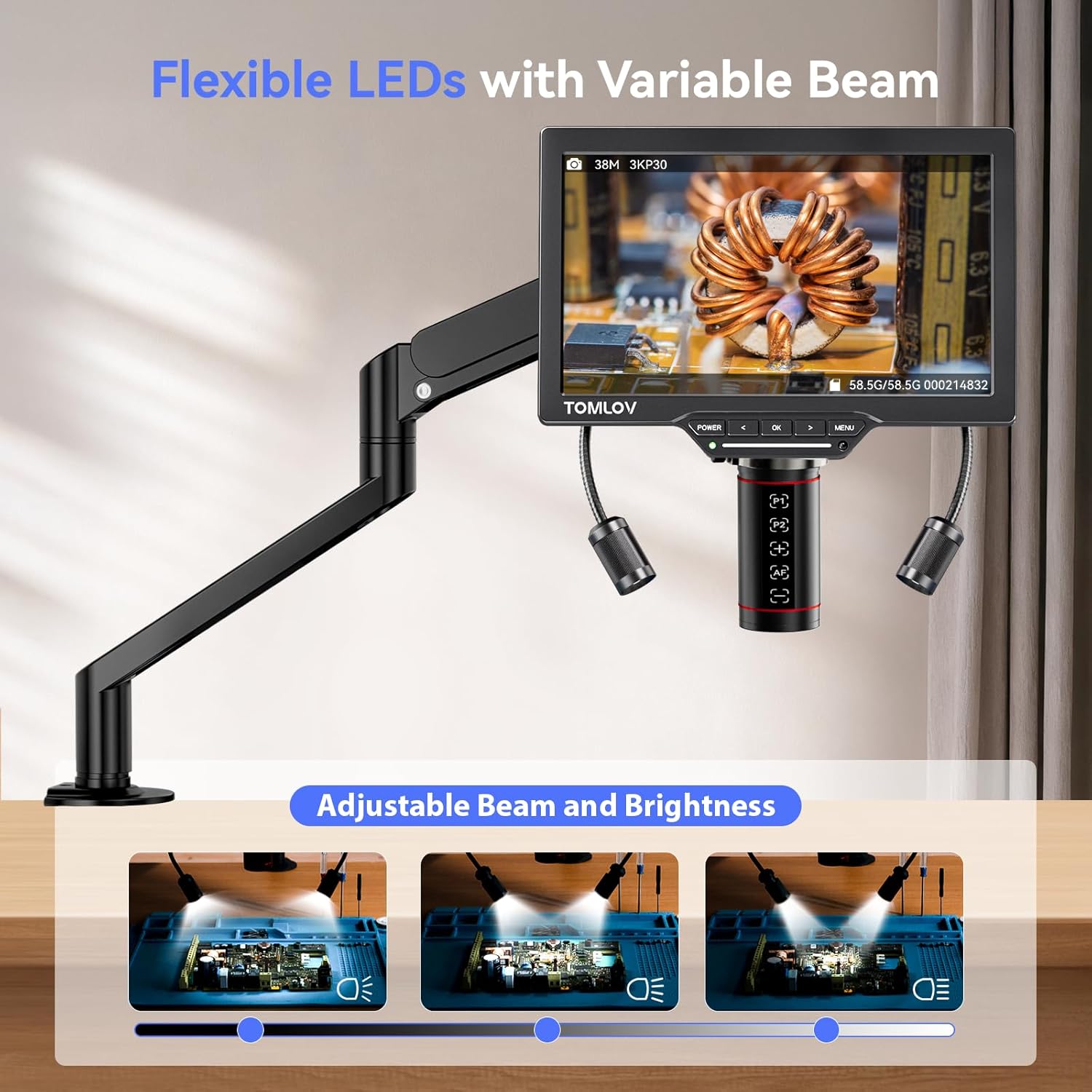

Image: The microscope with its flexible gooseneck LEDs illuminating a circuit board, demonstrating adjustable beam and brightness.

4.5 Tkabbir

The microscope offers up to 4X digital magnification, allowing you to zoom in on macro and micro details. The maximum magnification can reach 2000x when viewed on a larger monitor.

Image: The microscope screen displaying a coin at 2000X magnification, revealing intricate details.

4.6 Display Output (HDMI/USB)

You can connect the microscope to an external monitor, TV, or PC simultaneously using the HDMI and USB outputs. This enables larger viewing areas for collaboration or detailed analysis.

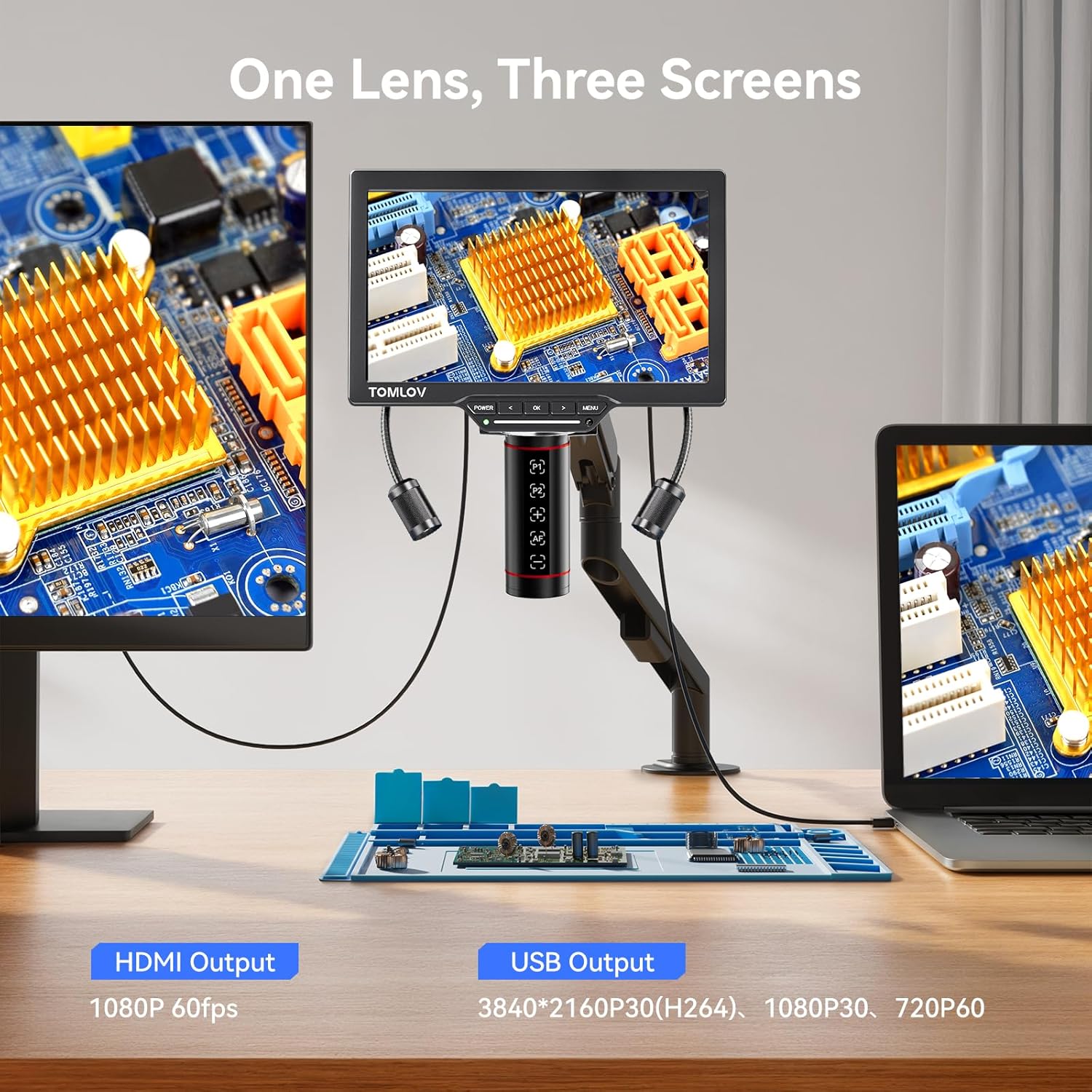

Image: The microscope displaying its output on its integrated screen, an external monitor via HDMI, and a laptop via USB, illustrating the three-screen display capability.

4.7 Kontroll mill-Bogħod

Use the wireless remote control for hands-free operation, including capturing photos, recording videos, and navigating the menu. This helps maintain stability during critical tasks.

Image: The microscope set up with its repair mat and remote control, demonstrating hands-free operation.

4.8 Applikazzjonijiet

The TM3K-AF Max is designed for various detailed inspection tasks, including:

• Micro Soldering: Provides clear, magnified views of solder joints and small components.
• Coin Magnification: Ideal for examining intricate details on coins.
• Spezzjoni tal-PCB: Facilitates detailed inspection of printed circuit boards.
• Spezzjoni tal-Ġojjellerija: Allows for close examination of jewelry pieces.

5. Manutenzjoni

5.1 Tindif

• Skrin: Use a soft, lint-free cloth to gently wipe the screen. For stubborn smudges, a screen cleaning solution can be applied to the cloth (not directly to the screen).
• Lenti: Use a lens brush or air blower to remove dust. For smudges, use a specialized lens cleaning solution and a microfiber cloth. Avoid touching the lens directly.
• Korp: Wipe the microscope body with a dry, soft cloth. Do not use abrasive cleaners or solvents.

5.2 Ħażna

When not in use, store the microscope in a clean, dry environment, away from direct sunlight and extreme temperatures. Cover the lens to protect it from dust.

6 Issolvi l-problemi

• Ebda Qawwa: Ensure the power adapter is securely connected to both the microscope and a working electrical outlet. Check the power indicator light.
• Immaġni mċajpra: Activate autofocus by pressing the AF button. If using manual focus, adjust the focus knob carefully. Ensure the object is within the microscope's working distance.
• No Image on External Display: Verify that the HDMI or USB cable is correctly connected to both the microscope and the external display/PC. Check the input source selection on your external display.
• Dwal ma Jaħdmux: Check the connections of the gooseneck lights to the microscope. Adjust the brightness settings.
• Il-Kontroll mill-bogħod ma Jirrispondix: Ensure the remote control has fresh batteries and is pointed towards the microscope's receiver.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

Your TOMLOV TM3K-AF Max Digital Microscope is covered by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your product packaging or contact TOMLOV customer support. If you encounter any issues or require assistance, please reach out to TOMLOV customer service through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fid-dokumentazzjoni tal-prodott tiegħek.
