Manwal tal-Istruzzjonijiet tal-Kaxxa tat-Tnixxif tal-Filament SainSmart E2

1. Introduzzjoni

The SainSmart E2 Filament Dryer Box is designed to optimize the performance of 3D printer filaments by effectively drying, annealing, and dehumidifying them. This device helps prevent common printing issues such as stringing, warping, and clogging, ensuring higher quality and more consistent 3D prints. Its advanced features, including a 110°C maximum temperature and a 500W PTC heating unit, make it suitable for a wide range of filaments, especially engineering-grade materials.

Image: SainSmart E2 Filament Dryer Box highlighting its superior and efficient annealing capabilities for professional engineering materials.

2. Informazzjoni dwar is-Sigurtà

Please read all safety instructions before operating the SainSmart E2 Filament Dryer Box to ensure safe and proper use.

• Sigurtà Elettrika: Ensure the device is connected to a grounded power outlet. Do not operate with wet hands or in damp ambjenti.
• Kontroll tat-temperatura: The E2 features an advanced control system with auto temperature regulation and an overheat alarm (+10°C).
• Error Alerts: Heating failure alarms and fan error alerts are integrated for operational safety.
• Tifi Awtomatiku: The device includes an auto shut-off function for enhanced safety.
• External Temperature: Even at an internal temperature of 110°C, the outer shell remains below 60°C during normal operation.
• Desiccants: The included desiccant packets are for moisture absorption only. Do not ingest. Keep out of reach of children and pets.

3. Prodott Aktarview

3.1 Komponenti

Immaġni: Quddiem view of the SainSmart E2 Filament Dryer Box, showcasing its transparent lid and integrated control panel.

• Unità Prinċipali: The primary drying and annealing chamber.
• Għatu trasparenti: Allows observation of filament during operation.
• Panel tal-Kontroll: Integrated display for setting temperature, time, and mode.
• Filament Spool Holders: Internal rods for mounting filament spools.
• Cable tal-Enerġija: For connecting the device to an electrical outlet.
• Desiccant Packets: For additional moisture absorption.
• PTFE Tubes: For guiding filament out of the dryer.
• Heat-Resistant Gloves: For safe handling.

3.2 Karatteristiċi ewlenin

• Kapaċità ta' Temperatura Għolja: Reaches up to 110°C, ideal for engineering filaments.
• Tisħin qawwi: Equipped with a 500W PTC heating unit for rapid and efficient heating.
• Funzjonalità 3-in-1: Combines drying, annealing, and smart dehumidifying modes.
• Dual-Layer Sealed Chamber: Enhances insulation and moisture protection with silicone-sealed ports and a magnetic door with gasket.
• Kapaċità Kbira: Accommodates 2x1KG, 2x2KG, or 1x3KG spools with diameters up to 250mm and height up to 153mm.
• Multi-Layer Safety Protection: Includes auto temperature regulation, overheat alarm, heating failure alarm, fan error alert, and auto shut-off.

Image: Visual representation of the E2's 3-in-1 functionality, including heating, annealing, and moisture protection.

4. Setup

4.1 Tneħħija tal-kaxxa u Spezzjoni

Carefully unpack all components from the box. Verify that all items listed in the 'What's in the Box' section are present and undamaged.

Image: The SainSmart E2 Filament Dryer Box and its accessories, including the user manual, power cable, PTFE tubes, and heat-resistant gloves.

4.2 Tqegħid

Place the E2 Filament Dryer Box on a stable, level, and heat-resistant surface. Ensure adequate ventilation around the unit and keep it away from direct sunlight, excessive moisture, and flammable materials.

4.3 Konnessjoni tal-Enerġija

Connect the provided power cable to the power input port on the back of the E2 unit, then plug the other end into a suitable grounded electrical outlet.

4.4 Desiccant Installation

Open the desiccant compartment (if applicable, refer to the manual diagram for location) and place the provided silica gel desiccant packets inside. These help maintain a low humidity environment within the chamber.

Immaġni: Close-up view of silica gel desiccant packets placed within the dryer box.

5. Istruzzjonijiet Operattivi

5.1 Control Panel Overview

The E2 features an intuitive control panel for managing drying and annealing settings. Power on the device using the main power switch. The display will show current temperature, humidity, and operational status.

Image: The digital control panel of the E2 dryer, displaying temperature, humidity, and operational settings.

5.2 Tagħbija tal-Filament

Open the lid of the E2. Place your filament spool(s) onto the internal spool holders. The E2 supports various spool sizes, including 2x1KG, 2x2KG, or 1x3KG spools, with a maximum diameter of 250mm and height of 153mm. Close the lid securely to ensure proper sealing.

Image: Illustration of the E2's flexible large-capacity filament storage, accommodating different spool configurations.

5.3 Modalità tat-Tnixxif

To dry filament, select the drying mode on the control panel. Set the desired temperature and duration based on the filament type. The 500W PTC heater can rapidly heat the chamber, reaching 50°C in approximately 20 minutes and 70°C in 30 minutes from 25°C ambient temperature.

Image: The E2 dryer in operation, showing internal heating to 110°C for rapid drying.

5.4 Annealing Mode

Annealing is a heat-treatment process that relieves internal stress in plastic parts, enhancing strength and heat resistance. For annealing, select the annealing mode and set the appropriate temperature and hold time. Refer to the recommended settings table for guidance.

Image: The E2 dryer in annealing mode, illustrating the process to eliminate residual stress and enhance material properties.

Tips for Successful Annealing:

• Kontroll Preċiż tat-Temperatura: Essential to avoid overheating.
• Test with Small Models: Reduce trial-and-error costs.
• Allow for Shrinkage: Adjust your design accordingly.
• Issettjat Temperatura: Choose the right temperature for the material.
• Anke Tisħin: Heat the part uniformly.
• Żomm Ħin: Maintain constant temperature.
• Controlled Cooling: Cool gradually for best results.

Image: Guide to mastering annealing, detailing how to anneal and tips for successful results.

5.5 Dehumidifying Mode

The E2's dual-layer sealed design, combined with silicone-sealed ports and replaceable desiccants, provides a smart dehumidifying environment. This mode helps maintain low humidity for filament storage and prepares it for printing.

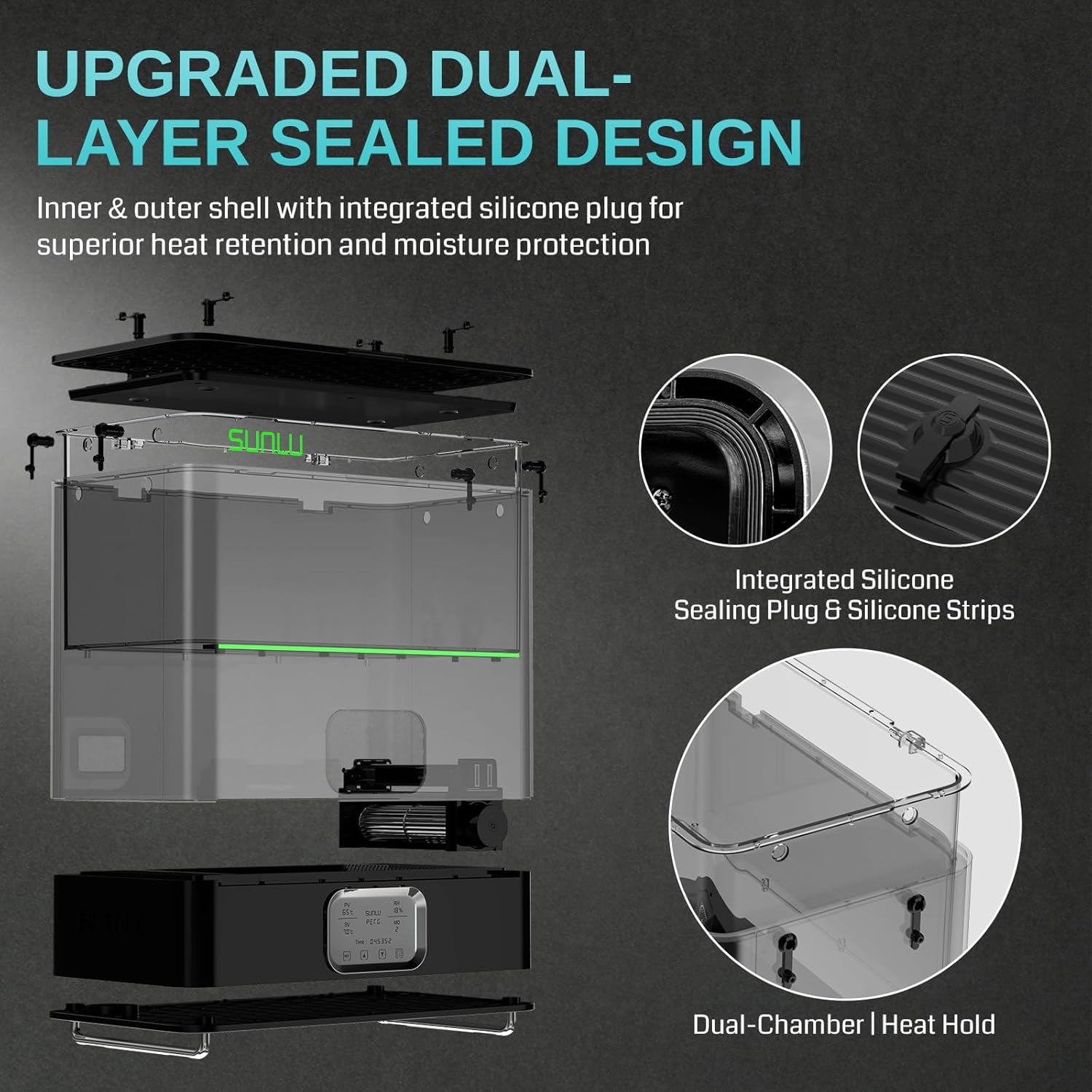

Immaġni: Splodiet view illustrating the upgraded dual-layer sealed design with integrated silicone sealing plug and strips for superior heat retention and moisture protection.

5.6 Settings Rakkomandati

The following table provides recommended drying and annealing temperatures and durations for common filament types. These are general guidelines; optimal settings may vary based on specific filament brands and environmental conditions.

Image: Recommended temperature settings for drying and annealing various engineering and standard filaments.

6. Kompatibilità tal-Filament

The SainSmart E2 Filament Dryer Box is compatible with a wide range of filament types and diameters, ensuring versatility for various 3D printing needs.

• Filament Diameters: Supports 1.75mm, 2.85mm, and 3.0mm filaments.
• Engineering Filaments: ASA, PVB, PA, PC, PA6, PA12, PA-CF, PA-GF.
• Standard Filaments: PLA, PLA+, PETG, PVA, PCL, ABS, TPU, EASY-PA.

Image: The E2 dryer supporting various filament types, including PLA, TPU, PETG, PVA, and PA-CF.

6.1 Spool Compatibility

The E2 is designed to be compatible with most spools on the market, with a maximum spool size of 250mm diameter and 153mm height.

Image: Various filament spool types from different brands, demonstrating compatibility with the E2 dryer.

7. Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your SainSmart E2 Filament Dryer Box.

• Tindif: Periodically wipe the exterior and interior of the unit with a soft, dry cloth. Ensure the unit is unplugged before cleaning. Do not use abrasive cleaners or solvents.
• Sostituzzjoni tad-dessikant: The silica gel desiccant packets will eventually become saturated. Replace them when they change color (if they are indicating type) or when you notice reduced dehumidifying effectiveness.
• Spezzjoni: Regularly check the power cable for any signs of damage. Inspect the silicone seals and gasket for wear and tear to ensure the chamber remains airtight.

8 Issolvi l-problemi

If you encounter issues with your SainSmart E2 Filament Dryer Box, refer to the following common troubleshooting steps:

For issues not covered here, please refer to the official SainSmart support resources.

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

For warranty information, technical support, or service inquiries, please contact SainSmart customer service through their official website or the retailer where the product was purchased. Please have your product model number and purchase date available when contacting support.
