COUGAR OmnyX Mid-Tower ATX Panoramic PC Case

Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your COUGAR OmnyX Mid-Tower ATX Panoramic PC Case. Please read this manual thoroughly before beginning assembly to ensure proper setup and optimal performance. The OmnyX case is designed for maximum airflow and features a panoramic tempered glass design, pre-installed 160mm fans, and advanced cable management solutions.

Karatteristiċi Ewlenin

• Disinn Simmetriku: Allows for omnidirectional placement, offering flexibility in setup.
• Quad 160mm PWM Fans: Includes four pre-installed 160mm PWM fans for efficient cooling and flexible intake modes.
• Zero-Visibility Cable Management: Integrated base compartment and quick-release covers for organized cable routing.
• Sliding IO Module: Allows for relocation of the I/O module and expanded port array.
• Vertical GPU Alignment: Natural alignment of vertically mounted GPUs reduces the risk of damage from displacement.
• GPU Compatibility: Jakkomoda tul massimu ta' GPU ta' 380mm.
• Reverse Connector Motherboard Compatibility: Designed to support motherboards with reverse connectors.
• Manutenzjoni faċli: Features magnetic dust filter panels and quick-release cable management compartment covers.

Prodott Overview

Familiarize yourself with the various components and design aspects of your COUGAR OmnyX PC case.

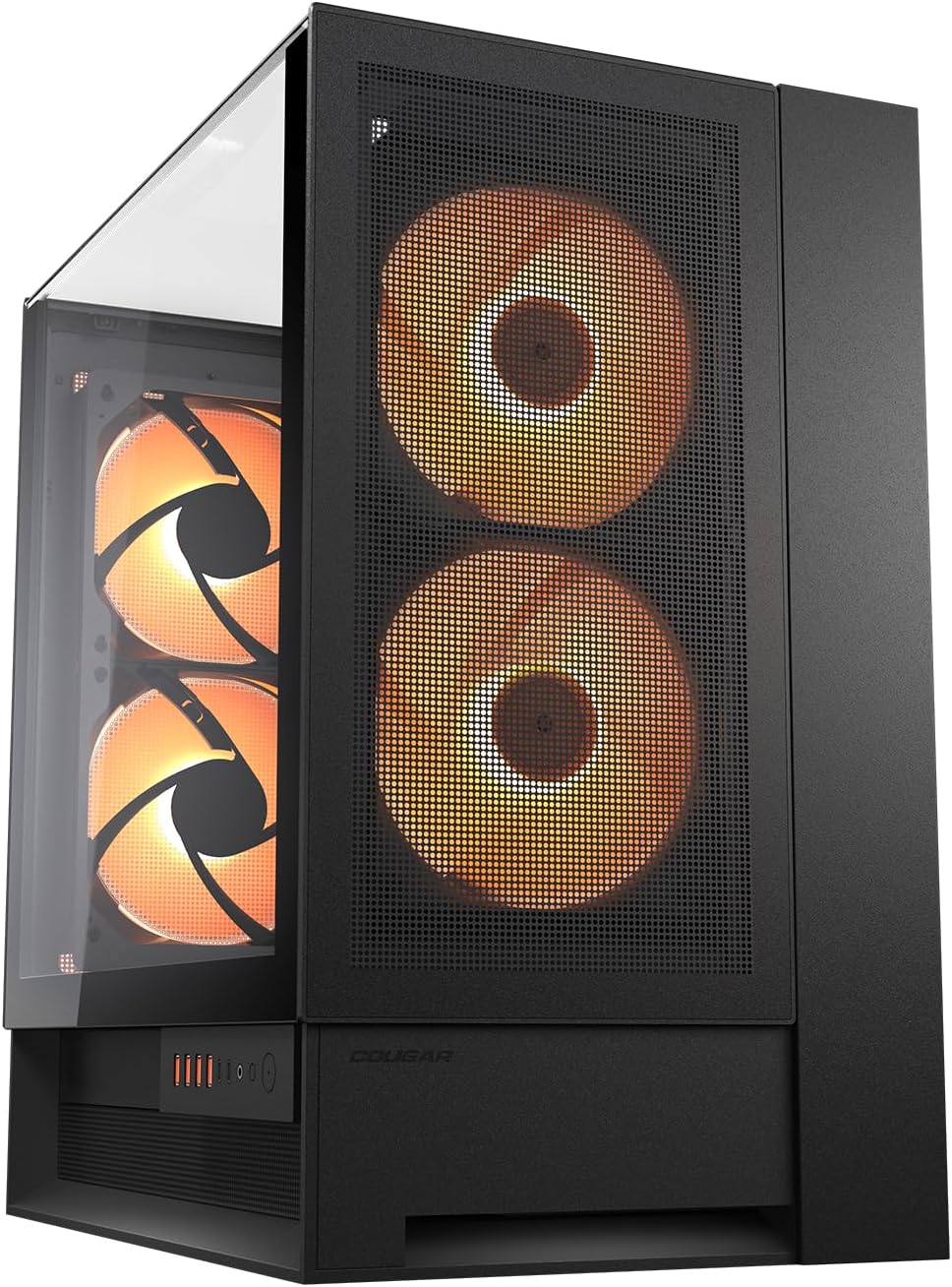

Figura 1: Quddiem u ġenb view of the COUGAR OmnyX PC case, showcasing the panoramic tempered glass and pre-installed 160mm fans.

Figura 2: Internal layout of the COUGAR OmnyX PC case, highlighting the spacious motherboard tray and component mounting areas.

Figura 3: Sploda view of the COUGAR OmnyX PC case, illustrating the modular design and removable panels for easy assembly.

Figura 4: Żarmat view of the COUGAR OmnyX PC case, showing the various components and access points for installation and maintenance.

Konfigurazzjoni u Installazzjoni tal-Komponenti

Follow these general steps for installing components into your COUGAR OmnyX PC case. Always refer to your individual component manuals for specific installation details.

1. Ipprepara l-Każ: Carefully remove the tempered glass panels and any other removable panels to gain access to the interior.
2. Install the Power Supply (PSU): Mount your power supply in the designated compartment at the bottom of the case. Utilize the integrated base compartment for routing PSU cables.
3. Installa l-Motherboard: Secure your ATX motherboard to the standoffs on the motherboard tray. The OmnyX supports reverse connector motherboards for alternative cable routing.
4. Installa Drives tal-Ħażna: Immonta l-SSDs u l-HDDs tiegħek fil-bays tad-drajvs disponibbli.
5. Install the Graphics Card (GPU): Insert your graphics card into the appropriate PCIe slot. The case supports vertical GPU mounting, which naturally aligns the GPU with gravity.
6. Qabbad Kejbils: Route all power and data cables through the cable management channels. The zero-visibility cable management system helps keep cables tidy and out of sight.
7. Connect Front I/O: Connect the front panel connectors (USB, audio, power button) to your motherboard. The sliding rail system allows for flexible positioning of the I/O module.
8. Erġa' arma l-Panelli: Once all components are installed and cables are managed, reattach the tempered glass panels and other removable covers.

Operazzjoni

The COUGAR OmnyX PC case is designed for straightforward operation once components are installed.

• Power On/Off: Use the power button located on the front I/O panel to turn your system on or off.
• Portijiet USB: Utilize the USB ports on the front I/O panel for connecting peripherals and external devices.
• Ġakki tal-Awdjo: Connect your headphones or microphone to the dedicated audio jacks on the front I/O panel.
• Kontroll tal-fann: The pre-installed 160mm PWM fans can be controlled via your motherboard's fan headers and software, allowing you to adjust fan speeds for optimal cooling and noise levels.

Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-kaxxa tal-PC tiegħek.

• Filtri tat-Trab: The OmnyX case features magnetic dust filter panels. Regularly remove and clean these filters to prevent dust buildup and maintain efficient airflow.
• Tindif ta 'ġewwa: Periodically open the case and use compressed air to remove dust from internal components and fan blades. Ensure the system is powered off and unplugged before cleaning.
• Tindif ta' barra: Wipe down the exterior surfaces, including the tempered glass panels, with a soft, damp drapp. Evita prodotti tat-tindif li jobrox li jistgħu jigrifjaw l-uċuħ.

Issolvi l-problemi

If you encounter issues with your PC case, consider the following common solutions:

• Ebda Qawwa: Ensure all power cables are securely connected to the power supply, motherboard, and components. Verify the power supply switch is in the 'On' position.
• Fannijiet Mhux Iduru: Check that fan cables are correctly connected to the motherboard or fan controller. Ensure fan control software settings are configured properly.
• Is-sħana żejda: Verify that all fans are operating correctly and are not obstructed. Clean dust filters and ensure proper airflow within the case. Check component temperatures using monitoring software.
• Kwistjonijiet ta' Adattament tal-Komponenti: Double-check that all components are installed according to their respective manuals and the case's specifications (e.g., GPU length, radiator size).
• Front I/O Not Working: Ensure the front panel connectors are correctly plugged into the motherboard headers.

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information, technical support, or further assistance, please visit the official COUGAR websit jew ikkuntattja lis-servizz tal-konsumatur tagħhom.

• Uffiċjali Websit: https://cougargaming.com/
• Kuntatt tas-Servizz: https://cougargaming.com/contact2/
