1. Introduzzjoni
This manual provides essential information for the safe and efficient operation of your SWOFY M503Pro MP3 Player. Please read it thoroughly before using the device to ensure optimal performance and longevity.
2. Informazzjoni dwar is-Sigurtà
- Use ONLY the 5V/1A USB-C charger provided or a compatible charger. Fast chargers may cause overheating or permanent battery damage.
- Evita li tiċċarġja fid-dawl tax-xemx dirett, f'ambjenti umdi, jew ħdejn sorsi ta' sħana.
- Jekk l-apparat jisħon waqt l-iċċarġjar, aqla’ minnufih u ħallih jiksaħ f’żona ventilata sew.
- Operating Temperature: 0°C to 35°C. Storage Temperature: -10°C to 45°C.
- Tesponix għal likwidi, ramel, jew pressjoni estrema (eż., toqgħod fuq l-apparat).
3. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:
- SWOFY M503Pro MP3 Player
- Kejbil għall-Iċċarġjar USB-A għal USB-C
- Wired Earphones (3.5mm jack)
- Kawża Protettiva
- Protettur tal-iskrin
- Manwal għall-Utent
- 64GB Micro SD Card (pre-installed or included separately)
4. Device Overview
Figura 1: Quddiem u wara view of the SWOFY M503Pro MP3 Player, showcasing its sleek design and 4-inch touch screen.
Physical Buttons and Ports
- Buttuna tal-Qawwa: Located on the side, press and hold to power on/off or short press to lock/unlock the screen.
- Buttuni tal-Volum: Located on the side, use to adjust audio volume.
- Irrisettja toqba: Toqba żgħira biex tirrisettja l-apparat jekk ma jibqax jirrispondi.
- Port USB-C: Għall-iċċarġjar u t-trasferiment tad-dejta.
- Ħruġ Awdjo 3.5mm: Għall-konnessjoni ta' headphones bil-fili.
- Slott tal-Karta Mikro SD: For expanding storage up to 512GB.
- Kelliem: Built-in speaker for audio playback without headphones.
Figura 2: Ġenb view of the MP3 player, highlighting the power button, volume controls, and Micro SD card slot.
Figura 3: Qiegħ view of the MP3 player, showing the USB-C port, 3.5mm audio jack, and speaker grille.
5. Setup
5.1 Iċċarġjar inizjali
Before first use, fully charge the device. Connect the provided USB-C cable to the player and a 5V/1A USB charger. A full charge typically takes approximately 2.5 hours.
5.2 Power On/Off
- Qawwa Mixgħul: Agħfas u żomm il-Power Button għal 3 sekondi.
- Itfi: Press and hold the Power Button, then select 'Power Off' on the screen.
- Lock/Nisfrutta l-iskrin: Agħfas qasir il-buttuna tal-enerġija.
5.3 Konfigurazzjoni Inizjali
Upon first power-on, follow the on-screen prompts to set up the device:
- Agħżel il-lingwa preferuta tiegħek.
- Set the time zone and date.
- Accept Google Terms of Service and Privacy Policy to activate Google Play services.
5.4 Konnessjoni mal-Wi-Fi
- Mur fuq Settings > Netwerk u Internet > Wi-Fi.
- Ixgħel il-Wi-Fi.
- Agħżel in-netwerk mixtieq tiegħek mil-lista u daħħal il-password jekk meħtieġ.
- The device supports dual-band Wi-Fi (2.4G/5G) for stable connectivity.
5.5 Konnessjoni ma' Apparat Bluetooth
- Mur fuq Settings > Apparati konnessi > Bluetooth.
- Ixgħel il-Bluetooth.
- The device will scan for available Bluetooth devices.
- Select your Bluetooth headphones, speaker, or other device to pair.
- The player automatically connects to the last paired device.
Video 1: Demonstrates the Bluetooth and Wi-Fi connectivity features of the SWOFY M503Pro MP3 Player, showing how to pair with external devices.
5.6 Inserting Micro SD Card
The device comes with 80GB of internal storage (2GB RAM + 16GB ROM + 64GB card). You can expand storage up to 512GB using a Micro SD card.
- Locate the Micro SD card slot on the side of the device.
- Daħħal bil-mod il-karta Micro SD fl-islott sakemm tikklikkja f'postha.
- Biex tneħħiha, imbotta l-karta bil-mod 'il ġewwa sakemm toħroġ 'il barra.
Figure 4: Illustrates the large capacity memory of the MP3 player, including the Micro SD card slot for expandable storage.
6. Istruzzjonijiet Operattivi
6.1 Navigazzjoni
The device features a 4-inch 1080P HD full-color touch screen for intuitive navigation. Swipe left/right to browse apps and tap to select.
6.2 Daqq tal-Mużika
The SWOFY M503Pro supports various music formats including MP3, OGG, FLAC, AAC, WAV, WMA, and APE. Use the pre-installed HiByMusic app for offline playback or streaming apps like Spotify and Amazon Music.
- HiFi Lossless Sound: Enjoy premium audio quality.
- Kelliem inkorporat: Play music or videos without headphones.
- Ekwalizzatur Personalizzat: Adjust sound settings to your preference.
- Playlist Creation: Organize your music into custom playlists.
- Synchronized Lyrics: View lyrics while music plays.
Figure 5: The MP3 player displaying music playback on its screen, with a user wearing headphones, emphasizing HiFi lossless sound quality.
6.3 Daqq tal-Vidjo
The 4-inch 1080P HD screen allows direct online or offline playback of 720P and 1080P videos without format conversion. Supported video formats include RM, RMVB, FLV, MP4, DAT, MKV, MPG, MOV, and TS.

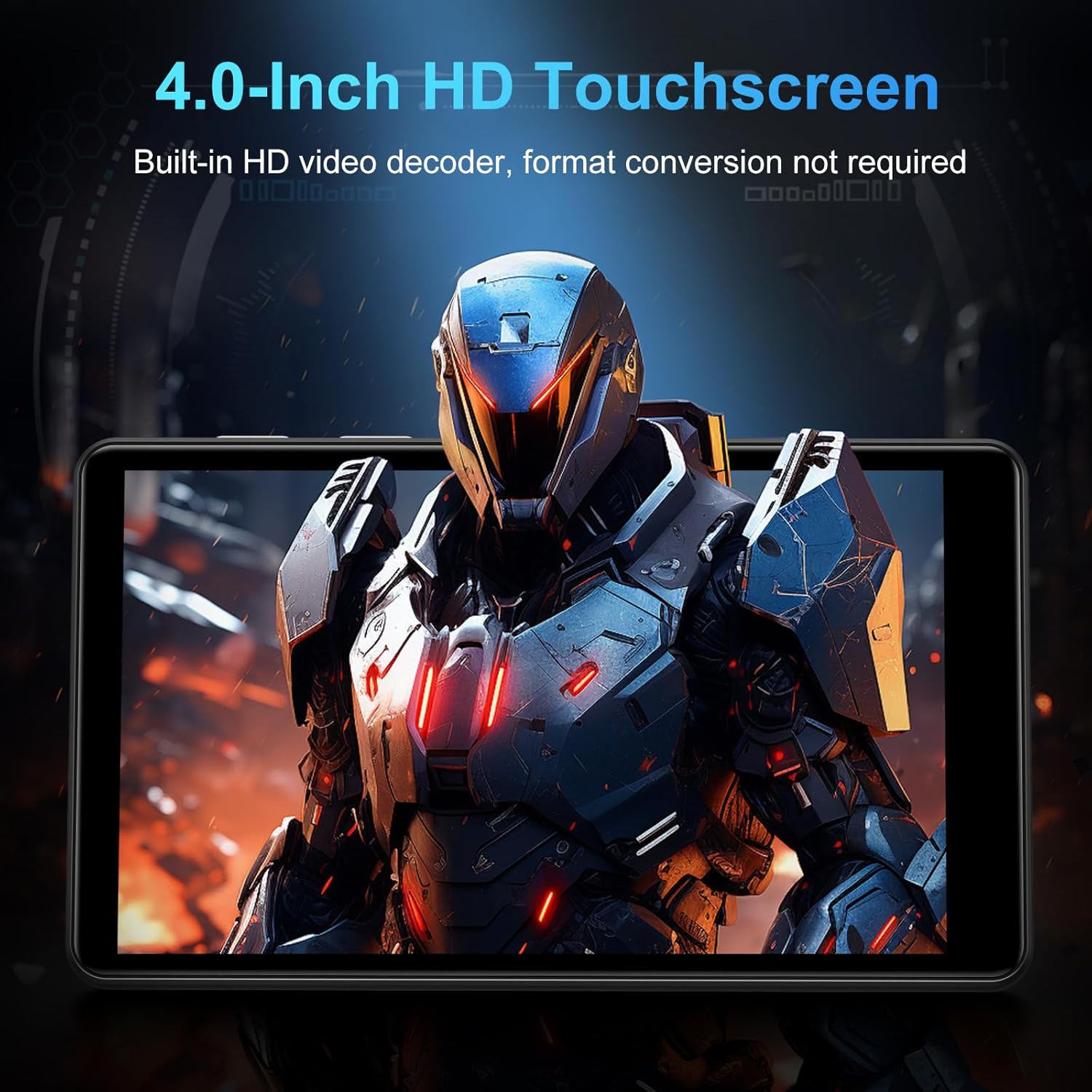

Figure 6: The MP3 player displaying a video on its 4-inch HD screen, demonstrating its video playback capabilities.
6.4 Pre-installed Applications
The device comes with a rich lineup of pre-installed mainstream media apps and practical tools:
- Apple Music, Spotify, Audible, Amazon Music, Deezer
- FM Radio, Video Player, Calendar, Sound Recorder
- Browser (Chrome)
- Google Play Store (for downloading additional apps)

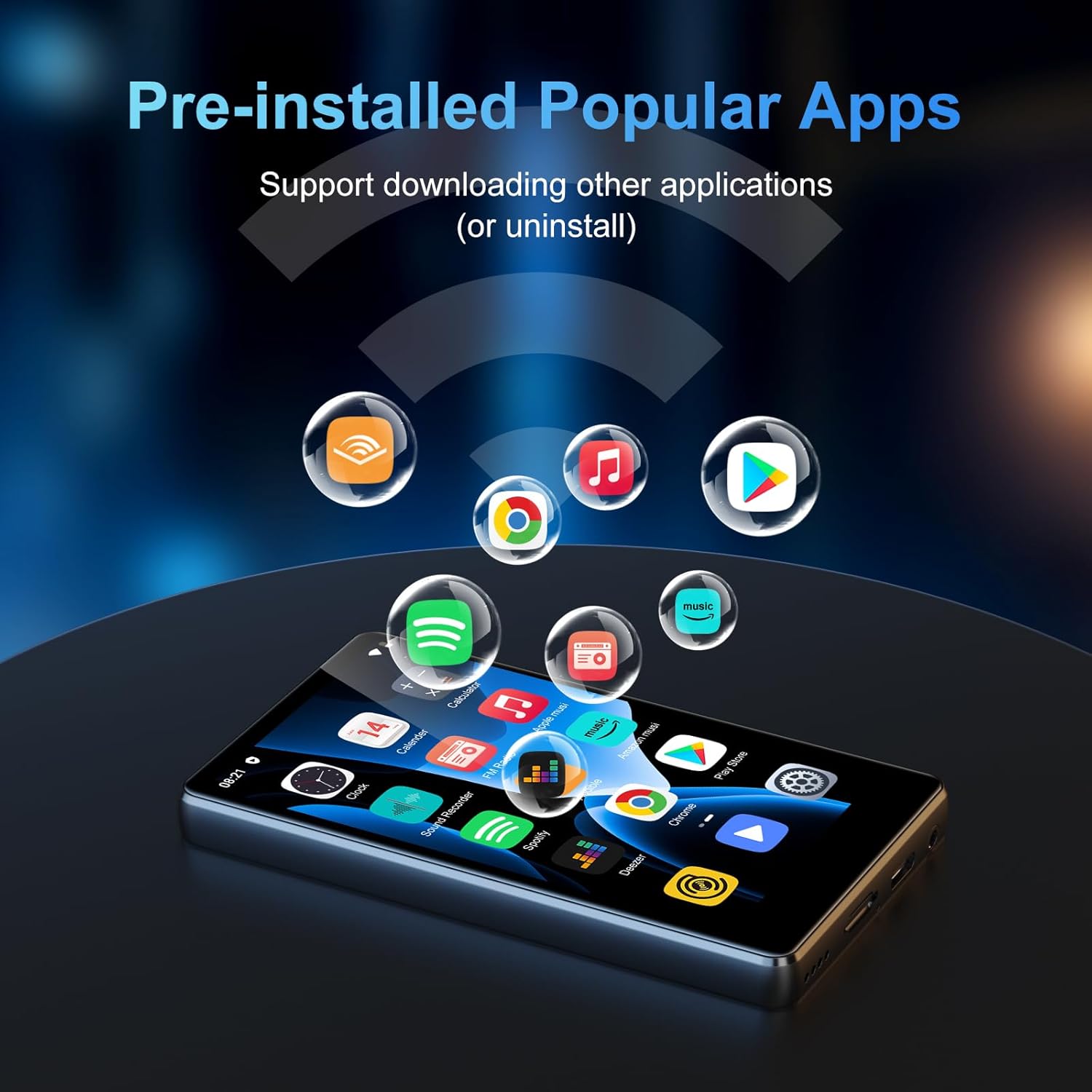

Figure 7: The MP3 player's screen displaying various pre-installed applications like Spotify, Amazon Music, and Audible.
Video 2: A seller video showcasing the SWOFY M503Pro MP3 Player's interface and various pre-installed applications.
6.5 One-Key Lock Screen and Screenshot
- Lock Screen: Short press the Power Button to prevent accidental touches.
- Screenshot: Press and hold the Power Button to capture a screenshot.
7. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Isem tal-Mudell | M503Pro |
| Numru tal-Mudell tal-Oġġett | M503 pro-80GB |
| Brand | SWOFY |
| Kapaċità tal-Ħżin tal-Memorja | 80 GB (2GB RAM + 16GB ROM + 64GB card) |
| Ħażna espansibbli | Up to 512GB via Micro SD card |
| Daqs tal-Iskrin | 4 Pulzier |
| Teknoloġija tal-Wiri | 1080P HD LCD Touch Screen |
| Sistema Operattiva | Android 9.0 |
| Proċessur | Advanced CPU (Octa-Core) |
| Teknoloġija tal-Konnettività | Bluetooth, Wi-Fi (Dual-band 2.4G/5G) |
| Kapaċità tal-batterija | 2000mAh |
| Ħin ta 'Daqq tal-Mużika | Sa 40 sigħat |
| Ħin ta' Standby | 3-5 Xhur |
| Port tal-Iċċarġjar | USB-C |
| Formati Awdjo | MP3, OGG, FLAC, AAC, WAV, WMA, APE |
| Formati tal-vidjo | RM, RMVB, FLV, MP4, DAT, MKV, MPG, MOV, TS |
| Piż tal-oġġett | 8.4 uqija |
8 Issolvi l-problemi
8.1 Device Won't Turn On/Is Unresponsive
- Ensure the device is fully charged. Connect to the charger for at least 30 minutes.
- Perform a soft reset: Use a thin pin to press the reset hole on the side of the device.
8.2 Ebda Ħoss
- Check the volume level using the side buttons or on-screen controls.
- Ensure headphones are properly connected if using them. Try a different pair of headphones to rule out faulty earphones.
- If using Bluetooth, ensure the device is properly paired and connected. Try unpairing and re-pairing.
8.3 L-Applikazzjonijiet Jikkraxxjaw jew Jiffriżaw
- Clear the app's cache: Go to Settings > Apps u notifiki, select the problematic app, then Ħażna u cache > Ċar il-cache.
- Kun żgur li hemm biżżejjed spazju għall-ħażna disponibbli. Ħassar dak li mhux meħtieġ files jew apps.
- Ibda mill-ġdid l-apparat.
8.4 Kwistjonijiet ta' Konnettività (Wi-Fi/Bluetooth)
- Ensure Wi-Fi/Bluetooth is enabled in Settings.
- Restart the device and your router/Bluetooth accessory.
- Insieh in-netwerk/apparat u erġa' qabbad.
9. Manutenzjoni
- Clean the screen and body with a soft, dry cloth. Avoid abrasive cleaners.
- Żomm l-apparat 'il bogħod minn kampi manjetiċi qawwija.
- Aħżen f'post frisk u niexef meta ma tkunx qed tuża.
10. Garanzija u Appoġġ
Your SWOFY M503Pro MP3 Player comes with a standard manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official SWOFY websit.
