TOMLOV TriL107 3-Lens Digital Microscope User Manual

1. Introduzzjoni

This manual provides detailed instructions for the proper setup, operation, and maintenance of your TOMLOV TriL107 3-Lens Digital Microscope. Please read this manual thoroughly before using the device to ensure optimal performance and longevity. Keep this manual for future reference.

2. Informazzjoni dwar is-Sigurtà

• Do not expose the microscope to extreme temperatures, humidity, or corrosive substances.
• Avoid direct exposure of the lenses to strong light sources, which may damage the sensor.
• Żomm l-apparat 'il bogħod mill-ilma u likwidi oħra.
• Do not attempt to disassemble or repair the microscope yourself. Contact customer support for assistance.
• Kun żgur li l-adapter tal-enerġija huwa kompatibbli mal-volum lokali tiegħektage.
• Żomm fejn ma jintlaħaqx mit-tfal sakemm ma jkunx taħt is-superviżjoni ta' adult.

3. Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

• 7-Inch 3-Lens HDMI Digital Microscope (1 unit)
• 12.6-Inch Adjustable Stand (1 unit)
• 64GB Micro SD Card (1 unit - pre-installed)
• Slides Bottom Light (1 unit)
• Kontroll mill-bogħod (unità waħda)
• USB Cable (2 units)
• Kejbil HDMI (unità 1)

4. Prodott Aktarview

The TOMLOV TriL107 features a versatile design with three interchangeable lenses and a high-resolution display for various observation needs.

Komponenti Ewlenin:

• Skrin IPS ta' 7 pulzieri: Provides a clear, wide-angle view of magnified objects.
• Rotating Lens Barrel: Allows for quick switching between the 1000X, 1500X, and 2500X lenses.
• Pum tal-fokus: Adjusts the focus for clear images.
• Stand aġġustabbli: Provides stability and allows for height adjustments, especially useful for whole coin viewing.
• Integrated Lighting System: Includes 12 main LED lights, 2 gooseneck side lights, and a slide bottom light for optimal illumination.
• Buttuni tal-Kontroll: For power, menu navigation, photo/video capture, and zoom.
• Portijiet: HDMI and USB for external display connectivity.

Figura 1: Aktarview of the three specialized lenses for diverse observation needs.

5. Istruzzjonijiet ta' Setup

5.1 Assemblea

1. Oħroġ il-komponenti kollha mill-kaxxa bir-reqqa.
2. Attach the microscope unit to the adjustable stand, securing it with the provided knob.
3. Connect the gooseneck side lights to the base and position them as needed.
4. Place the slide bottom light on the base if required for your observation.

5.2 Tixgħel/Jitfi

• Connect the microscope to a power source using one of the provided USB cables. The device contains a rechargeable Lithium Ion battery.
• Press and hold the power button on the microscope's display unit to turn it on or off.

5.3 Mikro SD Card

The 64GB Micro SD card is pre-installed in the microscope. This card is essential for storing photos and videos. Ensure it is securely in place before operation.

6. Istruzzjonijiet Operattivi

6.1 Lens Selection

The TriL107 features a rotating lens barrel for easy switching between the three lenses. Simply rotate the barrel to select the desired magnification lens (1000X, 1500X, or 2500X).

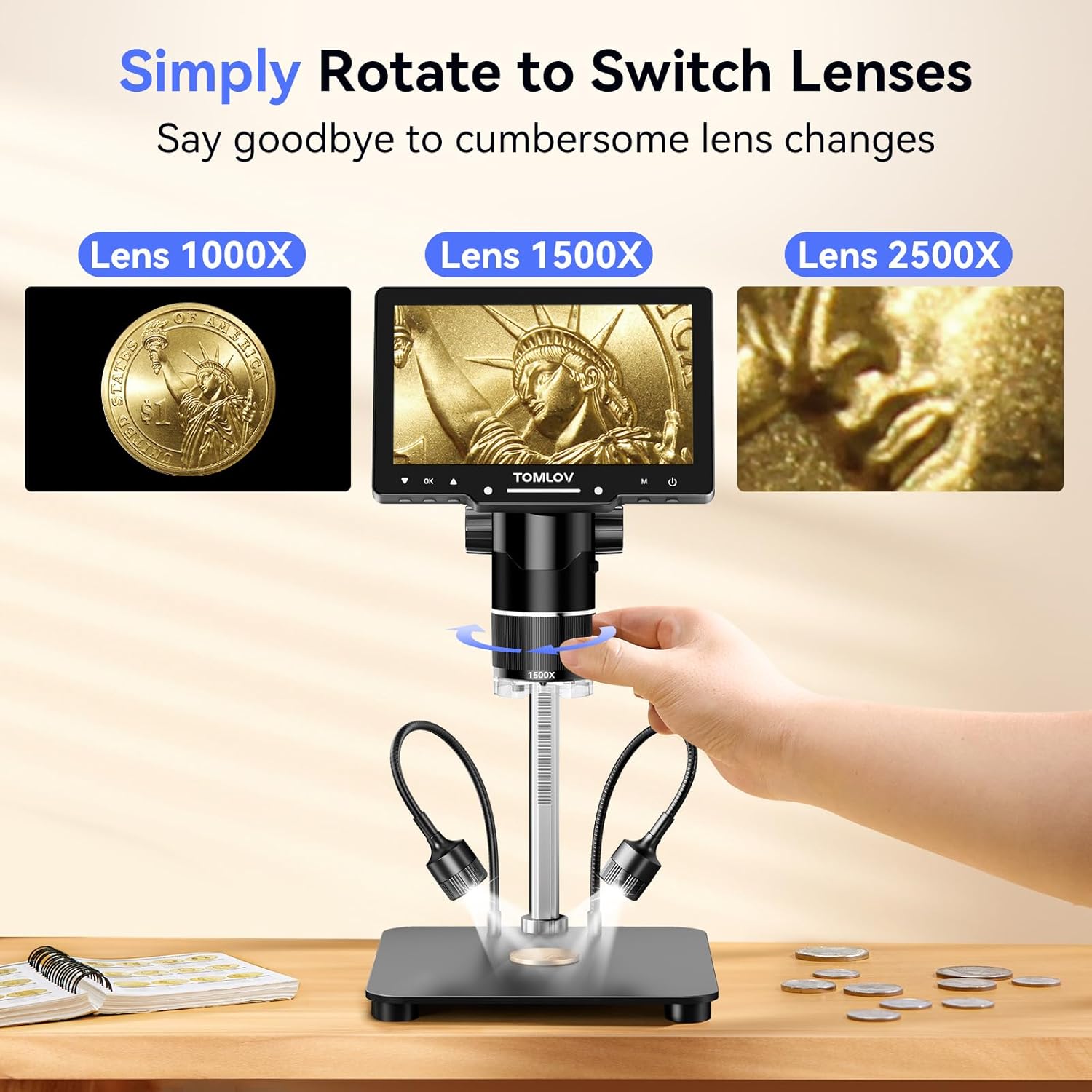

Figure 2: Rotating the lens barrel to select different magnification lenses.

6.2 Iffukar

Place the object you wish to observe on the base. Adjust the height of the microscope unit using the stand's adjustment knob, then fine-tune the focus by rotating the focus wheel on the lens barrel until the image on the screen is clear.

6.3 Magnification Lenses

• 1000X Lens (2X-1000X): Ideal for observing coins, stamps, and other larger specimens. The adjustable 12.6-inch stand allows for a full view of entire coins.

Figure 3: Coin observation using the 1000X lens.
• 1500X Lens (10X-1500X): Designed for intricate tasks such as PCB soldering and watch repair. Offers a longer working distance and a larger base for a stable workspace.


Figure 4: Soldering with the 1500X lens.

• 2500X Lens (2000X-2500X): Suitable for observing biological slides and microscopic details. Note: The optimal observation distance for this lens is 3mm-4mm, requiring the lens to be very close to the object for clear images.


Figure 5: Biological slide observation with the 2500X lens.

6.4 Lighting Adjustment

The microscope features a comprehensive lighting system:

• 12 Built-in LED Lens Lights: Provide direct illumination from around the lens.
• 2 Gooseneck Side Lights: Adjustable lights for angled illumination, reducing shadows.
• Slide Bottom Light: For observing transparent specimens from below.

All lights can be dimmed and charged independently using their respective controls to achieve optimal viewkondizzjonijiet.

Figure 6: The versatile lighting system of the microscope.

6.5 Qbid ta' Ritratti u Vidjows

The microscope supports one-button photo capture and video recording. Use the dedicated buttons on the display unit or the wireless remote control to initiate these functions. All captured media is saved to the pre-installed 64GB Micro SD card.

6.6 External Display Connection (HDMI & USB)

Connect the microscope to a larger screen (PC or TV) using the provided HDMI or USB cables for real-time viewing and presentations. This allows for collaborative observation and detailed examination on a larger display.

Figure 7: Connecting the microscope to external displays.

6.7 Kontroll mill-bogħod mingħajr fili

The included wireless remote control allows for convenient adjustment of magnification, photo capture, and video recording without touching the microscope. This minimizes screen shaking and sample disturbance, ensuring stable observations.

7. Manutenzjoni

7.1 Tindif

• Lentijiet: Use a soft, lint-free cloth specifically designed for optical surfaces. For stubborn smudges, a small amount of lens cleaning solution can be applied to the cloth (not directly to the lens).
• Skrin: Wipe the IPS screen gently with a soft, dry microfiber cloth. Avoid harsh chemicals.
• Korp: Clean the microscope body and stand with a slightly damp cloth. Ensure no moisture enters any openings.

7.2 Ħażna

When not in use, store the microscope in a clean, dry, and dust-free environment. Use the original packaging or a protective case to prevent damage.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

10.1 Informazzjoni dwar Garanzija

Your TOMLOV TriL107 Digital Microscope is covered by a manufacturer's warranty. Please refer to the warranty card included in your package or visit the official TOMLOV websit għal termini u kundizzjonijiet dettaljati tal-garanzija.

10.2 Appoġġ għall-Klijent

For technical assistance, troubleshooting, or any inquiries regarding your product, please contact TOMLOV customer support. Contact details can typically be found on the TOMLOV websit jew fl-ippakkjar tal-prodott.
