Manwal tal-Utent tal-Purifikatur tal-Arja AIRTOK AP3001

1. Introduzzjoni

This manual provides essential instructions for the safe and efficient operation of your AIRTOK AP3001 Air Purifier. Please read this manual thoroughly before using the appliance and retain it for future reference. The AIRTOK AP3001 is designed to improve indoor air quality by filtering airborne particles and odors in large rooms.

Image 1.1: The AIRTOK AP3001 Air Purifier, a device designed to filter and improve indoor air quality.

2. Prodott Aktarview

The AIRTOK AP3001 Air Purifier features a comprehensive 3-stage filtration system, smart sensing capabilities, and a wide coverage area, making it suitable for various indoor environments.

Karatteristiċi ewlenin:

• Kopertura Wiesgħa: Purifies air in rooms up to 1848 sq. ft. (CADR: 280m³/H ±10%).
• 3-Stage Filtrazzjoni: Includes a washable pre-filter, True HEPA filter, and activated carbon filter.
• Auto-Sensing Intelliġenti: Automatically adjusts fan speed based on ambient air particle levels.
• Modalità ta' Rqad HEPA: Operates quietly with dimmed display in low-light conditions.
• Funzjoni tal-aromaterapija: Allows for the addition of essential oils for a pleasant scent.
• Kontrolli faċli għall-utent: Features a touch panel with various modes and settings.

Image 2.1: The AIRTOK AP3001 is designed for large rooms, purifying spaces up to 1848 sq. ft. efficiently.

Sistema ta' Filtrazzjoni:

The AP3001 utilizes a robust 3-stage filtration system to capture various airborne pollutants:

1. Pre-Iffiltra: Captures large particles such as dust, lint, and pet fur. This filter is washable and reusable.
2. Filtru HEPA veru: Jaqbad 99.97% tal-partiċelli fl-arja żgħar daqs 0.3 mikron, inklużi l-polline, id-dud tat-trab, u l-qxur tal-annimali domestiċi.
3. Filtru tal-Karbonju Attivat: Absorbs odors from pets, cooking, smoke, and volatile organic compounds (VOCs).

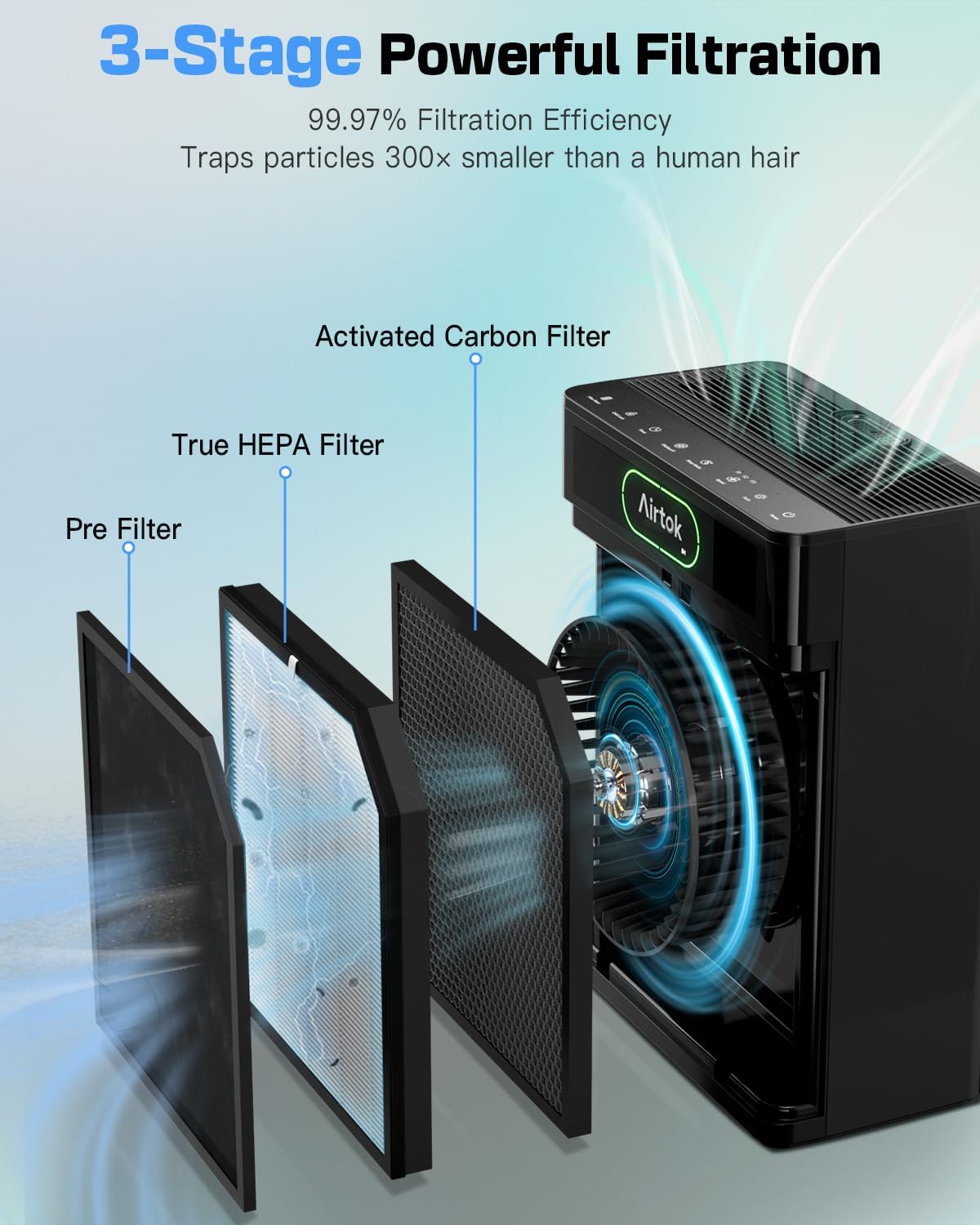

Image 2.2: Diagram illustrating the three stages of filtration: Pre-Filter, True HEPA Filter, and Activated Carbon Filter.

3. Setup

Follow these steps to set up your AIRTOK AP3001 Air Purifier for first use.

3.1 Unpacking and Filter Installation

1. Neħħi l-purifikatur tal-arja mill-imballaġġ tiegħu bir-reqqa.
2. Open the filter cover, typically located on the back or side of the unit.
3. Remove the filter assembly. The filters are usually sealed in plastic for freshness. Remove all plastic packaging from the filters.
4. Insert the filters back into the unit in the correct order (pre-filter, HEPA, activated carbon). Ensure they are seated properly.
5. Agħlaq l-għatu tal-filtru sew.

Image 3.1: Illustration of how to access and remove the air filter for installation or replacement.

3.2 Tqegħid

• Poġġi l-purifikatur tal-arja fuq wiċċ sod u livell.
• Ensure there is at least 6 inches (15 cm) of space around all sides of the unit for optimal airflow.
• Avoid placing the unit near heat sources, direct sunlight, or in areas with high humidity.

3.3 Konnessjoni tal-Enerġija

Plug the power cord into a standard electrical outlet. The unit is now ready for operation.

4. Istruzzjonijiet Operattivi

Familiarize yourself with the control panel and various operating modes of your AIRTOK AP3001.

Immaġni 4.1: Dettaljata view of the AIRTOK AP3001 control panel with labeled functions.

4.1 Funzjonijiet tal-Panew tal-Kontroll

• Buttuna tal-Qawwa: Agħfas biex tixgħel jew titfi l-unità.
• Modalità Awtomatika: The purifier automatically adjusts fan speed based on real-time air quality detected by its sensors.
• Veloċità tal-fann: Manually select fan speed levels (1, 2, or 3) when not in Auto Mode.
• Modalità Sleep: Activates a whisper-quiet operation with the display lights dimmed or turned off for undisturbed sleep.
• Wiri Mitfi: Toggles the display lights on or off.
• Timer: Set the purifier to operate for a specific duration (e.g., 2, 5, or 8 hours) before automatically turning off.
• Lock tat-tfal: Locks the control panel to prevent accidental changes to settings.
• Irrisettja l-Filtru: Illuminates when it's time to check or replace the filter. Press and hold after filter maintenance to reset.

4.2 Indikatur tal-Kwalità tal-Arja

The unit features an air quality monitor that displays real-time PM2.5 levels and indicates air quality status:

• Aħdar: Good air quality (Low Speed in Auto Mode).
• Isfar: Moderate air quality (Medium Speed in Auto Mode).
• Aħmar: Poor air quality (High Speed in Auto Mode).

Image 4.2: The air purifier tracking air quality, indicated by color-coded lights (Good, Moderate, Poor).

4.3 Aromatherapy Function

To use the aromatherapy feature:

1. Locate the aromatherapy pad slot, typically on the top of the unit.
2. Add a few drops of your preferred essential oil onto the aromatherapy pad (not directly into the unit).
3. Place the pad back into the slot. The fan will diffuse the scent into the air.

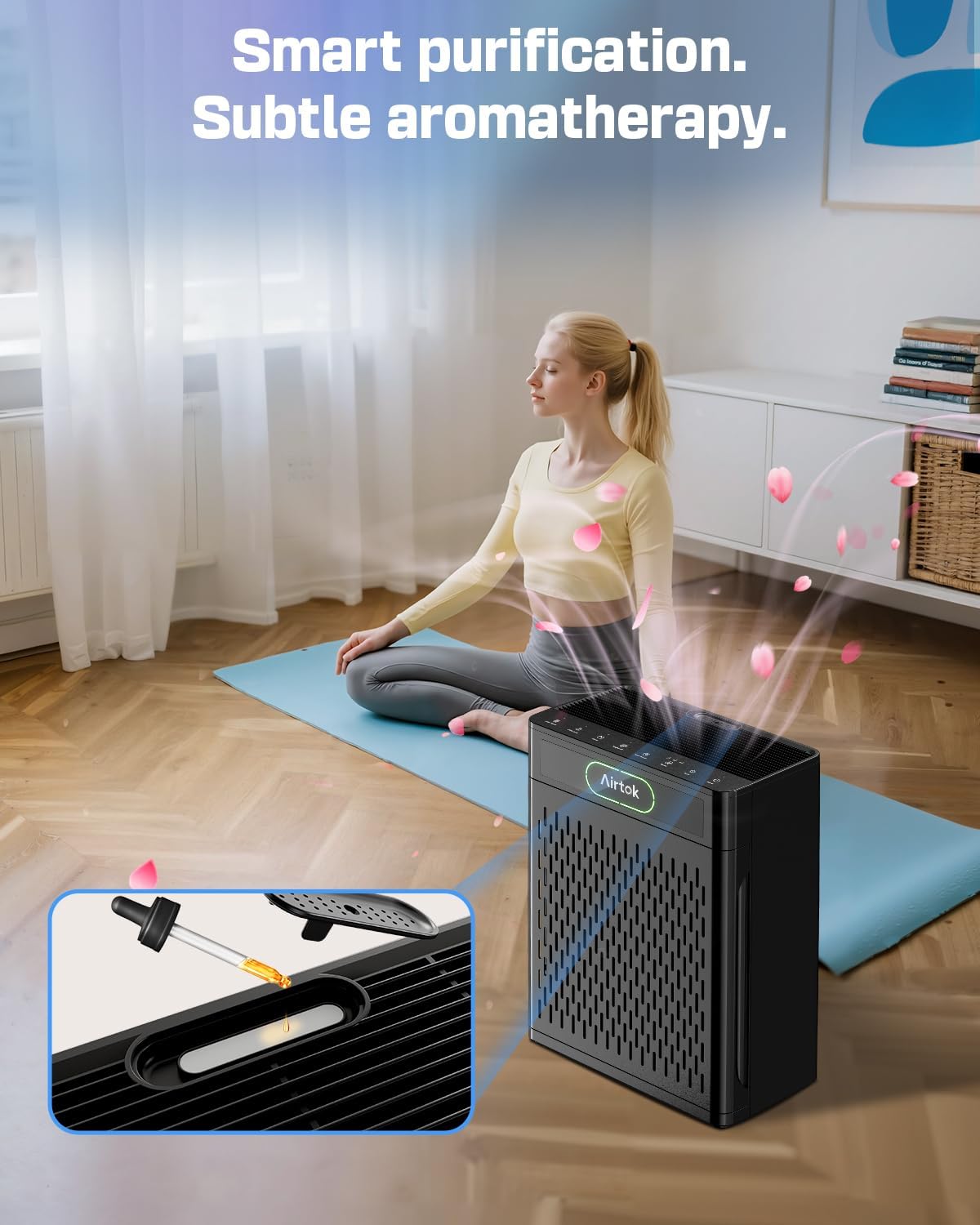

Image 4.3: Illustration of adding essential oil to the aromatherapy pad on the AIRTOK AP3001.

4.4 Scheduling Function

The AIRTOK AP3001 allows you to set precise start and end times for operation, including specific fan speeds or modes like Modalità Awtomatika or Modalità Sleep for different periods. Refer to the detailed instructions in the full manual for programming schedules.

5. Manutenzjoni

Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-purifikatur tal-arja tiegħek.

5.1 Washable Pre-Filter Cleaning

The pre-filter can be rinsed with water to maintain its effectiveness.

1. Itfi u aqla l-purifikatur tal-arja.
2. Open the filter cover and carefully remove the pre-filter.
3. Rinse the pre-filter under running water until clean.
4. Allow the pre-filter to air dry completely before reinserting it into the unit.

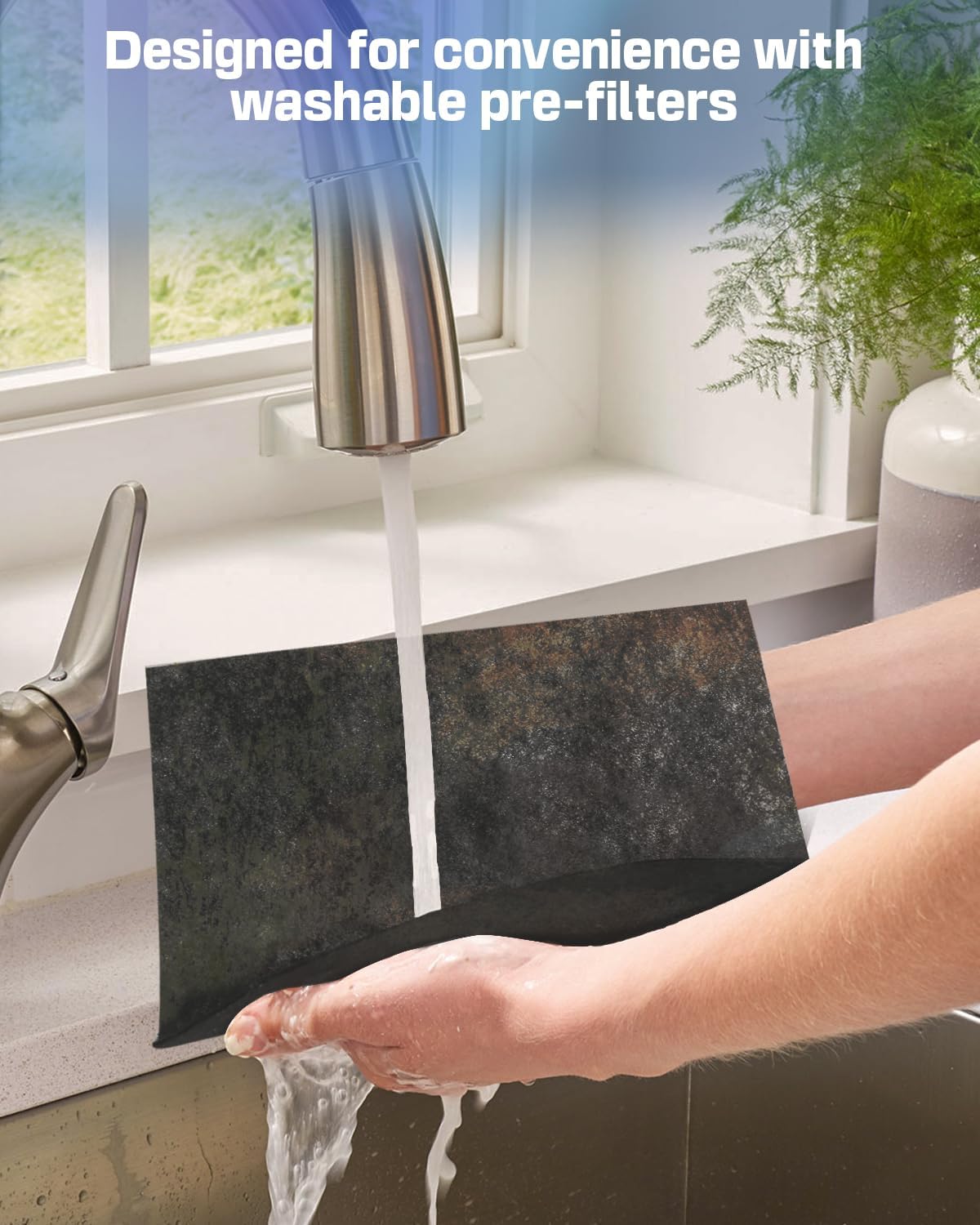

Image 5.1: A hand rinsing the washable pre-filter under a faucet.

5.2 HEPA and Activated Carbon Filter Replacement

The HEPA and activated carbon filters are not washable and must be replaced periodically. The Iffiltra Irrisettja indicator light will signal when replacement is needed.

• Itfi u aqla l-purifikatur tal-arja.
• Open the filter cover and remove the old filter assembly.
• Insert a new genuine AIRTOK replacement filter. Ensure it is properly oriented.
• Agħlaq l-għatu tal-filtru.
• Plug in the unit and press and hold the Iffiltra Irrisettja button for 3-5 seconds until the indicator light turns off.

For optimal performance, use only genuine AIRTOK replacement filters. The official ASIN for genuine AIRTOK filters is B0FH97JC7C.

Immaġni 5.2: Close-up view of the H13 HEPA filter, designed to capture microscopic particles.

Immaġni 5.3: Close-up view of the activated carbon filter, which absorbs odors and VOCs.

6 Issolvi l-problemi

If you encounter issues with your air purifier, refer to the following common problems and solutions.

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

For warranty information or technical support, please refer to the documentation included with your purchase or contact AIRTOK customer service directly. Ensure you have your model number (AP3001) and purchase details available when seeking support.
