Fortdows Android 13 Car Radio Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Fortdows Android 13 Car Radio. This unit is specifically designed for Dodge Ram 1500 and 2500 models manufactured between 2013 and 2018, featuring manual AC controls. It integrates a 9-inch 1280x800 HD IPS touchscreen with advanced features such as wireless Carplay, Android Auto, Bluetooth 5.4, 5G WiFi, GPS navigation, and a 1080P backup camera.

2. Informazzjoni dwar is-Sigurtà

• Aqra l-istruzzjonijiet kollha bir-reqqa qabel l-installazzjoni u l-użu.
• Installation should be performed by a qualified professional to prevent damage to the vehicle or the unit.
• Tħaddimx l-unità b'mod li jtelliflek mis-sewqan. Dejjem agħti prijorità lis-sigurtà fit-triq.
• Ensure all wiring is correctly connected and secured to avoid short circuits or electrical hazards.
• Żomm l-unità 'l bogħod mill-ilma u l-umdità eċċessiva.
• Tippruvax issewwi l-unità int stess. Irreferi għal persunal tas-servizz kwalifikat.

3. Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

• 1 x Main Unit (Car Radio)
• 1 x Kamera ta 'Backup
• 1 x Kejbil tal-Enerġija
• 1 x Crowbar (for trim removal)
• 2 x Kejbils USB
• 1 x Antenna GPS
• 1 x Mikrofonu Estern (MIC)
• 1 x Kejbil tad-Dħul tal-Kamera
• 1 x Dekoder tal-Canbus
• 1 x Kejbil tad-Dħul/Ħruġ RCA
• 1 x Original USB Cable (vehicle specific)

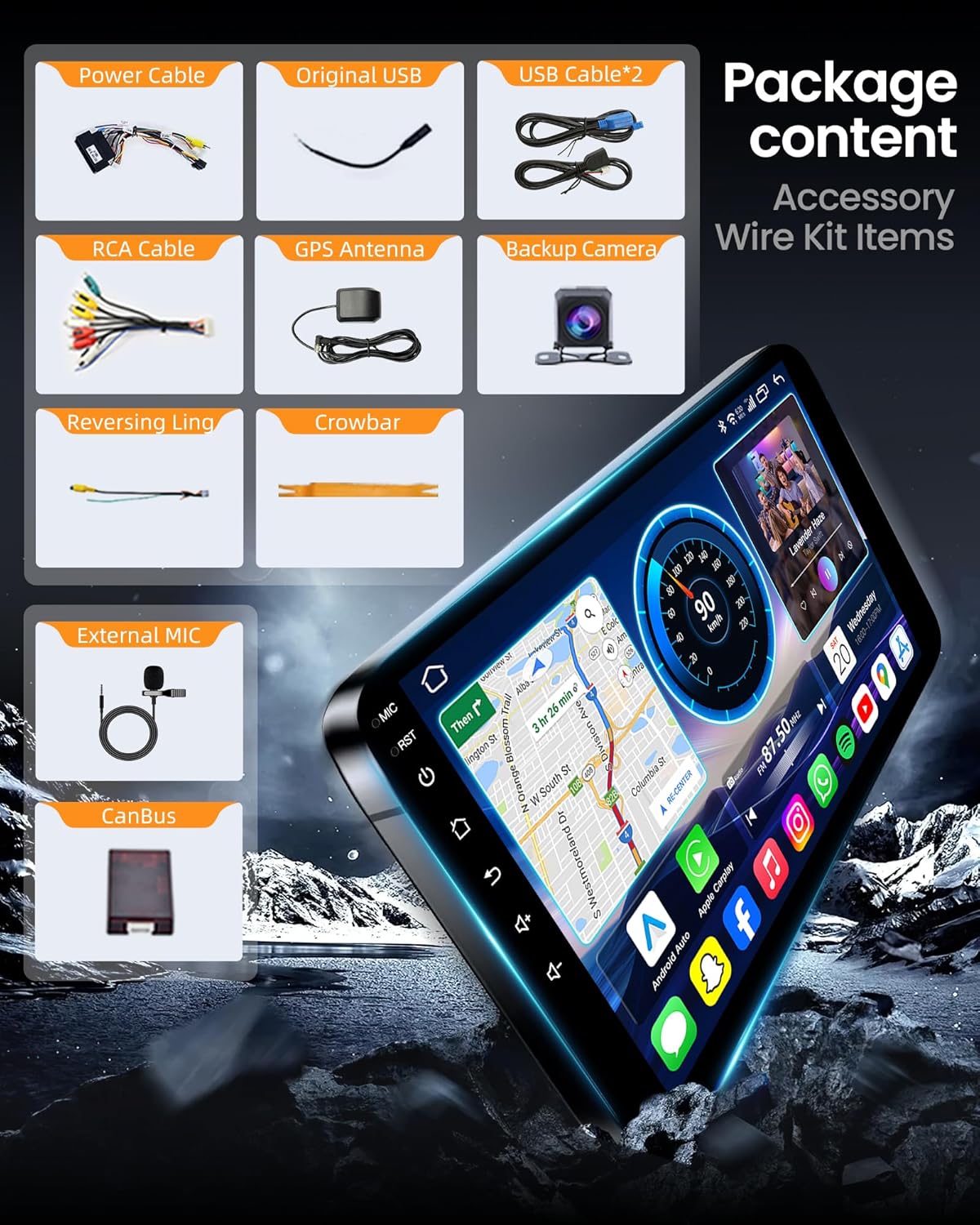

Image 3.1: Included accessories and wiring kit.

4. Setup u Installazzjoni

This car radio is designed for a plug-and-play installation in Dodge Ram 1500 and 2500 models from 2013 to 2018 that are equipped with manual AC controls. No modifications to the original dashboard are typically required.

4.1 Verifika tal-Kompatibbiltà

Before beginning installation, confirm your vehicle's dashboard matches the compatible configurations. This unit is designed for models with manual AC controls and specific dashboard layouts.

Image 4.1: Dashboard compatibility guide for Dodge Ram 1500/2500 (2013-2018).

4.2 Passi ta' Installazzjoni (Ġenerali Fuqview)

1. Skonnettja l-batterija: Qabel tibda, skonnettja t-terminal negattiv tal-batterija tal-vettura biex tevita xorts elettriċi.
2. Neħħi r-Radju Oriġinali: Carefully use the provided crowbar to remove the trim panels and then unmount the factory radio.
3. Qabbad il-Wiring: Connect the power cable, RCA cables, USB cables, GPS antenna, external microphone, and backup camera input to the new head unit. Ensure the Canbus decoder is correctly connected to integrate with vehicle systems.
4. Konnessjonijiet tat-Test: Before fully reassembling, reconnect the battery and briefly test the unit's basic functions (power, audio, touchscreen response).
5. Mount New Radio: Secure the new Fortdows car radio into the dashboard opening.
6. Erġa' għaqqad id-Dashboard: Reinstall all trim panels removed earlier.
7. Ittestjar Finali: Perform a comprehensive test of all features, including Carplay, Android Auto, Bluetooth, GPS, and the backup camera.

5. Istruzzjonijiet Operattivi

5.1 Mixgħul/Mitfi u Navigazzjoni Bażika

Press the power button (usually located on the front panel or side) to turn the unit on or off. Navigate the Android 13 interface using the 9-inch IPS touchscreen. Swipe, tap, and use the on-screen buttons to access applications and settings.

5.2 CarPlay u Android Auto

The unit supports wireless Apple CarPlay and Android Auto. Connect your compatible smartphone wirelessly via Bluetooth and Wi-Fi. Once connected, your phone's interface will appear on the car radio display, allowing access to navigation, music, calls, and messages.

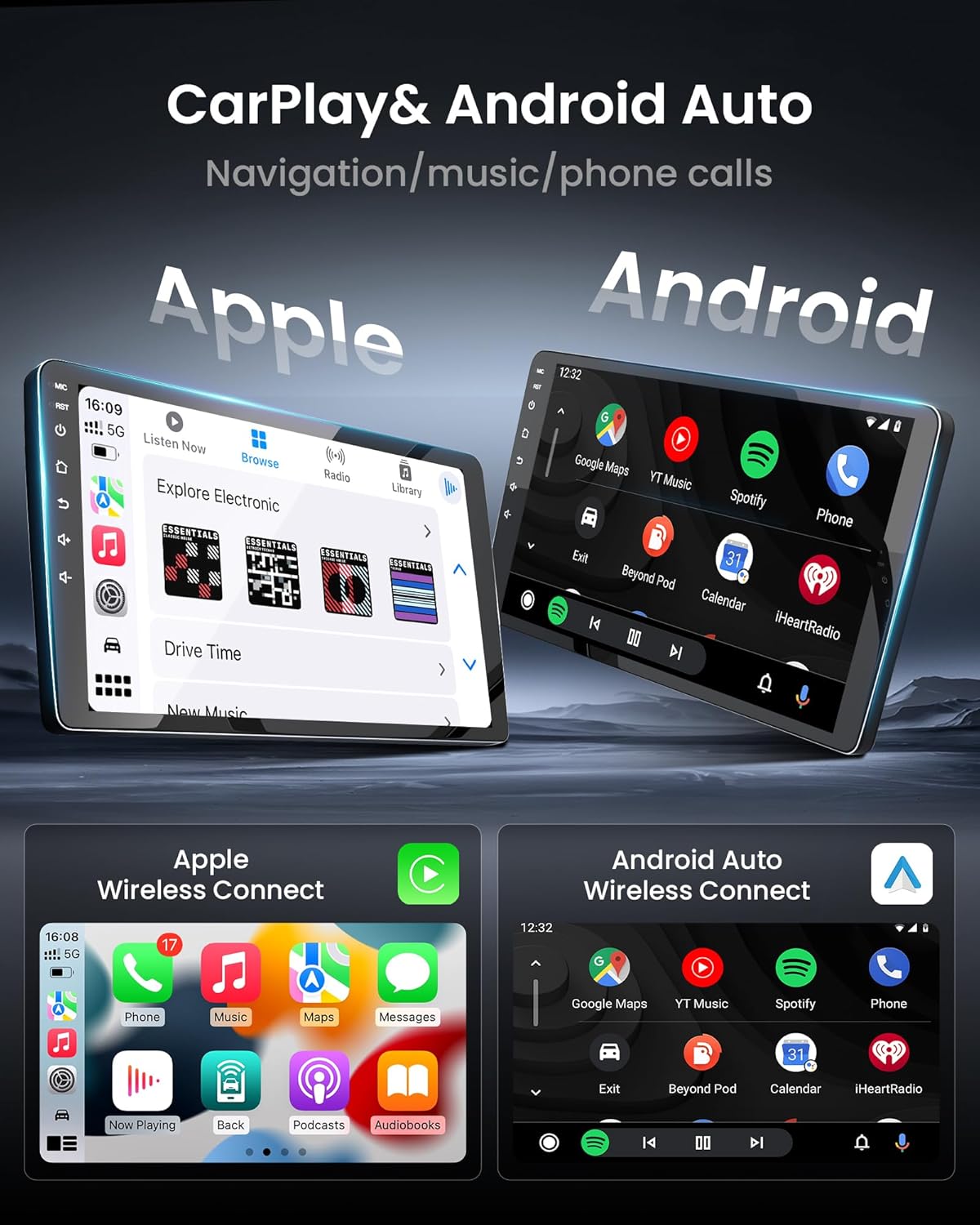

Image 5.1: Wireless CarPlay and Android Auto interfaces.

5.3 Bluetooth Handsfree

Pair your mobile phone via Bluetooth 5.4 for hands-free calling and audio streaming. Access the Bluetooth settings on the unit, search for your phone, and pair using the provided PIN if prompted. You can use voice commands for functions like "play music" or "make a call" for safer driving.

5.4 5G WiFi Connectivity & GPS Navigation

Connect to a Wi-Fi hotspot (e.g., from your phone) using the built-in 5G Wi-Fi for internet access. This enables real-time GPS navigation, map updates, and access to online content. The unit comes with pre-installed North America maps.

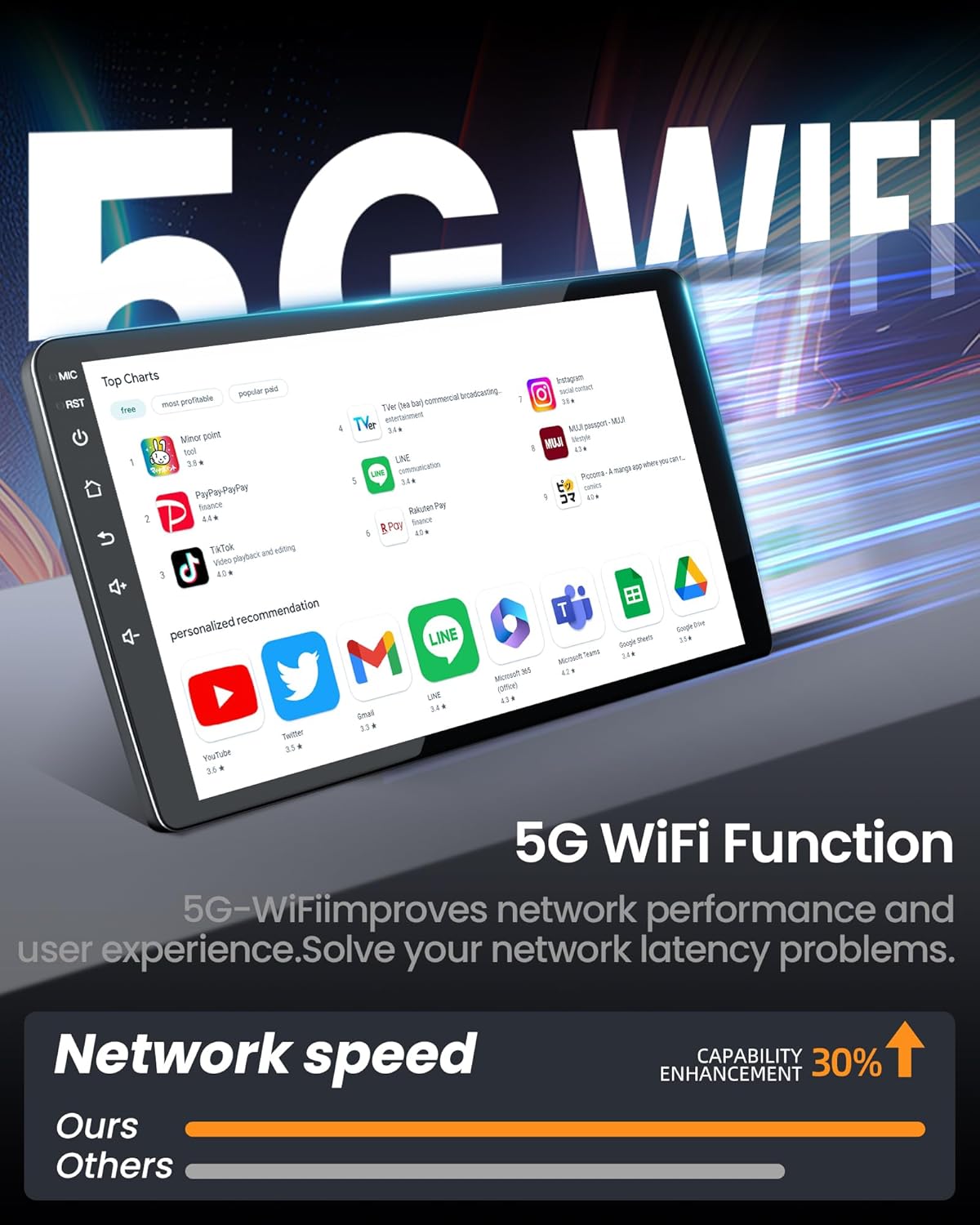

Image 5.2: 5G WiFi function for enhanced network performance.

5.5 Kamera ta' Backup

When the vehicle is shifted into reverse, the display automatically switches to the 1080P backup camera feed, providing a 170° wide viewing angle for improved visibility and safety during parking and reversing maneuvers.

5.6 Display & Audio Settings

The 9-inch IPS display offers a 1280x800 HD resolution with wide viewing angles and an anti-glare coating. Access the audio settings to fine-tune your sound experience. The unit features FM EQ settings and 32-band equalizer presets (Jazz, Rock, Pop) to customize audio output.

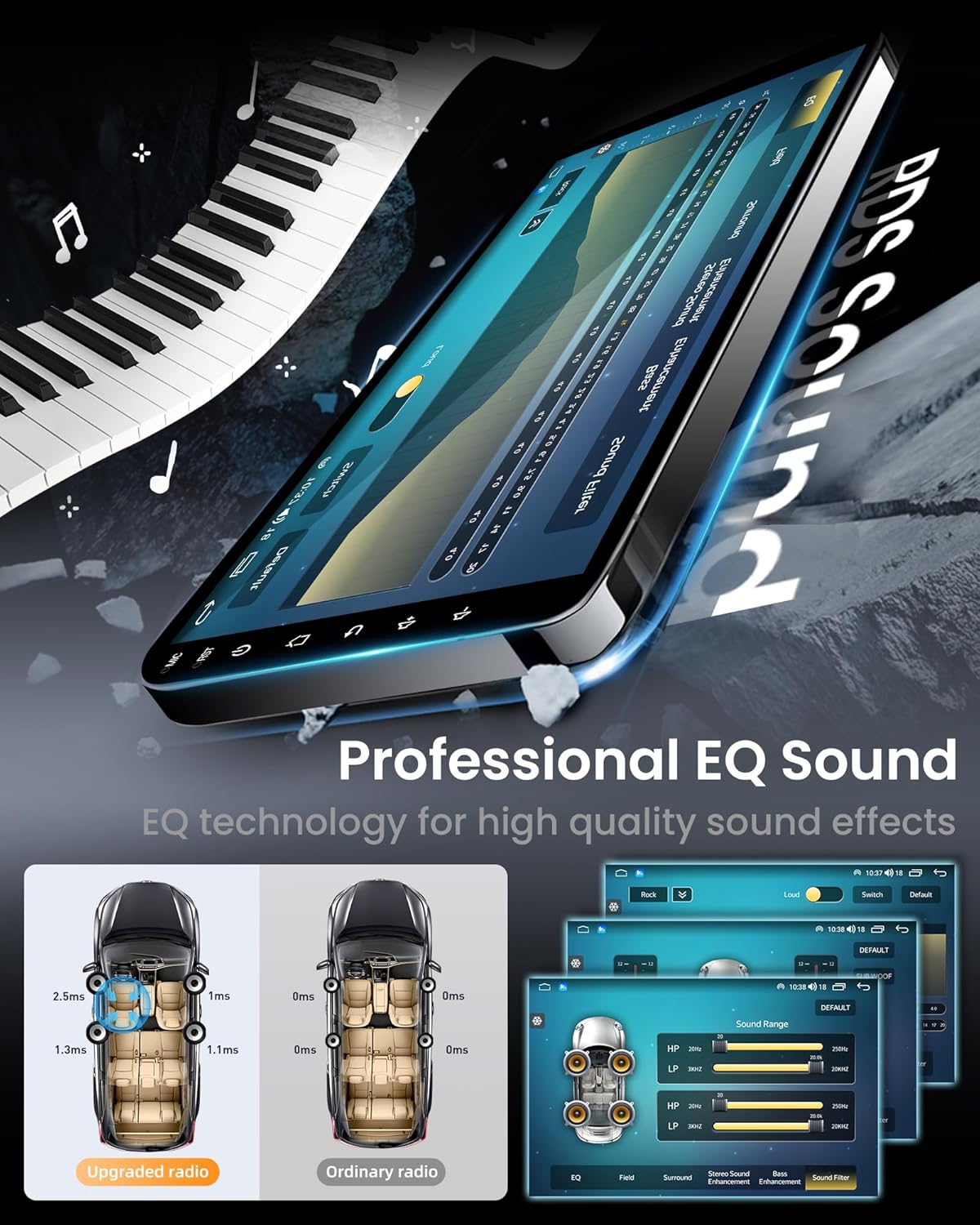

Image 5.3: Professional EQ sound settings interface.

Image 5.4: 1280x800P IPS Touchscreen clarity and saturation.

5.7 Kontrolli ta' l-istering

The unit supports integration with your vehicle's existing steering wheel controls. This allows you to manage audio playback, answer calls, and navigate menus without taking your hands off the steering wheel.

Immaġni 5.5: Funzjonalità tal-kontroll tal-istering.

5.8 Funzjoni ta' Skrin Maqsum

Utilize the split-screen feature to run two applications simultaneously, such as navigation on one side and music playback on the other, enhancing multitasking capabilities.

5.9 FM/AM/RDS Radio

Access the built-in FM/AM/RDS radio tuner to listen to your favorite stations. The RDS (Radio Data System) provides additional information such as station name and song title where available.

6. Manutenzjoni

• Tindif tal-iskrin: Uża drapp artab u mingħajr suf biex timsaħ bil-mod it-touchscreen. Għal tbajja' persistenti, nixxef ftit.ampNaddaf id-drapp bl-ilma jew b'prodott tat-tindif li ma jagħmilx ħsara lill-iskrin. Evita kimiċi ħarxa.
• Tindif Ġenerali: Żomm il-parti ta' barra tal-unità ħielsa mit-trab u l-fdalijiet. Uża drapp artab u niexef.
• Aġġornamenti tas-Software: Periodically check for available software updates to ensure optimal performance and access to new features. Follow the on-screen instructions for any updates.

7 Issolvi l-problemi

If you encounter issues with your Fortdows car radio, refer to the following common troubleshooting steps:

• Ebda Qawwa: Check all power connections. Ensure the vehicle's battery is charged and the ignition is on. Verify fuses are intact.
• Ebda Ħsejjes: Check speaker connections. Ensure volume is not muted or set to zero. Verify audio settings and equalizer configurations.
• L-iskrin tat-touchscreen ma jirrispondix: Try restarting the unit. If the issue persists, a factory reset might be necessary (note: this will erase personal settings).
• Il-GPS Mhux Jaħdem: Kun żgur li l-antenna tal-GPS hija konnessa sew u għandha viżibilità ċara view of the sky. Check GPS settings for correct region and time zone.
• Kwistjonijiet ta' Konnessjoni Bluetooth/CarPlay/Android Auto: Ensure Bluetooth and Wi-Fi are enabled on both the unit and your phone. Delete previous pairings and attempt to reconnect. Update phone's operating system if necessary.
• Kamera ta' Backup Mhux Tidher: Check the camera's power and video signal connections. Ensure the vehicle is in reverse.

Għal problemi persistenti, ikkuntattja l-appoġġ għall-klijenti.

8. Speċifikazzjonijiet

Image 8.1: Internal hardware specifications (8-Core, 2GB RAM, 32GB ROM).

9. Informazzjoni dwar Garanzija

This Fortdows car radio unit comes with a garanzija ta 'sena from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by improper installation, misuse, accidents, unauthorized repairs, or normal wear and tear. Please retain your proof of purchase for warranty claims.

10. Appoġġ għall-Klijent

If you require further assistance, have questions not covered in this manual, or need to make a warranty claim, please contact Fortdows customer support through the retailer where the product was purchased or visit the official Fortdows websit għal informazzjoni ta' kuntatt.
