Manwal tal-Utent tal-Magna tat-Tikkettar ORGBRO Z3

Introduzzjoni

Thank you for choosing the ORGBRO Z3 Label Maker Machine. This portable thermal label printer is designed for versatile use in home organization, small businesses, offices, and schools. It offers high-quality, ink-free printing and is compatible with various devices. This manual provides detailed instructions to help you set up, operate, and maintain your device for optimal performance.

X'hemm fil-Kaxxa

• 1x ORGBRO Z3 Label Maker Machine
• 1x Cable tal-Iċċarġjar tat-Tip-Ċ
• 1x Roll of 50x30mm White Labels (230 Pcs)
• 1x Manwal għall-Utent
• 1x Drive USB

Gwida ta' Setup

1. Iċċarġjar tal-Apparat

Before first use, fully charge the ORGBRO Z3 Label Maker. Connect the provided Type-C charging cable to the device's charging port and a suitable USB power adapter. The LED screen will indicate charging status. A full charge provides approximately 4 weeks of runtime.

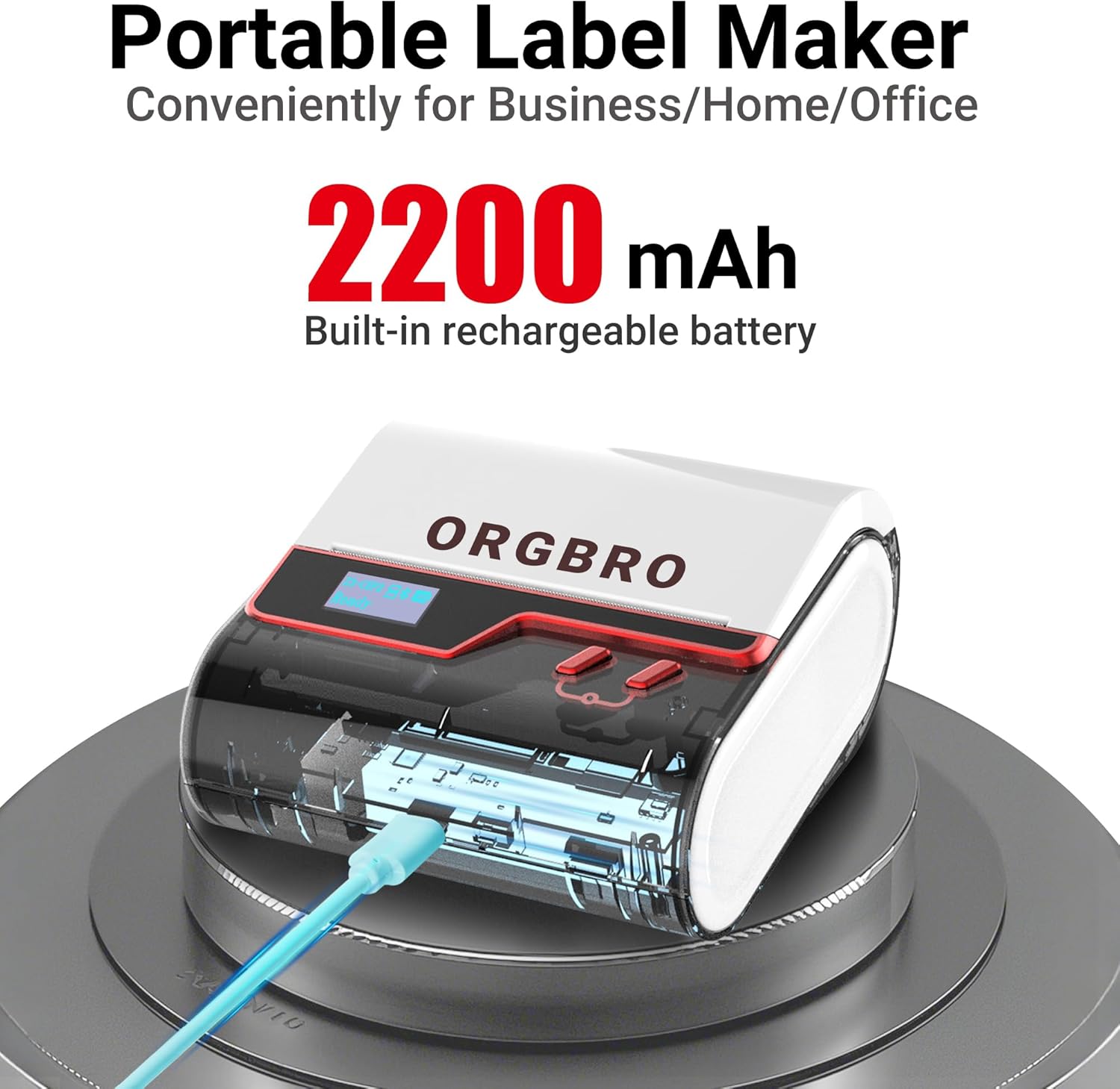

Image: The ORGBRO Z3 Label Maker showing its charging port and indicating a 2200mAh built-in rechargeable battery, emphasizing its portability.

2. Tagħbija tal-Karta tat-Tikketti

1. Iftaħ l-għatu tal-kompartiment tat-tikketti.
2. Insert the label roll with the printing surface facing up, ensuring it aligns correctly with the paper guides.
3. Close the cover firmly. The printer supports label widths from 0.8 to 3.15 inches.

Image: A visual guide demonstrating the correct method for loading label paper into the ORGBRO Z3, highlighting its compatibility with 0.78-3.15 inch wide labels.

3. Konnessjoni ma' Apparati

The ORGBRO Z3 supports connection via Bluetooth for mobile devices (Android/iOS) and USB for computers (Windows/Mac/Chrome OS/Linux).

Bluetooth Connection (Mobile Devices)

1. Download the free "4BarCode" app from your device's app store (Google Play for Android, App Store for iOS).
2. Kun żgur li l-Bluetooth huwa attivat fuq it-tagħmir mobbli tiegħek.
3. Open the "4BarCode" app. Do not connect directly via phone's Bluetooth settings. Connect through the app.
4. Within the app, search for and select your ORGBRO Z3 device to pair. The LED screen will show Bluetooth status.

USB Connection (Computers)

1. Connect the ORGBRO Z3 to your computer using the provided USB cable.
2. Install the necessary drivers from the included Drive USB or download them from the official ORGBRO websit.
3. Once drivers are installed, the printer will be recognized by your computer's operating system.

Image: The ORGBRO Z3 Label Maker demonstrating its connectivity options, supporting both Bluetooth for phones (iOS, Android) and USB for computers (Apple, Windows, Chrome OS, Linux).

Istruzzjonijiet Operattivi

1. Using the "4BarCode" App

The "4BarCode" app is your primary interface for creating and printing labels. It offers extensive customization options:

• Mudelli: Access over 150 pre-designed templates for various uses.
• Fonts u Frejms: Choose from 80+ fonts and 150+ frames to personalize your labels.
• Icons & Images: Utilize 670+ built-in icons or import images directly from your mobile device.
• Content Types: Easily add text, barcodes, QR codes, shapes, and lines.

Image: The "4BarCode" app interface, showcasing its rich features including over 150 templates, 80+ fonts, and 670+ icons for comprehensive label design.

2. Ħolqien u Stampar ta' Tikketti

1. Open the "4BarCode" app and ensure your ORGBRO Z3 is connected.
2. Select "New Label" or choose an existing template.
3. Customize your label by adding text, barcodes, QR codes, images, and other elements. Adjust size, font, and position as needed.
4. Preview your label to ensure it appears as desired.
5. Tap the "Print" button. The printer will begin printing at speeds up to 50mm/s with a crisp 203dpi resolution.

Image: The ORGBRO Z3 in action, demonstrating its capability for fast and clear printing, producing up to 52 labels per minute at a resolution of 203 DPI.

Image: The ORGBRO Z3 Label Maker showcasing its versatility with examples of different label types it can produce, such as product labels, thank you stickers, and clothing tags.

Applikazzjonijiet

Użu fid-dar

The ORGBRO Z3 is ideal for organizing your home. Create labels for storage bins, kitchen containers, spice jars, files, and more to maintain a tidy and efficient living space.

Immaġni: Eżamples of the ORGBRO Z3 Label Maker's utility in home organization, including labels for coffee beans, vanilla extract, stockings, scarves, and office files.

Użu tan-Negozju

For small businesses, the Z3 can print price barcodes, QR codes, product logos, address labels, and inventory tags. It helps streamline operations and enhance professionalism.

Image: Demonstrations of the ORGBRO Z3 Label Maker's application in business, such as shipping labels for packages, labels for baked goods, and jewelry tags.

Manutenzjoni

Tindif tar-ras tal-istampar

To ensure clear and consistent print quality, regularly clean the print head. Use a cotton swab lightly dampened with isopropyl alcohol. Gently wipe the print head surface. Allow it to dry completely before closing the cover and resuming use.

Kura tal-batterija

To prolong battery life, avoid fully discharging the device frequently. Charge the device when the battery indicator is low. If storing the device for an extended period, ensure it is charged to at least 50% and recharge every few months.

Issolvi l-problemi

Il-Printer Mhux Jirrispondi

• Kun żgur li l-apparat ikun mixgħul u kompletament iċċarġjat.
• Check Bluetooth connection in the "4BarCode" app or USB cable connection for PC.
• Restart the printer and your connected device.

Kwalità Fqira tal-Istampar

• Verify that the label paper is loaded correctly and is thermal paper.
• Naddaf ir-ras tal-istampar kif deskritt fit-taqsima tal-Manutenzjoni.
• Ensure the label design in the app is not too complex or has very fine lines that might be difficult to print at 203 DPI.

Tikketti Mhux Qed Jitma' Korrett

• Iċċekkja għal xi ostakli fil-mogħdija tal-karta.
• Ensure the label roll is properly seated and aligned within the guides.
• Make sure the label compartment cover is securely closed.

Speċifikazzjonijiet

Informazzjoni dwar Garanzija

The ORGBRO Z3 Label Maker Machine comes with a Garanzija Limitata. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Retain your proof of purchase for warranty claims.

Appoġġ

For further assistance, technical support, or inquiries regarding your ORGBRO Z3 Label Maker Machine, please contact our customer service team. Refer to the contact information provided on the ORGBRO official website or the support section of the "4BarCode" app.
