Activa Digital ACW2100-003 Digital Quartz Watch User Manual

Introduzzjoni

Thank you for choosing the Activa Digital ACW2100-003 Digital Quartz Watch. This manual provides essential information for the proper setup, operation, and maintenance of your new timepiece. Please read it thoroughly to ensure optimal performance and longevity of your watch.

Informazzjoni dwar is-Sigurtà

Evita li tesponi l-arloġġ għal temperaturi estremi (sħan jew kesħin) għal perjodi twal.
Do not attempt to open the watch case or replace the battery yourself, as this may void the warranty and damage the watch.
Żomm l-arloġġ 'il bogħod minn kampi manjetiċi qawwija, li jistgħu jaffettwaw il-preċiżjoni tal-moviment tal-kwarz.
Naddaf l-arloġġ b'ċarruta ratba u niexfa. Evita li tuża prodotti tat-tindif kimiċi.

Prodott Overview

The Activa Digital ACW2100-003 is a robust digital quartz watch designed for daily wear. It features a durable plastic case, a clear digital display, and a comfortable silicone band. The watch is water-resistant up to 5 bars (50 meters), making it suitable for showering and swimming in shallow water, but not for diving.

Activa Digital ACW2100-003 watch front view — Quddiem view of the Activa Digital ACW2100-003 watch, showcasing its clear plastic case, gray dial with colorful hour markers, and white silicone strap. The digital display is visible at the bottom of the dial.

Komponenti Ewlenin:

Wirja Diġitali: Shows time, date, and other functions.
Buttuni tal-Funzjoni: Typically located on the sides of the watch for setting and mode changes. (Specific button functions will be detailed in the 'Operating' section).
Kawża tal-Għassa: Magħmul minn plastik durabbli.
Ċinga tal-Arloġġ: Made of comfortable silicone.

Setup

Ħin u Data tal-issettjar:

The exact procedure for setting the time and date may vary slightly depending on the specific button configuration. Generally, digital watches follow these steps:

Idħol fil-Modalità ta' Setting: Press and hold the 'MODE' or 'SET' button (usually on the bottom left or top left) until a digit on the display starts flashing.
Aġġusta l-Valuri: Use the 'ADJUST' or 'START/STOP' button (usually on the top right or bottom right) to increase or decrease the flashing digit (e.g., hours, minutes, year, month, day).
Navigate Between Settings: Press the 'MODE' or 'SET' button again to move to the next setting (e.g., from hours to minutes, then to date).
Ħruġ mill-Modalità tas-Settings: Once all settings are adjusted, press the 'MODE' or 'SET' button one last time, or wait for a few seconds for the watch to automatically exit the setting mode.

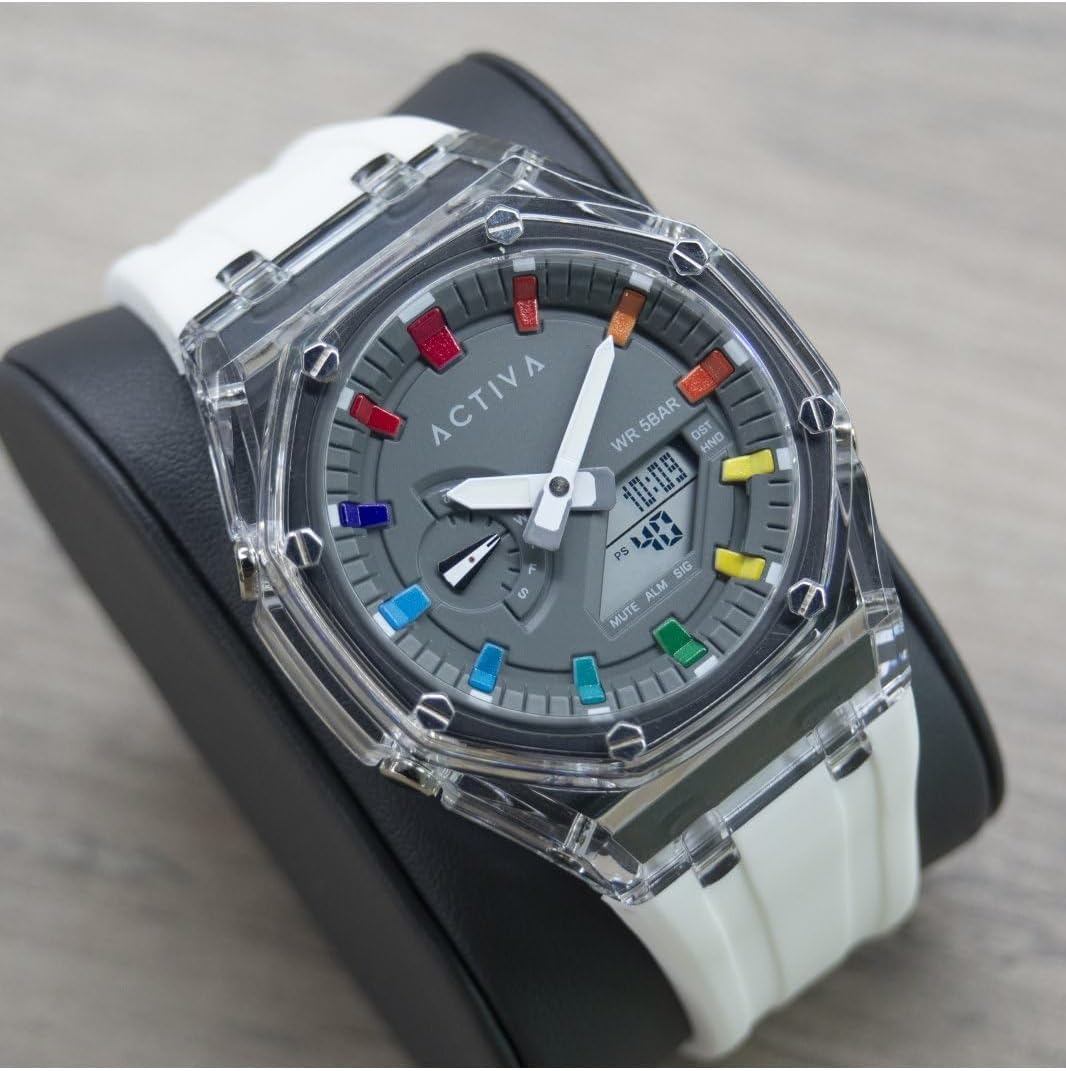

Activa Digital ACW2100-003 watch displaying time — The Activa Digital ACW2100-003 watch displaying the current time '10:09' on its digital screen, along with other indicators like 'PM' and 'WR 5BAR'.

Operazzjoni

Funzjonijiet Bażiċi:

Wiri tal-Ħin: The primary mode shows the current time (hours, minutes, seconds) and often the day of the week and date.
Funzjoni ta' allarm: To set an alarm, navigate to the alarm mode (often indicated by 'ALM'). Use the setting buttons to set the desired alarm time. An alarm icon will typically appear when activated.
Funzjoni tal-Istopwatch: To use the stopwatch, navigate to the stopwatch mode (often indicated by 'STW' or 'CHR'). Press a designated button (e.g., 'START/STOP') to begin and end timing, and another (e.g., 'RESET') to clear the time.
Dawl ta' wara: Many digital watches include a backlight for visibility in low-light conditions. Press a specific button (often labeled 'LIGHT' or a dedicated button on the top left) to activate it.

Reżistenza għall-Ilma:

Your Activa Digital ACW2100-003 watch has a water resistance rating of 5 bars (50 meters). This means it is suitable for:

Użu ta' kuljum u titjir aċċidentali.
Showering.
Għawm f'ilma baxx.

Huwa le addattat għal:

Snorkeling or diving.
Tħaddim tal-buttuni waqt li tkun mgħaddas fl-ilma.
Exposure to hot water or steam (e.g., hot tubs, saunas), as this can compromise the seals.

Manutenzjoni

Tindif:

Biex iżżomm id-dehra tal-arloġġ tiegħek:

Wipe the watch case and band regularly with a soft, slightly damp drapp.
For the silicone band, mild soap and water can be used, then rinse thoroughly and dry completely.
Avoid harsh chemicals, solvents, or abrasive cleaners, as these can damage the watch materials.

Sostituzzjoni tal-batterija:

The watch is powered by a long-lasting quartz battery. When the display becomes dim or the watch stops functioning, it's time for a battery replacement. It is highly recommended to have the battery replaced by a qualified watch technician to ensure the water resistance seal is properly maintained.

Ħażna:

Meta ma tkunx qed tuża l-arloġġ tiegħek, aħżenh f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.

Issolvi l-problemi

Problema	Kawża Possibbli	Soluzzjoni
Id-displej tal-arloġġ huwa vojt jew mudlam.	Batterija baxxa jew mejta.	Ibdel il-batterija (rakkomandat minn professjonist).
Il-ħin mhuwiex preċiż.	Issettjar tal-ħin mhux korrett; espożizzjoni għal kampi manjetiċi qawwija.	Reset the time; keep away from magnets.
Ilma ġewwa l-arloġġ.	Ir-reżistenza għall-ilma kompromessa (eż., buttuni ppressati taħt l-ilma, espożizzjoni għal ilma sħun/fwar, siġill bil-ħsara).	Immediately take the watch to a professional for inspection and repair. Do not attempt to dry it yourself.
Il-buttuni ma jirrispondux.	Dirt or debris under buttons; internal malfunction.	Clean around buttons; if issue persists, contact support.

Speċifikazzjonijiet

Karatteristika	Dettall
Numru tal-Mudell	ACW2100-003
Brand	Invicta (Activa Digital Collection)
Tip ta' Moviment	Electronic Quartz
Tip ta 'Wiri	Diġitali
Materjal tal-Każ	PC (plastik)
Dijametru tal-Każ	44.2 Millimetru
Ħxuna tal-Każ	14.1 Millimetru
Tip ta' Materjal tal-Banda	Silikonju
Wisa' tal-Banda	20 Millimetru
Fond tar-Reżistenza għall-Ilma	50 Metru (5 Bar)
Piż tal-oġġett	353.8 Grams (packaged)

Garanzija

Your Activa Digital ACW2100-003 watch comes with a 2-year Activa warranty. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from improper handling, accidents, unauthorized repairs, or normal wear and tear. Please retain your proof of purchase for warranty claims.

Appoġġ

For further assistance, technical support, or warranty claims, please refer to the contact information provided with your purchase or visit the official Invicta/Activa website. When contacting support, please have your watch model number (ACW2100-003) and proof of purchase readily available.

Ippakkjar

Invicta watch packaging box — The yellow Invicta branded packaging box for the watch, with the lid open revealing the black foam insert designed to hold the watch securely.
