roborock Qrevo S5V Robot Vacuum Cleaner User Manual

1. Introduzzjoni

Thank you for choosing the roborock Qrevo S5V Robot Vacuum Cleaner. This advanced robotic cleaner is designed to provide efficient and hands-free cleaning for your home, combining powerful vacuuming with intelligent mopping capabilities. This bundle also includes 3 packs of disposable dust bags for extended convenience.

This manual provides essential information on setting up, operating, maintaining, and troubleshooting your device to ensure optimal performance and longevity.

Image: The roborock Qrevo S5V robot vacuum, its all-in-one smart dock, and three packs of disposable dust bags.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

Please read these safety instructions carefully before using your roborock Qrevo S5V. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Tħallix lit-tfal jilagħbu bir-robot. Issorvelja lit-tfal u l-annimali domestiċi meta r-robot ikun qed jaħdem.
• Uża biss l-adapter tal-enerġija u d-dock tal-iċċarġjar oriġinali pprovduti mill-manifattur.
• Tiżgura l-voltage tal-provvista tal-enerġija taqbel mal-voltage speċifikat fuq il-baċir tal-iċċarġjar.
• Tużax ir-robot f'ambjenti b'fjammi mikxufa jew oġġetti fraġli.
• Żomm ix-xagħar, il-ħwejjeġ laxki, is-swaba’, u l-partijiet kollha tal-ġisem 'il bogħod minn fetħiet u partijiet li jiċċaqilqu.
• Tiġborx xi ħaġa li tkun qed taħraq jew tpejjep, bħal sigaretti, lofarini, jew irmied jaħraq.
• Do not use the robot to pick up large debris, hard or sharp objects, or liquids.
• Always turn off the robot and unplug the charging dock before performing any maintenance or cleaning.

3. Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha huma preżenti u f'kundizzjoni tajba meta tiftaħ il-pakkett.

• roborock Qrevo S5V Robot Vacuum and Mop
• All-in-One Smart Dock
• Kejbil tal-Enerġija
• 3 Packs Disposable Dust Bags
• Manwal għall-Utent (dan id-dokument)

4. Setup

4.1 Tqegħid tal-Baċir

Place the All-in-One Smart Dock on a hard, level surface against a wall. Ensure there is at least 0.5 meters (1.6 feet) of clear space on both sides and 1.5 meters (4.9 feet) in front of the dock for optimal robot navigation and return.

Image: Visual representation of the All-in-One Smart Dock highlighting its various functions such as mop self-washing, warm air drying, auto tank refilling, detachable base, auto dust emptying, and 30% faster charging capability.

4.2 Iċċarġjar inizjali

Connect the power cable to the dock and plug it into a wall outlet. Place the robot onto the dock. The robot will automatically power on and begin charging. For first-time use, ensure the robot is fully charged before operation.

4.3 Installazzjoni u Konnessjoni tal-App

1. Download the roborock app from the App Store (iOS) or Google Play Store (Android).
2. Iftaħ l-app u oħloq kont.
3. Tap '+' to add your device and follow the in-app instructions to connect your robot to your Wi-Fi network.

4.4 Dust Bag Installation

The All-in-One Smart Dock uses disposable dust bags. Ensure a dust bag is properly installed in the dock's dustbin compartment before use. Refer to the Maintenance section for detailed instructions on replacing dust bags.

Image: An illustration demonstrating the 2.7L capacity of the dust bag, allowing for up to 7 weeks of hands-free cleaning before needing replacement.

5. Istruzzjonijiet Operattivi

5.1 Tibda/Twaqqaf it-Tindif

• Ibda t-Tindif: Press the power button on the robot or tap 'Clean' in the roborock app. The robot will automatically map your home and begin cleaning.
• Pawża t-Tindif: Agħfas kwalunkwe buttuna fuq ir-robot jew tektek 'Pawża' fl-app.
• Ritorn lejn il-Moll: Agħfas il-buttuna Home fuq ir-robot jew tektek 'Recharge' fl-app.

5.2 Vacuuming Performance

The roborock Qrevo S5V features 12,000Pa HyperForce Suction, capable of lifting embedded dirt, pet hair, and debris from various floor types, including carpets and hard floors.

Image: The robot vacuum actively cleaning a rug, illustrating its powerful 12,000Pa HyperForce suction effectively removing hair, pet food, and general debris and dust.

5.3 Funzjoni ta 'mopping

The robot is equipped with a mopping system. Ensure the water tank in the dock is filled for automatic refilling. The FlexiArm Design mop automatically extends to reach hidden corners and edges, providing comprehensive cleaning.

Image: The robot vacuum demonstrating its FlexiArm Design mop, which extends to clean close to walls and effectively reach into furniture corners, ensuring thorough edge coverage.

5.4 Karatteristiċi tal-App

The roborock app allows you to:

• Issettja skedi tat-tindif.
• Define No-Go Zones and Invisible Walls.
• Aġġusta l-qawwa tal-ġbid u l-livelli tal-fluss tal-ilma.
• View cleaning history and maps.
• Monitor battery level and maintenance alerts.

6. Manutenzjoni

Regular maintenance ensures your roborock Qrevo S5V operates at peak performance.

6.1 Manutenzjoni tal-Vacuum Robot

• Pinzell Prinċipali: The SGS-Certified Zero-Tangle System minimizes hair wrap. Periodically remove the main brush and clean any entangled hair or debris.
• Pinzell tal-Ġenb: Check the side brush for debris and ensure it rotates freely.
• Sensers: Wipe all sensors (cliff sensors, wall sensor) with a soft, dry cloth to ensure accurate navigation.
• Kuxxinetti tal-Mopp: Remove and wash mop pads after each mopping session. The dock also features auto mop washing.

6.2 Smart Dock Maintenance

• Sostituzzjoni tal-borża tat-trab: The 2.7L disposable dust bag should be replaced every 1-2 months, or when the app indicates it is full. The push-pull handle design makes replacement easy and mess-free.


Image: A person demonstrating the process of replacing a full disposable dust bag within the smart dock of the robot vacuum.



Immaġni: Dettaljata view of the disposable dust bag, emphasizing its user-friendly replacement mechanism, effective sealing, and durable fabric material.

• Tankijiet tal-Ilma: Periodically clean the clean water and dirty water tanks in the dock. The dock features auto-refilling for the clean water tank.
• Baċir tal-Baċir: Wipe down the charging contacts and the mop washing area of the dock base.

6.3 Sistema ta 'Filtrazzjoni

The disposable dust bags feature a multi-layer filtration system to effectively prevent secondary pollution and capture fine dust particles.

Image: A diagram depicting the multi-layer filtration system of the dust bag, illustrating how air is purified as it passes through successive filter layers.

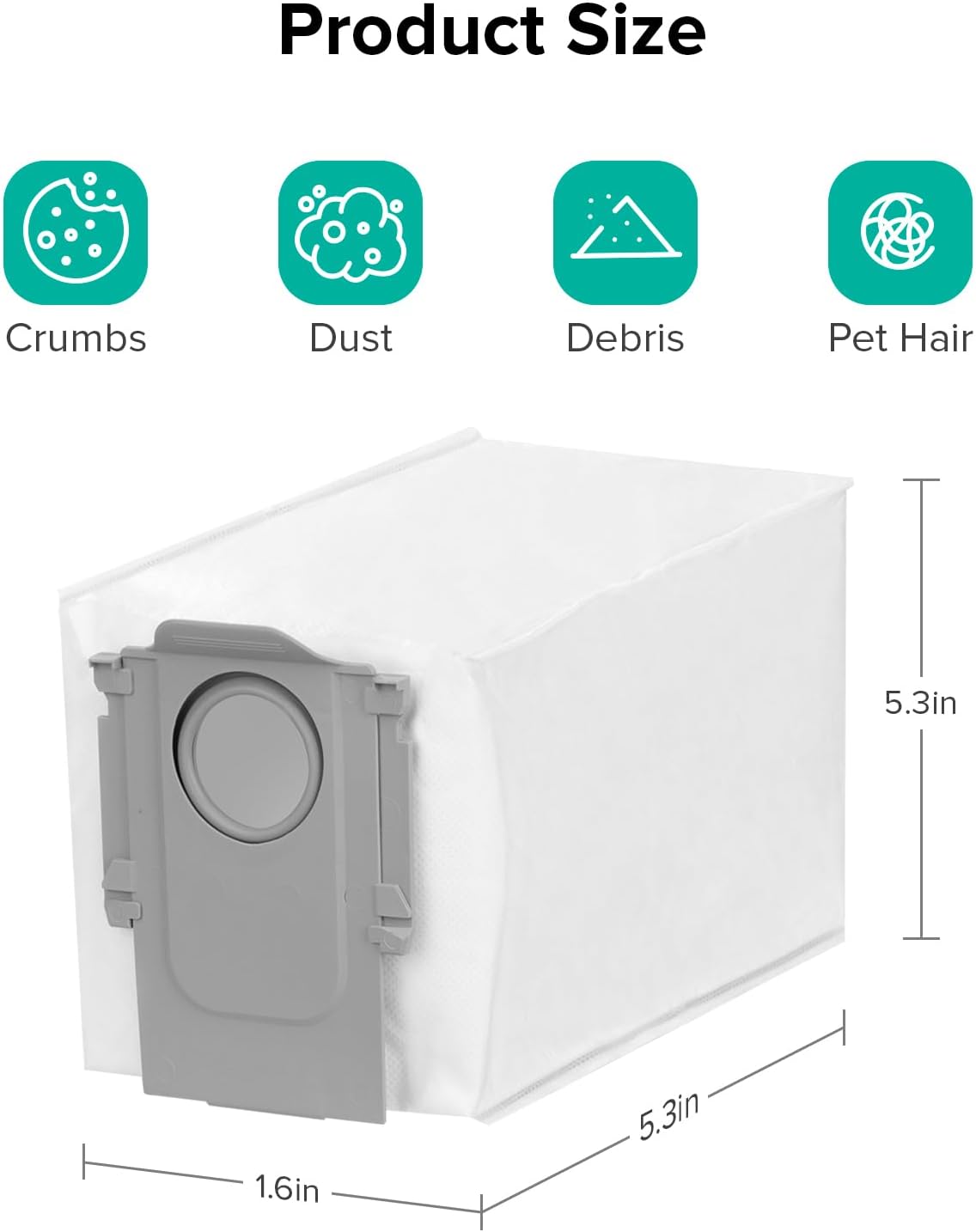

Image: A visual representation of the disposable dust bag with its dimensions clearly marked: 1.6 inches in width, 5.3 inches in depth, and 5.3 inches in height.

7 Issolvi l-problemi

If you encounter issues with your roborock Qrevo S5V, refer to the following common problems and solutions.

7.1 Ir-Resetjar tal-Apparat

If the robot is unresponsive or experiencing persistent issues, a factory reset may resolve the problem. Refer to the roborock app or the official roborock website for specific instructions on how to perform a factory reset for your model.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, technical support, or service inquiries, please visit the official roborock website or contact roborock customer service. Keep your purchase receipt as proof of purchase for warranty claims.
