NIMO N156 15.6" FHD Manwal għall-Utent tal-Laptop

1. Introduzzjoni

This manual provides essential information for setting up, operating, and maintaining your NIMO N156 15.6" FHD Laptop. Please read this guide thoroughly before using your device to ensure proper function and longevity. Keep this manual for future reference.

2. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• 1 x Laptop NIMO N156
• 1 x Ċarġer Veloċi tat-Tip Ċ 100W PD
• 1 x Manwal tal-Utent (dan id-dokument)
• Sistema Operattiva Windows 11 Home (installata minn qabel)

Image: Il-laptop NIMO N156, showcasing its 15.6-inch Full HD IPS display, Intel Core i5-12450H processor, 32GB RAM, 1TB SSD, fingerprint reader, Type-C PD charger, and backlit keyboard.

3. Prodott Aktarview

3.1. Komponenti u Karatteristiċi

• Wiri: 15.6" Full HD (1920x1080) IPS Anti-glare Panel with 178° wide viewangoli.
• Proċessur: Intel Core i5-12450H (8 Cores, up to 4.4GHz).
• Memorja: 32GB DDR4 RAM (user-expandable).
• Ħażna: 1TB PCIe NVMe SSD (user-expandable).
• Tastiera: Full-size backlit keyboard with numeric keypad.
• Sigurtà: Integrated fingerprint reader, Webcam privacy shield.
• Iċċarġjar: 100W Type-C Power Delivery (PD) fast charging.
• Konnettività: Wi-Fi 6.

Image: A detailed diagram illustrating the various ports on the NIMO N156 laptop, including Micro SD, USB 2.0, USB 3.0, Headphone Jack, Kensington lock, Type-C (multifunction), Type-C (PD Charger Only), HDMI, and Charge LED.

3.2. Tqassim tal-Port

Familiarize yourself with the port locations for connecting peripherals:

• In-naħa tax-xellug: USB 3.0 Port, USB 2.0 Port, Micro SD Card Slot, Headphone Jack, Kensington Lock.
• In-naħa tal-lemin: HDMI Port, USB 3.0 Port, Type-C Port (multifunction), Type-C Port (for PD Charger only), Charge LED.

4. Setup

4.1. L-Ewwel Tixgħil

1. Unpack the laptop and charger from the box.
2. Connect the 100W Type-C PD Fast Charger to the designated Type-C charging port on the laptop and plug it into a power outlet.
3. Open the laptop lid. The power button is typically located on the top right of the keyboard or on the side. Press and hold the power button for a few seconds until the screen illuminates.
4. Allow the laptop to charge for at least 30 minutes before initial use, especially if the battery is completely depleted.

Image: The NIMO 100W Type-C PD Fast Charger, designed for rapid charging of the laptop and compatible devices.

4.2. Konfigurazzjoni tal-Windows 11

Follow the on-screen instructions to complete the Windows 11 setup process. This typically includes:

• L-għażla tar-reġjun u d-disinn tat-tastiera tiegħek.
• Konnessjoni ma 'netwerk Wi-Fi.
• Idħol b'kont tal-Microsoft jew toħloq kont wieħed.
• Setting up a PIN or password.
• Reviewing privacy settings.

5. Istruzzjonijiet Operattivi

5.1. Ġestjoni tal-Enerġija

• Qawwa Mixgħul: Agħfas il-buttuna tal-qawwa.
• Modalità Sleep: Briefly press the power button or close the lid.
• Itfi: Click the Windows Start button, then Power > Shut down.
• Ibda mill-ġdid: Click the Windows Start button, then Power > Restart.

5.2. Karatteristiċi tat-Tastiera

Immaġni: Close-up view of the NIMO N156 laptop's backlit keyboard, highlighting the numeric keypad and the integrated fingerprint sensor on the touchpad.

• Tastiera backlit: Use the dedicated function key (often Fn + Fx, where Fx is an icon resembling a keyboard with light) to toggle the backlight on/off or adjust brightness levels.
• Tastiera numerika: The full-size numeric keypad on the right provides convenient data entry.

5.3. Qarrej tal-marki tas-swaba'

The integrated fingerprint reader allows for secure and quick login. To set it up:

1. Go to Windows Settings > Accounts > Sign-in options.
2. Under 'Windows Hello Fingerprint', click 'Set up' and follow the on-screen prompts to register your fingerprints.

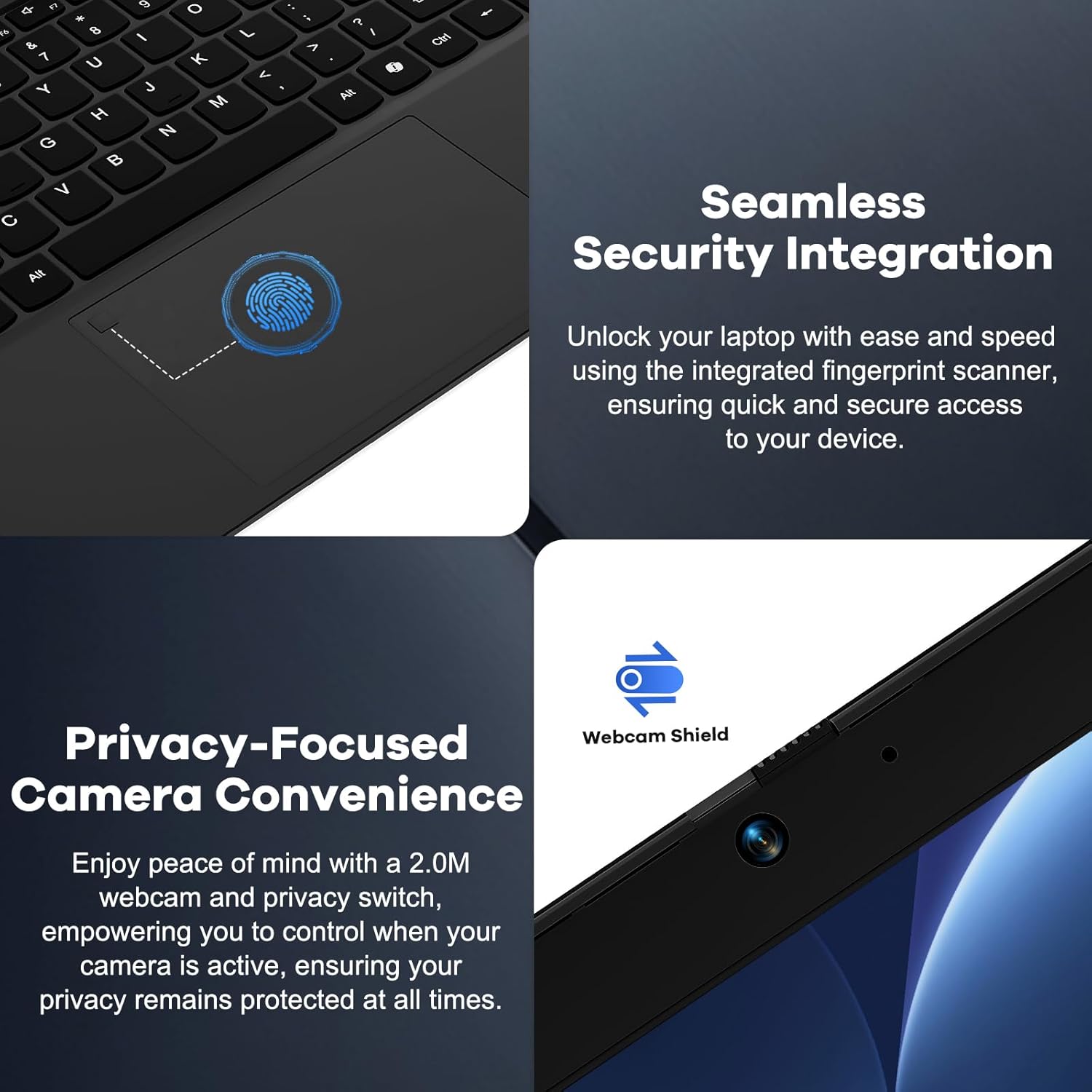

Image: A split image showing a close-up of the fingerprint reader on the touchpad for seamless security integration, and the physical webcam shield for privacy control.

5.4. Webcam Privacy Shield

The laptop features a physical privacy shield for the webcam. Slide the cover to the left to open the webcam for use, and slide it to the right to cover it when not in use, ensuring your privacy.

5.5. Konnessjoni Periferali

Uża l-portijiet varji biex tikkonnettja apparati esterni:

• Portijiet USB: Connect USB drives, external keyboards, mice, or other USB accessories.
• Port HDMI: Qabbad ma' monitor estern jew TV għal wiri estiż.
• Portijiet tat-Tip Ċ: One port supports multifunctionality (data transfer, display output via adapter), and the other is dedicated for the 100W PD charger.
• Jack tal-headphone: Qabbad headphones jew kelliema esterni.
• Slott tal-Karta Mikro SD: Insert a Micro SD card for additional storage or data transfer.

6. Manutenzjoni

6.1. Tindif

• Always power off the laptop and disconnect the charger before cleaning.
• Uża drapp ratba u mingħajr ħelu ftit dampNaddaf bl-ilma jew b'tindif tal-iskrin għall-wiri.
• For the keyboard and chassis, use a soft, dry cloth. A can of compressed air can remove dust from crevices.
• Avoid harsh chemicals, abrasives, or excessive moisture.

6.2. Storage and RAM Upgrades

The NIMO N156 laptop features user-expandable DDR4 RAM and PCIe NVMe SSD storage. Refer to the official NIMO support resources or a qualified technician for detailed instructions on performing upgrades to avoid voiding your warranty or damaging the device.

Image: The NIMO N156 laptop displaying multiple open applications, emphasizing its high-speed 32GB RAM and 1TB PCIe SSD for faster performance and multitasking.

6.3. Kura tal-batterija

• Evita li tiċċarġja l-batterija kompletament ta' spiss.
• Store the laptop in a cool, dry place if not used for extended periods, with the battery charged to around 50-70%.
• Uża biss il-Ċarġer Mgħaġġel NIMO 100W tat-Tip C PD li ġie pprovdut.

7 Issolvi l-problemi

If you encounter issues, try the following basic troubleshooting steps:

• Il-laptop mhux qed jixgħel: Ensure the charger is properly connected and plugged into a working outlet. Try a different outlet. If the battery is completely drained, allow it to charge for a while before attempting to power on.
• L-iskrin huwa vojt: Check if the laptop is powered on. Try connecting an external monitor via HDMI to see if there's a display output.
• Problemi ta' konnettività tal-Wi-Fi: Ensure Wi-Fi is enabled in Windows settings. Restart your router and the laptop. Check for updated network drivers.
• Prestazzjoni bil-mod: Close unnecessary applications. Check for sufficient free storage space. Ensure Windows and drivers are up to date.
• Is-sħana żejda: Kun żgur li l-ventijiet tal-ventilazzjoni mhumiex imblukkati. Uża l-laptop fuq wiċċ iebes u ċatt.

For more complex issues, refer to the NIMO support websit jew ikkuntattja lis-servizz tal-konsumatur.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Your NIMO N156 laptop is backed by a comprehensive 2-Year Manufacturer's Guarantee from Nimo Direct Inc. This warranty covers defects in materials and workmanship under normal use.

Additionally, NIMO offers a 90-Day Hassle-Free Returns policy. If you are not satisfied with your purchase, you may return it within 90 days according to the return policy terms.

For technical assistance, warranty claims, or support inquiries, please visit the official NIMO support website or contact their customer service department. Please have your model number (Nimo N156) and purchase information ready when contacting support.

Image: An illustration highlighting NIMO's after-sales services, including partially assembled domestically, 90-day returns, and 2 years of support.
