Introduzzjoni
Thank you for choosing the NIMO 15.6" FHD IPS Student Laptop Computer. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new device. Please read this manual thoroughly to ensure optimal performance and longevity of your laptop.
X'hemm fil-Kaxxa
Jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:
- 1 x Laptop Nimo N157
- 1 x Ċarġer Veloċi tat-Tip Ċ 65W PD
- 1 x Manwal tal-Utent (dan id-dokument)
- Sistema Operattiva Windows 11 Home (installata minn qabel)
- Informazzjoni dwar il-Garanzija (Garanzija ta' sentejn, Ritorn ta' 90 jum)

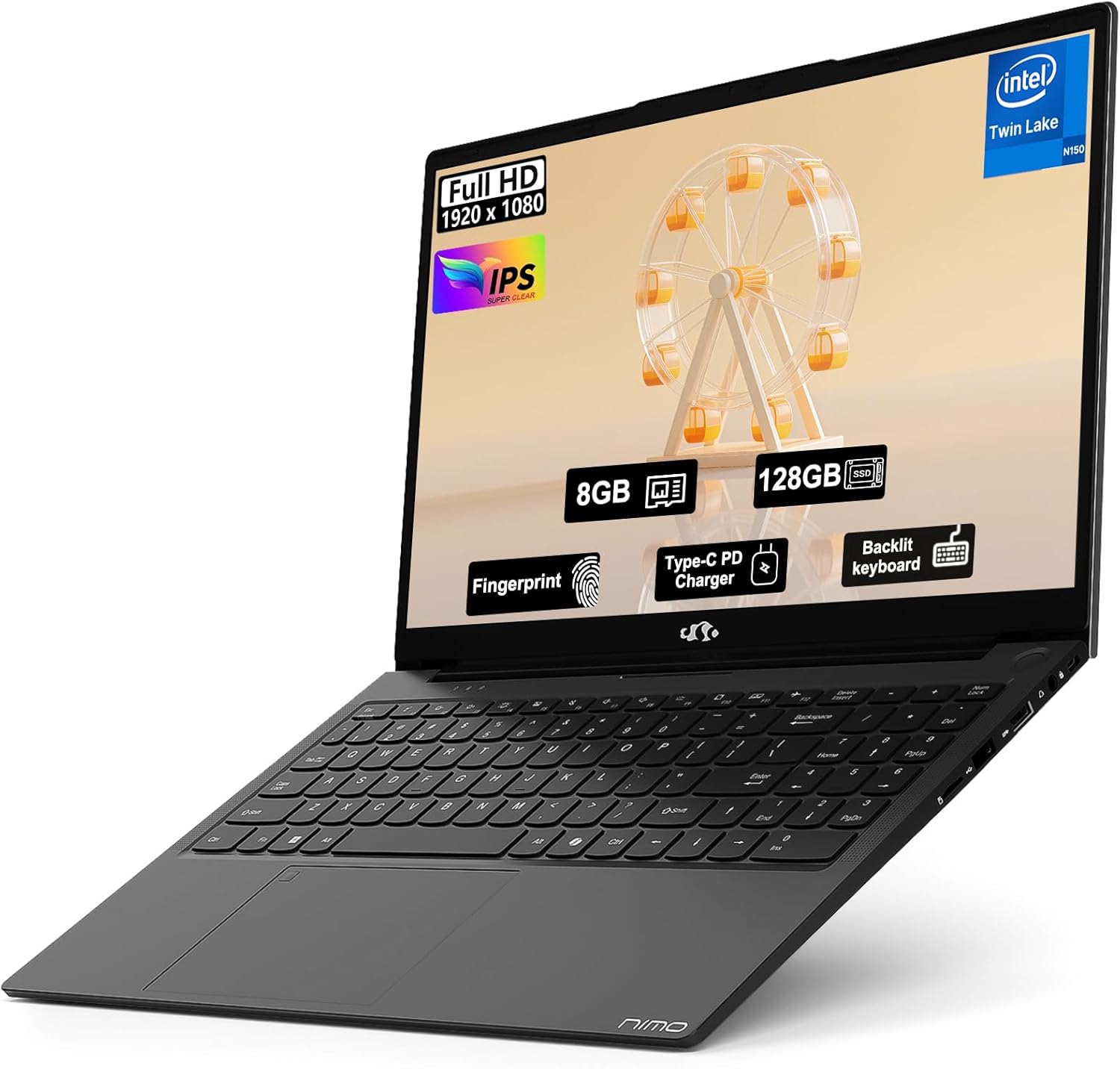

Image: The NIMO 15.6" FHD IPS Student Laptop Computer. The screen highlights key features such as Full HD 1920x1080 resolution, IPS display, 8GB RAM, 128GB SSD, Fingerprint reader, Type-C PD Charger, and Backlit keyboard. The laptop is shown in a sleek black finish.
Gwida ta' Setup
1. L-Ewwel Tixgħel u l-Iċċarġjar
Before first use, it is recommended to fully charge your NIMO laptop. Connect the included Type-C 65W PD Fast Charger to the laptop's Type-C port and a power outlet. The charging indicator light will illuminate. A 15-minute charge can provide approximately 2 hours of standby time.
2. Setup tas-Sistema Operattiva
Your NIMO laptop comes with Windows 11 Home pre-installed. Upon first boot, follow the on-screen instructions to complete the initial Windows setup, including language selection, network connection, and user account creation.
3. Konfigurazzjoni tal-Qarrej tal-Marki tas-Swaba'
For enhanced security and convenient login, set up the fingerprint reader. Navigate to Settings > Accounts > Sign-in options > Fingerprint recognition (Windows Hello) and follow the prompts to register your fingerprints. The fingerprint sensor is integrated into the touchpad.
4. Backlit Keyboard Adjustment
The backlit keyboard allows for comfortable typing in low-light environments. Use the dedicated function keys (usually Fn + a specific F-key, refer to keyboard legends) to turn the backlight on/off and adjust its brightness levels.
Istruzzjonijiet Operattivi
1. Karatteristiċi tal-Wiri
Your laptop features a 15.6-inch Full HD (1920x1080) IPS Anti-Glare Display. This provides wide viewing angles, accurate colors, and reduces reflections for a comfortable viewing experience. The 85% screen-to-body ratio and 16:9 aspect ratio optimize screen real estate.
2. Użu tat-Touchpad
The integrated touchpad supports multi-touch gestures for intuitive navigation. Common gestures include:
- Tektek b'saba waħda: Ikklikkja fuq ix-xellug
- Two-finger tap: Ikklikkja bil-lemin
- Skroll b'żewġ swaba': Skrollja 'l fuq/'l isfel jew lejn ix-xellug/lemin
- Agħfas biex tiżżumja: Zoom in/out
3. Konnettività
The NIMO laptop supports various connectivity options:
- Wi-Fi 6: Għal konnessjoni tal-internet mingħajr fili b'veloċità għolja.
- Bluetooth 5.2: Għall-konnessjoni ta' periferali mingħajr fili bħal headphones, ġurdien, u tastieri.
- Portijiet USB: Includes 1 x USB 2.0 port and 3 x USB 3.0 ports for connecting external devices.
- Port tat-Tip-C: Użat għall-iċċarġjar u t-trasferiment tad-dejta.
4. Ġestjoni tal-batterija
The laptop is equipped with a Lithium Polymer battery providing an average battery life of approximately 5 hours. To maximize battery life, adjust screen brightness, close unused applications, and utilize power-saving modes in Windows settings.
Manutenzjoni
1. RAM and SSD Upgrade
The NIMO laptop supports user-detachable RAM and SSD, allowing for future upgrades. If you plan to upgrade, ensure you use compatible components (DDR4 RAM, PCIe SSD) and follow proper electrostatic discharge (ESD) precautions. Consult a professional if you are unsure.
2. Tindif tal-Laptop Tiegħek
To maintain the appearance and functionality of your laptop:
- Uża drapp artab u mingħajr suf biex tnaddaf l-iskrin u l-barra.
- Għal tbajja' iebsa, ftit dampLaħlaħ id-drapp bl-ilma jew b'soluzzjoni għat-tindif tal-iskrin.
- Avoid using harsh chemicals, abrasive cleaners, or direct spraying of liquids onto the laptop.
- Regularly clean the keyboard and touchpad to remove dust and debris.
Issolvi l-problemi
Din it-taqsima tipprovdi soluzzjonijiet għal kwistjonijiet komuni li tista’ tiltaqa’ magħhom.
| Problema | Soluzzjoni Possibbli |
|---|---|
| Il-laptop ma jixgħelx. | Ensure the charger is properly connected and the power outlet is functional. Allow the battery to charge for at least 30 minutes before attempting to power on again. |
| L-iskrin huwa vojt jew iteptep. | Check display cable connections (if external monitor is used). Restart the laptop. Update graphics drivers. |
| Problemi bil-konnessjoni tal-Wi-Fi. | Ensure Wi-Fi is enabled in Windows settings. Restart your router/modem. Update Wi-Fi drivers. |
| Keyboard or touchpad not responding. | Restart the laptop. Check for driver updates. Ensure no external devices are interfering. |
If you encounter issues not covered here or require further assistance, please contact NIMO customer support.
Speċifikazzjonijiet
Detailed technical specifications for your NIMO N157L laptop:
| Karatteristika | Dettall |
|---|---|
| Isem tal-Mudell | Nimo N157L |
| Daqs tal-Iskrin | 15.6 Pulzier |
| Riżoluzzjoni tal-Iskrin | 1920 x 1080 pixels (FHD IPS Anti-Glare) |
| Proċessur | Intel 4 Core N150 (up to 3.6 GHz) |
| RAM | 8 GB DDR4 (3200 MHz, detachable) |
| Hard Drive | 128 GB PCIe SSD (detachable) |
| Koproċessur tal-Grafika | Grafika Integrata |
| Sistema Operattiva | Windows 11 Home |
| Tip bla fili | 802.11a/b/g/n/ac (Wi-Fi 6), Bluetooth 5.2 |
| Portijiet USB | 1x USB 2.0, 3x USB 3.0 |
| Portijiet Oħrajn | Type-C (65W PD Fast Charging), Memory Card Slot |
| Karatteristiċi Speċjali | Tastiera b'dawl minn wara, Qarrej tal-marki tas-swaba', Awdjo HD, Tastiera Numerika |
| Ħajja tal-batterija | Approx. 5 Hours (Lithium Polymer) |
| Piż tal-oġġett | 3.8 liri |
| Dimensjonijiet tal-Prodott | 14.07 x 8.98 x 0.76 pulzieri |
| Kulur | Iswed |
| Wara WebCam Riżoluzzjoni | 2 MP |
Garanzija u Appoġġ
NIMO Direct Inc. offers a comprehensive Garanzija tal-Manifattur ta' Sena for your laptop. This warranty covers defects in materials and workmanship under normal use. Additionally, a 90-Day Hassle-Free Return and Exchange Service is provided from the date of purchase.
For warranty claims, technical support, or any concerns regarding your NIMO laptop, please contact the manufacturer's dedicated support team. Refer to the contact information provided on the product packaging or the official NIMO websit.
Nota: The laptop is partially assembled in the USA. Please retain your proof of purchase for warranty purposes.
