VULKKANO TD10 Turntable User Manual

Introduzzjoni

Welcome to the VULKKANO TD10 Turntable user manual. This guide provides essential information for the proper setup, operation, maintenance, and troubleshooting of your new turntable. Please read these instructions carefully before using the product to ensure optimal performance and longevity.

X'hemm fil-Kaxxa

Verify that all components listed below are included in your package.

• VULKKANO TD10 Turntable Base with Tonearm
• Platter tal-Aluminju
• Qoxra tat-Trab
• Feltru Mat
• Kontrapiż
• Adapter 45 RPM
• Cable RCA b'Wajer ta 'l-Art
• Power Adapter (EU)
• Manwal għall-Utent (dan id-dokument)

Setup Istruzzjonijiet

Follow these steps to set up your VULKKANO TD10 Turntable.

1. Spakkjar: Neħħi l-komponenti kollha mill-imballaġġ bir-reqqa. Żomm l-imballaġġ għal trasport jew ħażna fil-futur.
2. Pjazzament: Poġġi t-turntable fuq wiċċ stabbli u livellat 'il bogħod mix-xemx diretta, sorsi ta' sħana, u vibrazzjoni eċċessiva.
3. Installazzjoni tal-Platter: Poġġi bil-mod il-platter tal-aluminju fuq l-ispindle.
4. Installazzjoni taċ-ċinturin: Locate the drive belt. Carefully stretch the belt around the inner rim of the platter and hook it onto the motor pulley. Ensure the belt is not twisted.
5. Felt Mat Placement: Poġġi t-tapit tal-feltru fuq il-platter.
6. Qoxra tat-Trab: Attach the dust cover hinges to the rear of the turntable base.
7. Counterweight Installation: Slide the counterweight onto the rear of the tonearm. Rotate it until it is approximately balanced.
8. Tonearm Balancing and Tracking Force Adjustment:
   • Neħħi l-protettur tal-istilus.
   • Carefully lower the tonearm lift lever.
   • Adjust the counterweight by rotating it until the tonearm floats horizontally.
   • Ladarba jkun ibbilanċjat, żomm il-kontrapiż sod u dawwar iċ-ċirku tal-forza tat-traċċar għal "0".

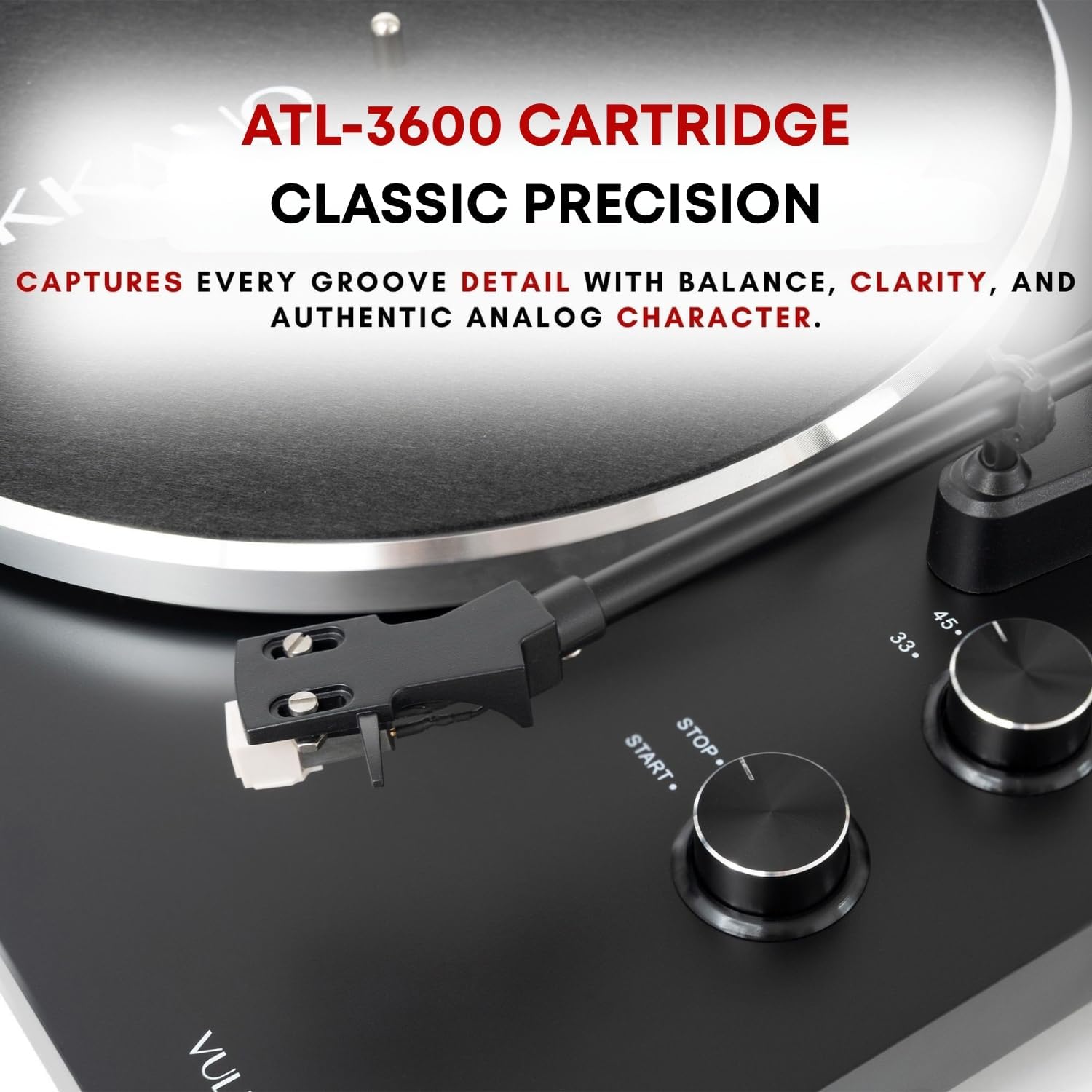

   • Rotate the entire counterweight (including the ring) counter-clockwise to the recommended tracking force (refer to cartridge specifications, typically 2.0-3.0 grams for the ATL-3600).
9. Aġġustament Kontra l-Iskjatar: Set the anti-skate dial to match the tracking force value.
10. Konnessjonijiet:
    • Connect the RCA cable from the turntable's output to your active speakers or amplifier's input. Ensure the ground wire is connected to the ground terminal on your amplifier if available, to minimize hum.
    • Select the appropriate output on the turntable: TELEFON jekk tikkonnettja ma' amplifier with a dedicated phono input, or LINJA if connecting to active speakers or an amplifier's auxiliary input (the TD10 has a built-in phono preamp).
    • Connect the power adapter to the turntable and then to a power outlet.

Istruzzjonijiet Operattivi

Follow these steps to play your vinyl records on the VULKKANO TD10 Turntable.

1. Qawwa Mixgħul: Flip the power switch located at the rear of the turntable to the "ON" position.
2. Rekord tal-Post: Carefully place a vinyl record on the felt mat on the platter. For 7-inch records with a large center hole, use the included 45 RPM adapter.
3. Agħżel Veloċità: Use the speed selector knob (usually marked 33/45) to choose the correct playback speed for your record (33 1/3 RPM or 45 RPM).
4. Ibda r-Rotazzjoni tal-Platter: Turn the START/STOP knob to "START" to begin platter rotation.
5. Pożizzjoni tad-Driegħ tat-Ton: Gently lift the tonearm using the tonearm lift lever. Move the tonearm over the desired starting groove of the record.
6. Driegħ t'isfel: Slowly lower the tonearm lift lever to allow the stylus to descend onto the record.
7. Enjoy Playback: The record will now play.
8. Waqqaf il-Daqq: At the end of the record, or when you wish to stop, gently lift the tonearm using the lift lever and return it to the tonearm rest. Turn the START/STOP knob to "STOP" to halt platter rotation.

Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your turntable.

• Qoxra tat-Trab: Keep the dust cover closed when the turntable is not in use to prevent dust accumulation on the platter and stylus. Clean the dust cover with a soft, dry cloth. Avoid abrasive cleaners.
• Tindif tal-Istilus: Naddaf l-istilus bil-mod regolarment billi tuża pinzell artab iddisinjat għat-tindif tal-istilus, billi tfarfar minn wara għal quddiem. Evita li tmiss l-istilus b'subgħajk.
• Tindif tar-Rekords: Clean your vinyl records before playback using a record brush or a dedicated record cleaning solution to remove dust and static.
• Platter and Mat: Periodically remove the felt mat and clean the platter surface with a soft, dry cloth.
• Spezzjoni taċ-ċinturin: Inspect the drive belt periodically for wear or stretching. A worn belt can affect playback speed stability. Replace if necessary.
• Tindif Ġenerali: Wipe the turntable's chassis with a soft, slightly damp drapp. Tużax kimiċi ħarxa jew solventi.

Issolvi l-problemi

If you encounter issues with your VULKKANO TD10 Turntable, refer to the following common problems and solutions.

Speċifikazzjonijiet

Key technical specifications for the VULKKANO TD10 Turntable.

Garanzija u Appoġġ

For detailed warranty information, please refer to the warranty card included with your product or visit the official VULKKANO websit.

If you require technical support or have questions not covered in this manual, please contact VULKKANO customer service or the retailer from whom you purchased the product.
