1. Introduzzjoni
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new VIBOX V-524 PC Gamer. Please read this manual thoroughly before using your computer to ensure proper functionality and longevity.
The VIBOX V-524 is a high-performance gaming PC designed for an immersive gaming experience and efficient multitasking. It features:
- Nvidia GeForce RTX 4060 (8 GB GDDR6 RAM)
- AMD Ryzen 5 5500 Processor (6 Cores, up to 4.2 GHz)
- 16 GB DDR4 RAM (3200 MHz)
- 1 TB SSD for ultra-fast storage
- Pre-installed Windows 11 Home
- Integrated Wi-Fi connectivity
2. Informazzjoni dwar is-Sigurtà
- Sigurtà Elettrika: Always connect the PC to a grounded power outlet. Do not overload power strips.
- Ventilazzjoni: Ensure adequate airflow around the PC. Do not block ventilation openings.
- Likwidu u Umdità: Keep the PC away from liquids and excessive moisture.
- Temperatura: Operate the PC in a well-ventilated area within recommended temperature ranges.
- Immaniġġjar: Handle the PC with care. Avoid dropping or subjecting it to strong impacts.
- Komponenti Interni: Do not open the PC case unless you are qualified to do so, as it may void your warranty and expose you to electrical hazards.
3. Kontenut tal-Pakkett
Meta tiftaħ il-pakkett, jekk jogħġbok ivverifika li l-oġġetti kollha li ġejjin huma inklużi:
- VIBOX V-524 PC Gamer Desktop
- Kejbil tal-Enerġija
- 300 Mbps Wi-Fi Adapter
- Dokumentazzjoni (inkluż dan il-manwal)
- Any additional accessories specified at the time of purchase
4. Setup Inizjali
4.1 Spakkjar u Tqegħid
- Carefully remove the PC from its packaging. Retain all packaging materials for future transport or warranty claims.
- Place the PC on a stable, flat surface with sufficient space for ventilation.
- Remove any internal packing materials, such as foam inserts, that may be present inside the PC case to protect components during shipping.
4.2 Konnessjoni tal-Periferali

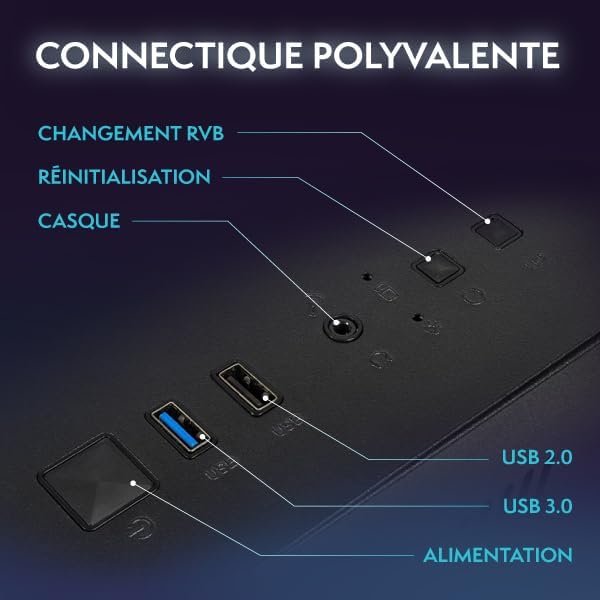

Connect your monitor, keyboard, and mouse to the appropriate ports on the rear of the PC. Refer to Image 4.1 for port identification.
- Monitor: Connect your monitor using an HDMI or DisplayPort cable to the dedicated graphics card ports.
- Tastiera u maws: Qabbad ma' kwalunkwe port USB disponibbli.
- Wi-Fi Adapter: Plug the included Wi-Fi adapter into an available USB port.
- Ethernet (Mhux obbligatorju): For a wired network connection, connect an Ethernet cable to the LAN port.
- Awdjo: Connect speakers or headphones to the audio output jacks.
4.3 Power Connection and First Boot
- Qabbad il-kejbil tal-enerġija mal-unità tal-provvista tal-enerġija (PSU) tal-PC u mbagħad ma' sokit elettriku ertjat.
- Agħfas il-buttuna tal-qawwa fuq quddiem tal-PC.
- Follow the on-screen instructions to complete the initial Windows 11 setup. This may include setting up your user account, language preferences, and network connection.
4.4 Konnessjoni mal-Wi-Fi
- Once Windows 11 is set up, click on the Wi-Fi icon in the taskbar.
- Agħżel in-netwerk mixtieq tiegħek mil-lista u daħħal il-password jekk tintalab.
5. It-Tħaddim tal-PC Tiegħek
5.1 Windows 11 Basics
Your VIBOX V-524 comes with Windows 11 Home pre-installed. Familiarize yourself with the operating system's interface, Start Menu, and settings to customize your experience.
5.2 Kontroll tad-Dawl RGB
The PC features customizable RGB lighting for its fans and internal components. Use the dedicated RGB change button on the front panel (as shown in Image 4.1) to cycle through various colors and lighting modes. Refer to your motherboard or case manual for advanced software control options if available.
5.3 Fluss tal-Arja u Tkessiħ

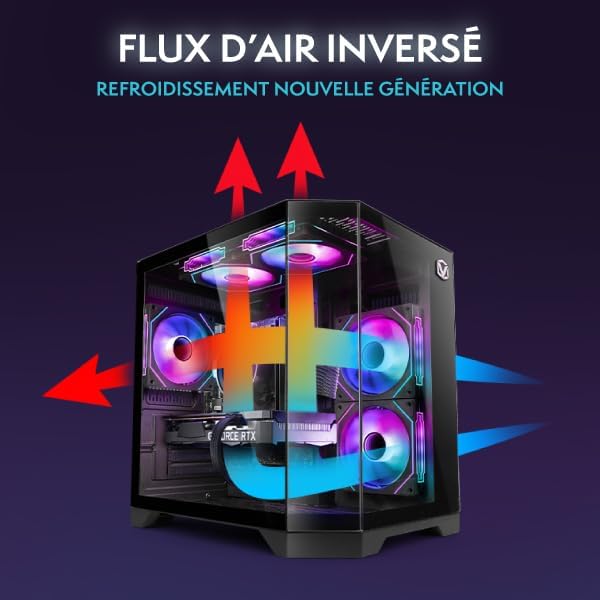

The VIBOX V-524 is designed with optimized airflow for efficient cooling, utilizing an inverse airflow system to reduce heat accumulation and enhance system performance.
6. Manutenzjoni
6.1 Tindif Fiżiku
- Barra: Uża artab, damp cloth to clean the exterior of the PC. Avoid abrasive cleaners.
- Trab: Periodically use compressed air to clear dust from ventilation grilles and fan blades. Ensure the PC is powered off and unplugged before cleaning.
6.2 Manutenzjoni tas-Softwer
- Aġġornamenti tal-Windows: Iċċekkja u installa regolarment aġġornamenti tal-Windows biex tiżgura l-istabbiltà u s-sigurtà tas-sistema.
- Aġġornamenti tas-sewwieq: Keep your graphics card drivers (NVIDIA GeForce) and other component drivers updated for optimal performance, especially for gaming.
- Softwer Antivirus: Install and maintain reputable antivirus software to protect against malware.
7 Issolvi l-problemi
If you encounter issues with your VIBOX V-524 PC Gamer, refer to the following common troubleshooting steps:
| Problema | Soluzzjoni Possibbli |
|---|---|
| Il-PC ma jixgħelx | Check power cable connections to the PC and wall outlet. Ensure the power switch on the PSU (at the back of the PC) is in the 'On' position. |
| L-ebda wiri fuq il-monitor | Ensure the monitor is powered on and connected to the graphics card ports (not the motherboard ports). Try a different cable or monitor if possible. |
| Kwistjonijiet ta' konnettività Wi-Fi | Ensure the Wi-Fi adapter is properly inserted. Restart your router and PC. Check Windows network settings. |
| Poor gaming performance | Ensure graphics drivers are up to date. Check game settings and reduce if necessary. Monitor system temperatures to prevent thermal throttling. Close unnecessary background applications. |
| PC freezes or crashes | Ensure all drivers and Windows are updated. Check for overheating. Run a memory diagnostic. |
If these steps do not resolve your issue, please contact VIBOX customer support for further assistance.
8. Speċifikazzjonijiet Tekniċi
Below are the detailed technical specifications for the VIBOX V-524 PC Gamer:
| Komponent | Speċifikazzjoni |
|---|---|
| Brand | VIBOX |
| Numru tal-Mudell | V-524 |
| Serje | VTX-8 |
| Kulur | VTX-8 Black |
| Sistema Operattiva | Windows 11 Home |
| Brand tal-proċessur | AMD |
| Tip ta' proċessur | Ryzen 5 |
| Veloċità tal-Proċessur | 3.6 GHz (up to 4.2 GHz boost) |
| Numru ta' Cores | 6 |
| Memorja Massima | 128 GB |
| Hard Drive Technology | SSD |
| Hard Drive Interface | SSD |
| Karta Grafika | NVIDIA GeForce RTX 4060 |
| Graphics Card RAM | 8 GB GDDR6 |
| Riżoluzzjoni (Mass) | 7680x4320 |
| Tip ta 'Konnettività | Wi-Fi, Ethernet |
| Interface tal-Ħardwer | Ethernet, HDMI, DisplayPort, USB |
| Numru ta 'Portijiet HDMI | 1 |
| Numru ta 'USB 2.0 Ports | 3 |
| Numru ta 'USB 3.0 Ports | 3 |

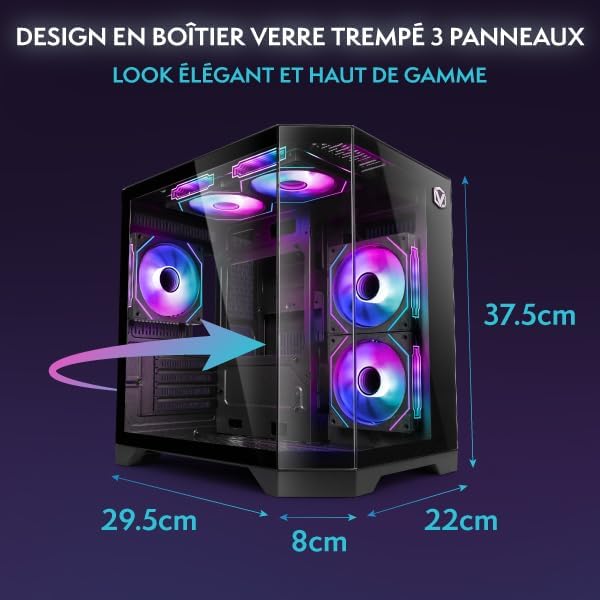

| Dimensjonijiet tal-oġġett (L x W x H) | 35 x 28 x 38 ċentimetru |
| Użi Speċifiċi Għall-Prodott | Gaming, Photo Editing, Video Editing |
9. Garanzija u Appoġġ
9.1 Garanzija tal-Manifattur
Your VIBOX V-524 PC Gamer comes with a manufacturer's warranty of 2 snin għall-partijiet u lifetime laborJekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
9.2 Appoġġ għall-Klijent
For technical assistance, warranty inquiries, or any other support needs, please contact VIBOX customer service. Refer to the VIBOX official webis-sit jew id-dokumentazzjoni tax-xiri tiegħek għall-aktar informazzjoni ta' kuntatt aġġornata.
