Serpent X20 1/10 RC Touring Car Instruction Manual

Introduzzjoni

This manual provides essential information for the setup, operation, and maintenance of your Serpent X20 1/10 RC Touring Car. Please read it thoroughly before operating the vehicle to ensure safe and optimal performance. The Serpent X20 is a 1/10 scale 4WD electric touring car, featuring a brushless motor, carbon fiber, and CNC aluminum parts, designed for high-speed racing.

X'hemm fil-Kaxxa

Upon opening your Serpent X20 package, you should find the following components:

• Kontroll mill-bogħod
• Manwal tal-Prodott (dan id-dokument)
• Sticker Sheet for customization
• Serpent X20 1/10 RC Touring Car (pre-assembled)

Note: Batteries and charger are not included and must be purchased separately.

Karatteristiċi Ewlenin

• Race-Ready Excellence: Factory assembled 1/10 scale Touring RC Car with racing tires, pre-cut and pre-painted bodywork, and high-quality Dragon-RC electronics.

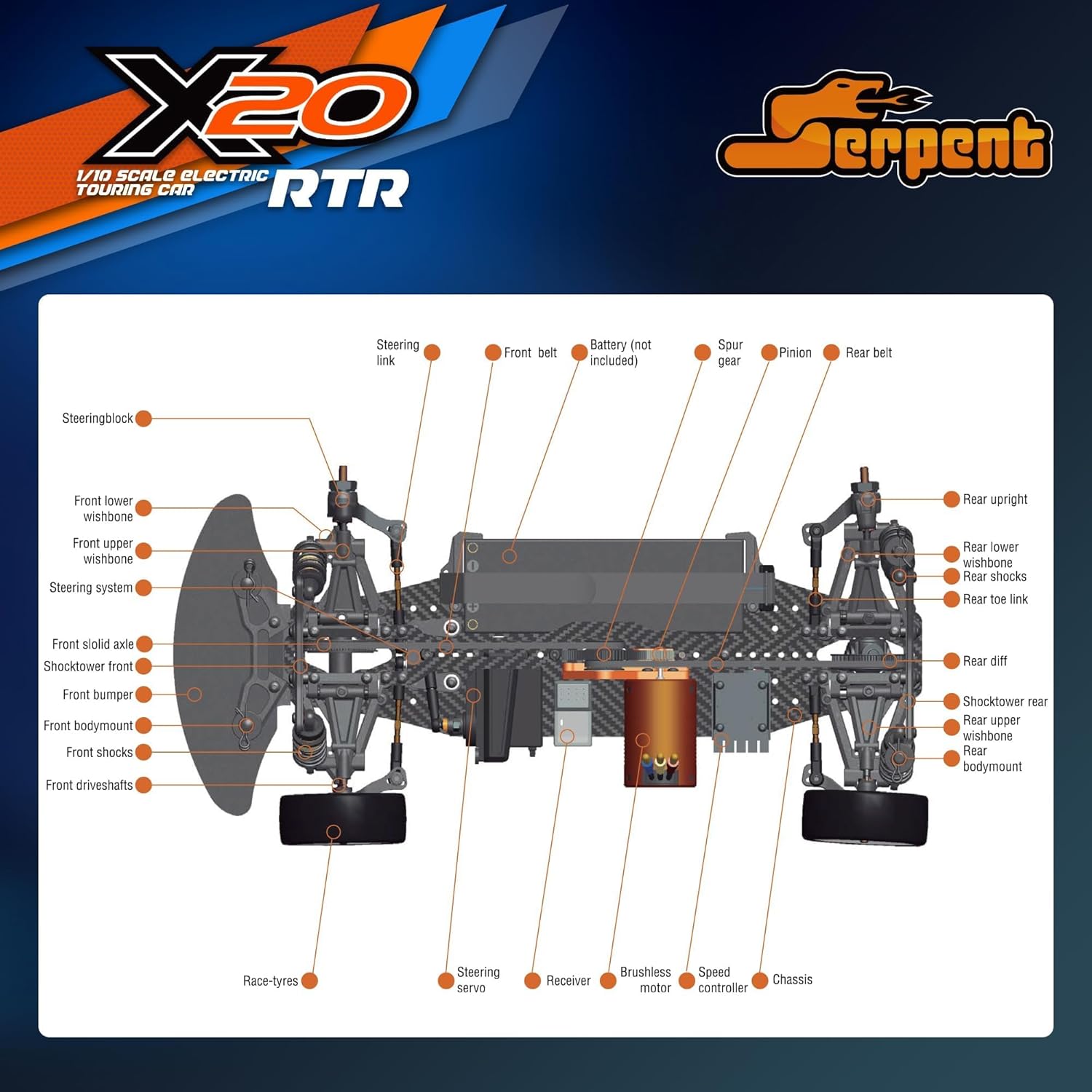

• Precision Chassis Design: Ultra-narrow, symmetrical black fiberglass chassis plate optimized for flex and durability, with countersunk holes and strategically placed gear differentials, spools, and gear bags for maximum performance.
• Enhanced Suspension: Features lower front wishbones, anti-roll bar compatibility, and a C-hub/steering block system for precise steering and feedback.
• Powerful Electronics: Equipped with Dragon-RC 45A electronic speed controller and a brushless 9T motor for impressive acceleration and speed.
• Versatile Racing Experience: Suitable for both competitive racing and leisure use on various tracks.

Gwida ta' Setup

Follow these steps to prepare your Serpent X20 for its first use.

1. Unboxing u Spezzjoni Inizjali

Carefully remove all components from the packaging. Inspect the car and remote control for any visible damage. Ensure all parts listed in "What's in the Box" are present.

2. Applying Decals (Optional)

The included sticker sheet allows for personalization of your RC car. Carefully peel and apply the desired decals to the car body.

3. Installazzjoni tal-batterija

Remove the car body by detaching the body clips. Install a fully charged LiPo battery (not included) into the designated battery compartment. Secure the battery with the provided straps or holders. Connect the battery to the Electronic Speed Controller (ESC).

4. Setup tal-Kontroll mill-bogħod

Install batteries into the remote control. Power on the remote control first, then the car. Ensure the remote and car are properly bound. Adjust the trim settings on the remote control for steering and throttle as needed to ensure the car remains straight and stationary when the controls are neutral.

5. Verifiki ta' Qabel it-Tħaddim

Before each run, check the following:

• Kun żgur li l-viti kollha huma ssikkati.
• Verify battery charge levels in both the car and remote.
• Check tire condition and ensure they are securely mounted.
• Test steering and throttle response.
• Inspect the suspension for proper movement and damping.

Istruzzjonijiet Operattivi

Operating your Serpent X20 is straightforward, but practice is key to mastering its performance.

1. Qawwa Mixgħul: Turn on the remote control first, then the RC car.
2. Sewqan: Use the steering wheel on the remote for direction and the trigger for throttle (forward) and brake/reverse.
3. Kontroll tal-veloċità: The brushless motor provides significant power. Start with gentle throttle inputs to get accustomed to the car's speed and handling.
4. Tidwir: Practice smooth turns. The car's enhanced suspension allows for precise handling.
5. Braking/Reversing: Push the trigger forward from neutral to brake, then push again for reverse.
6. Itfi: Always turn off the RC car first, then the remote control.

Nota Importanti dwar is-Sigurtà: Always operate your RC car in a safe, open area away from people, pets, and obstacles. Avoid public roads. This product is recommended for users aged 18 and above.

Official Product Video: Unboxing and Operating Instructions

Video: This official video from Serpent Store demonstrates the unboxing process of the Serpent X20 RC car and provides a visual guide on its initial setup and operation, including battery installation and remote control usage.

Manutenzjoni

Regular maintenance will extend the life and performance of your Serpent X20.

• Tindif: After each use, clean the car to remove dirt, dust, and debris. Use a soft brush or compressed air. Avoid water directly on electronics.
• Spezzjonijiet: Periodically check for loose screws, worn tires, damaged suspension components, or frayed wires. Replace any damaged parts immediately.
• Lubrikazzjoni: Apply appropriate RC-specific lubricants to moving parts like gears and bearings as recommended by Serpent.
• Kura tal-batterija: Follow the manufacturer's instructions for charging, discharging, and storing LiPo batteries to ensure safety and longevity.
• Ħażna: Aħżen il-karozza f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.

Issolvi l-problemi

Hawn huma xi kwistjonijiet komuni u s-soluzzjonijiet tagħhom:

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information, technical support, or to purchase replacement parts, please contact Serpent customer service directly. Refer to the official Serpent webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fl-imballaġġ tal-prodott tiegħek għall-aktar dettalji ta' appoġġ aġġornati.

Tista 'wkoll iżżur il- Ħanut tas-Serp fuq Amazon għal aktar informazzjoni dwar il-prodott u aċċessorji.
