Introduzzjoni
The Magene P715 Dual-Sensing Power Meter Cycling Pedals are designed for serious cyclists seeking precise power measurement. These pedals offer independent left and right leg power data with high accuracy, SPD-SL compatibility, and a long battery life, ensuring a comprehensive and reliable training experience.
Image: Two Magene P715 power meter pedals, showcasing their sleek silver and black design.
Informazzjoni dwar is-Sigurtà
Always ensure proper installation and maintenance of your cycling components. Refer to professional bicycle mechanics if unsure about any installation steps. Regularly check pedals for wear and tear. Do not attempt to disassemble the power meter unit as it may void the warranty and cause damage.
Kontenut tal-Pakkett
- Pedal Power Meter (2 units)
- Crank Washer (2 units)
- Magnetic Charging Cable (1 unit)
- Gwida ta' Bidu Mgħaġġel (unità 1)
Setup
1. Installazzjoni
Installing the P715 pedal-based power meter is straightforward, similar to any standard road bike pedal. Simply insert and fix it with a wrench. The suggested installation torque is 30-40N.m. Ensure the crank washers are used as instructed.

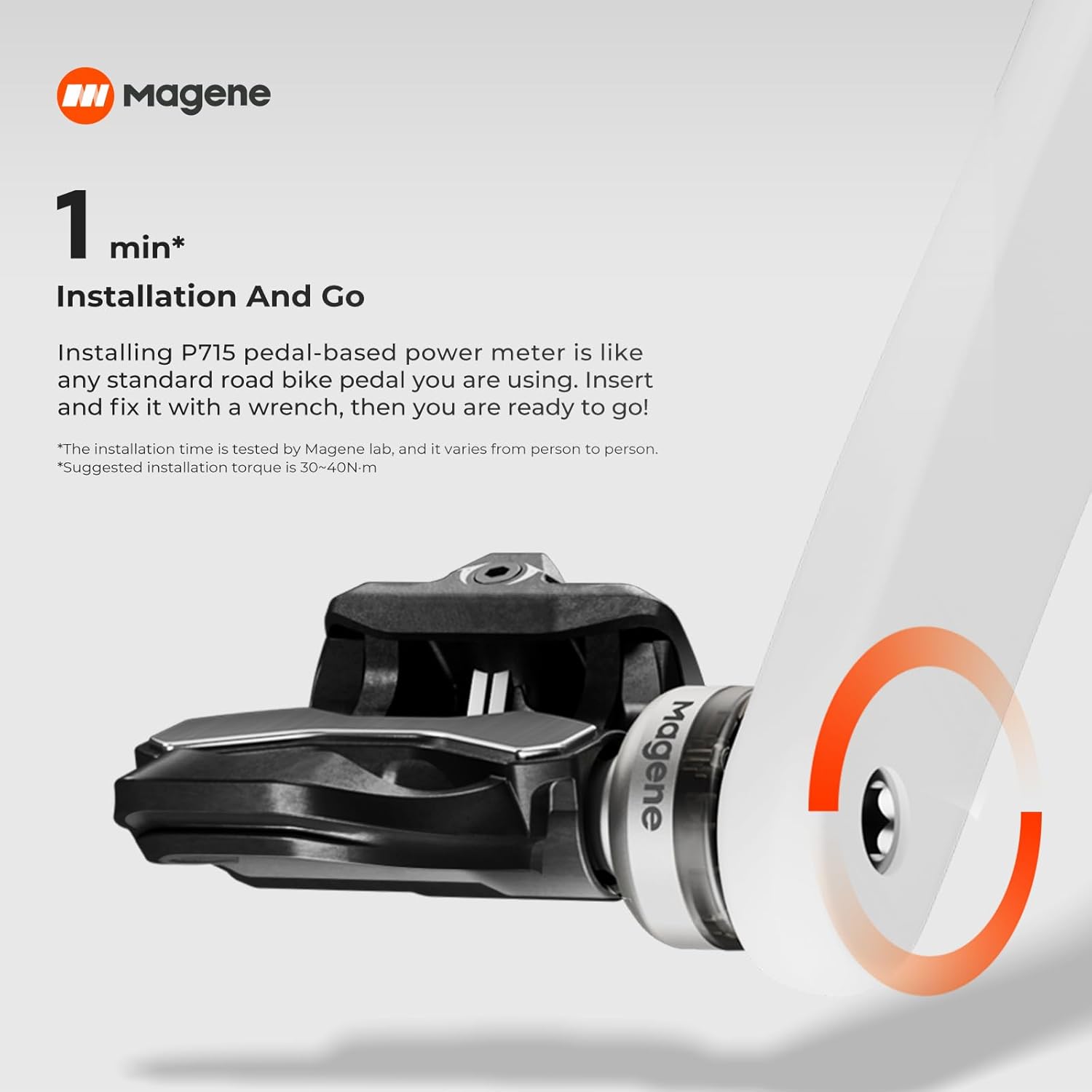

Image: Close-up of a Magene P715 pedal being installed onto a bicycle crank arm, highlighting the ease of installation.
2. Iċċarġjar
The P715 pedals feature a rechargeable lithium battery, providing up to 120 hours of continuous cycling. Use the provided magnetic charging cable to charge the pedals. Connect the magnetic end to the charging port on the pedal and the USB end to a compatible power source.

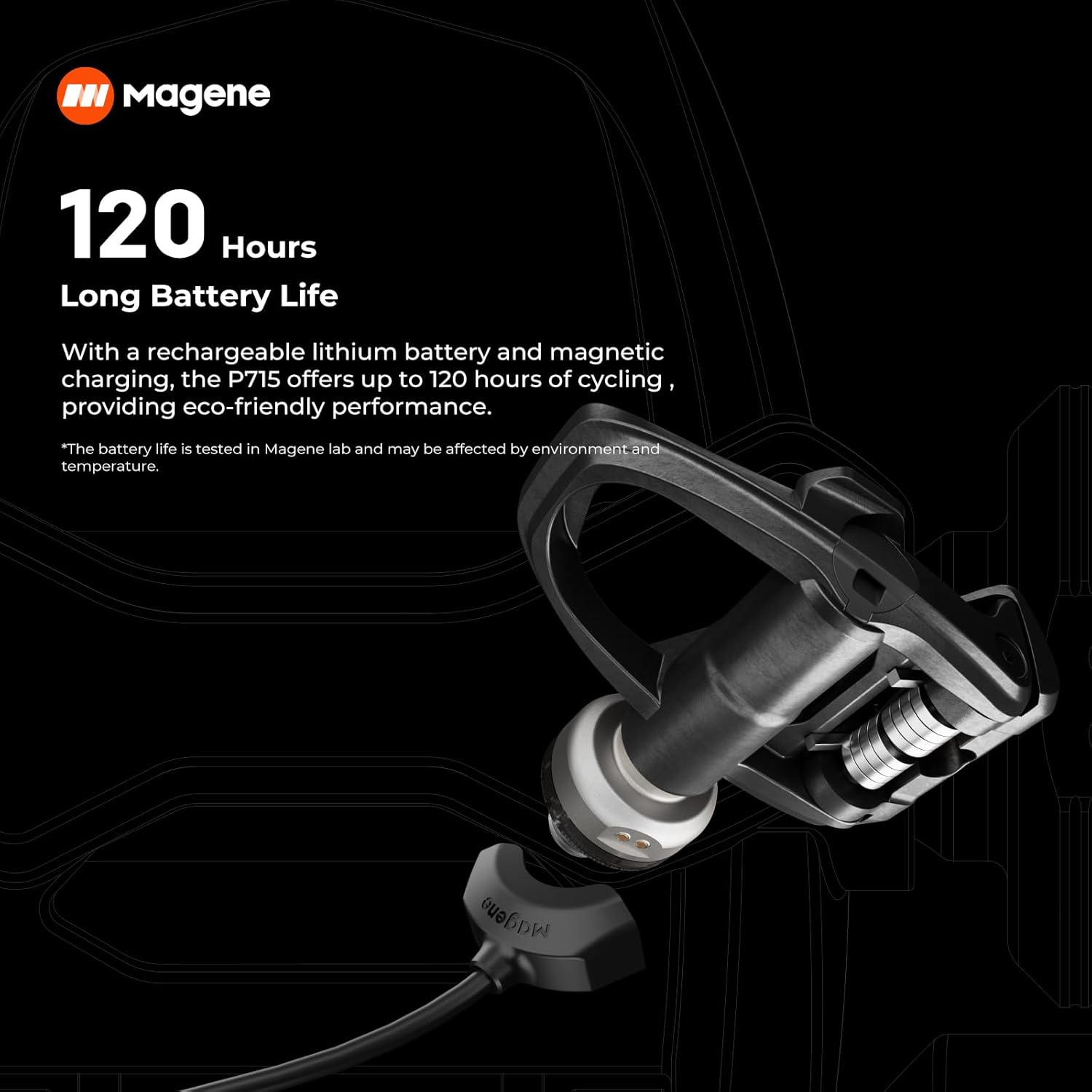

Image: A Magene P715 pedal with its magnetic charging cable connected, illustrating the charging process and highlighting the 120-hour battery life.
3. Konnettività
The P715 pedals support both Bluetooth and ANT+ connectivity. This allows for seamless pairing with a wide range of cycling computers, smartphone applications, and indoor trainers for real-time power data tracking.
Video: An unboxing video of the Magene P715 Silver Power Meter Pedals, demonstrating the contents and initial setup, including a brief overview of the pedals themselves.
Operazzjoni
1. Kejl tal-Qawwa
The P715 pedals provide dual-sided power measurement with an accuracy of ±1%. This allows for independent measurement of left and right leg power, offering detailed insights into your pedaling dynamics. The embedded gyroscope and temperature compensation ensure consistent and reliable data.
Image: A graphic illustrating the ±1% consistent power accuracy of the Magene P715 pedals, emphasizing the precision of the dual-sided power measurement.
2. Advanced Training Functions
The P715 provides 7 advanced cycling data points: Power, Cadence, Left and Right Balance, Pedaling Smoothness, Torque Effectiveness, Riding Position, and Power Phase. Note that Power Phase and Riding Position functions are only available with bike computers supporting these features, such as Garmin devices.
Image: A graphic detailing the 7 advanced training functions of the Magene P715, including a visual representation of power phase data for left and right legs.
Manutenzjoni
- Tindif: Naddaf il-pedali regolarment b'adamp drapp biex tneħħi l-ħmieġ u d-debris. Evita li tuża kimiċi ħarxa jew materjali li joborxu.
- Kura tal-batterija: To maximize battery life, avoid fully discharging the pedals frequently. Charge them regularly, especially if storing for extended periods.
- Spezzjoni: Periodically inspect the pedals for any signs of damage, loose components, or unusual wear.
Issolvi l-problemi
1. No Power Reading
- Ensure pedals are fully charged.
- Check Bluetooth/ANT+ connection to your cycling computer or app.
- Perform a zero-offset calibration as per your cycling computer's instructions.
2. Inconsistent Readings
- Ensure pedals are securely tightened to the crank arms.
- Recalibrate the pedals.
- Check for any physical damage to the pedals.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | istonku |
| Isem tal-Mudell | P715SS |
| Tip ta' Bike | Bike tat-Triq |
| Kulur | Fidda |
| Materjal | Aluminju |
| Piż tal-oġġett | 318 Gramm |
| Stil | Clipless |
| Ħajja tal-batterija | 120 Sigħat |
| Eżattezza | ±1% |
| Konnettività | Bluetooth u ANT+ |
| Komponenti Inklużi | Pedal Power Meter*2, Crank Washer*2, Magnetic Charging Cable*1, Quick Start Guide*1 |
Image: A graphic highlighting the weight of each Magene P715 pedal at 157 grams, emphasizing its ultra-light yet durable construction.
Garanzija u Appoġġ
The Magene P715 Power Meter Cycling Pedals come with a Garanzija tal-Manifattur ta' 2 Snin. For any technical support, warranty claims, or further inquiries, please contact Magene customer service through their official webis-sit jew il-bejjiegħ bl-imnut minn fejn inxtara l-prodott. Żomm il-prova tax-xiri tiegħek għall-validazzjoni tal-garanzija.
