Manwal tal-Utent tal-Bank tal-Enerġija KEMIMOTO 5V 2A 10000mAh (Mudell NR1052C)

1. Introduzzjoni

Thank you for choosing the KEMIMOTO 5V 2A 10000mAh Power Bank. This portable power bank is designed to provide reliable power for your 5V USB heated clothing, such as vests, jackets, pants, and hoodies, as well as other compatible electronic devices like smartphones, headphones, and smartwatches. Please read this manual thoroughly before use to ensure proper operation and safety.

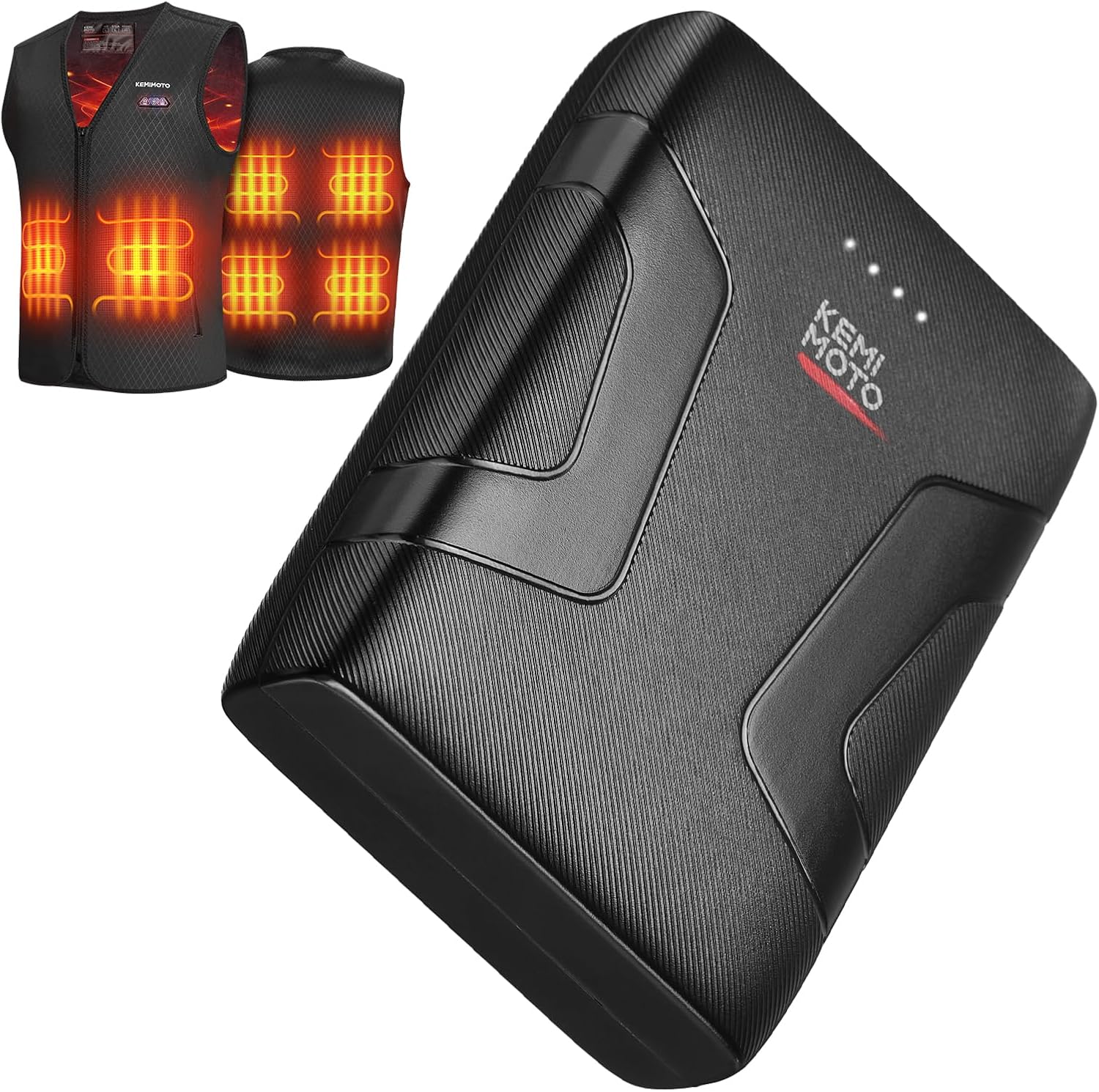

Image 1.1: KEMIMOTO Power Bank and a heated vest.

2. Informazzjoni Importanti dwar is-Sigurtà

TWISSIJA:

• This power bank is specifically designed for 5V USB input heated clothing. Huwa mhux kompatibbli with 7.4V or 12V DC input heated vests or jackets. Using it with incompatible devices may cause damage or safety hazards.
• The device has passed UL 2054 test standards and includes multiple safety protections: overcharge protection, overheat protection, and short-circuit protection. However, always handle with care.
• Tiżżarmax, tittaqqabx, jew timmodifikax il-power bank.
• Avoid exposure to extreme temperatures, direct sunlight, or liquids.
• Żomm fejn ma jintlaħaqx mit-tfal.

3. Karatteristiċi tal-prodott

• Kapaċità Għolja: 10000mAh capacity provides extended power for your devices.
• Optimized for Heated Clothing: Specifically designed to power 5V 2A USB heated vests, jackets, pants, and hoodies.
• Ultra-Compact and Lightweight: Measuring 3.35in x 2.56in x 0.59in and weighing only 7.05oz, it is easy to carry in a pocket.
• Iċċarġjar veloċi: Supports 22.5W fast charging for compatible devices.
• Dwal Indikaturi LED: Four LED lights indicate the remaining power level (25%, 50%, 75%, 100%) and charging status.
• Protezzjonijiet tas-Sigurtà Multipli: Built-in overcharge, overheat, and short-circuit protection for safe and reliable use.

Image 3.1: Size comparison of the power bank with a credit card.

4. Setup

4.1 L-Iċċarġjar Inizjali tal-Power Bank

1. Connect the power bank to a suitable USB wall adapter (not included) using a compatible USB cable (Type-C input/output port).
2. The LED indicator lights will illuminate to show the charging progress. Each light represents approximately 25% of the battery capacity.
3. Once all four LED lights are solid, the power bank is fully charged. Disconnect it from the power source.

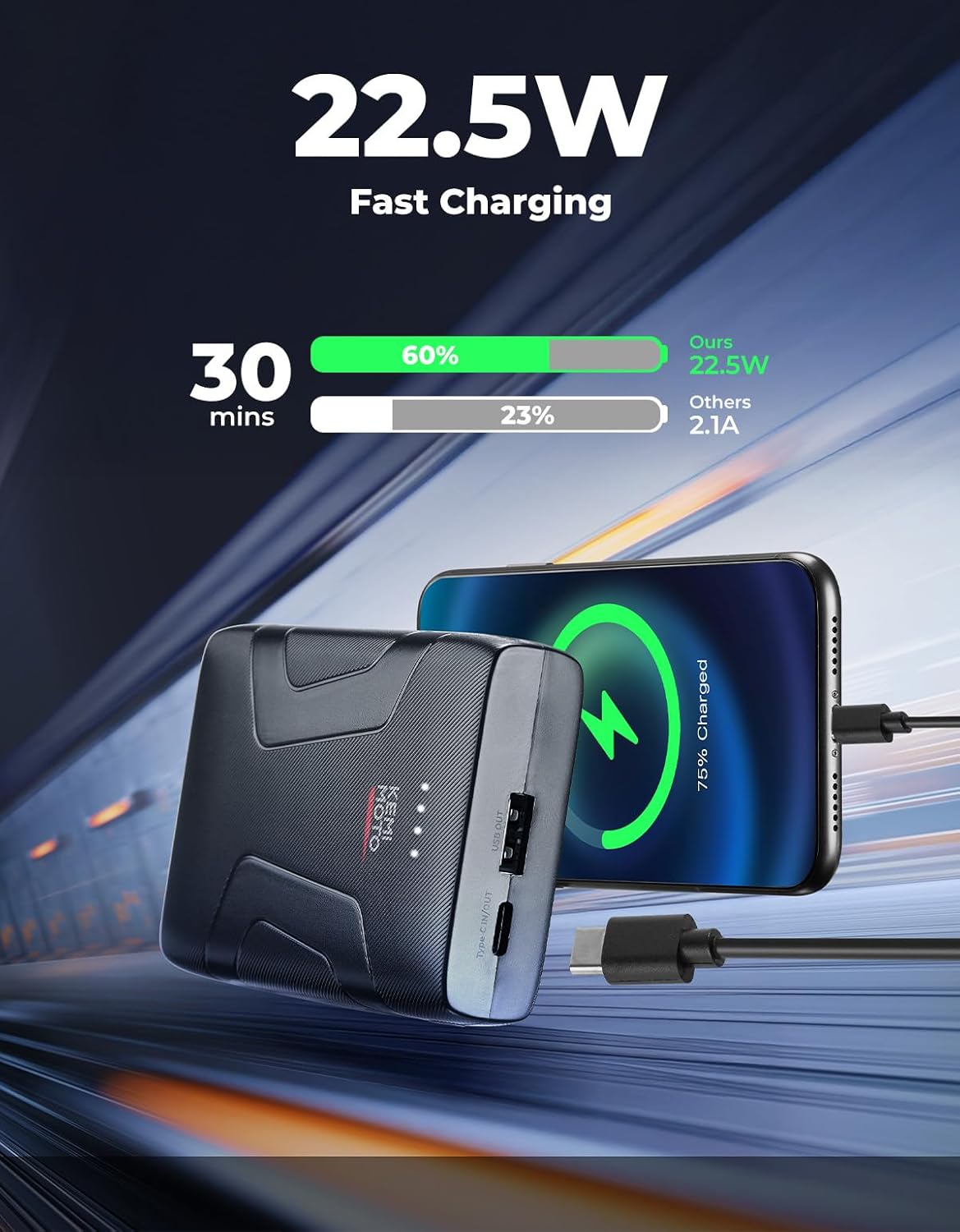

Image 4.1: Power bank charging a smartphone.

4.2 Connecting to Heated Clothing

1. Locate the USB cable inside the pocket of your 5V USB heated vest or jacket.
2. Connect the USB cable from your heated clothing to the USB-OUT port on the KEMIMOTO power bank.
3. Place the power bank securely into the designated pocket of your heated clothing.

Image 4.2: Inserting the power bank into heated clothing.

5. Istruzzjonijiet Operattivi

5.1 Powering Heated Clothing

1. Ensure the power bank is connected to your heated clothing as described in Section 4.2.
2. Press the power button on the power bank to activate it. The LED indicator lights will show the current battery level.
3. Activate your heated clothing according to its specific instructions (usually by pressing a button on the clothing itself).
4. The 10000mAh capacity can provide approximately 8 hours of use on a low heat setting, 6 hours on medium, and 4 hours on high, depending on the specific heated garment and ambient conditions.

Image 5.1: Estimated runtime for heated clothing.

5.2 Charging Other Devices

1. Connect your device (e.g., smartphone, tablet, headphones) to the power bank's USB-OUT or Type-C IN/OUT port using a compatible charging cable.
2. The power bank will automatically begin charging most devices. If not, press the power button once.
3. Monitor the LED indicator lights on the power bank to check its remaining charge.

5.3 Understanding LED Indicator Lights

The power bank features four LED lights to indicate its charge status:

• 1 Dawl: 0-25% remaining charge
• 2 Dwal: 25-50% remaining charge
• 3 Dwal: 50-75% remaining charge
• 4 Dwal: 75-100% remaining charge

During charging, the lights will blink to indicate active charging and become solid as each 25% increment is reached.

Image 5.2: LED indicator lights and ports.

6. Manutenzjoni

• Iċċarġjar: Recharge the power bank fully at least once every three months to maintain battery health, even if not in regular use.
• Ħażna: Aħżen il-power bank f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Tindif: Uża drapp artab u niexef biex tnaddaf il-barra tal-power bank. Tużax kimiċi ħarxa jew materjali li joborxu.
• Backup/Replacement: This power bank can serve as a backup or replacement for your heated vest battery. Charge it and store it in a safe place until needed.

7 Issolvi l-problemi

7.1 Il-Power Bank Mhux qed Jiċċarġja

• Kun żgur li l-kejbil tal-iċċarġjar huwa konness sew kemm mal-power bank kif ukoll mal-adapter tal-ħajt.
• Ivverifika li l-adapter tal-ħajt qed jaħdem sew u li huwa pplaggjat f'sokit tal-elettriku ħaj.
• Try using a different USB cable or wall adapter.

7.2 L-Apparat Mhux Qed Jiċċarġja mill-Power Bank

• Check if the power bank has sufficient charge (refer to LED indicator lights).
• Kun żgur li l-kejbil tal-iċċarġjar huwa konness sew kemm mal-power bank kif ukoll mat-tagħmir tiegħek.
• Press the power button on the power bank to initiate charging if it doesn't start automatically.
• Confirm your device is compatible with 5V USB charging.

7.3 Heated Clothing Not Activating

• Verify the power bank is charged and connected to the heated clothing's USB cable.
• Ensure the heated clothing itself is turned on according to its manufacturer's instructions.
• Crucially, confirm your heated clothing requires a 5V USB input. This power bank is not compatible with 7.4V or 12V DC systems.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information or technical support, please refer to the product packaging or contact KEMIMOTO customer service directly. Keep your purchase receipt for warranty claims.
