Riflewell 20-25 Gun Rifle Safe Instruction Manual

1. Introduzzjoni

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Riflewell 20-25 Gun Rifle Safe. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

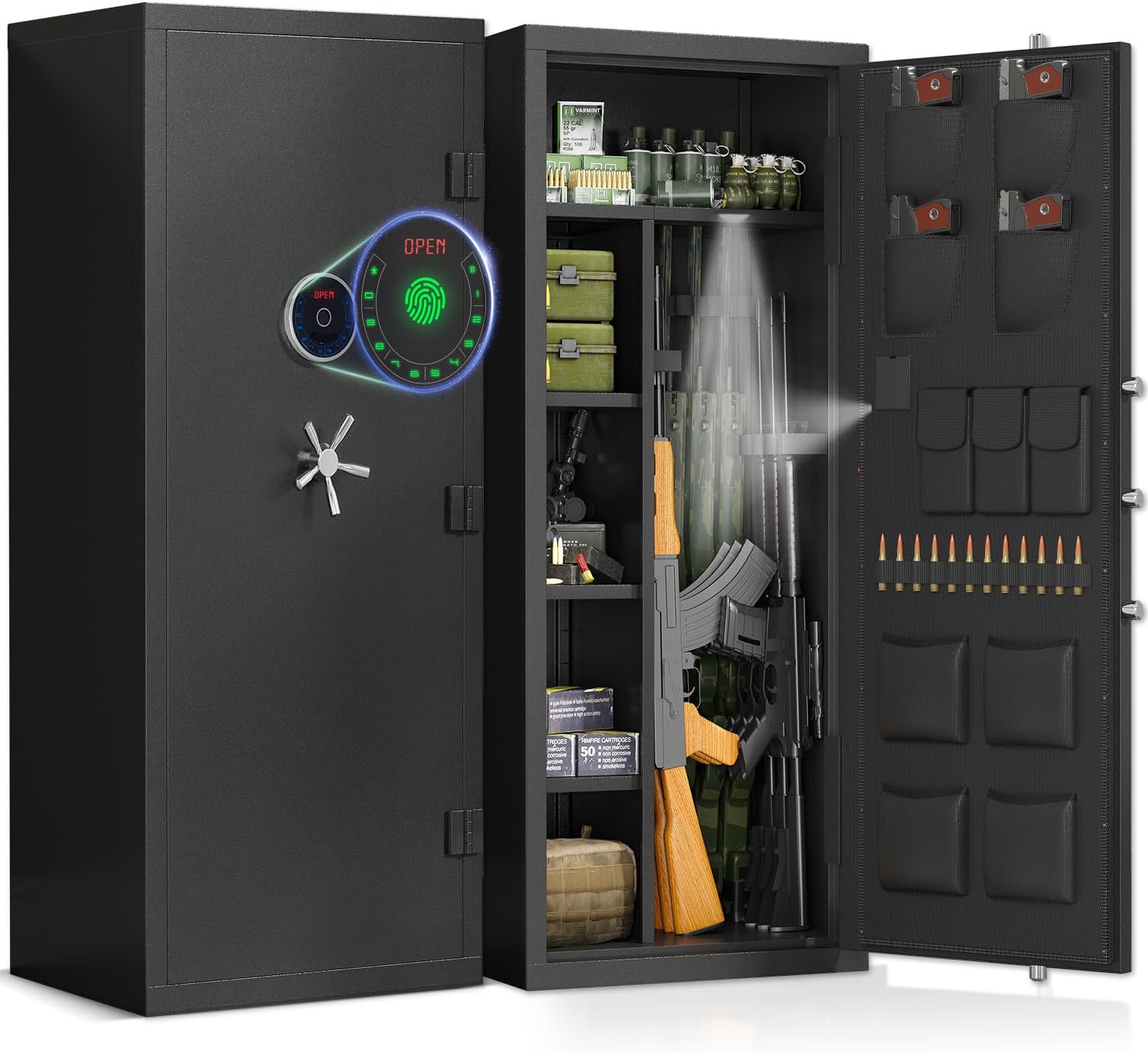

Figure 1: The Riflewell 20-25 Gun Rifle Safe, showcasing its large capacity and biometric locking mechanism.

2. Informazzjoni dwar is-Sigurtà

• Always keep the safe locked when not in use.
• Store emergency keys in a secure location away from the safe and out of reach of children.
• Taħżinx materjali fjammabbli jew kontenituri miftuħa ta’ likwidi ġewwa s-sejf.
• Ensure the safe is securely mounted to prevent tipping.
• Keep children and unauthorized individuals away from the safe.
• Do not attempt to force the safe open if the lock malfunctions. Refer to troubleshooting.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra qabel tibda l-assemblaġġ.

• 1 x 20-25 Large Unassembled Gun Safe (main panels)
• 2 x Ċwievet ta 'Emerġenza
• 4 x Viti ta 'Espansjoni
• 3 x Gun Racks (adjustable)
• 1 x Dawl manjetiku
• 1 x Manwal għall-utent (dan id-dokument)
• Additional accessories: 2 storage bags, magazine clips, 4 pistol bags.

Figure 2: Visual representation of the safe's dimensions and all included parts for assembly.

4. Setup u Assemblea

Your Riflewell gun safe is designed for easy assembly. Follow these steps carefully. It is recommended to have two people for assembly due to the size and weight of the components.

4.1 Gwida bil-Vidjo tal-Assemblaġġ

For a visual guide, please refer to the official assembly video:

4.2 Istruzzjonijiet ta' Assemblaġġ Pass Pass

1. Ħoll il-Komponenti: Carefully open the packaging and remove all panels and accessories. Lay them out on a soft, clean surface to prevent scratches. Identify each panel using the labels (e.g., Left Plate, Right Plate, Door, Top Plate, Bottom Plate, Ammo Box).
2. Installa l-Panelli tal-Ġenb: Attach the left and right side panels to the bottom plate using the provided screws (e.g., Screw C). Ensure the panels align correctly with the pre-drilled holes.
3. Waħħal il-Panel ta' Wara: Secure the back panel to the assembled side and bottom panels.
4. Install Top Plate: Place the top plate onto the assembled structure and secure it with screws.
5. Waħħal il-Bieb: Carefully align the safe door with the hinges on the main body and secure it. Install the handle by screwing it into place.
6. Installa l-Komponenti Interni:
   • Ammo Box/Internal Shelf: Insert the internal ammo box or fixed shelf into its designated position and secure it.
   • Xkafef aġġustabbli: Insert the shelf clips into the desired slots on the side panels. Place the adjustable shelves onto the clips.
   • Gun Racks: Attach the foam gun racks to the interior walls as desired.
   • Magnetic Light: Place the magnetic light in a convenient location inside the safe for illumination.
7. Immuntar Sikur: For maximum security, it is highly recommended to mount the safe to the floor or wall using the provided expansion screws. Locate the pre-drilled holes at the back and bottom of the safe.

Figure 3: The flexible interior storage space, highlighting adjustable shelves and door organization for various items.

5. Istruzzjonijiet Operattivi

5.1 Il-Ftuħ tas-Sejf

Your Riflewell safe offers multiple access methods:

• Fingerprint + Handle: Place your registered finger on the fingerprint collector and turn the handle.
• Code + Handle: Enter your programmed digital code on the LCD touch screen and turn the handle.
• Key + Handle: Insert the emergency key into the hidden keyhole, turn it, and then turn the handle.
• USB Type-C Cable + Code/Fingerprint + Handle: In case of battery depletion, connect a USB Type-C cable for emergency power, then use your code or fingerprint, and turn the handle.

Figure 4: The four primary methods for accessing your safe, including biometric and digital options.

5.2 Programming Fingerprints and Codes

Refer to the detailed instructions in the separate user manual provided with the electronic lock for programming fingerprints and digital codes. This process typically involves entering a master code, then following prompts to register new fingerprints or set new numerical codes.

5.3 Dual Alarm System and Mute Function

• Sistema ta' Allarm Doppju: The safe activates an alarm after 3 consecutive incorrect code entries or 5 consecutive incorrect fingerprint attempts. A vibration alarm is also triggered if the safe is moved violently. The alarm sound reaches up to 70 decibels.
• Funzjoni Mute: To operate the safe silently, activate the mute function. This prevents the safe from making sounds during opening or alarm triggers. Consult the electronic lock manual for specific instructions on enabling/disabling the mute function.

Figure 5: The safe's dual alarm system provides enhanced security, while the mute function allows for silent operation.

6. Manutenzjoni

• Tindif: Imsaħ l-uċuħ ta’ barra u ta’ ġewwa b’ċarruta ratba u damp drapp. Evita prodotti tat-tindif jew solventi li joborxu.
• Sostituzzjoni tal-batterija: The electronic lock is powered by batteries (not specified, but typically AA). Replace batteries annually or when the low battery indicator appears. Refer to the electronic lock manual for battery compartment location and replacement procedure.
• Mekkaniżmu tas-Sokkjar: Do not lubricate the lock mechanism.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Riflewell stands behind the quality of its products. If you encounter any problems with your gun safe, please contact our experienced customer service team directly. We are committed to responding within 24 hours and assisting you with a resolution.

Għal appoġġ, jekk jogħġbok żur il- Riflewell Store on Amazon jew irreferi għall-informazzjoni ta' kuntatt ipprovduta fl-imballaġġ tal-prodott tiegħek.
