1. Introduzzjoni
This manual provides essential information for the safe installation, operation, and maintenance of your TOMZN TOB9-VAP 63A 1P+N WiFi Smart Switch Energy Meter. This device is a miniature circuit breaker (MCB) with integrated energy metering (Kwh, Voltage, Amperage, Wattage), monitoring, and timer relay functions, compatible with TUYA Smartlife applications. It is designed to protect electrical circuits from overloads and short circuits while offering smart control and energy consumption insights.
2. Informazzjoni dwar is-Sigurtà
TWISSIJA: Riskju ta' Xokk Elettriku.
- L-installazzjoni u l-manutenzjoni għandhom isiru minn persunal kwalifikat biss.
- Dejjem skonnettja l-enerġija mis-circuit breaker prinċipali qabel ma tinstalla jew tagħmel manutenzjoni fuq l-apparat.
- Kun żgur li l-konnessjonijiet kollha tal-wajers huma sikuri u jikkonformaw mal-kodiċijiet elettriċi lokali.
- Tħaddimx l-apparat jekk jidher li hu bil-ħsara.
- This device is designed for indoor use in dry environments unless otherwise specified for specific outdoor enclosures.
- The device is rated for 1P+N (Single Phase + Neutral) systems. Ensure correct polarity during installation.
3. Prodott Aktarview
The TOMZN TOB9-VAP is a versatile smart circuit breaker offering protection and advanced monitoring capabilities.
3.1. Karatteristiċi ewlenin
- Protezzjoni minn Tagħbija żejda u Ċirkwit Qasir: Prevents damage caused by excessive current.
- Energy Metering (Kwh, V, A, W): Monitors real-time and historical energy consumption.
- Konnettività WiFi: Remote control and monitoring via smartphone app.
- Timer Relay Function: Schedule on/off times for connected loads.
- VA Protection: Vol aġġustabblitage u Amperage protection settings.
- TUYA Smartlife Compatible: Integrates with popular smart home platforms.
- Kostruzzjoni Durabbli: Made with high-quality insulating, flame-retardant, and UV-resistant materials.
- Konnessjonijiet sikuri: Screw-type terminals for stable electrical connections.
3.2. Components and Indicators
Figure 1: TOMZN TOB9-VAP WiFi Smart Switch Energy Meter (Metering VA Protection, 1-63A Adjustable). This image shows the device with its input (Power) and output (Load) terminals, WiFi indicator, CE mark, signal light, and the main power button. The display indicates 'Metering VA protection In: 1-63A'.
Figure 2: TOMZN TOB9-63M WiFi Smart Switch Energy Meter (Metering). This variant includes energy metering capabilities (kW·h, W, V, A) but may not have the adjustable VA protection of the TOB9-VAP.

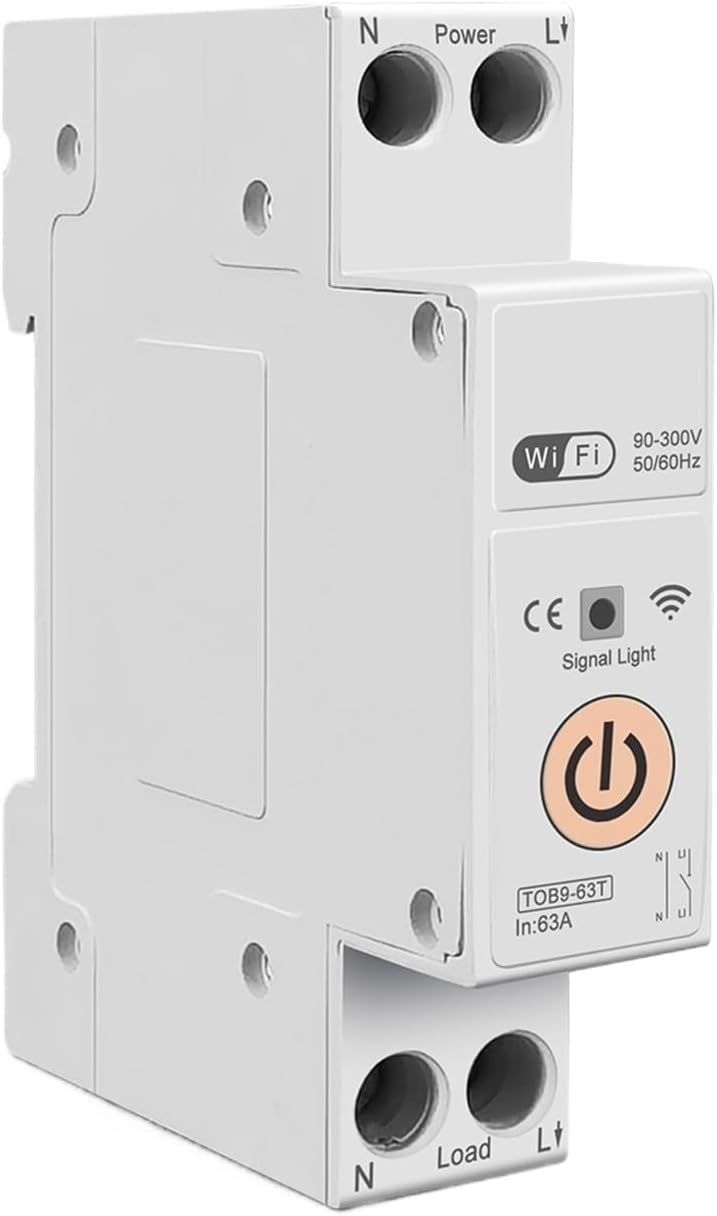

Figure 3: TOMZN TOB9-63T WiFi Smart Switch (No Metering). This basic variant provides WiFi control and circuit protection without energy metering functions.
- Power Terminals (N, L): Input connections for neutral and live wires.
- Load Terminals (N, L): Output connections for neutral and live wires to the load.
- Indikatur WiFi: Shows the status of the WiFi connection.
- Dawl tas-Sinjal: Jindika l-istatus tal-apparat.
- Buttuna tal-Enerġija Prinċipali: Manual ON/OFF control for the circuit breaker.
- Display (TOB9-VAP/TOB9-63M): Shows real-time energy data (Kwh, W, V, A) and protection settings.
4. Setup
4.1. Installazzjoni u Wiring
- Skonnettjar tal-Enerġija: Before starting, ensure the main power supply to the installation area is completely disconnected.
- Immuntar: Mount the TOB9-VAP on a standard DIN rail within an appropriate electrical enclosure.
- Wiring tad-Dħul: Connect the incoming neutral wire to the 'N' terminal under 'Power' and the incoming live wire to the 'L' terminal under 'Power'. Ensure secure screw-type connections.
- Wajer tal-Output: Connect the neutral wire to your load to the 'N' terminal under 'Load' and the live wire to your load to the 'L' terminal under 'Load'.
- Verifika: Iċċekkja darbtejn il-konnessjonijiet kollha għall-issikkar u l-polarità korretta.
- Irrestawra l-Enerġija: Once installation is complete and verified, restore power to the main circuit.
4.2. App Pairing (TUYA Smartlife)
- Niżżel l-App: Download the 'TUYA Smart' or 'Smart Life' app from your smartphone's app store.
- Reġistrazzjoni/Idħol: Oħloq kont jew idħol fil-kont eżistenti tiegħek.
- Żid Apparat: In the app, tap '+' to add a new device. Select 'Electrical' > 'Circuit Breaker (Wi-Fi)'.
- Mod ta 'tqabbil: Ensure the TOB9-VAP's WiFi indicator is blinking rapidly. If not, press and hold the main power button for 5-10 seconds until it blinks rapidly to enter pairing mode.
- Qabbad mal-WiFi: Follow the in-app instructions to connect the device to your 2.4GHz WiFi network. (5GHz networks are not supported).
- Tibdil tal-Isem tal-Apparat: Once paired, you can rename the device for easy identification in the app.
5. Istruzzjonijiet Operattivi
5.1. Operazzjoni Manwali
- Ixgħel/itfi: Press the main power button on the device to manually switch the circuit breaker ON or OFF.
5.2. App Control and Monitoring
- Remote ON/OFF: Use the TUYA Smartlife app to remotely switch the circuit breaker ON or OFF.
- Monitoraġġ tal-Enerġija: View real-time and historical data for Kwh consumption, current (A), voltage (V), and power (W) directly in the app.
- Timer/Schedule: Set up schedules or countdown timers for automatic ON/OFF operations.
- VA Protection Settings: Adjust the over-voltage, taħt il-voltage, over-current, and over-power protection thresholds within the app. The device will automatically trip if these thresholds are exceeded.
- Awtomazzjoni tax-Xena: Integrate the device into smart scenes with other TUYA-compatible devices.
6. Manutenzjoni
- Spezzjoni regolari: Periodically inspect the device and its wiring for any signs of damage, loose connections, or overheating.
- Tindif: Clean the exterior of the device with a dry, soft cloth. Do not use liquid cleaners or solvents.
- Aġġornamenti tal-Firmware: Check the TUYA Smartlife app for any available firmware updates to ensure optimal performance and security.
- Kontroll Professjonali: For any internal issues or complex repairs, consult a qualified electrician.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-apparat ma jixgħelx. | Ebda provvista tal-enerġija; wajers maħlula; ħsara interna. | Check main power supply. Verify all wiring connections. If problem persists, contact support. |
| WiFi indicator not blinking/connecting. | Incorrect pairing mode; weak WiFi signal; 5GHz network. | Ensure device is in rapid blinking pairing mode. Move device closer to router. Ensure router is 2.4GHz. |
| L-apparat jitlaq ta’ spiss. | Overload/short circuit; incorrect VA protection settings. | Reduce load on the circuit. Check for short circuits. Adjust VA protection thresholds in the app if necessary. |
| Inaccurate energy readings. | Wajers mhux korretti; malfunzjonament tal-apparat. | Verify wiring connections. If problem persists, contact support. |
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Mudell | TOB9-VAP |
| Kurrent Rated | 1-63A (Adjustable) |
| Vol ikklassifikattage | 90-300V AC |
| Frekwenza | 50/60Hz |
| Pollakki | 1P+N |
| Konnettività | WiFi (2.4GHz only) |
| Kompatibilità tal-App | TUYA Smart / Ħajja Smart |
| Karatteristiċi ta' Protezzjoni | Overload, Short Circuit, Over-Voltage, Taħt il-Voltage, Over-Current, Over-Power |
| Dimensjonijiet tal-Pakkett | 0.39 x 0.39 x 0.39 pulzieri |
| Piż tal-oġġett | 3.53 uqija |
| Manifattur | Generic (TOMZN) |
| Numru tal-Mudell tal-Oġġett | JCZWUUZZB-DFE767306BB9FC909ED20C115B9 |
9. Garanzija u Appoġġ
Għal informazzjoni dwar il-garanzija, appoġġ tekniku, jew mistoqsijiet dwar is-servizz, jekk jogħġbok irreferi għad-dokumentazzjoni pprovduta max-xiri tiegħek jew ikkuntattja lill-bejjiegħ direttament. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
