1. Informazzjoni Importanti dwar is-Sigurtà
Please read all instructions carefully before using the Zomagas Commercial Induction Cooktop. Retain this manual for future reference.
- Sigurtà Elettrika: Ensure the cooktop is connected to a properly grounded electrical outlet. Do not use with damaged cords or plugs.
- Kompatibbiltà tal-oġġetti tat-tisjir: Use only magnetic-compatible cookware (e.g., cast iron, steel, stainless steel with a magnetic bottom). Non-magnetic materials like glass, ceramic, copper, or aluminum will not work.
- Protezzjoni mis-sħana żejda: The cooktop is equipped with an anti-dry burning protection system that automatically shuts off if no pot is detected or if the pot is too small.
- Ventilazzjoni: Ensure adequate ventilation around the cooktop during operation. Do not block air vents.
- Temperatura tal-wiċċ: The cooking surface may remain hot after use. Avoid touching the hot surface directly.
- Sigurtà tat-Tfal: Keep children away from the cooktop during operation and cooling. Utilize the child lock function when not in use.
- Ċertifikazzjoni ETL: Dan l-apparat huwa ċċertifikat mill-ETL, li jiżgura li jissodisfa standards ta' sigurtà rikonoxxuti.
Image 1.1: Safety features of the Zomagas Induction Cooktop.
2. Prodott Aktarview
The Zomagas Commercial Induction Cooktop ALP-A80 is a powerful and efficient single electric burner designed for various cooking needs. It features precise temperature control, a durable stainless steel construction, and multiple safety mechanisms.
Image 2.1: Zomagas Commercial Induction Cooktop with a pot.
Karatteristiċi ewlenin:
- Qawwa Għolja ta' 1800W: Provides rapid heating for various cooking methods.
- Kontroll Preċiż tat-Temperatura: 10 levels of temperature adjustment from 60°C to 240°C (140°F to 460°F).
- Long Timer Function: Up to 4 hours for extended cooking tasks.
- Kostruzzjoni Durabbli: High-temperature resistant microcrystalline glass panel and stainless steel body.
- Sistema Effiċjenti tat-Tkessiħ: Built-in low-noise cooling for extended machine life.
- Ċertifikazzjonijiet tas-Sigurtà: ETL certified with anti-dry burning and no-pot detection.

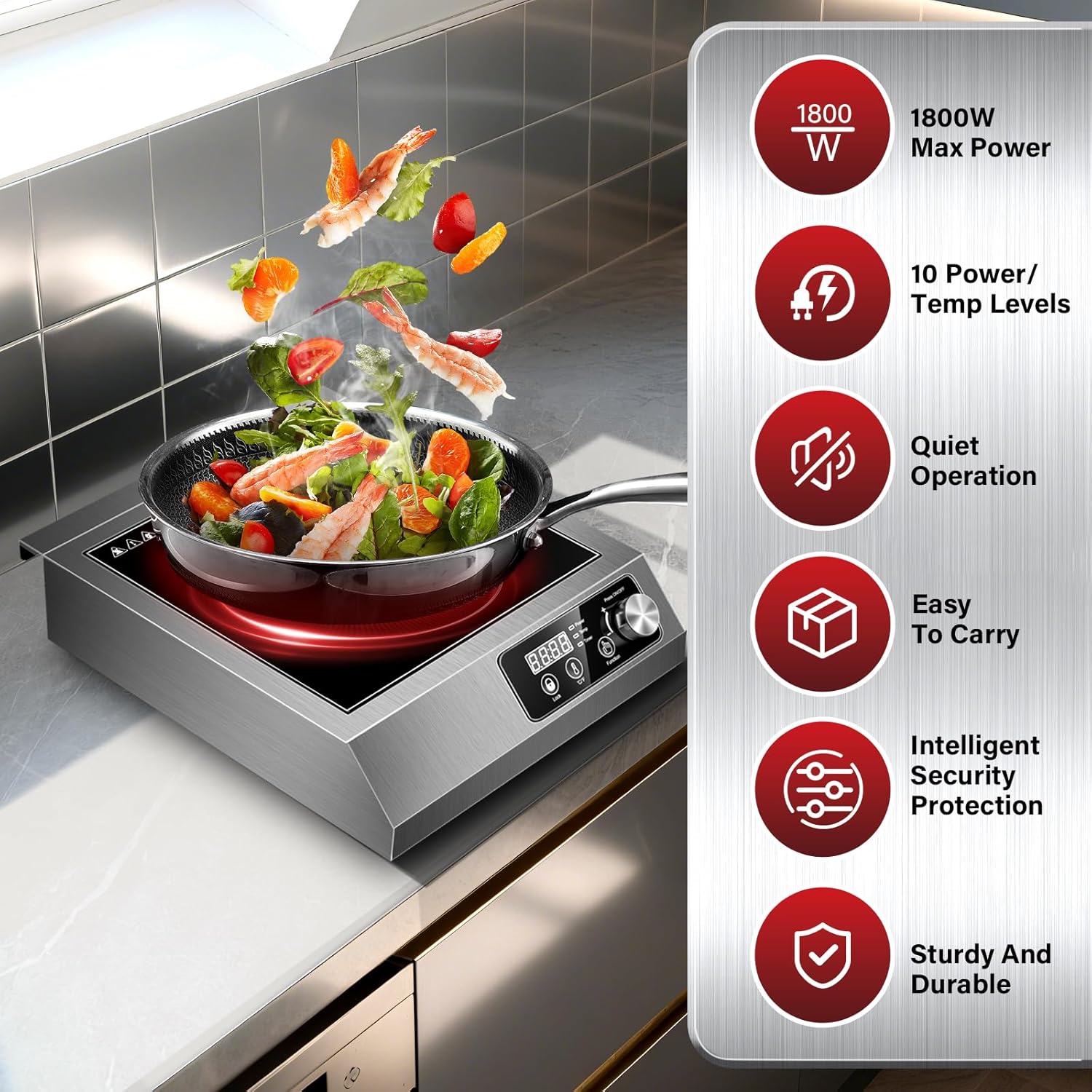

Image 2.2: Key features of the Zomagas Induction Cooktop.
3. Setup
- Spakkjar: Carefully remove the cooktop from its packaging. Inspect for any damage.
- Pjazzament: Place the cooktop on a stable, flat, and heat-resistant surface. Ensure there is sufficient space around the unit for proper ventilation (at least 4 inches from walls or other appliances).
- Konnessjoni tal-Enerġija: Plug the power cord into a standard 120V, 60Hz grounded electrical outlet.
- Tindif Inizjali: Qabel l-ewwel użu, imsaħ il-wiċċ tat-tisjir u l-barra b'adamp drapp.
Image 3.1: Product dimensions for proper placement.
4. Istruzzjonijiet Operattivi
4.1 Control Panel Overview
Image 4.1: Control panel with knob, touch buttons, and LCD display.
- Skrin LCD: Displays power level, temperature, and timer settings.
- ON/OFF Knob: Press to turn the unit on or off. Rotate to adjust settings.
- Buttuna tal-Funzjoni: Press to switch between Power, Temperature, and Timer modes.
- Buttuna Lock: Activates/deactivates the child lock function.
- Buttuna °C/°F: Jaqleb bejn il-wiri tat-temperatura f'Celsius u Fahrenheit.
4.2 Operazzjoni Bażika
- Qawwa Mixgħul: Place compatible cookware with food on the cooking surface. Press the ON/OFF knob to turn on the cooktop. The display will illuminate.
- Agħżel il-Modalità: The cooktop typically defaults to a power setting. Press the 'Function' button to cycle between Power (W), Temperature (°C/°F), and Timer modes.
- Aġġusta Settings: Rotate the ON/OFF knob to increase or decrease the power level (200W-1800W) or temperature (140°F-460°F / 60°C-240°C).
- Issettja l-Timer: In Timer mode, rotate the knob to set the desired cooking time, up to 4 hours. The cooktop will automatically shut off when the timer expires.
- Lock tat-tfal: Press the 'Lock' button to prevent accidental changes to settings. Press again to unlock.
- Itfi: Press the ON/OFF knob to turn off the cooktop when cooking is complete. The cooling fan may continue to run for a short period.
Image 4.2: Power and temperature control capabilities.
Immaġni 4.3: Eż.amples of cooking applications and recommended settings.
4.3 Oġġetti tat-Tisjir Kompatibbli
Induction cooktops require cookware with a magnetic bottom. To test if your cookware is compatible, hold a magnet to the bottom of the pot or pan. If the magnet sticks, the cookware is compatible.
- Materjali Kompatibbli: Steel, Cast Iron, Enameled Iron, Stainless Steel (with magnetic bottom).
- Compatible Cookware Features: Flat bottom, suitable for induction.
- Materjali inkompatibbli: Copper, Ceramic, Glass, Aluminum.
- Incompatible Cookware Features: Uneven bottom.

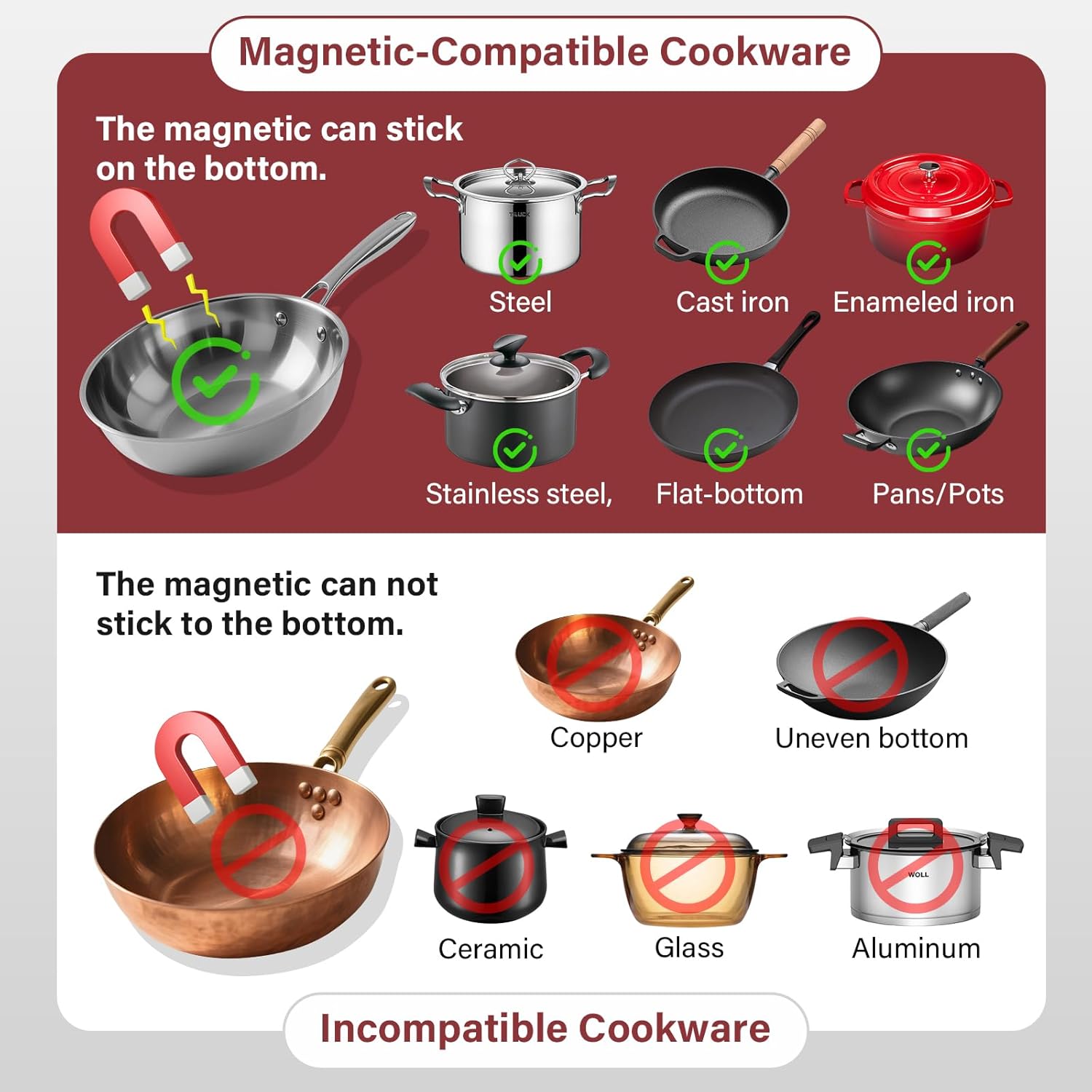

Image 4.4: Guide to compatible and incompatible cookware.
5. Manutenzjoni u Tindif
Tindif u manutenzjoni regolari jiżguraw il-lonġevità u l-prestazzjoni ottimali tal-cooktop tal-induzzjoni tiegħek.
- Skonnettja l-Enerġija: Always unplug the cooktop from the power outlet before cleaning.
- Kessaħ: Ħalli l-cooktop jiksaħ kompletament qabel tnaddaf.
- Tindif tal-wiċċ: Wipe the glass cooking surface with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for glass cooktops.
- Tindif tal-ġisem: Imsaħ il-korp tal-istainless steel b'ċarruta ratba u damp drapp. Evita prodotti tat-tindif li joborxu jew spondi tal-għorik li jistgħu jigrif il-wiċċ.
- Tnixxif: Dry all surfaces thoroughly with a soft, dry cloth after cleaning.
- Tgħaddix: Never immerse the cooktop in water or any other liquid.
6 Issolvi l-problemi
If you encounter issues with your Zomagas Induction Cooktop, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-cooktop ma jixgħelx. | Bla enerġija, plagg maħlul, enerġija mitfijatage. | Check power cord connection, ensure outlet is functional, check circuit breaker. |
| No heating, but unit is on. | Incompatible cookware, no cookware present, cookware not centered. | Use magnetic-compatible cookware, place cookware on the heating zone, center the pot/pan. |
| Kodiċi ta' żball muri. | Specific internal error (e.g., overheating, sensor issue). | Refer to the specific error code in a more detailed manual (if available) or contact customer support. Unplug and plug back in after 10 minutes. |
| Storbju mhux tas-soltu waqt it-tħaddim. | Normal fan operation, vibration from cookware. | A low hum from the cooling fan is normal. Ensure cookware is stable on the surface. |
| L-ikel mhux qed jissajjar b'mod uniformi. | Cookware not flat, incorrect heat setting. | Use flat-bottomed, high-quality induction-compatible cookware. Adjust temperature as needed. |
If the problem persists after attempting these solutions, please contact Zomagas customer support.
7. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | ALP-A80 |
| Brand | Żomagas |
| Output ta 'Qawwa | 1800W |
| Voltage | 120V (Standard US) |
| Firxa tat-Temperatura | 140°F - 460°F (60°C - 240°C) |
| Tip ta' Kontroll | Knob and Touch Panel with LCD Screen |
| Elementi li jsaħħnu | 1 |
| Dimensjonijiet tal-Prodott (P x W x H) | 16.4" x 12.9" x 4" |
| Piż tal-oġġett | 13.37 liri (madwar 6.06 kg) |
| Materjal | Stainless Steel, Microcrystalline Glass |
| Ċertifikazzjoni | ETL Ċertifikat |
8. Garanzija u Appoġġ
Zomagas products are manufactured with quality and durability in mind. For warranty information, product support, or service inquiries, please refer to the warranty card included with your purchase or visit the official Zomagas websit.
Please have your model number (ALP-A80) and purchase date available when contacting support.
Appoġġ onlajn: Visit the Zomagas Store on Amazon
