1. Prodott Aktarview
The Mobvoi Treadmill Plus is a versatile and compact fitness device designed for walking, workstation use, and running. It features a foldable design for easy storage, an LED display, remote control, and smart app connectivity.
Figure 1: Mobvoi Treadmill Plus in running and walking configurations.
2. Kontenut tal-Pakkett
Before assembly, please verify that all components are present in the package:
- Manwal ta' Istruzzjoni x1
- Phone Mount x1
- Safety Key x1
- Kontroll mill-bogħod x1
- Open Wrench x1
- 5mm & 6mm L-shaped Wrench Set x1
- Socket Wrench x1
- Marda Aġġustabbli x2
- 4.2 x 16mm Screw x2
- Lubricant Oil x1
- 1.8 m Power Cord x1
Figure 2: All components included in the Mobvoi Treadmill Plus package.
3. Setup u Assemblea
The Mobvoi Treadmill Plus is designed for minimal assembly. Follow these steps to prepare your treadmill for use:
- Unpack the Treadmill: Neħħi bir-reqqa l-komponenti kollha mill-imballaġġ.
- Waħħal Saqajn Aġġustabbli: Screw the two adjustable feet into the designated slots at the bottom of the treadmill.
- Install Phone Mount: Secure the phone mount onto the handle using the provided screws and wrenches.
- Raise the Handlebar: Lift the handlebar into the upright position until it locks securely. Ensure the fixed lock design is engaged.
- Qabbad l-Enerġija: Plug the 1.8m power cord into the treadmill and then into a suitable power outlet.
- Pjazzament: Position the treadmill on a flat, stable surface. Avoid placing the treadmill on a carpet, as this may reduce ventilation and cooling efficiency, potentially leading to motor burnout.
Figure 3: Folding and unfolding the treadmill for setup and storage.
4. Istruzzjonijiet Operattivi
4.1 Ċavetta tas-Sigurtà
The safety key is a critical safety feature. Always attach the magnetic safety key to the designated area on the treadmill console and clip the other end to your clothing before starting any exercise. If the safety key is detached, the treadmill will stop immediately.
4.2 Power On/Off
To power on the treadmill, ensure the power cord is connected and press the power button located on the front of the unit. To power off, press the power button again or detach the safety key for an emergency stop.
4.3 Modi ta' Eżerċizzju
The Mobvoi Treadmill Plus offers three distinct exercise modes:
- Modalità Mixi: Speed range from 1 to 6 km/h. Ideal for light activity or walking while working.
- Workstation Mode: Speed range from 1 to 6 km/h. Designed for use with a standing desk.
- Mod ta 'Ġiri: Speed range from 1 to 12 km/h. For jogging and running exercises.
Figure 4: The three operational modes of the Mobvoi Treadmill Plus.
4.4 Aġġustament tal-veloċità
Speed can be adjusted using two methods:
- Console Buttons: Use the '+' and '-' buttons on the treadmill's console to increase or decrease speed. Shortcut buttons '3' and '6' allow instant adjustment to 3 km/h and 6 km/h respectively.
- Kontroll mill-bogħod: The included remote control provides convenient adjustment of speed and start/stop functions.
Figure 5: LED display and control options (console buttons and remote control).
4.5 Display LED
The integrated LED display cycles through key exercise data every 5 seconds, including speed, duration, distance, and calories burned. This allows for real-time tracking of your workout progress.
4.6 Speaker Bluetooth
The treadmill features a built-in Bluetooth speaker. To use it, connect your smartphone or other audio device via Bluetooth. This allows you to play music or other audio during your workout.
4.7 Smart App Connectivity
Enhance your workout experience by connecting the treadmill to various fitness applications:
- TicSports App: This AI-powered app provides personalized daily plans, real-time metrics, and instant AI coaching feedback. It syncs live with your treadmill to help you train effectively.
- Virtual Training (Zwift & Kinomap): Seamlessly connect to platforms like Zwift and Kinomap via your device for immersive virtual racing and scenic trail experiences.
- Smartwatch Connection: Connect your smartwatch (compatible with the Mobvoi Treadmill app from Google Play Store) to the treadmill for a unified fitness hub, tracking your data comprehensively.
Figure 6: Features of the TicSports AI-powered treadmill app.
Figure 7: Smartwatch connectivity and virtual training experience.
5. Manutenzjoni
5.1 Lubrikazzjoni
Regular lubrication of the running belt is essential for optimal performance and longevity. Use the provided lubricant oil as instructed in the detailed user manual (separate document) to apply to the running belt. The frequency of lubrication depends on usage.
5.2 Tindif
Imsaħ it-treadmill b'reklamaramp cloth after each use to remove sweat and dust. Avoid using abrasive cleaners or solvents that could damage the surfaces.
5.3 Aġġustament taċ-Ċinturin tat-Tmexxija
Periodically check the running belt for proper alignment and tension. If the belt is off-center or slipping, refer to the detailed user manual for instructions on how to adjust it using the provided tools.

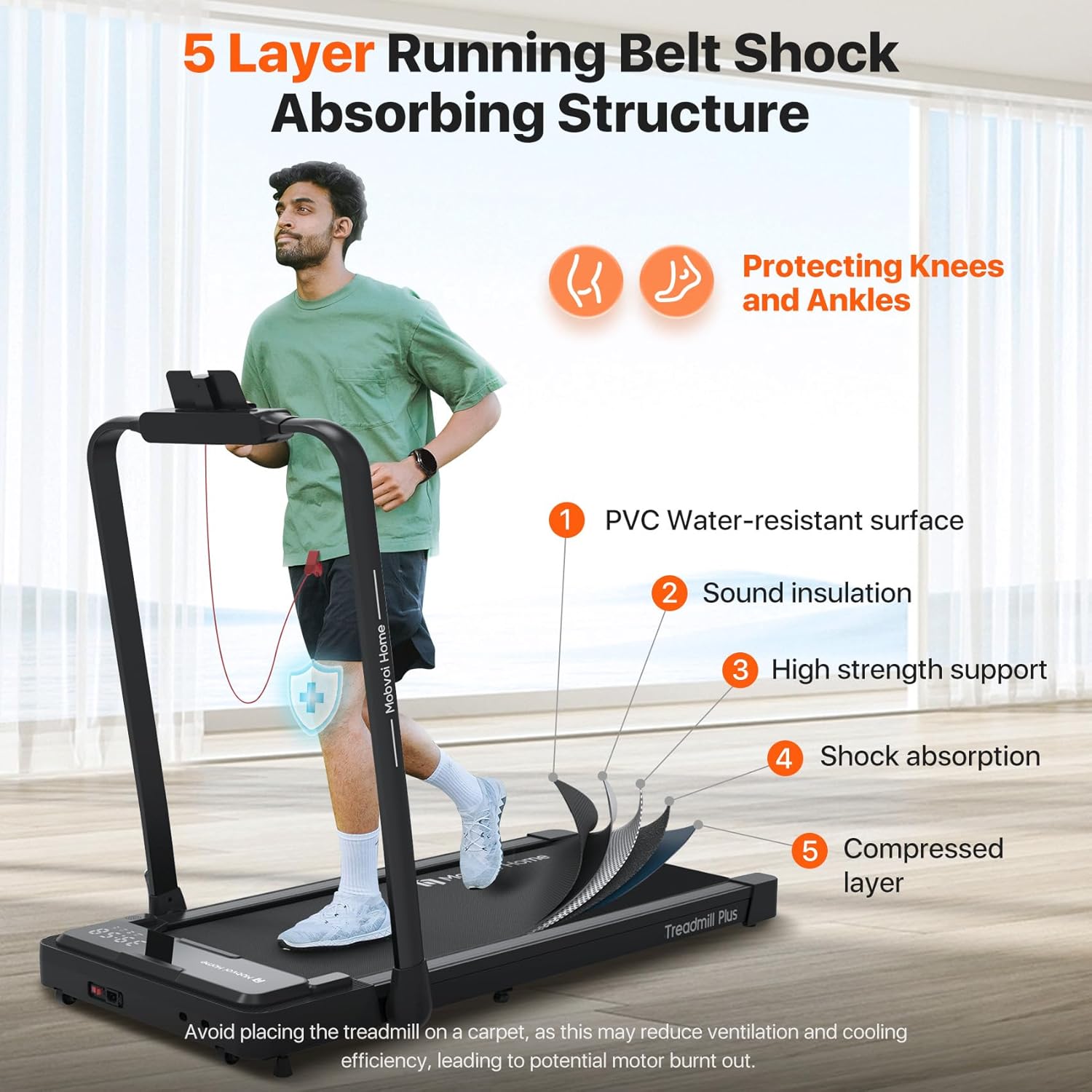

Figure 8: The 5-layer shock-absorbing running belt structure.
6 Issolvi l-problemi
6.1 It-Treadmill Mhux Jibda
- Check Safety Key: Ensure the magnetic safety key is correctly attached to the console. The treadmill will not operate without it.
- Konnessjoni tal-Enerġija: Verify that the power cord is securely plugged into both the treadmill and the wall outlet.
- Swiċċ tal-Enerġija: Confirm the main power switch on the treadmill is in the 'ON' position.
6.2 Ħsejjes Mhux tas-Soltu
- Lubrikazzjoni: A dry running belt can cause friction and noise. Refer to the maintenance section for lubrication instructions.
- Allinjament taċ-ċinturin: An improperly aligned belt can rub against the side rails. Adjust the belt as per the maintenance guidelines.
- Partijiet maħlula: Iċċekkja għal xi viti jew komponenti maħlula u issikkahom jekk meħtieġ.
6.3 Qari Mhux Preċiż
- Kalibrazzjoni mill-ġdid: If speed or distance readings appear inaccurate, consult the detailed user manual for potential recalibration procedures.
- Sinkronizzazzjoni tal-App: Ensure your TicSports app or other connected apps are properly synced and updated.
7. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | Treadmill Plus |
| Brand | Mobvoi |
| Qawwa tal-Mutur | 2.5 HP |
| Veloċità Massima | 12 km/h |
| Kapaċità massima tal-piż | 120 Kilogrammi |
| Żona tat-Tlielaq (T x W) | 102 ċm x 42 ċm |
| Dimensjonijiet tal-Prodott (Miftuħ) | 113 x 64.2 x 124 ċm |
| Dimensjonijiet tal-Prodott (Mitwija) | 138 x 64.2 x 12 ċm |
| Piż tal-oġġett | 25 Kilogrammi |
| Livell ta' Storbju | <60 dB |
| Tip ta 'Wiri | LED (Speed, Distance, Calories Burned) |
| Materjal tal-qafas | Azzar tal-Karbonju |
| Sors tal-Enerġija | Corded Elettriku |
| Karatteristiċi Speċjali | Built-In Speaker, Compact Design, Foldable, Portable, Wheeled |
Figure 9: Key performance specifications of the Mobvoi Treadmill Plus.
Figure 10: Expanded running area dimensions.
8. Garanzija u Appoġġ
8.1 Appoġġ għall-Klijent
For any inquiries, technical assistance, or support regarding your Mobvoi Treadmill Plus, please contact Mobvoi's specialized customer support. Refer to the contact information provided in your product registration or on the official Mobvoi websit.
8.2 Ritorni
This item is returnable. Please refer to the retailer's return policy for specific terms and conditions regarding returns and exchanges.
