1. Prodott Aktarview

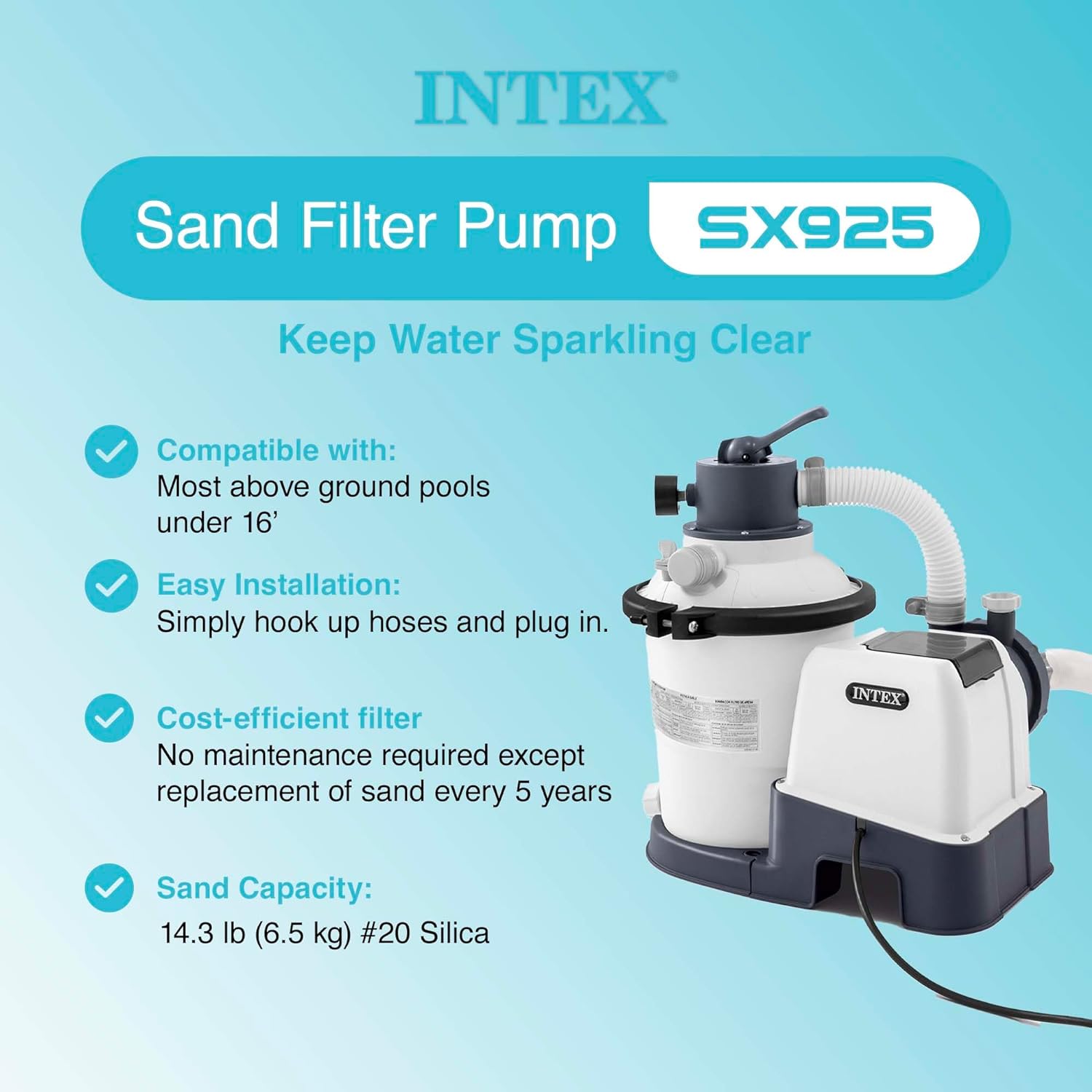

The Intex Krystal Clear Sand Filter Pump (Model 26641EG) is designed for above-ground pools to provide efficient water filtration. This system utilizes sand as a filter medium, which requires less frequent replacement compared to traditional cartridge filters. The bundle includes a 50 lb bag of OptiFlow Premium Pure Silica Filter Sand, engineered for superior performance and water clarity.
Key features of this system include:
- Teknoloġija tal-Arjazzjoni Idroelettrika: Enhances water circulation, filtration, and clarity by increasinjoni negattivi g fuq il-wiċċ tal-ilma.
- Installazzjoni faċli: Requires minimal assembly; simply connect hoses and plug in.
- Timer ta' 24 siegħa: Built-in timer with pre-set cycles (2 to 12 hours) for automatic operation, simplifying pool maintenance.
- Cost-Efficient Filtration: Sand filter medium typically requires replacement only once every five years.
- Four Functions: Supports filtration, circulation, backwash, and drain operations.
2. Speċifikazzjonijiet
| Attribut | Dettall |
|---|---|
| Brand | Intex |
| Numru tal-Mudell | 26641EG |
| Rata tal-Fluss tal-Pompa | 925 GPH (gallun fis-siegħa) |
| Kapaċità tar-ramel | 50 lb (bundled with OptiFlow Premium Pure Silica Filter Sand) |
| Materjal | Plastik, Stainless Steel |
| Sors tal-Enerġija | AC/DC |
| UPC | 193802398007 |
| Compatible Pool Type | Pixxini 'l fuq mill-Art |
3. Istruzzjonijiet ta' Setup
Before beginning installation, ensure all components are present and undamaged. Refer to the owner's manual for a complete parts list.
- Positioning the Pump: Place the sand filter pump on a firm, level surface near your above-ground pool. Ensure it is at least 10 feet (3 meters) from the pool and has access to a GFCI-protected electrical outlet.
- Filling the Sand Tank:
- Neħħi l-valv b'ħafna portijiet (MPV) minn fuq it-tank tal-filtru.
- Carefully pour the OptiFlow Premium Pure Silica Filter Sand into the tank. Consult the pump's manual for the exact sand quantity required for your specific model (typically 14.3 lbs for the 925 GPH model, but the bundle includes 50 lbs).
- Ensure the standpipe is centered while filling to prevent sand from entering it.
- Once filled, replace the MPV, ensuring a tight seal.
- Manek tal-Konnessjoni:
- Connect the pool's return line to the "RETURN" port on the MPV.
- Connect the pool's suction line (from the skimmer or main drain) to the "PUMP" inlet on the filter pump.
- Connect the filter pump's outlet to the "PUMP" port on the MPV.
- Kun żgur li l-konnessjonijiet kollha huma sikuri biex tevita t-tnixxijiet.
- Ipprajmjar il-Pompa: Before starting, ensure the pool is filled to the appropriate level and all air is bled from the system. Follow the priming instructions in your detailed owner's manual.
Video 1: This video provides a visual guide to setting up and operating the Intex Krystal Clear Sand Filter Pump, including filling the sand and connecting hoses. It also demonstrates the filtration process and maintenance steps.
4. Istruzzjonijiet Operattivi
The sand filter pump features a multi-port valve (MPV) with several settings for different operations. Always turn off the pump before changing the MPV setting.
- Filtru (Tħaddim Normali): This setting is used for daily filtration. Water is pumped through the sand bed, trapping debris, and then returned to the pool.
- Irriċirkola: This setting bypasses the filter sand and circulates water directly back to the pool. Useful for mixing chemicals without filtering.
- Waste/Drain: This setting bypasses the filter and sends water directly out of the waste port. Used for lowering pool water level or vacuuming heavy debris directly to waste.
- Laħlaħ: Used after backwashing to flush out any remaining loose dirt from the sand bed before returning to filter mode.
- Magħluq: Shuts off all flow to the filter and pump. Use this setting when performing maintenance on the pump or filter.
The built-in 24-hour timer allows you to automate the pump's operation. Set the desired run time (2 to 12 hours) for consistent daily filtration.
5. Manutenzjoni
Manutenzjoni regolari tiżgura prestazzjoni ottimali u lonġevità tal-pompa tal-filtru tar-ramel tiegħek.
- Ħasil b'lura:
- Monitor the pressure gauge. When the pressure rises 3-5 PSI (0.21-0.35 BAR) above the clean operating pressure, it's time to backwash.
- Itfi l-pompa.
- Set the MPV to "BACKWASH".
- Ixgħel il-pompa u ħaddimha sakemm l-ilma li joħroġ mill-port tal-iskart ikun ċar (tipikament 1-2 minuti).
- Itfi l-pompa.
- Set the MPV to "RINSE".
- Turn on the pump and run for about 30 seconds to flush the lines.
- Itfi l-pompa.
- Set the MPV back to "FILTER" for normal operation.
- Sostituzzjoni tar-Ramel: The filter sand typically needs to be replaced only once every five years. Over time, sand grains wear down and become less effective at trapping debris.
- Winterization: At the end of the swimming season, properly winterize your pump to prevent damage from freezing temperatures. Drain all water from the pump, filter tank, and hoses. Store the pump and filter in a dry, protected area.
6 Issolvi l-problemi
Jekk tiltaqa' ma' problemi bil-pompa tal-filtru tar-ramel tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Flow Ilma Baxx | Clogged skimmer basket or pump strainer; dirty filter sand; air leak in suction line. | Clean baskets; backwash/rinse filter; check all connections for air leaks. |
| Ilma tal-Pixxina Mdardar | Insufficient filtration time; dirty filter sand; improper chemical balance. | Żid il-ħin tal-filtrazzjoni; ħasil b'lura/laħlaħ il-filtru; ittestja u aġġusta l-kimiċi tal-pixxina. |
| Pompa Mhux Bidu | Bla enerġija; GFCI qata’; problema bil-mutur. | Check power supply and GFCI; consult a qualified technician if motor fails. |
| Tnixxija ta 'Ilma | Loose connections; damaged O-rings/gaskets. | Issikka l-konnessjonijiet; spezzjona u ibdel l-O-rings/gaskets kif meħtieġ. |
For more detailed troubleshooting, refer to the complete owner's manual provided with your product.
7. Garanzija u Appoġġ
Intex products are manufactured with high-quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. Intex warrants this product against defects in materials and workmanship for a period specified in the warranty card included with your product. The warranty period is effective from the date of purchase.
For warranty claims, technical support, or to order replacement parts, please contact Intex Customer Service. Keep your proof of purchase and model number readily available when contacting support.
Informazzjoni ta' Kuntatt: Refer to your product packaging or the official Intex webis-sit għad-dettalji ta' kuntatt tas-servizz tal-konsumatur l-aktar aġġornati.
