Manwal tal-Utent tat-Tinda u s-Saqqijiet tal-Arja JoyTutus għat-Trakkijiet Pickup

1. Introduzzjoni

This manual provides detailed instructions for the safe and effective setup, operation, and maintenance of your JoyTutus Pickup Truck Tent with Awning and JOYTUTUS Truck Bed Air Mattress. Please read this guide thoroughly before initial use to ensure a proper and enjoyable experience.

The complete JoyTutus camping setup, featuring the truck bed tent with its extended awning and the inflatable air mattress designed for truck beds.

2. Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

• 1 x Truck Tent
• 1 x Borża tal-Ġarr tat-Tinda
• 6 x Aluminum Tent Poles (for tent frame)
• 1 x User Guide (printed on carry bag)
• 1 x Truck Bed Air Mattress
• 1 x Air Pump (for mattress)
• 1 x Mattress Carry Bag
• 1 x Cup Holder (integrated into mattress design)

3. Twissijiet tas-Sigurtà

• Never smoke inside the tent.
• Never use candles, light matches, or allow any type of open flame in or near the tent.
• Sajjarx ġewwa t-tinda.
• Taħżinx likwidi li jaqbdu ġewwa t-tinda.
• Always allow adequate ventilation inside the tent at all times.
• Never run the engine when the tent is attached to the vehicle.
• When the temperature is below freezing, do not install the tent when your vehicle is wet as it may cause damage.
• Tippruvax issuq il-vettura bit-tinda mwaħħla.

4. Truck Tent Setup

4.1. Assemblaġġ tal-Arblu

Unpack the tent and lay it flat on the ground or in the truck bed. Assemble the tent poles by unfolding each section. The poles are connected by an elastic cord for easy assembly. You will have three different lengths of poles: two medium (A-poles), one long (B-pole), and one short (C-pole).

Close-up of the aluminum alloy tent rods, highlighting their lightweight, sturdy, and flexible properties. These rods are used for the tent's frame.

4.2. Tent Frame Setup

Tip Importanti: Contrary to some printed instructions, it is recommended to insert the longest B-pole first to establish the main structure, then the A-poles, and finally the C-pole. This helps prevent the tent from collapsing during assembly, especially if setting up alone.

1. Identify the longest B-pole (often marked with blue on the pole or sleeve) and insert it into its corresponding sleeve, typically the main arch that defines the tent's height.
2. Next, insert the two medium A-poles (often marked with red or green) into their respective sleeves, crisscrossing them over the B-pole.
3. Finally, insert the shortest C-pole (often unmarked) into its sleeve, usually across the top to provide additional stability.

Official setup guide demonstrating the step-by-step process of assembling and installing the truck tent onto a pickup truck bed. This video covers pole insertion and securing the tent.

An influencer's review highlighting the tent assembly process, including tips for pole insertion order (start with B-pole first, contrary to some instructions) and demonstrating interior space. Note: This video provides user-experience insights that may differ from official instructions.

4.3. Attaching Tent to Truck

1. With the tent frame assembled, carefully lift the tent and place it into the truck bed. It is recommended to have two people for this step.
2. Ensure the tent is centered and positioned correctly within the truck bed.
3. Locate the straps on the tent's edges. These straps have hooks designed to attach to the metal body of your truck, typically around the wheel wells or under the tailgate.
4. Secure all straps and tighten them to ensure a snug fit, preventing the tent from shifting or moving.

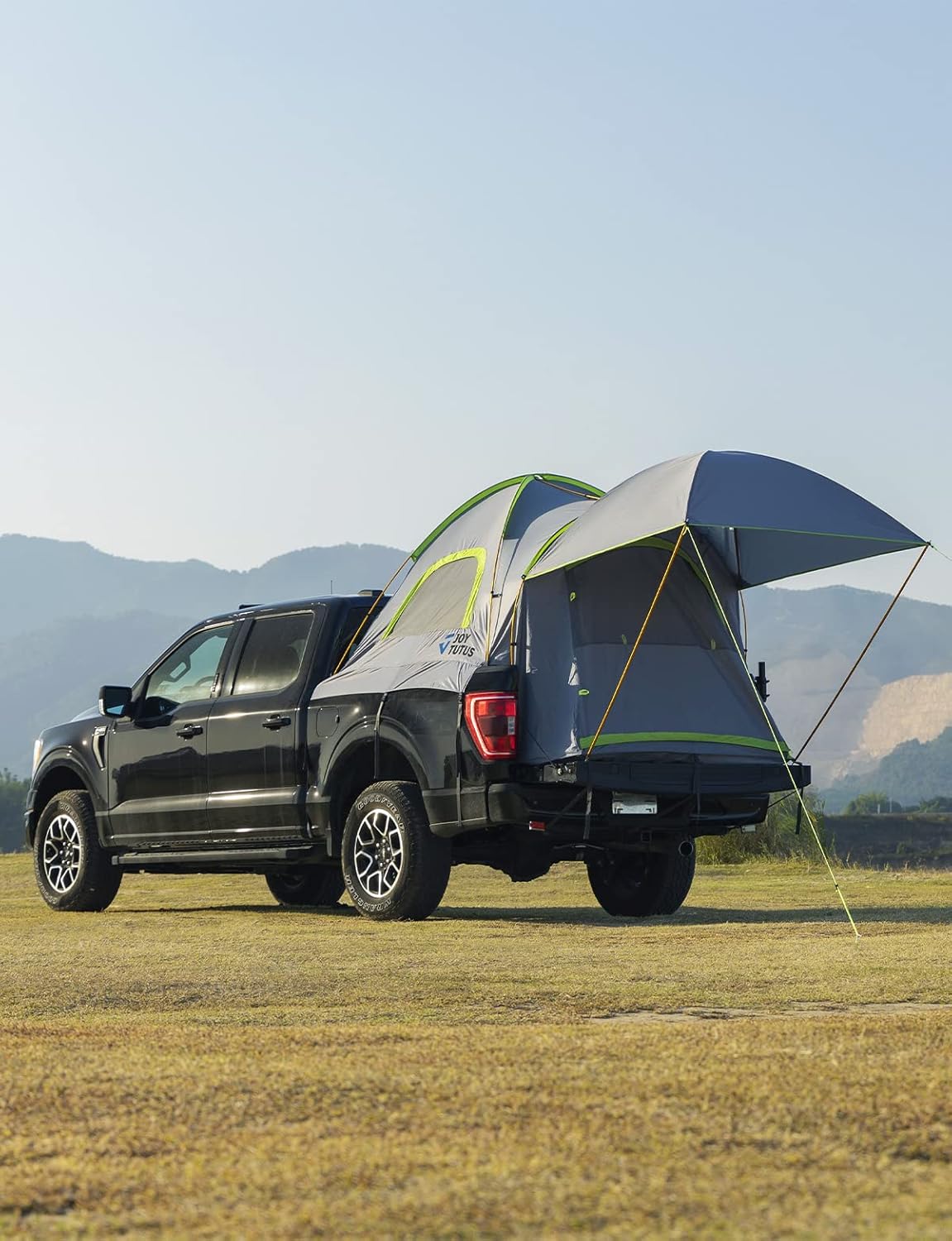

Ġenb view of the truck tent fully installed on a pickup truck, with the awning extended, set in a natural outdoor environment.

5. Air Mattress Setup

1. Unpack the air mattress and lay it flat inside the truck tent.
2. Locate the air valve(s) on the mattress.
3. Use the provided air pump to inflate the mattress to your desired firmness. Ensure the valve is securely closed after inflation.
4. The mattress is designed with a cavity to accommodate wheel wells and includes integrated cup holders and pillows for convenience.

The inflatable air mattress showing its dimensions: 67.8 inches length, 64.6 inches width, and 11.2 inches height. Designed for 5.5-5.8Ft full-size short truck beds.

The air mattress inflated and placed in a truck bed, accompanied by a pump, carry bag, and cup holder, demonstrating its fit and included accessories.

6. Karatteristiċi Operattivi

6.1. Removable Awning

The tent features a 5.4' x 5.4' removable awning that provides shade from the sun or protection from rain. It can be easily stowed away when not in use. The awning is supported by aluminum alloy rods for flexibility and sturdiness.

Ġenb view of the tent showing the expandable awning extended, with approximate dimensions of 65 inches in width and 72.5 inches in depth.

6.2. Windows and Ventilation

The tent has 3 windows: 2 for sightseeing and 1 for observation. All windows feature a double-layer design, allowing you to pull down a shading layer for privacy at night or leave the screen layer for ventilation and to prevent debris from entering during the day.

Inside the tent, showing approximate dimensions: 90.5 inches length, 62.9 inches width, and 66.9 inches height. Features include additional vents, 4 storage pockets, and a sky view vent.

6.3. Bwiet tal-Ħażna

Mesh pockets are integrated into the tent's interior for convenient storage of small items, helping to keep the space tidy.

7. Kompatibilità

The truck bed tent is designed to fit pickup trucks with a 5.5-6 ft bed. Compatible models include, but are not limited to:

• F150
• Ram
• Silverado
• Tundra
• Sierra
• Titan

The air mattress is specifically designed for 5.5-5.8Ft full-size short truck beds.

A detailed table indicating compatibility of the truck tent with different pickup truck brands and models based on bed size (5', 5.5-5.8', 6-6.3', 6.5', 8-8.2').

8. Manutenzjoni u Kura

8.1. Tindif

• Clean the tent and mattress with a damp drapp u sapun ħafif.
• Tużax kimiċi ħarxa jew tindif li joborxu.
• Ensure the tent and mattress are completely dry before packing to prevent mold and mildew.

8.2. Ħażna

• Fold the tent neatly and roll it into the provided carry bag.
• Deflate the air mattress completely and fold it into its carry bag.
• Aħżen f'post frisk u niexef 'il bogħod mix-xemx diretta.

9 Issolvi l-problemi

9.1. Tent Poles Difficult to Insert/Keep Falling Out

• Ħruġ: Poles are difficult to insert or the tent collapses during setup.
• Soluzzjoni: Ensure you are inserting the poles in the correct order. It is often easier to insert the longest (B) pole first to create the main arch, followed by the two medium (A) poles, and then the shortest (C) pole. This provides a more stable structure during assembly.

An influencer's detailed review covering the setup time, potential issues during assembly, and interior height of a similar truck bed tent. Provides practical tips for a smoother setup process.

10. Speċifikazzjonijiet

• Dimensjonijiet tat-tinda: 90.5 x 62.9 x 66.9 pulzieri (Tul x Wisa x Għoli)
• Awning Dimensions: 5.4 x 5.4 pied
• Tent Material: 150D polyester oxford with PU2000 waterproof coating
• Tent Pole Material: Liga tal-aluminju
• Air Mattress Dimensions: 67.8 x 64.6 x 11.2 pulzieri (Tul x Wisa x Għoli)
• Air Mattress Compatibility: 5.5-5.8Ft Full Size Short Truck Beds

A short demonstration showcasing the waterproof capabilities of the pickup truck tent, with water beading and rolling off the tent fabric.

11. Garanzija u Appoġġ

JoyTutus products are manufactured under rigorous quality compliance. If you receive a product that is damaged or has missing parts, please contact us for assistance. We offer a one-year warranty on our products.

For any questions or support, please contact us via Amazon or email: servizz@joytutus.com. Aħna se nirrispondu fi żmien 24 siegħa.
