Introduzzjoni
This manual provides essential information for the safe and effective use of your REDLIRO Walking Treadmill Model JK10F. Please read all instructions carefully before assembly and operation. Keep this manual for future reference.

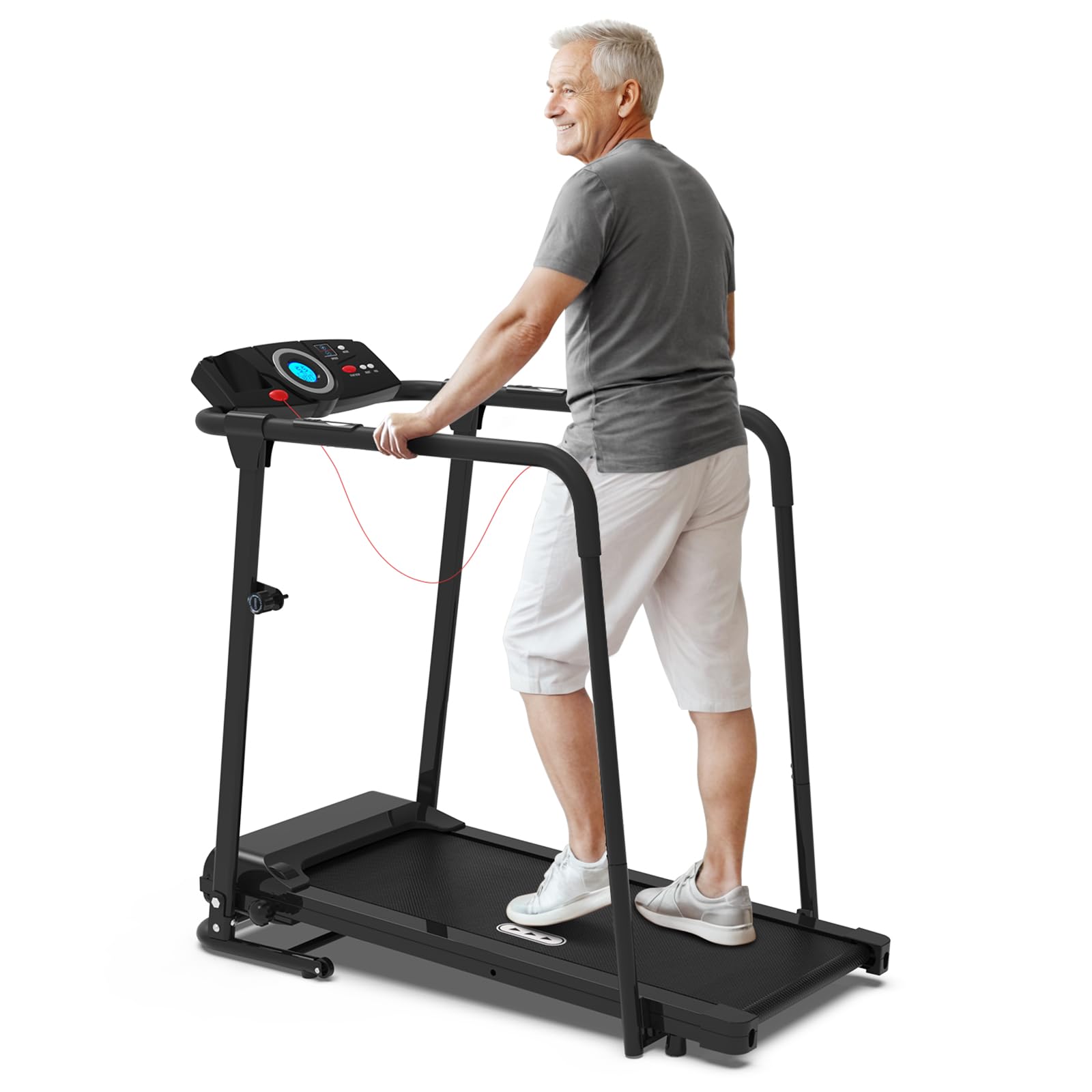

Image: The REDLIRO Walking Treadmill Model JK10F, featuring long handrails, being used by an elderly man for exercise.
Istruzzjonijiet tas-Sigurtà
Biex tiżgura tħaddim sikur u tevita korrimenti, segwi l-linji gwida ta' sigurtà li ġejjin:
- Always place the treadmill on a flat, stable surface with at least 2 feet of clear space around it.
- Ensure the safety key is properly attached to both the console and your clothing before starting.
- Tħallix tfal jew annimali domestiċi ħdejn it-treadmill waqt it-tħaddim.
- Ikkonsulta tabib qabel tibda xi programm ġdid ta' eżerċizzju.
- The maximum user weight capacity is 300 lbs. Do not exceed this limit.
- Always hold onto the handrails for balance, especially when starting or stopping the treadmill.
- Stop the treadmill immediately if you feel faint, dizzy, or experience pain.
- Aqla’ t-treadmill mill-plagg tal-elettriku meta ma tkunx qed tużah jew qabel it-tindif/manutenzjoni.
- Do not operate the treadmill if it has a damaged cord or plug, or if it is not working correctly.
Image: A visual comparison highlighting the enhanced support and stability provided by the long handrails of the REDLIRO treadmill compared to a treadmill with shorter handrails.
Istruzzjonijiet ta' Armar
Assembly requires two people. Please ensure all parts are present before beginning. Refer to the included user manual for detailed diagrams.
Komponenti Inklużi:
Image: A display of all components included in the package: the treadmill base, user manual, handrail covers, tool kit, safety key, locking switch, and folding lock button.
- Ħoll il-Komponenti: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify all components listed in the manual are present.
- Waħħal Postijiet Vertikali: Secure the upright posts to the treadmill base using the provided bolts. Ensure they are firmly tightened.
- Installa Poġġamani: Slide the long handrails onto the upright posts. Ensure they are properly aligned and secured.
- Immuntar tal-Konsola: Attach the console to the top of the upright posts. Connect any necessary cables from the console to the main unit.
- Secure Handrail Covers: Place the handrail covers over the handrails as indicated in the manual.
- Kontrolli Finali: Double-check all bolts and connections to ensure they are secure.
Image: The treadmill shown in both its operational and folded states, demonstrating its space-saving design and removable handles for compact storage.
Istruzzjonijiet Operattivi
Nibdew:
- Konnessjoni tal-Enerġija: Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.
- Ċavetta tas-Sigurtà: Attach the safety key clip to your clothing and place the magnetic end onto the designated area on the console. The treadmill will not start without the safety key in place.
- Qawwa Mixgħul: Press the "START" button on the console or the handrail. The display will illuminate.
Funzjonijiet tal-Console:
Image: A close-up of the treadmill's console, showing the LCD display and various control buttons for functions like speed, time, distance, calories, steps, heart rate, manual mode, and preset programs.
- Wiri: The LED display shows Time, Speed, Distance, Calories, and Heart Rate.
- Aġġustament tal-veloċità: Use the "SPEED +" and "SPEED -" buttons on the console or handrails to adjust walking speed (0.5 - 5.5 MPH). Speed can be adjusted in 0.1 MPH increments.
- Programmi Preset: Press the "MODE" button to cycle through 12 preset programs. Each program has varying speed profiles.
- Modalità Manwali: Select manual mode to control speed directly.
- Monitor tar-rata tal-qalb: Grip the heart rate sensors on the handrails to display your pulse on the console.
- Waqqaf: Press the "STOP" button on the console or handrail, or pull the safety key, to stop the treadmill.
Image: A user demonstrating control of the treadmill's speed and start/stop functions using both the main console and the integrated buttons on the handrails.
Immaġni: Dettaljata view of the handrail-mounted buttons, including controls for speed and start/stop, along with integrated heart rate sensors for convenient monitoring during exercise.
Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tat-treadmill tiegħek.
- Tindif: Imsaħ l-uċuħ tat-treadmill b'reklamiamp drapp wara kull użu. Evita prodotti tat-tindif li joborxu.
- Lubrikazzjoni taċ-Ċinturin: The running belt requires periodic lubrication. Refer to the specific instructions in your user manual for the correct type and frequency of lubrication.
- Tensjoni u Allinjament taċ-Ċinturin: Check the running belt for proper tension and alignment regularly. Adjust as needed according to the manual's instructions to prevent slipping or uneven wear.
- Ħażna: When not in use, the treadmill can be folded for compact storage. Ensure it is unplugged before folding.
Image: A close-up of the treadmill's running surface, highlighting its diamond texture for enhanced traction and the durable 5-layer shock-absorbing shield designed for user safety and comfort.
Issolvi l-problemi
Jekk tiltaqa' ma' problemi bit-treadmill tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| It-treadmill ma jibdax. | Power cord unplugged, safety key not in place, power switch off. | Ensure power cord is securely plugged in. Verify safety key is correctly positioned. Check if the main power switch is ON. |
| Iċ-ċinturin tal-ġiri jiżloq jew joqgħod lura. | Belt too loose, belt needs lubrication, user weight exceeds capacity. | Adjust belt tension according to manual. Lubricate the belt. Ensure user weight is within the 300 lbs limit. |
| Storbju mhux tas-soltu waqt it-tħaddim. | Komponenti laxki, problema bil-mutur, frizzjoni taċ-ċinturin. | Check all assembly bolts for tightness. Lubricate the belt. If noise persists, contact customer support. |
| Il-wiri ma jaħdimx sew. | Konnessjoni tal-kejbil maħlula, problema bl-enerġija. | Check console cable connections. Ensure stable power supply. |
Speċifikazzjonijiet tal-Prodott
| Karatteristika | Dettall |
|---|---|
| Brand | REDLIRO |
| Isem tal-Mudell | JK10F |
| Qawwa tal-Mutur | 2.25 HP |
| Medda ta' Veloċità | 0.5 - 5.5 mph |
| Kapaċità massima tal-piż | 300 Liri |
| Dimensjonijiet tal-Prodott (LxWxH) | 48.4"D x 25.2"W x 46.4"H |
| Daqs mitwi | 51.5" x 27.5" x 8.8" |
| Wiċċ tat-Tlielaq (Tul tal-Gverta x Wisa') | 39.4" x 15.39" |
| Piż tal-oġġett | 61.8 Liri |
| Materjal | Akrilonitril Butadiene Styrene (ABS), Azzar Liga, Aluminju |
| Tip ta 'Wiri | LED |
| Karatteristiċi Speċjali | Foldable, Heart Rate Monitor, Portable, Shock Absorbent, Wheeled, Long Handrails |
Image: An illustration detailing the key dimensions of the REDLIRO Walking Treadmill, including length, width, height, and its 300 lbs weight capacity.
Immaġni: Maqtugħ view of the treadmill's internal motor, highlighting its 2.25 HP power, 0.5-5.5 mph speed range, and quiet operation (≤ 45dB).
Garanzija u Appoġġ
The REDLIRO Walking Treadmill Model JK10F comes with a Garanzija tal-Manifattur ta' 1 Snin. Din il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu normali.
For warranty claims, technical assistance, or any questions regarding your product, please contact REDLIRO customer support through the retailer where the product was purchased or visit the official REDLIRO websit għal informazzjoni ta' kuntatt.
Please have your model number (JK10F) and purchase date available when contacting support.
