Manwal tal-Utent tal-Immuntar tal-Ħajt tat-TV XINLEI MA1079M b'Driegħ Twil ta' 30 Pulzier b'Mozzjoni Sħiħa

Informazzjoni Importanti dwar is-Sigurtà

Please read this entire manual before installation and assembly. If you have any questions regarding these instructions or the safety of the installation, please contact customer support. The manufacturer is not responsible for damage or injury caused by incorrect assembly or installation.

• Kapaċità tal-piż: This TV wall mount is designed for televisions weighing up to 132 lbs (60 kg). Do not exceed this weight limit.
• Daqs tal-iskrin: Compatible with most 32-84 inch TVs.
• Kompatibbiltà VESA: Supports VESA patterns from 200x100mm to 600x400mm. Verify your TV's VESA pattern before installation.
• Tip ta' Ħajt: This mount is designed for installation on wood studs (max 16 inches apart), concrete, and brick walls. Tinstallax fuq drywall waħdu.
• Għodod: Ensure you have all necessary tools before beginning installation.
• Għajnuna: Due to the weight and size of the TV mount and television, a minimum of two people are recommended for safe installation.

Kontenut tal-Pakkett

Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or defective, contact customer support.

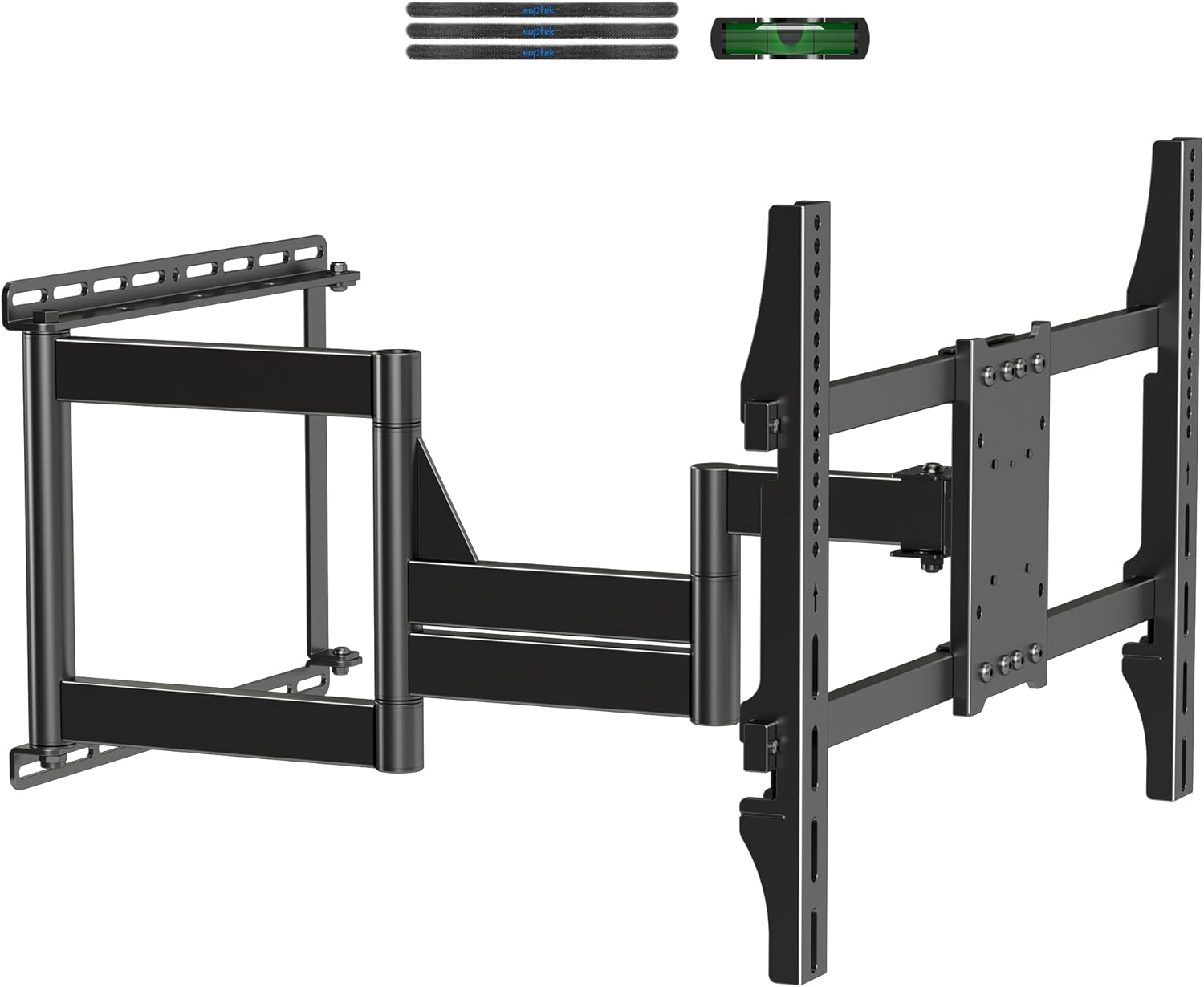

Image: All components of the XINLEI MA1079M TV Wall Mount, including the main articulating arm assembly, TV brackets, wall plate, and various screws and hardware.

• Wall Plate Assembly with Articulating Arms
• TV Bracket Arms (2x)
• Kit tal-Ħardwer tal-Immuntar (diversi viti, woxers, spacers, ankri)
• Ċavetta Hex
• Small Bubble Level
• Manwal ta' Istruzzjoni

Speċifikazzjonijiet

Image: Detailed dimensions of the XINLEI MA1079M TV Wall Mount, illustrating its extension, height, and width measurements for planning installation.

Gwida għall-Installazzjoni (Setup)

Follow these steps carefully for a secure installation. It is highly recommended to watch the installation video for visual guidance.

Step 1: Assemble the Supporting Plate

Attach the horizontal support bars to the main wall plate using the provided screws and hex key. Ensure all connections are tight and secure.

Step 2: Attach to the Wall

Determine the desired mounting location on your wall. Use the included bubble level to ensure the wall plate is perfectly horizontal. Mark the drilling points for the lag bolts. Drill pilot holes according to the instructions for your specific wall type (wood stud, concrete, or brick). Secure the wall plate to the wall using the appropriate hardware.

Image: Illustration of compatible wall types for installation, including wood stud, concrete wall, and brick wall, with a warning against drywall-only installation.

Step 3: Hang Supporting Plate to the Bracket

Once the main wall plate is securely mounted, attach the articulating arm assembly to the wall plate. Ensure all pivot points are correctly aligned and secured with the designated bolts.

Step 4: Attach Hooks and TV Brackets to the TV

Lay your TV face down on a soft, clean surface. Attach the two vertical TV bracket arms to the back of your TV using the appropriate screws, washers, and spacers from the hardware kit. Ensure the VESA holes on your TV align with the bracket holes. The hooks on the TV brackets should face upwards.

Step 5: Hang TV and Secure

With assistance, carefully lift the TV and hook the TV bracket arms onto the wall plate assembly. Once the TV is securely hung, tighten the safety screws located at the bottom of the TV bracket arms to prevent accidental dislodging. Organize cables using the provided cable ties.

Immaġni: Close-up view highlighting the upgraded sturdy design of the mount, featuring a thicker pivot shaft and triangular reinforcement for enhanced load bearing up to 132 lbs.

Istruzzjonijiet Operattivi

The XINLEI MA1079M TV Wall Mount offers full motion capabilities for optimal viewing.

Estensjoni u Irtirar

Gently pull the TV away from the wall to extend the arm up to 28.94 inches. Push the TV back towards the wall to retract it to a minimum distance of 2.99 inches. Move smoothly to avoid sudden impacts.

Aġġustament tal-Mejjel

The TV can be tilted +5° upwards or -10° downwards to reduce glare and achieve a comfortable viewing angle. Loosen the tilt adjustment knobs on the TV brackets, adjust to the desired angle, and then re-tighten the knobs to secure the position.

Aġġustament li jdur

The articulating arm allows for a swivel range of +/- 90° (left or right), depending on TV size and wall distance. Gently push the TV to the desired swivel angle.

Aġġustament tal-Leveling

After installation, if the TV appears slightly unlevel, you can adjust it by +/- 3°. Consult the specific mechanism on your mount for this fine-tuning, usually involving loosening and re-tightening screws on the TV brackets.

Image: Demonstrates the tilt range (+5° to -10°) and extension/retraction capabilities (2.99" to 28.94") of the TV wall mount, showing how to achieve a perfect viewangolu tal-ing.

Image: Illustrates the flexible viewing options provided by the 3-section swivel arms, allowing the TV to be positioned for optimal viewing from various locations in a room, including corner setups.

Image: Shows the XINLEI MA1079M TV Wall Mount installed in a corner, demonstrating its ability to swivel and extend to accommodate corner placements for 32-84 inch TVs.

Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u t-tħaddim sikur tal-muntatura tal-ħajt tat-TV tiegħek.

• Tindif: Imsaħ il-muntatura b'ċarruta ratba u niexfa. Evita prodotti tat-tindif jew solventi li joborxu li jistgħu jagħmlu ħsara lill-finitura.
• Kontrolli perjodiċi: Iċċekkja l-viti u l-boltijiet kollha perjodikament biex tiżgura li jibqgħu ssikkati. Maż-żmien, il-vibrazzjonijiet jew l-aġġustamenti jistgħu jikkawżaw li l-qafliet jinħallu.
• Lubrikazzjoni: The articulating joints are designed for smooth movement. If movement becomes stiff, a small amount of silicone-based lubricant can be applied to the pivot points.

Issolvi l-problemi

If you encounter issues with your TV wall mount, refer to the following common solutions:

• It-TV mhux livellat: Use the built-in leveling adjustment feature or carefully re-adjust the wall plate if necessary. Ensure the wall plate was installed perfectly level initially.
• Diffikultà biex iċċaqlaq id-driegħ: Check for any obstructions. Ensure all pivot point bolts are not overtightened, which can restrict movement. Apply lubricant if needed.
• It-TV iħoss instabbli: Immediately remove the TV from the mount. Re-check all installation steps, especially the wall attachment and TV bracket security. Ensure the mount is installed on a compatible and sturdy wall type and that the TV's weight does not exceed the mount's capacity.
• Partijiet neqsin: Refer to the package contents list. Contact customer support for replacement parts.

Garanzija u Appoġġ

XINLEI products are manufactured with quality and durability in mind. For specific warranty information, please refer to the documentation included with your purchase or contact XINLEI customer support directly. If you require technical assistance or have questions regarding your MA1079M TV Wall Mount, please reach out to our support team through the retailer's platform or the official XINLEI websit.

We are committed to providing reliable after-sale service and professional technical support to ensure your satisfaction.
