Natural Gas Tankless Water Heater User Manual

1. Informazzjoni Importanti dwar is-Sigurtà

Please read all instructions carefully before installation and operation. Failure to follow these instructions could result in property damage, personal injury, or death. Keep this manual for future reference.

• Ensure proper ventilation for gas appliances.
• Confirm required dimensions and clearances as specified in the installation section.
• Activate the pressure relief valve during freezing conditions to prevent frozen pipe bursts.
• Taħżinx jew tużax gażolina jew fwar u likwidi oħra li jaqbdu fil-viċinanza ta' dan jew kwalunkwe apparat ieħor.

2. Kontenut tal-Pakkett

Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:

• Water Heater Unit (1)
• Installation Instruction Manual (1)
• Vent Pipe (1)

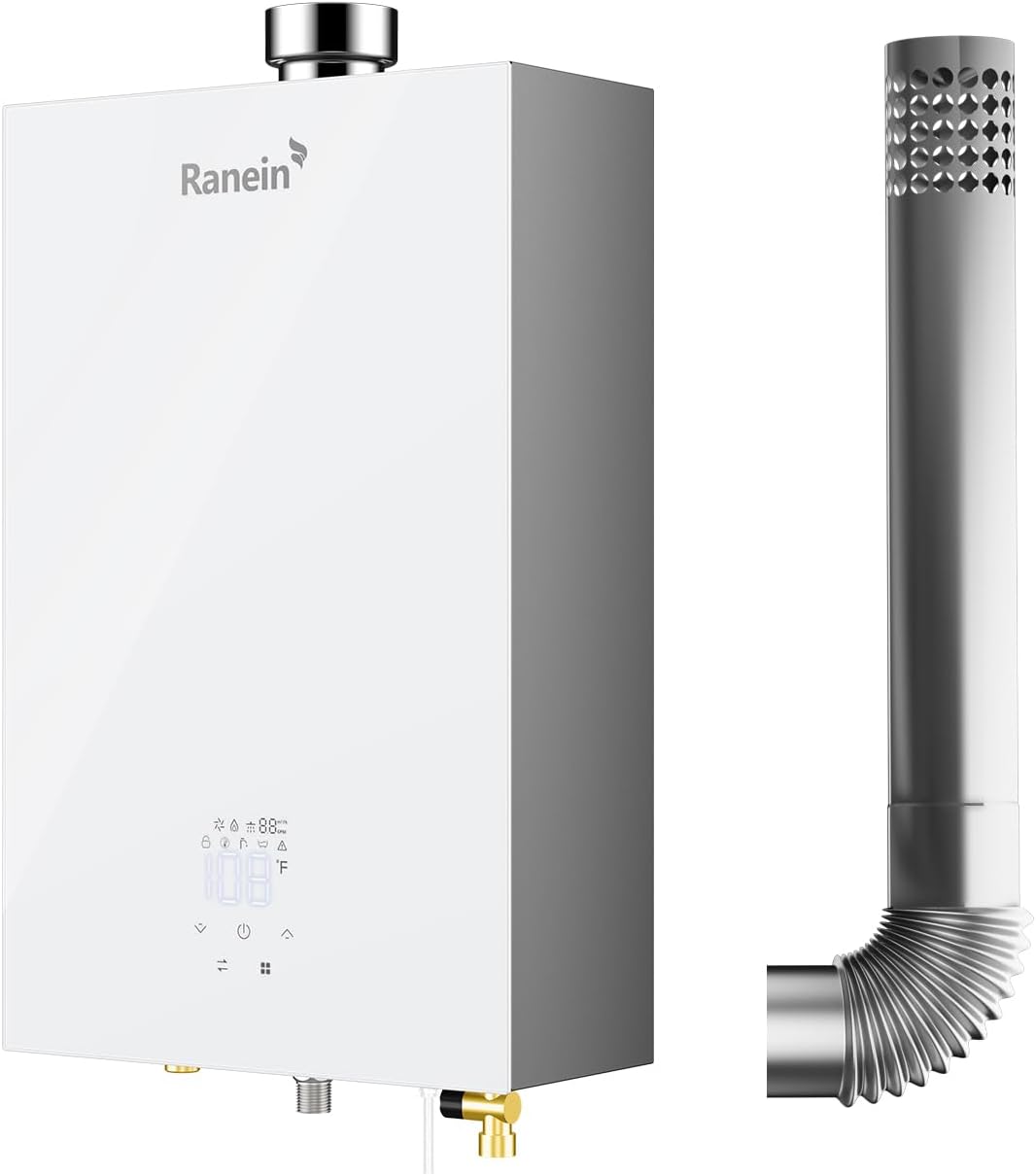

Image: The Ranein Natural Gas Tankless Water Heater unit shown with its accompanying vent pipe.

3. Installazzjoni

Professional installation is recommended for natural gas appliances. Refer to local codes and regulations.

3.1 Iddetermina Post tal-Installazzjoni

Choose a location that is indoors, has adequate ventilation, and is close to gas, water, and electrical connections. Ensure sufficient space around the unit for maintenance and proper airflow. The product dimensions are 21.7" × 13.8" × 6.8".

Immaġni: Eżample installation in a kitchen setting, demonstrating the compact size.

3.2 Immuntar tal-Unità

Use the provided paper drilling template to mark the positions for drilling holes. Secure the mounting bracket to the wall using appropriate fasteners. Carefully lift the water heater and align it with the mounting bracket, ensuring it is securely seated.

3.3 Connect Valves, Water, and Gas Pipes

Connect the hot water outlet, cold water inlet, and gas inlet to the corresponding ports on the bottom of the unit. Ensure all connections are tight and leak-free. Use thread sealant where necessary for gas connections.

3.4 Install Flue Pipe

Attach the provided flue pipe to the top exhaust port of the water heater. Ensure the vent is properly secured and extends outdoors to prevent the accumulation of exhaust gases. The vent should be sloped downwards at a minimum of 3 degrees to prevent rain and condensed water from entering the vent pipe.

4. Twaqqif u Tħaddim Inizjali

After installation, ensure all connections are secure and there are no gas or water leaks. Plug in the power cord. The unit features a smart LED control panel.

4.1 Power On/Off

Agħfas il-buttuna tal-qawwa fuq id-displej LED biex tixgħel jew titfi l-unità.

4.2 Aġġustament tat-Temperatura

Use the up and down arrows on the LED display to adjust the water temperature. The temperature is adjustable from 95°F to 149°F. The upgraded system maintains steady temperatures, eliminating sudden hot/cold spikes.

4.3 Seasonal Modes

The unit features four auto-adaptive seasonal modes that adjust to ambient changes, ensuring consistent comfort. Select the appropriate mode via the control panel.

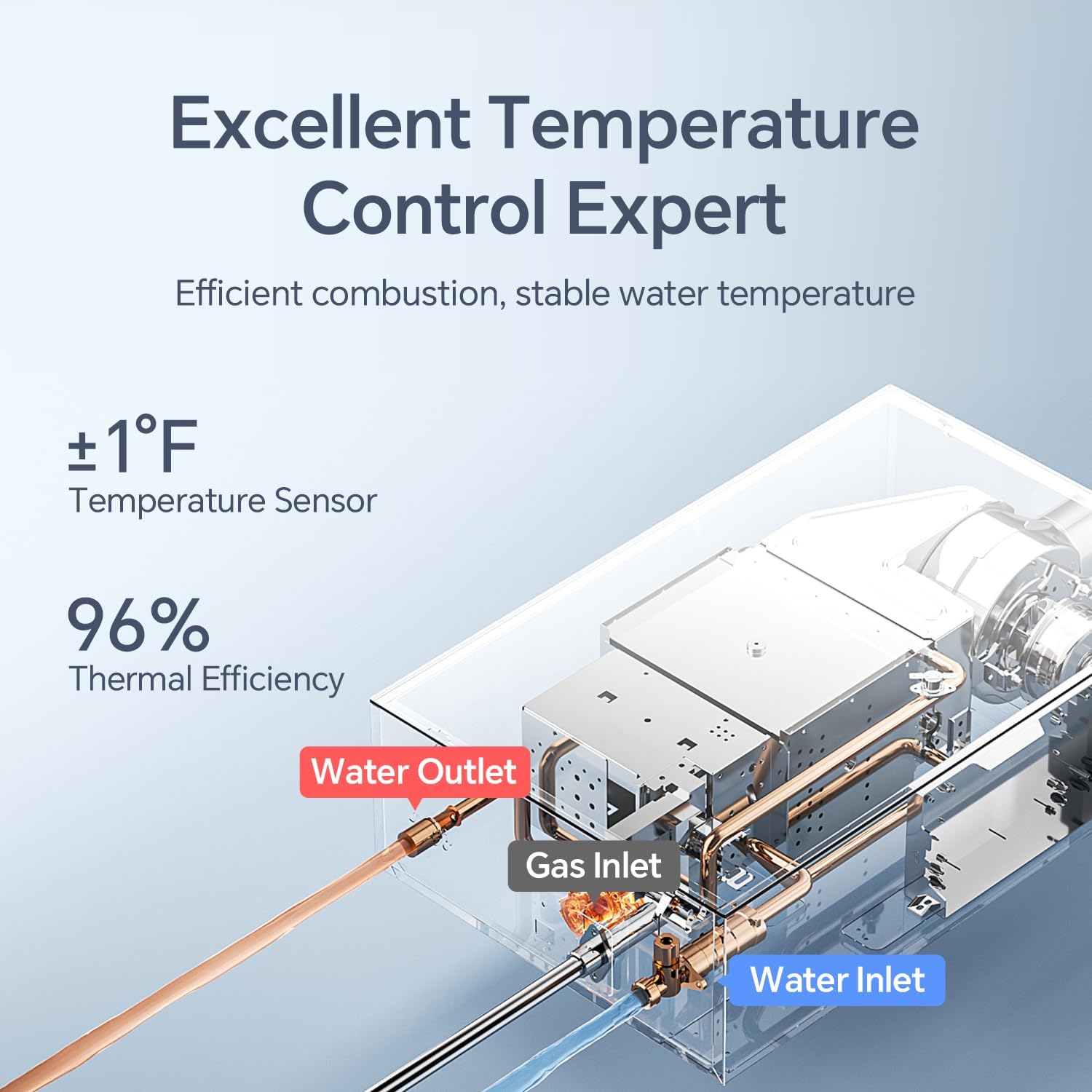

Image: Illustration of the water heater's internal components and temperature control mechanism, highlighting efficient combustion and stable water temperature.

5. Istruzzjonijiet Operattivi

This tankless water heater provides on-demand hot water for 2–3 points of use simultaneously, ideal for apartments, small bathrooms, or kitchens.

5.1 Informazzjoni dwar id-Displej LED

The LED screen displays real-time water temperature, gas flow rates, and water flow rates. It also indicates fault signals if any issues arise.

5.2 Tħaddim Kwiet

The advanced combustion technology lowers operational noise, ensuring quiet performance that will not disturb household tranquility.

Image: The water heater operating with minimal noise, indicated by a 10dB level.

6. Manutenzjoni

Manutenzjoni regolari tiżgura prestazzjoni ottimali u lonġevità tal-water heater tiegħek.

• Tindif: The tempered glass panel resists stains and fingerprints and can be cleaned effortlessly with a soft cloth.
• Valv ta 'Ħelsien mill-Pressjoni: During freezing conditions, activate the pressure relief valve to prevent pipe bursts.
• Skambjatur tas-Sħana: The oxygen-free copper heat exchanger is designed for durability and minimizes heat loss, extending the lifespan of the unit.

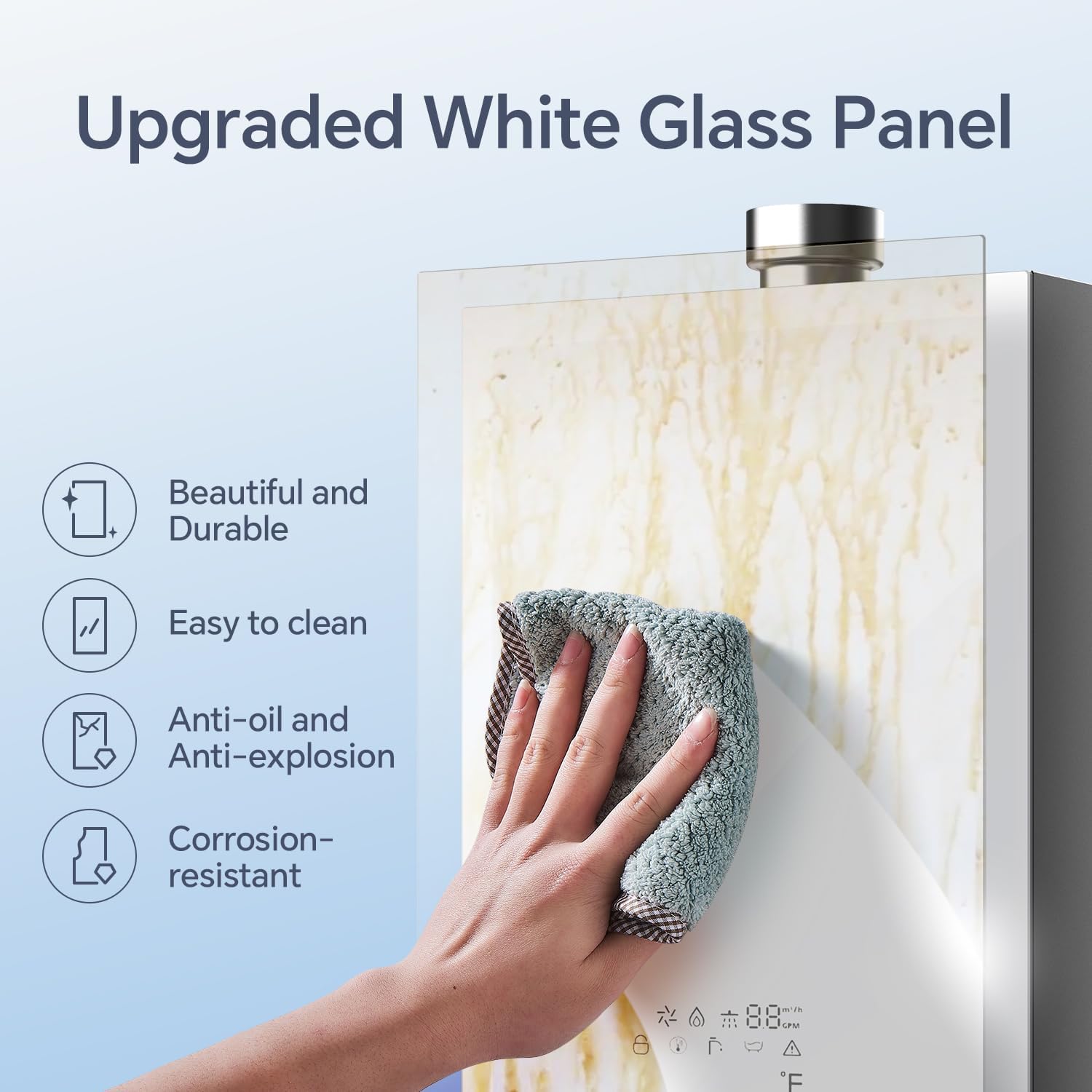

Image: A hand cleaning the upgraded white glass panel, highlighting its easy-to-clean surface.

7 Issolvi l-problemi

Jekk tiltaqa' ma' problemi, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

• L-ebda ilma sħun: Check gas supply, water supply, and electrical connection. Ensure the unit is powered on and the temperature setting is appropriate.
• Temperatura inkonsistenti: Verify water flow rate is within the recommended range. The unit's precise temperature control system should minimize fluctuations.
• Kodiċi ta' Żball: Refer to the LED display for any fault signals. Consult the full instruction manual for specific error code meanings and troubleshooting steps.

8. Speċifikazzjonijiet

Image: Visual representation of the water heater's dimensions and a table of key specifications.

9. Garanzija u Appoġġ

The Ranein Natural Gas Tankless Water Heater comes with a 2-year free service warranty and 8 types of security protection features, ensuring peace of mind.

For technical assistance, warranty claims, or further inquiries, please contact Ranein customer support through the official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta mad-dokumentazzjoni tax-xiri tiegħek.

Image: A graphic detailing the 2-year free service and 8 types of security protection included with the product.
