Manwal tal-Utent tal-Kamera tad-Dash tal-Mutur Aoocci C6 PRO

1. Introduzzjoni

The Aoocci C6 PRO is an advanced motorcycle dash camera system designed to enhance your riding safety and convenience. It features 4K 1080P dual recording, wireless CarPlay and Android Auto integration, built-in GPS for navigation and route tracking, emergency lock functionality, and IP67 waterproof rating. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your device.

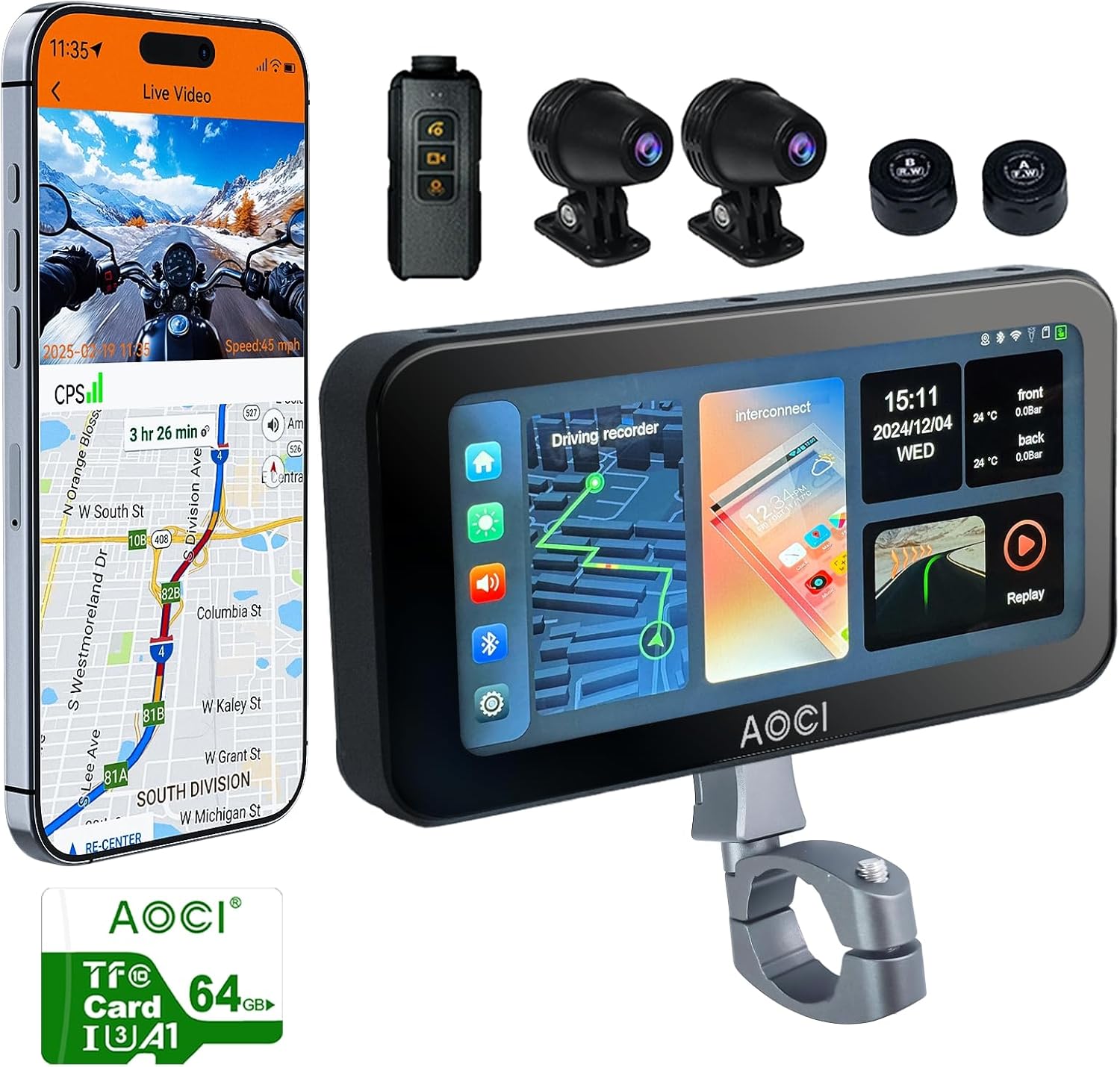

Aoocci C6 PRO Motorcycle Dash Cam and its included accessories.

2. X'hemm fil-Kaxxa

Jekk jogħġbok ivverifika li l-komponenti kollha li ġejjin huma inklużi fil-pakkett tiegħek:

• Motorcycle Dash Cam main unit
• Kameras ta 'quddiem u ta' wara
• Bracket (Suitable for 16-36mm diameter) and TPMS
• Controller and 64GB TF Card
• Aċċessorji u Għodda

All main parts of the C6 PRO system.

3. Setup u Installazzjoni

Installing the C6 PRO is designed to be straightforward. Follow these general steps:

1. Immuntar l-Unità Prinċipali: Secure the main display unit to your motorcycle handlebar using the provided adjustable ball-head bracket. Ensure it is in a position that does not obstruct your view jew kontrolli.
2. Install Cameras: Mount the front and rear cameras in desired locations, ensuring a clear field of view. The 140-degree wide-angle lenses provide extensive coverage.
3. Qabbad l-Enerġija: Connect the power cable to your motorcycle's battery. The system is designed for low power use to protect your battery.
4. Konnessjoni tal-Komponenti: Connect the cameras, wired remote, and TPMS sensors (if applicable) to the main unit using the provided cables.
5. Daħħal il-Karta tat-TF: Insert the 64GB TF card into the designated slot on the main unit.

Example of the main unit mounted on a motorcycle handlebar.

4. Istruzzjonijiet Operattivi

4.1. Dual Recording & Wide Angle

The C6 PRO features dual cameras that record in 1080P Full HD at 30fps, capturing sharp details and vivid colors. HDR support ensures clear video even in challenging light conditions. Both front and rear cameras offer a 140-degree wide-angle view, balancing coverage and detail.

Front and rear cameras provide 1080P dual channel recording with 140-degree wide angles.

4.2. CarPlay mingħajr fili u Android Auto

Connect your smartphone wirelessly to the C6 PRO display to access navigation, music, and hands-free calls directly from the system. This feature helps you stay focused on the road by integrating essential phone functions into the dash cam display.

Seamless integration with Wireless CarPlay and Android Auto.

4.3. GPS inkorporat

The integrated GPS system records your path and provides detailed journey data, including location, speed, and altitude. You can review your routes at any time to ensure you stay on track.

Built-in GPS records your motorcycle's location, path, time, and speed data.

4.4. Reġistrazzjoni f'Loop u Serratura ta' Emerġenza

The loop recording function automatically overwrites older files to save new ones, preventing storage from filling up. The built-in G-sensor detects sudden impacts or collisions and automatically locks the corresponding footage, protecting critical moments from being erased.

G-sensor for emergency lock and continuous loop recording.

4.5. Bluetooth & Wi-Fi Connectivity

The C6 PRO connects seamlessly to your smartphone via Bluetooth for pairing and utilizes Wi-Fi 5.0GHz for fast data transfer. It supports 1-to-2 connectivity, allowing you to connect both your smartphone and helmet simultaneously for enhanced convenience.

4.6. Karatteristiċi tal-Wiri

The 6.25-inch touchscreen features a super bright 1000-nit display, ensuring excellent visibility in all lighting conditions, including direct sunlight. The screen automatically adjusts its brightness based on ambient light.

4.7. Tire Pressure and Temperature Monitoring (TPMS)

Stay informed about your motorcycle's health with real-time tire pressure and temperature monitoring. This feature helps prevent potential tire-related issues, contributing to a smoother and safer ride.

Real-time tire pressure and temperature monitoring for enhanced safety.

4.8. Kontroll mill-Bogħod bil-Fili

The included wired remote control allows for easy operation of key functions, such as answering calls, switching between front and rear cameras, and turning the camera on or off, without needing to interact directly with the main unit.

5. Manutenzjoni

To ensure the longevity and optimal performance of your Aoocci C6 PRO dash cam, follow these maintenance guidelines:

• Tindif: Uża artab, damp cloth to clean the display and camera lenses. Avoid abrasive materials or harsh chemicals.
• Klassifikazzjoni li ma jgħaddix ilma minnha: The device is IP67 waterproof, meaning it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, avoid high-pressure water jets directly on the cameras or main unit.
• Ħażna: Meta ma tkunx qed tużaha għal perjodi twal, aħżen id-dash cam f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.

The C6 PRO is IP67 waterproof and heat-resistant for reliable performance.

6 Issolvi l-problemi

If you encounter any issues with your Aoocci C6 PRO, please refer to the following general troubleshooting tips:

• Apparat mhux mixgħul: Check all power connections to ensure they are secure and correctly wired to the motorcycle battery. Verify the battery has sufficient charge.
• Kwistjonijiet ta' reġistrazzjoni: Ensure the TF card is properly inserted and not full. Format the TF card if necessary (this will erase all data). Check camera connections.
• Connectivity problems (CarPlay/Android Auto/Bluetooth/Wi-Fi): Ensure your smartphone's Bluetooth and Wi-Fi are enabled. Restart both the dash cam and your smartphone. Check for any interference.
• Il-GPS mhux qed isegwi: Kun żgur li l-modulu tal-GPS huwa konness sew u għandu viżibilità ċara view tas-sema.

For more complex issues or if the problem persists, please contact customer support.

7. Speċifikazzjonijiet Tekniċi

8. Garanzija u Appoġġ għall-Klijent

Aoocci offers a Assigurazzjoni ta 'kwalità ta' 12 xhur for the C6 PRO Motorcycle Dash Cam. We are committed to providing excellent customer service.

If you have any questions, require technical support, or encounter any issues with your product, please do not hesitate to email our after-sales team directly. We aim to respond to all inquiries within 24 hours.

For the most up-to-date contact information, please refer to the product packaging or the official Aoocci websit.
