Manwal tal-Utent tal-Kaxxa tal-PC GAMEMAX Starlight 2 AB Mid Tower ATX

1. Introduzzjoni

Thank you for choosing the GAMEMAX Starlight 2 AB Mid Tower ATX PC Case. This manual provides essential information for the proper installation, operation, and maintenance of your new PC case. Please read this manual thoroughly before beginning the assembly process to ensure optimal performance and longevity of your system components.

2. Informazzjoni dwar is-Sigurtà

• Dejjem skonnettja l-provvista tal-enerġija mis-sokit tal-ħajt qabel ma tinstalla jew tneħħi xi komponenti.
• Handle all components with care to prevent damage.
• Ilbes ċinga tal-polz anti-statika biex tevita ħsara minn skarika elettrostatika (ESD) lil komponenti sensittivi.
• Keep the case away from direct sunlight, high temperatures, and moisture.
• Kun żgur li jkun hemm ventilazzjoni xierqa madwar il-kaxxa biex tevita li tissaħħan iżżejjed.
• Do not attempt to modify the case or its components, as this may void your warranty and pose a safety risk.

3. Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• GAMEMAX Starlight 2 AB Mid Tower ATX PC Case
• Kaxxa tal-Aċċessorji (li fiha viti, standoffs, rabtiet tal-kejbil, eċċ.)
• Manwal għall-Utent (dan id-dokument)

4. Prodott Aktarview

The GAMEMAX Starlight 2 AB is a Mid Tower ATX PC case designed for efficient cooling and versatile configurations. It features a tempered glass side panel, pre-installed ARGB fans, and comprehensive hardware compatibility.

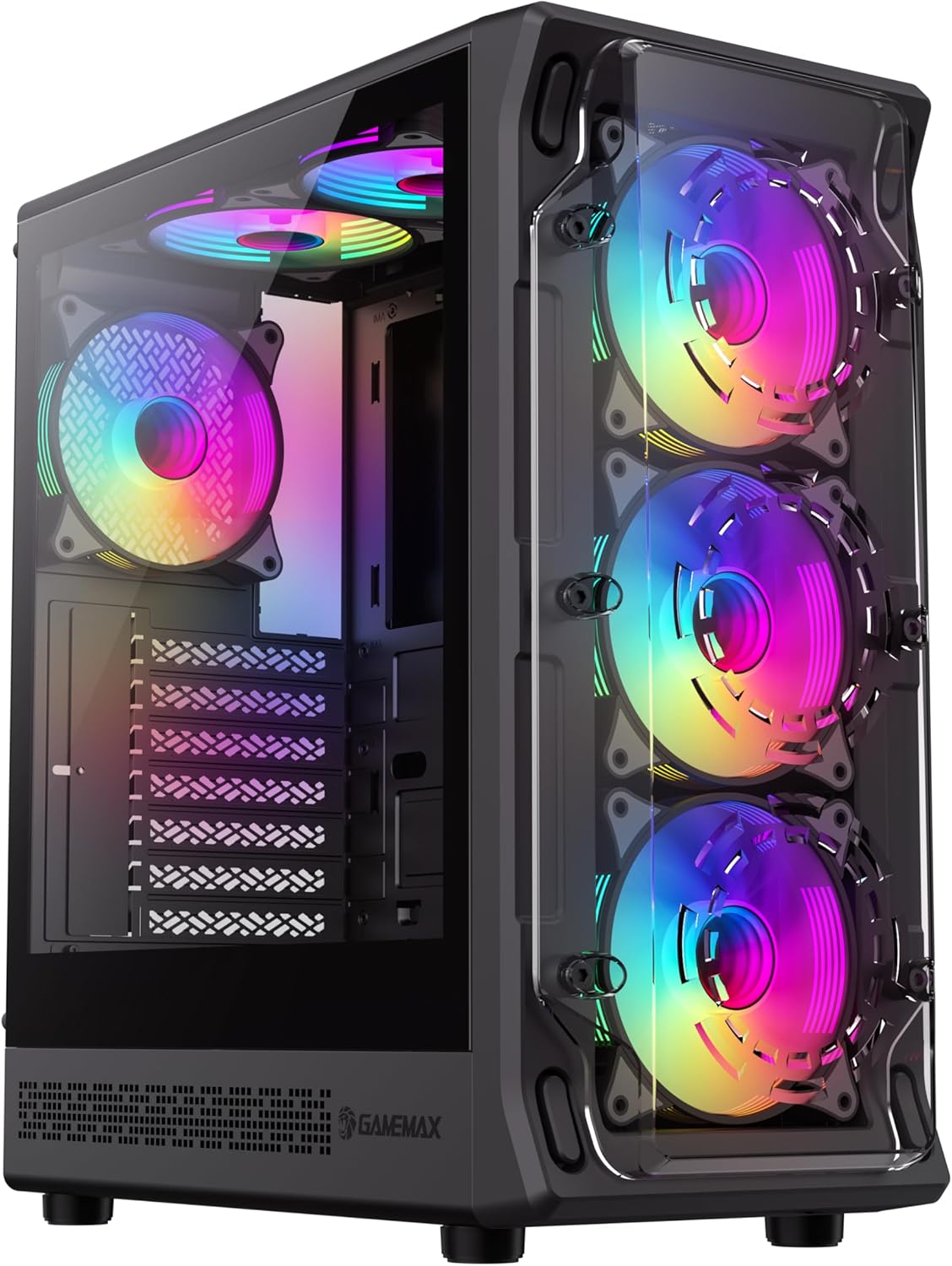

Figura 4.1: Quddiem ix-xellug view of the GAMEMAX Starlight 2 AB PC Case, showcasing the tempered glass side panel and the vibrant ARGB lighting of the pre-installed fans.

Figura 4.2: Quddiem dirett view highlighting the three 120mm ARGB fans, visible through the clear front panel, designed for optimal airflow.

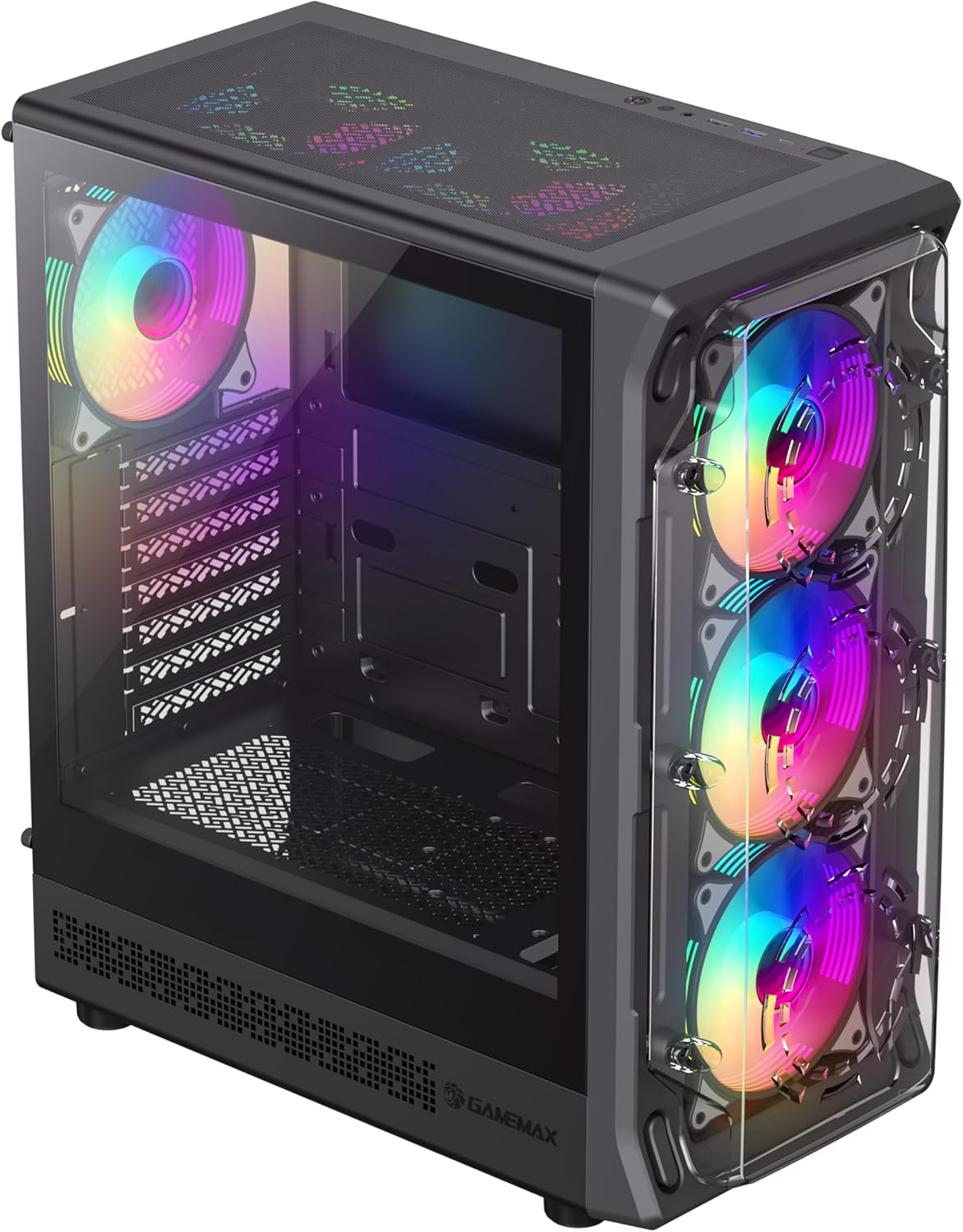

Figura 4.3: Top-front perspective showing the top-mounted I/O panel, including USB ports and audio jacks, along with the mesh top panel for additional cooling.

Figura 4.4: Wara view of the PC case, illustrating the rear exhaust fan, expansion slots, and the power supply mounting area at the bottom.

Figura 4.5: Intern view of the main chamber, showing the motherboard tray, fan mounts, and ample space for component installation.

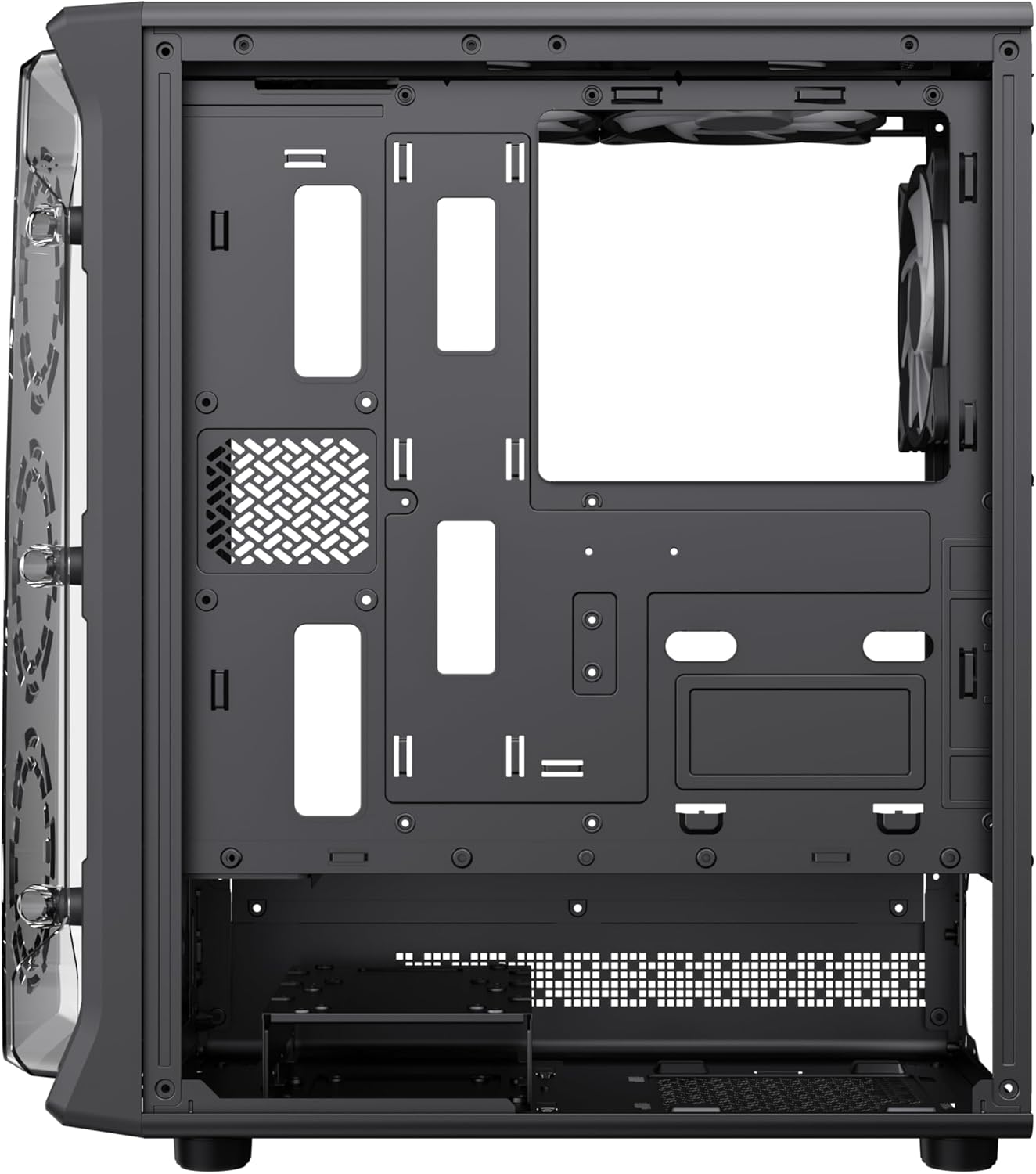

Figura 4.6: View behind the motherboard tray, revealing cable routing cutouts and mounting points for storage drives, facilitating clean cable management.

5. Speċifikazzjonijiet

6. Setup u Installazzjoni

6.1 Tħejjija tal-Każ

1. Poġġi l-kaxxa fuq wiċċ ċatt u stabbli.
2. Carefully remove the tempered glass side panel by unscrewing the thumb screws and sliding it open. Set it aside in a safe place.
3. Remove the solid right side panel to access the cable management area.

6.2 Installazzjoni tal-Motherboard

1. Installa l-ilqugħ tal-I/O fil-ftuħ ta' wara tal-kaxxa.
2. Align your motherboard with the standoffs inside the case. Ensure the standoffs match your motherboard's form factor (ATX, Micro ATX, Mini ITX).
3. Waħħal il-motherboard bil-viti pprovduti.

6.3 Installazzjoni tal-Unità tal-Provvista tal-Enerġija (PSU).

1. Mount the PSU into the dedicated compartment at the bottom rear of the case.
2. Waħħal il-PSU bil-viti minn wara tal-kaxxa.

6.4 Storage Device Installation (HDD/SSD)

• Locate the drive bays or mounting points for 3.5" HDDs and 2.5" SSDs.
• Install your storage devices using the appropriate screws.

6.5 Installazzjoni tal-Karta tal-Grafika (GPU) u l-Karta tal-Espansjoni

1. Neħħi l-għata tas-slott ta' espansjoni meħtieġa minn wara tal-kaxxa.
2. Insert your graphics card or other expansion cards into the PCIe slots on your motherboard.
3. Waħħal il-karti bil-viti.

6.6 Connecting Front I/O Cables

Connect the following cables from the case's front I/O panel to the corresponding headers on your motherboard:

• Header USB 3.0
• Header USB 2.0
• Type-C Header (if applicable)
• HD Audio Header
• Power Switch, Reset Switch, Power LED, HDD LED headers

6.7 Ġestjoni tal-Cable

Utilize the cable routing cutouts and tie-down points behind the motherboard tray to organize and secure cables. This improves airflow and aesthetics.

7. Istruzzjonijiet Operattivi

7.1 Tixgħel

After all components are installed and cables are connected, replace both side panels. Connect your power cable to the PSU and a wall outlet, then press the power button on the case's front I/O panel to start your system.

7.2 ARGB Fan Control

The pre-installed ARGB fans can be controlled via your motherboard's ARGB software (e.g., ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, ASRock Polychrome Sync) if your motherboard supports a 3-pin 5V ARGB header. Connect the ARGB cable from the case's fan hub to the motherboard's ARGB header. Refer to your motherboard manual for specific instructions on ARGB software usage.

8. Manutenzjoni

8.1 Tindif tal-Filtri tat-Trab

The case includes integrated removable dust filters. Regularly clean these filters to maintain optimal airflow and prevent dust buildup inside your system. Gently slide out the filters, clean them with a soft brush or rinse with water (ensure they are completely dry before reinstallation), and then reinsert them.

8.2 General Case Cleaning

Uża artab, damp cloth to wipe down the exterior surfaces of the case. For the tempered glass panel, use a glass cleaner and a microfiber cloth to avoid streaks. Avoid using harsh chemicals or abrasive materials.

9 Issolvi l-problemi

• Is-sistema ma tixgħelx: Ensure all power cables (24-pin ATX, 8-pin CPU, GPU power) are securely connected. Verify the PSU switch is in the 'ON' position. Check front panel power switch connection to the motherboard.
• Fans are not spinning or ARGB not working: Check fan power connections to the motherboard or fan hub. Ensure ARGB cables are correctly connected to a 3-pin 5V ARGB header on the motherboard. Verify ARGB software settings.
• L-ebda output tal-wiri: Confirm the graphics card is properly seated in its PCIe slot and power cables are connected. Ensure the monitor cable is connected to the graphics card, not the motherboard's integrated graphics port (unless using integrated graphics).
• Is-sħana żejda: Ensure all fans are spinning correctly and are oriented for proper airflow (intake/exhaust). Clean dust filters regularly. Verify CPU cooler installation.

10. Garanzija u Appoġġ

For warranty information or technical support, please refer to the GAMEMAX official webis-sit jew ikkuntattja lill-bejjiegħ lokali tiegħek. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

11. Informazzjoni dwar ir-Rimi

Please dispose of this product in accordance with local environmental regulations. Do not dispose of electronic waste with general household waste.
