Funsicle 8ft 6in Activity Lap Pool Instruction Manual

1. Introduzzjoni

Thank you for choosing the Funsicle 8ft 6in Activity Lap Pool. This above-ground rectangular pool is designed for fitness, aquatic workouts, and recreational fun. Its durable construction and easy assembly make it an ideal addition to small backyards. This manual provides essential information for the safe setup, operation, and maintenance of your new pool.

The Funsicle 8ft 6in Activity Lap Pool set up in a backyard, with a family enjoying the pool on a sunny day.

Karatteristiċi ewlenin:

• Quick assembly with strong metal tubes and lock pins.
• Durable and puncture-resistant 3-ply Toughmesh™ materials.
• Measures 8 feet 6 inches in length, suitable for exercise and relaxation.
• Built with sturdy materials for longevity and regular use.

2. Informazzjoni dwar is-Sigurtà

Read and understand all safety warnings and instructions before setting up and using your pool. Failure to follow these instructions can result in serious injury or death.

• Superviżjoni tal-adulti Meħtieġa: Always supervise children and non-swimmers.
• L-Għadsa jew il-Qbiż Mhux Permess: The pool is not deep enough for diving or jumping. Serious injury can result.
• Maintain Water Chemistry: Properly balance and sanitize pool water to prevent waterborne illnesses.
• Żomm iż-Żona Ċara: Ensure the area around the pool is clear of obstacles and tripping hazards.
• Sigurtà Elettrika: Tużax apparati elettriċi ħdejn il-pixxina.
• Tħejjija għal Emerġenza: Keep emergency contact information readily available.

3. Kontenut tal-Pakkett

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Funsicle customer support.

• Pool Liner (Durable 3-ply Toughmesh™ material)
• Frame Tubes (Horizontal and Vertical)
• Corner Connectors and T-Joints (SmartConnect frame components)
• Lock Pins
• Assemblaġġ tal-Plagg tad-Drain
• Manwal ta' Istruzzjoni

4. Setup

Preparazzjoni tas-Sit:

1. Select a firm, level surface for the pool. The ground must be completely flat to prevent stress on the frame and liner.
2. Clear the area of any sharp objects, debris, or roots that could puncture the liner.
3. Ensure the chosen location has adequate drainage and is away from electrical outlets or overhead power lines.
4. Consider placing a ground cloth (not included) under the pool for added protection.

Passi tal-Assemblea:

1. Unfold the pool liner and spread it out in the prepared area. Ensure the drain plug is positioned where it can be easily accessed for draining.
2. Begin assembling the frame by connecting the horizontal and vertical metal tubes using the SmartConnect corner connectors and T-joints. Listen for the click of the lock pins to ensure secure connections.
3. Insert the vertical support legs into the T-joints and ensure they are firmly seated.
4. Once the frame is fully assembled, carefully lift the liner and drape it over the frame, ensuring it is centered and evenly distributed.
5. Smooth out any wrinkles in the bottom of the liner.

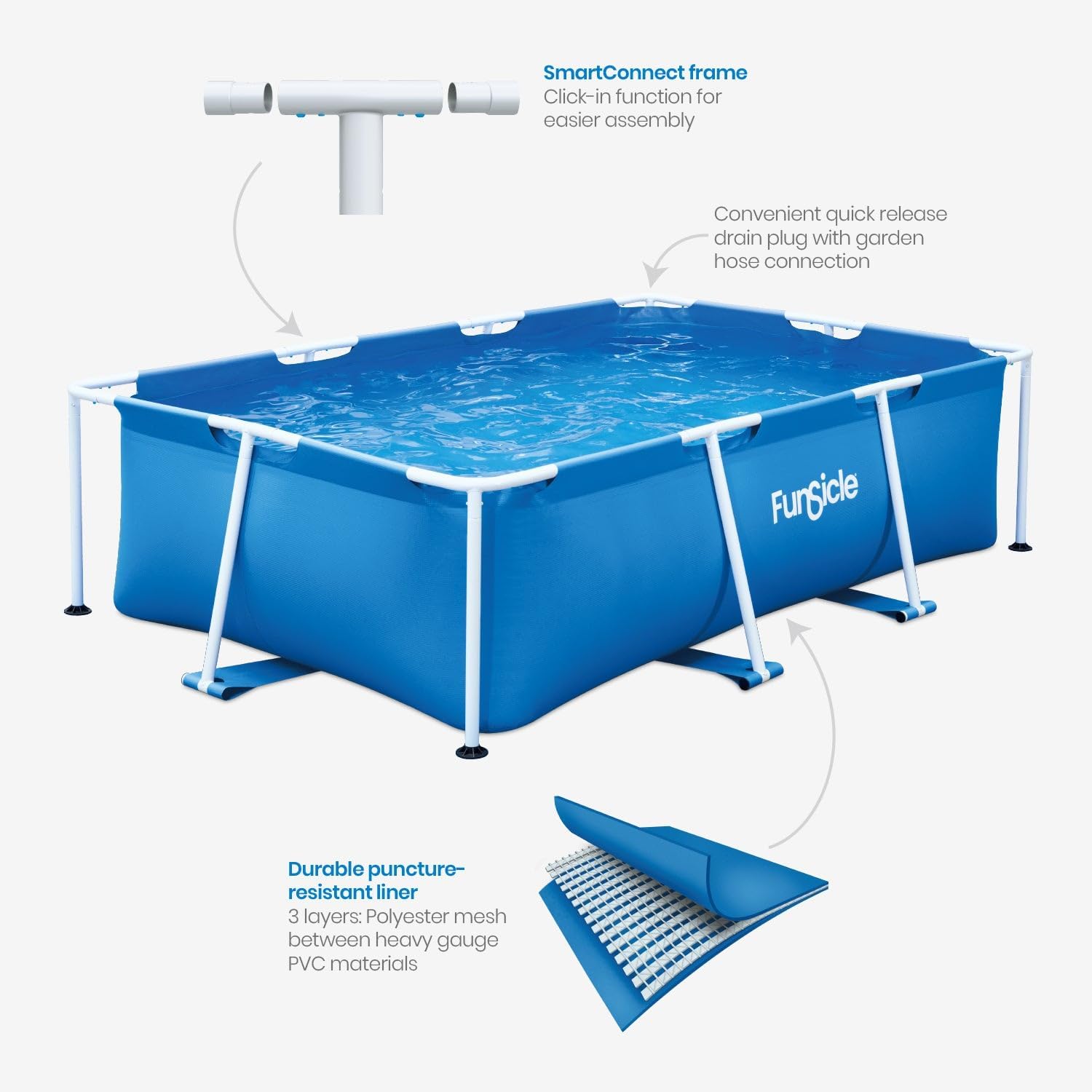

Diagram illustrating key features of the Funsicle Activity Lap Pool, including the SmartConnect frame for easy assembly, the convenient quick-release drain plug with garden hose connection, and the durable puncture-resistant 3-ply Toughmesh liner material.

Close-up view of the SmartConnect frame connection point, showing how the white metal tubes securely click into place.

5. Joperaw

Mili tal-pool:

1. Once the frame is fully assembled and the liner is in place, begin filling the pool with water.
2. As the pool fills, continue to smooth out any remaining wrinkles in the bottom of the liner.
3. Fill the pool to the recommended water line, typically indicated on the liner or in the manual. Do not overfill.

Trattament tal-Ilma:

Proper water chemistry is crucial for safe and enjoyable swimming. Consult a pool supply professional for specific recommendations for your local area.

• Ittestja l-Ilma Regolarment: Use a water test kit to check pH, chlorine, and alkalinity levels.
• Sanitizza: Add appropriate pool sanitizers (e.g., chlorine) according to manufacturer instructions.
• Balance pH: Żomm il-livelli tal-pH bejn 7.4 u 7.6.

6. Manutenzjoni

Manutenzjoni regolari testendi l-ħajja tal-pixxina tiegħek u tiżgura ambjent nadif għall-għawm.

Manutenzjoni ta' Kuljum/Kull Ġimgħa:

• Skim Debris: Use a skimmer net to remove leaves, insects, and other debris from the water surface.
• Vacuum Pool: Perjodikament vacuum cleaner qiegħ il-pixxina biex tneħħi l-ħmieġ u l-fdalijiet li jkunu waqgħu.
• Clean Liner: Imsaħ il-kisi tal-pixxina b'pinzell jew drapp artab biex tevita l-akkumulazzjoni tal-alka.
• Iċċekkja l-Livelli tal-Ilma: Ensure water levels are maintained. Add water if necessary due to evaporation or splash-out.

Winterization (Off-Season Storage):

For prolonged periods of non-use, especially in colder climates, it is recommended to drain and store the pool.

1. Drain Pool: Connect a garden hose to the quick-release drain plug and open the plug to drain the water completely.
2. Nadif u Nixxef: Thoroughly clean the liner and frame components. Ensure all parts are completely dry before storage to prevent mold and mildew.
3. Żarma: Carefully disassemble the frame, reversing the assembly steps.
4. Aħżen sew: Store the liner and frame components in a dry, cool place, protected from extreme temperatures and pests.

7 Issolvi l-problemi

This section addresses common issues you might encounter with your Funsicle Activity Lap Pool.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information or technical support, please contact Funsicle customer service. Keep your proof of purchase and model number (P30509260) readily available when contacting support.

Manufacturer: Polygroup North America, Inc.
