Prodott Overview
The MIKIBY AK980 is a versatile 98% layout mechanical keyboard designed for enhanced productivity and gaming. It features tri-mode connectivity (Bluetooth, 2.4G wireless, and USB-C wired), a smart TFT display, a multi-function knob, hot-swappable switches, and vibrant RGB backlighting. Its gasket-mounted design ensures a comfortable and quiet typing experience.
Image: The MIKIBY AK980 keyboard, showcasing its 98% layout, smart display, and knob. The keyboard features a grey and yellow keycap color scheme with RGB backlighting.
X'hemm fil-Kaxxa
- AK980 keyboard
- Keycap Puller
- Cable USB
- Manwal għall-Utent
Setup
Modi ta' Konnettività
The AK980 keyboard supports three connection modes: Bluetooth (BT5.0), 2.4G wireless, and USB-C wired. A switch on the back of the keyboard allows you to select between MAC and WIN layouts, and between 2.4G, USB, and BT connection modes.
Image: The MIKIBY AK980 keyboard demonstrating its tri-mode connectivity options: Bluetooth, 2.4GHz Wireless, and Type-C wired. The image shows the keyboard connected to a desktop computer, a tablet, and a smartphone, highlighting its multi-device compatibility.
Konnessjoni Wireless 2.4G
- Locate the 2.4G USB dongle, typically stored in a slot on the keyboard.
- Ipplaggja d-dongle USB 2.4G f'port USB disponibbli fuq il-kompjuter tiegħek.
- Switch the keyboard's mode selector to "2.4G". The keyboard will automatically connect.
Immaġni: Close-up view of the MIKIBY AK980's metal knob and smart display. The image illustrates how to adjust volume (default), press down to enter the menu, rotate to select sections, and press to confirm selections.
Konnessjoni Bluetooth
- Switch the keyboard's mode selector to "BT".
- Fuq l-apparat tiegħek (kompjuter, tablet, smartphone), attiva l-Bluetooth u fittex apparati ġodda.
- Select "AK980" from the list of available devices to pair.
- The smart display will indicate successful pairing.
Video: This video demonstrates the Bluetooth connection process for the MIKIBY AK980 wireless keyboard. It shows how to switch the keyboard to Bluetooth mode and pair it with a device, with the smart display confirming the successful connection.
Konnessjoni bil-Wired USB-C
- Qabbad il-kejbil USB-C provdut mal-port USB-C tat-tastiera.
- Qabbad it-tarf l-ieħor tal-kejbil USB-C ma' port USB disponibbli fuq il-kompjuter tiegħek.
- Switch the keyboard's mode selector to "USB". The keyboard will be recognized automatically.
Istruzzjonijiet Operattivi
TFT Smart Display & Knob Functions
The 1.49-inch TFT smart display provides real-time information such as date, time, battery level, and connection mode. The multi-function knob allows for quick adjustments.
Image: A close-up of the MIKIBY AK980's metal knob and smart display. The image illustrates how to adjust volume (default), press down to enter the menu, rotate to select sections, and press to confirm selections.
- Adjust Volume (Default): Rotate the knob to increase or decrease the system volume.
- Daħħal il-Menu: Press down on the knob to enter the smart display's menu.
- Menù tan-Navigazzjoni: Rotate the knob to scroll through menu options (Home, RGB Modes, RGB Colors, RGB Speed, Language Settings, GIF Image display).
- Agħżel Għażla: Press down on the knob to select a highlighted menu option.

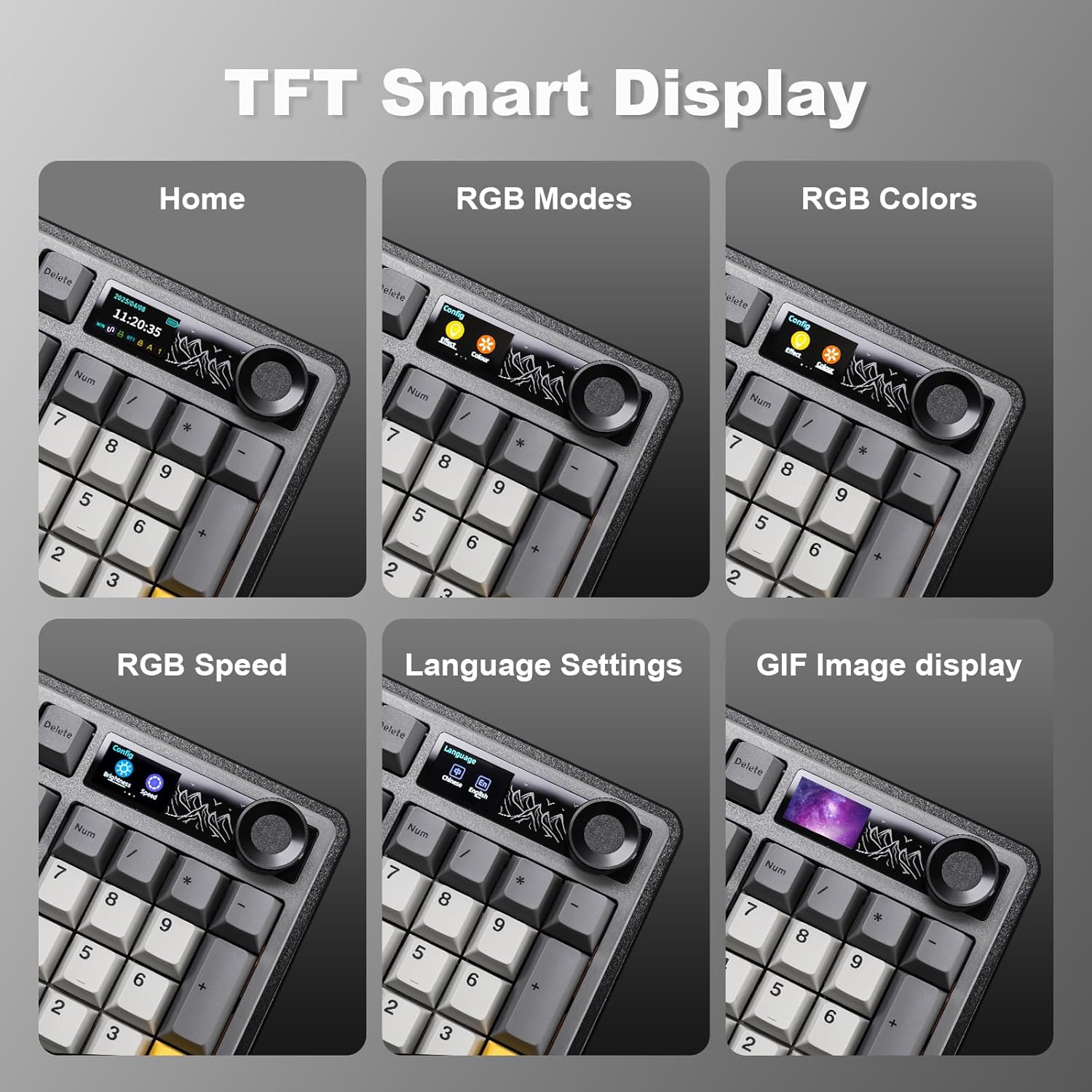

Image: Screenshots of the MIKIBY AK980's TFT Smart Display showing various menu options: Home screen with date/time/battery, RGB Modes, RGB Colors, RGB Speed, Language Settings, and GIF Image display.
Backlighting RGB
The keyboard features 20 pre-programmed RGB lighting effects. You can also customize effects via the web sewwieq.
- Ibdel l-Effett tad-Dawl: Agħfas FN + \ (backslash)
- Aġġusta l-luminożità: Agħfas FN + + (żieda) jew FN + - (tnaqqis)
- Change Direction Light: Agħfas FN + ← (left arrow) or FN + → (right arrow)
- Aġġusta l-Kulur tad-Dawl: Agħfas FN + ↑ (up arrow) or FN + ↓ (down arrow)
- Adjust Keyboard Light Speed: Agħfas FN + [ (żieda) jew FN + ] (tnaqqis)
- Ixgħel/Itfi d-Dawl ta' Wara: Agħfas FN + X
Image: The MIKIBY AK980 keyboard displaying various RGB lighting effects. The image also provides a guide to function key combinations for adjusting light effects, brightness, direction, color, and speed, as well as turning the backlight on/off.
Swiċċijiet Hot-Swappable
The AK980 supports 3/5-pin hot-swappable mechanical switches, allowing for easy customization without soldering. Use the included keycap puller and switch puller to replace switches.
Image: A demonstration of the MIKIBY AK980's hot-swappable feature, showing a switch being removed with a switch puller. Insets highlight PBT keycaps, Murad switches, mounted stabilizers, and south-facing LEDs.
Ħajja tal-batterija u Iċċarġjar
The keyboard is equipped with an 8000mAh battery. It offers up to 28 hours of use with RGB lighting on and up to 110 hours in sleeping mode (backlight off). Use the provided USB-C cable for charging.
Image: The MIKIBY AK980 keyboard highlighting its 8000mAh battery capacity. The image indicates 28 hours of endurance with RGB on and 110 hours in sleeping mode.
Manutenzjoni
- Tindif: Use a soft, dry cloth to wipe the keyboard surface. For deeper cleaning, remove keycaps using the keycap puller and use compressed air to clear debris.
- Kura tal-batterija: To prolong battery life, avoid fully discharging the battery frequently. Charge the keyboard regularly.
- Ħażna: Aħżen it-tastiera f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| It-tastiera ma tirrispondix | Low battery; Incorrect connection mode; Loose cable/dongle; Driver issue. | Charge the keyboard; Ensure correct mode (BT/2.4G/USB) is selected; Reconnect cable/dongle; Reinstall keyboard drivers on your computer. |
| Konnessjoni Bluetooth instabbli | Interference; Distance from device; Low keyboard battery. | Move closer to the device; Ensure no strong interference sources nearby; Charge the keyboard; Re-pair the Bluetooth connection. |
| RGB lights not working/customizing | Backlight turned off; Incorrect settings; Software issue. | Agħfas FN + X to toggle backlight; Use the knob menu or web driver to adjust settings; Ensure web driver is installed and updated. |
| Smart display not showing correct time/date | Time/date not synchronized. | Qabbad mal- web driver software to calibrate date and time. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | MIKIBY |
| Mudell | AK980 |
| Teknoloġija tal-Konnettività | Bluetooth (BT5.0), 2.4G Wireless, USB-C Wired |
| Deskrizzjoni tat-Tastiera | Mekkaniċi |
| Numru ta' Ċwievet | 97 (98% Layout) |
| Tappijiet ewlenin | PBT Keycaps |
| Swiċċijiet | Hot-Swappable (3/5-pin support), Murad Switch (default) |
| Stil tal-Immuntar | Gasket Immuntat |
| Backlighting | RGB (20 pre-programmed effects, web driver customization) |
| Karatteristiċi Speċjali | TFT Smart Display, Multi-function Knob, Ergonomic Design, 2-Level Feet |
| Kapaċità tal-batterija | 8000mAh |
| Ħajja tal-batterija | Up to 28 hours (RGB on), Up to 110 hours (backlight off) |
| Piż tal-oġġett | 3.19 liri |
| Dimensjonijiet tal-Pakkett | 17.99 x 7.76 x 2.32 pulzieri |
| Apparati Kompatibbli | Konsol tal-Logħob, Laptop, PC, Smartphone, Tablet |
Immaġni: Sploda view of the MIKIBY AK980 keyboard, illustrating its 5 silencer layers and internal components for sound dampening and improved typing feel. Components include TFT Color Screen, Metal volume knob, PBT keycaps, Upper keyboard case, Mechanical Switches, Stabilizers, FR4 Positioning Plate, Gaskets, PO sound-absorbing pad, PCB Plate, IXPE switch pad, PET sound foam, PO base sound foam, Silicone pad, Battery, Bottom keyboard case, and Anti-slip silicone pads.
Garanzija u Appoġġ
For warranty information and technical support, please refer to the official MIKIBY webis-sit jew ikkuntattja lis-servizz tal-konsumatur tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek għal talbiet ta' garanzija.
