1. Prodott Aktarview
The EUHOMY Crescent Ice Maker HZB-10M is a countertop appliance designed to produce crescent-shaped ice cubes. It features rapid ice production, an automatic deep cleaning function, and a smart timer for convenient operation.
Stampa 1.1: Quddiem view of the EUHOMY Crescent Ice Maker HZB-10M.
2. Informazzjoni dwar is-Sigurtà
Before operating the appliance, please read all instructions carefully to ensure safe and proper use. Retain this manual for future reference.
- Ensure the ice maker is placed on a stable, level surface.
- Tgħaddix l-apparat, korda, jew plagg fl-ilma jew likwidi oħra.
- Żomm l-apparat 'il bogħod minn sorsi ta' sħana u dawl tax-xemx dirett.
- Uża biss ilma tajjeb għax-xorb fir-riżervwar tal-ilma.
- Aqla 'l-apparat qabel it-tindif jew meta ma jkunx qed jintuża.
- Żomm lit-tfal 'il bogħod mill-apparat waqt it-tħaddim.
3. Setup
3.1 Tneħħija tal-kaxxa u tqegħid
Carefully remove the ice maker from its packaging. Place the unit upright on a flat, stable surface. Allow the unit to sit for at least 24 hours before first use to allow refrigerants to settle.

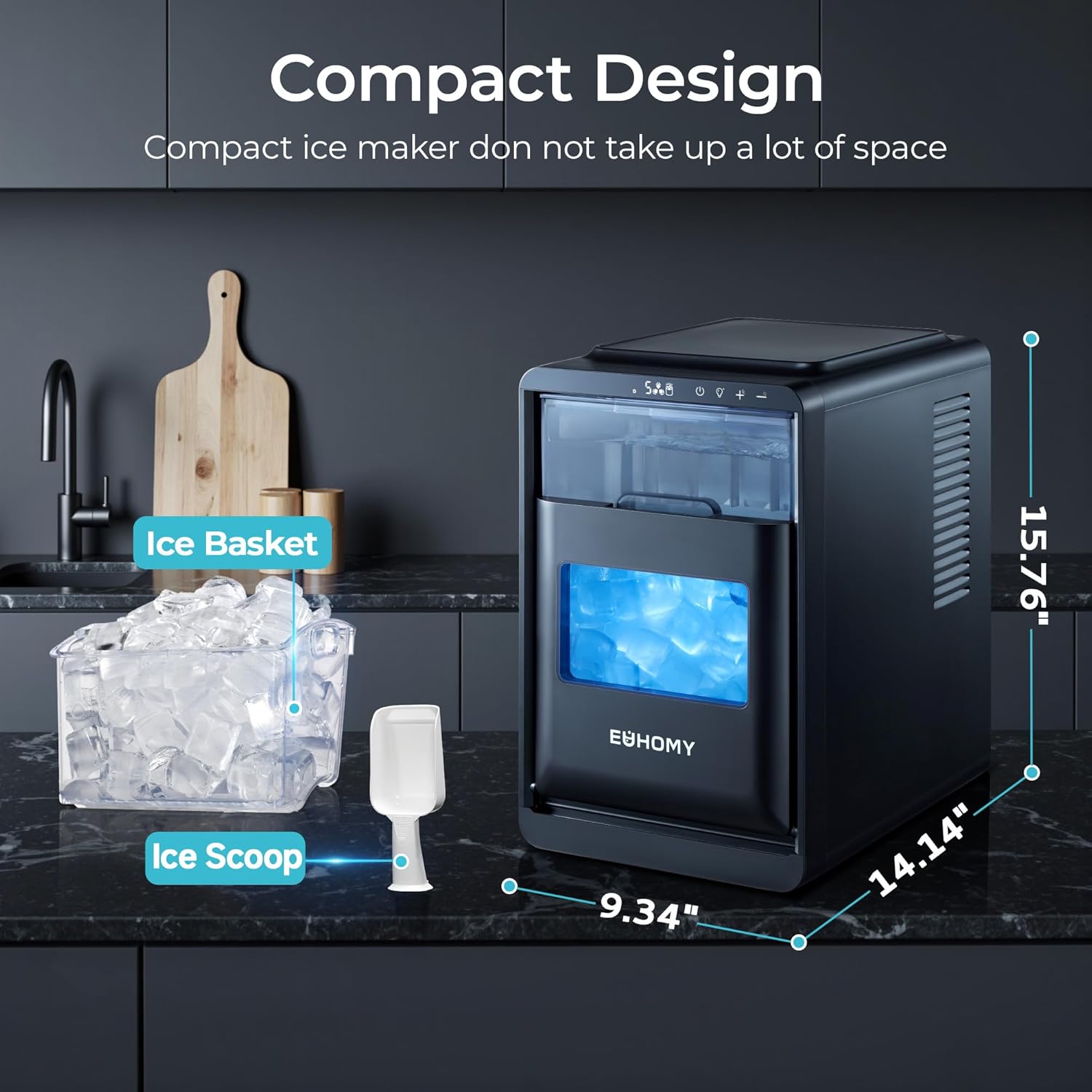

Image 3.1: The compact design of the ice maker, showing its dimensions (14.14"D x 9.34"W x 15.76"H) and included accessories like the ice basket and scoop.
3.2 Tindif Inizjali
Before first use, it is recommended to clean the interior of the ice maker. The unit features an automatic deep cleaning function. To activate, press and hold the "+" button for 5 seconds. This will initiate a 20-minute cleaning cycle. After the cycle, drain the water from the unit.
Image 3.2: Visual representation of the automatic deep cleaning process within the ice maker.
3.3 Mili tal-Ilma
The ice maker has a 1.8L water tank. You can fill it in two ways:
- Top-up via small inlet: Open the small lid on the top compartment and pour water directly into the reservoir.
- Remove reservoir: Pull out the entire water reservoir from the top compartment, fill it at a sink, and then slide it back into place.
It is recommended to use purified or distilled water to prevent mineral buildup and ensure clear ice production.
Image 3.3: Two user-friendly methods for refilling the water reservoir of the ice maker.
4. Istruzzjonijiet Operattivi
4.1 Power On/Off
Press the "ON/OFF" button on the control panel to start or stop ice production. The unit will begin making ice automatically once powered on and water is present.
4.2 Produzzjoni tas-Silġ
The ice maker produces 16 crescent ice cubes in approximately 12 minutes. With a full 1.8L water tank, it can produce up to 35 pounds of ice in 24 hours.
Image 4.1: The ice maker's production capacity, highlighting 35 lbs/24H and 16 pieces in 12 minutes.
4.3 Ice Thickness Adjustment
The ice maker allows for adjustment of ice cube thickness. Use the "+" and "-" buttons on the control panel to select your desired thickness (Small 6.5mm, Medium 10mm, Large 14mm).
Image 4.2: Ice thickness adjustment options for personalized ice cubes.
4.4 Smart Timer Function
To schedule ice production, press and hold the "-" button for 3 seconds. The display will show a flashing number indicating hours. Use the "+" and "-" buttons to set the desired delay (up to 24 hours) before the ice maker starts or stops. This feature is useful for preparing ice in advance, such as overnight for morning use.
Image 4.3: The timer setting allows for scheduled ice production.
4.5 Dawl Intern
The ice maker includes an internal light to illuminate the ice basket. This light can be turned on or off using the light bulb icon button on the control panel.
4.6 Ice Collection
Ice cubes are collected in a removable ice basket. Use the provided ice scoop to retrieve ice. The basket has drainage holes to allow melted ice to return to the reservoir for re-freezing, promoting water efficiency.
Image 4.4: The removable ice basket and scoop for convenient ice retrieval.
Vidjo 4.1: Riżultatview of the Euhomy Crescent Ice Maker, highlighting its features and ice production.
5. Manutenzjoni
5.1 Automatic Deep Cleaning
As mentioned in the setup section, the ice maker has an automatic deep cleaning function. To use it, ensure the water reservoir is filled, then press and hold the "+" button for 5 seconds. The cycle lasts 20 minutes. After completion, drain the water.
5.2 Tindif Regolari
For optimal performance and hygiene, regularly clean the ice maker's interior. Unplug the unit before manual cleaning. Wipe down surfaces with a soft cloth and mild detergent. Rinse thoroughly. Ensure all components are dry before reassembling and operating.
Video 5.1: A quick guide on how to clean the Euhomy Crescent Ice Maker.
5.3 Smart Water Recycling
The ice maker is designed with a smart water recycling system. Melted ice from the basket is automatically collected and filtered, then reused for new ice production. This boosts water efficiency and reduces waste.
Image 5.1: The smart water recycling system in action, showing water flow and filtration.
6 Issolvi l-problemi
Jekk tiltaqa' ma' problemi bil-magna tas-silġ tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
- L-ebda Produzzjoni tas-Silġ: Check if the unit is plugged in and powered on. Ensure the water reservoir is filled.
- "Add Water" Indicator: Refill the water reservoir. The unit will resume operation automatically.
- "Ice Full" Indicator: Empty the ice basket. The unit will resume operation automatically.
- Ħsejjes mhux tas-soltu: Minor noises during operation are normal (e.g., water pump, ice dropping). If noises are excessive or unusual, contact customer support.
- Cloudy Ice: Use purified or distilled water. Tap water may contain minerals that cause cloudiness.
7. Speċifikazzjonijiet
- Ditta: Ewħomija
- Isem tal-Mudell: HZB-10M
- Dimensjonijiet tal-Prodott: 14.14"D x 9.34"W x 15.76"H
- Capacity (Ice Production per Day): 35 Liri
- Kapaċità tat-Tank tal-Ilma: 1.8 Liters (approx. 2.19 Pounds)
- Wattage: 195 watt
- Voltage: 115 Volts
- Refriġerant: R290a
- Piż tal-oġġett: 22.4 liri
- Kulur: Iswed
- Komponenti Inklużi: Ice Maker Machine, Ice Scoop, Ice Basket, Instruction Manual
8. Garanzija u Appoġġ
For warranty information, technical support, or service inquiries, please refer to the contact details provided in your product packaging or visit the official EUHOMY websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.
